Article-No.:
93076
LED Module recessed luminaire
Base Coin
round 51mm Coin 5W 370lm 230V 3000K Opal
round 51mm Coin 5W 370lm 230V 3000K Opal
A
G
G
- Color temperatur: 3000K - Warm white
- Operating voltage: 230 V
LED Module recessed luminaire Base Coin round 51mm Coin 5W 370lm 230V 3000K Opal

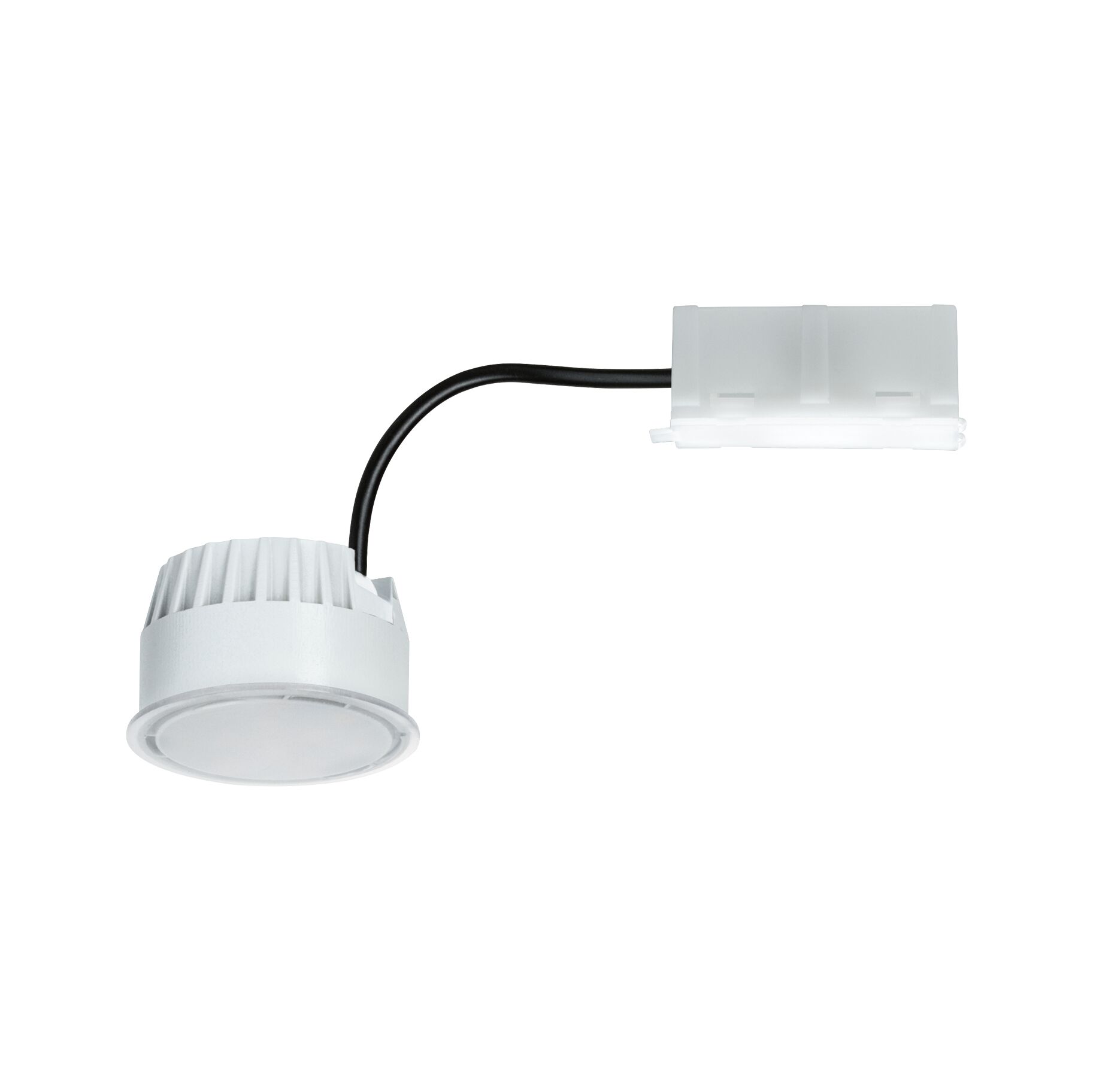

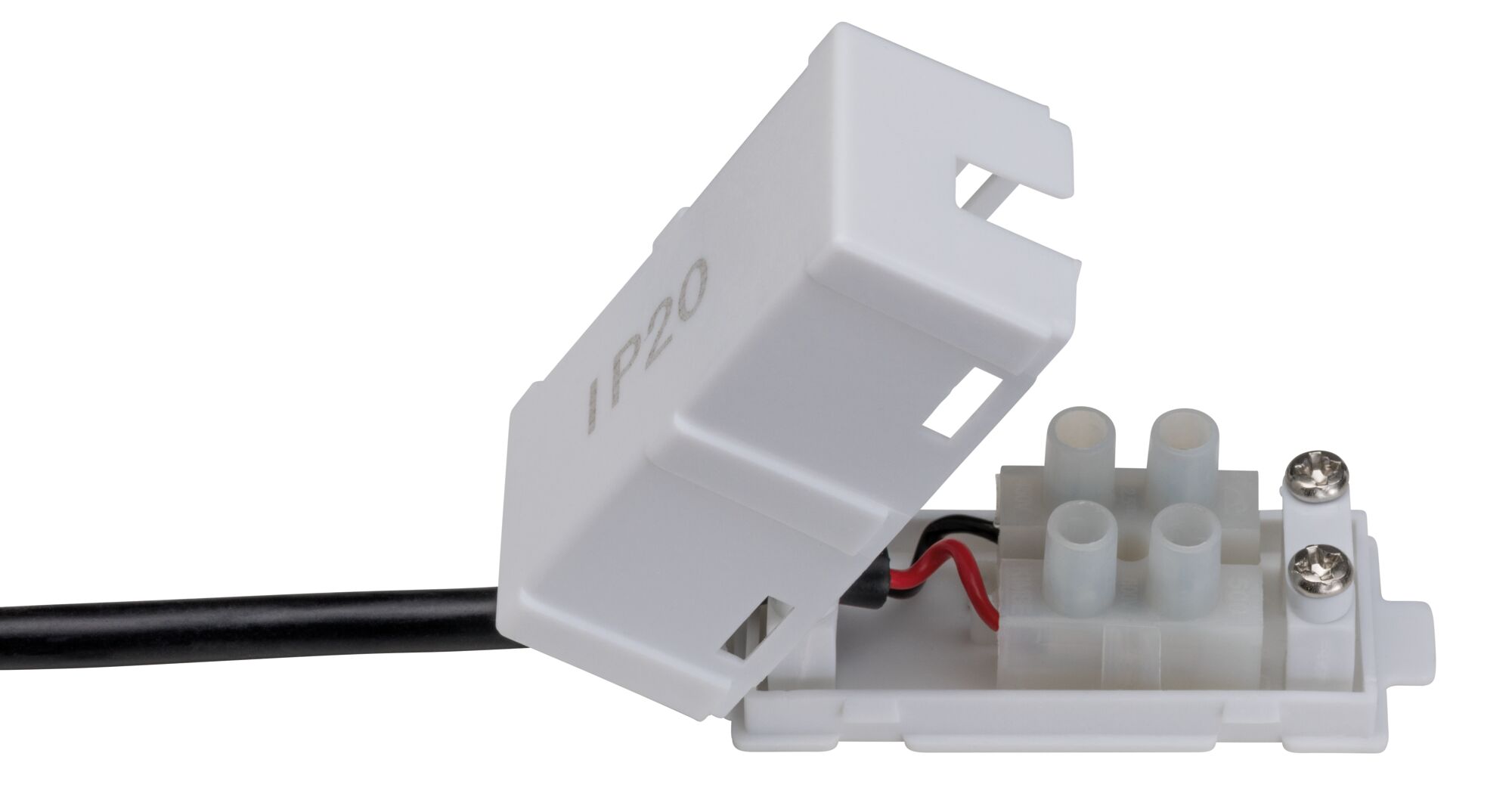

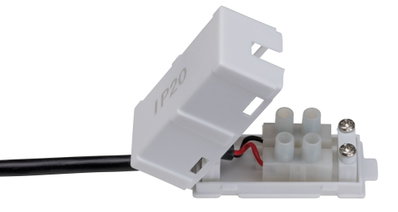

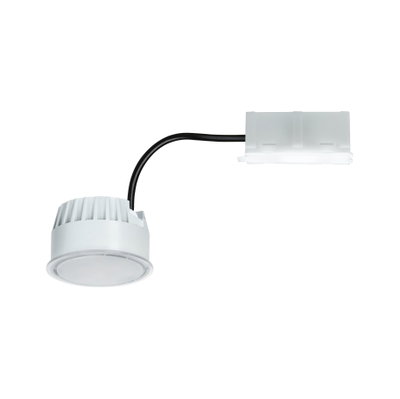

The innovative Base coins with a warm white light can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!
- Color temperatur: 3000K - Warm white
- Operating voltage: 230 V
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 mm |
| Ø | 51 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Opal |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| lifetime | 15.000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 3000 K |
| Beam angle | 100 ° |
| Useful luminous flux | 370 lm |
| color temp | 3.000 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 370 lm |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| Socket | Coin |
| Dimmable | No |
| Incandescent Equivalent | 34 W |
| Inclusive lamp | ✓ |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 5 W |
| Transformer | |
|---|---|
| apparent power | 8.3 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
