Article-No.:
92473
LED Module recessed luminaire3-Step-Dim
Choose Coin 3-piece set
round 50mm Coin 3x6W 3x470lm 230V dimmable 2700K Satin
round 50mm Coin 3x6W 3x470lm 230V dimmable 2700K Satin

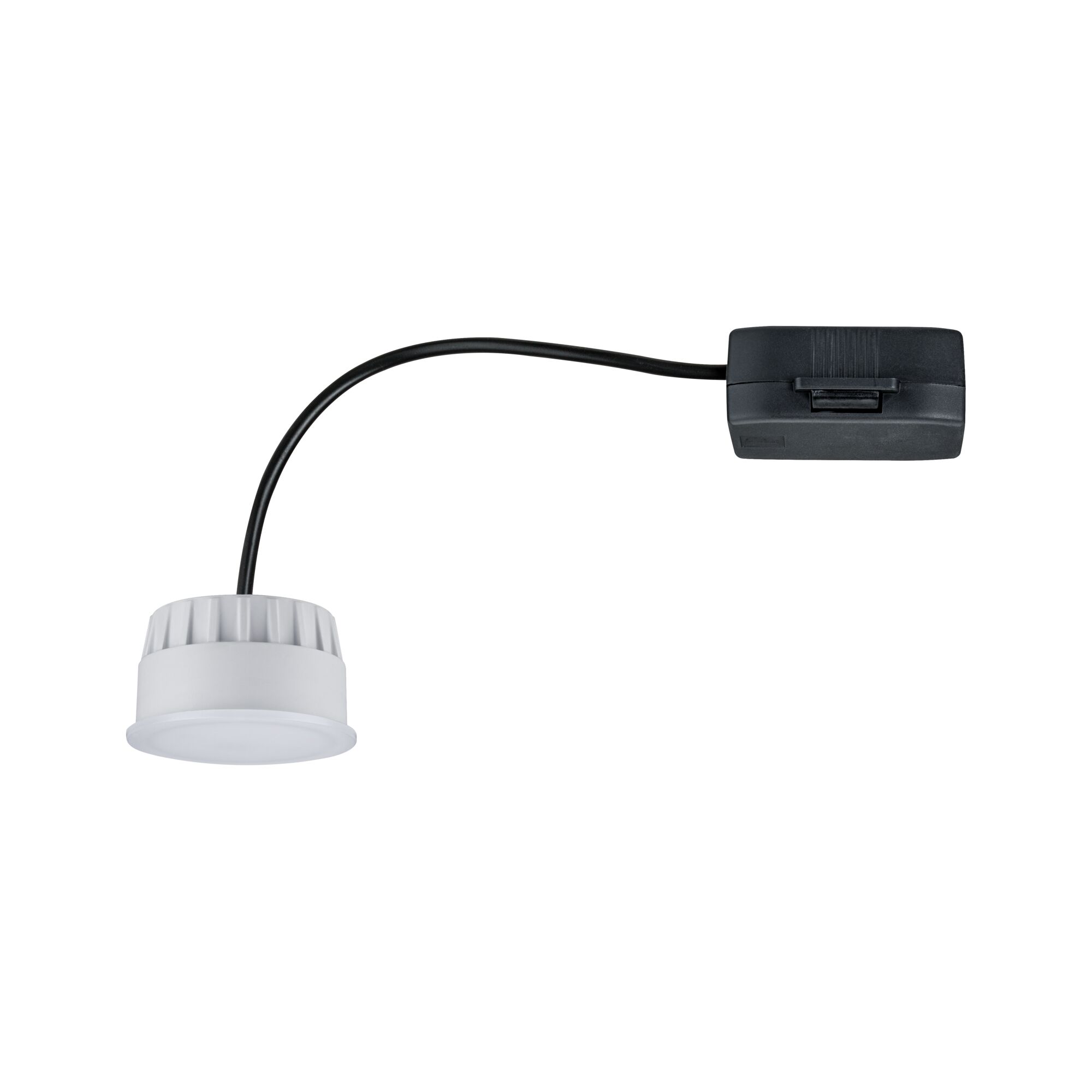

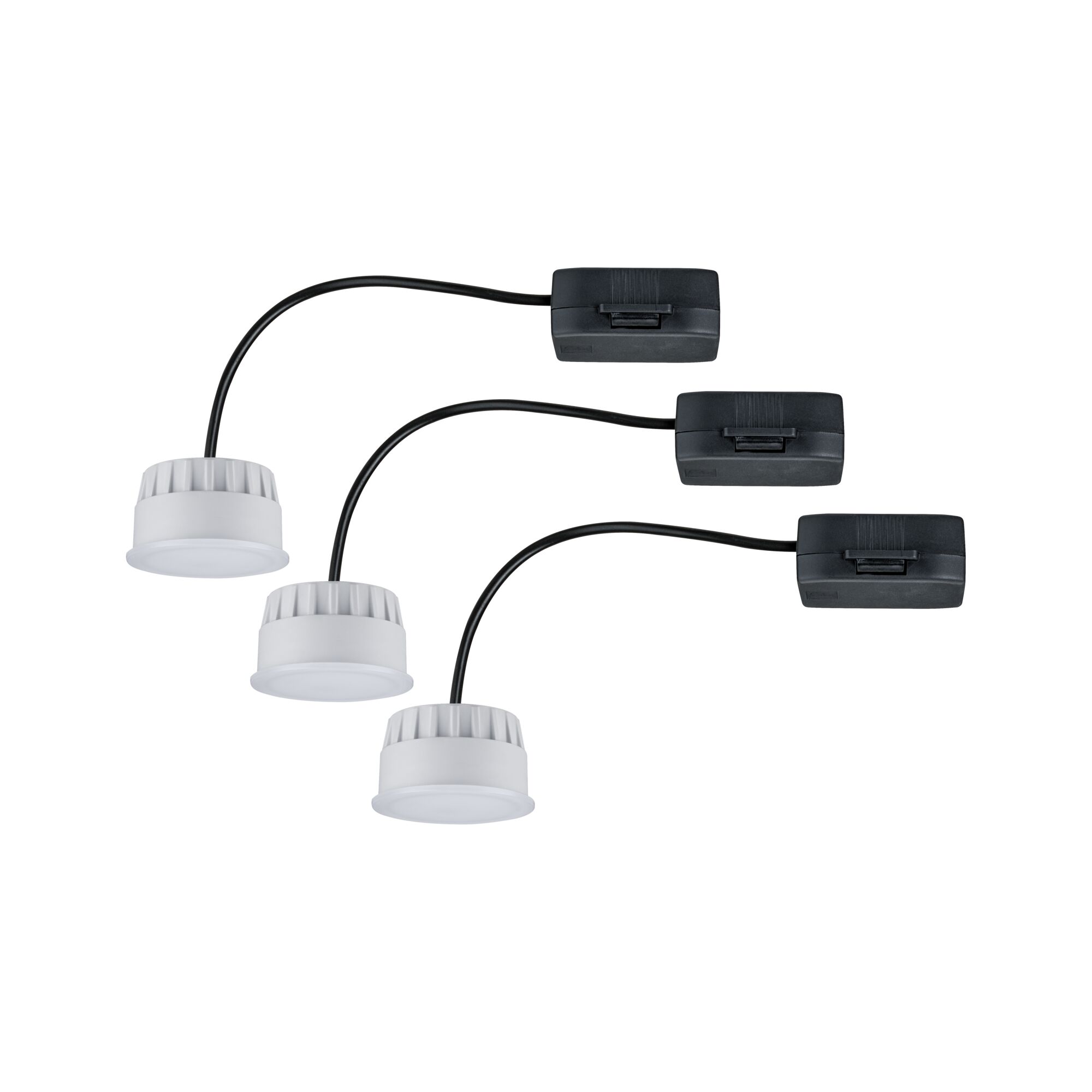

- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
LED Module recessed luminaire 3-Step-Dim Choose Coin 3-piece set round 50mm Coin 3x6W 3x470lm 230V dimmable 2700K Satin

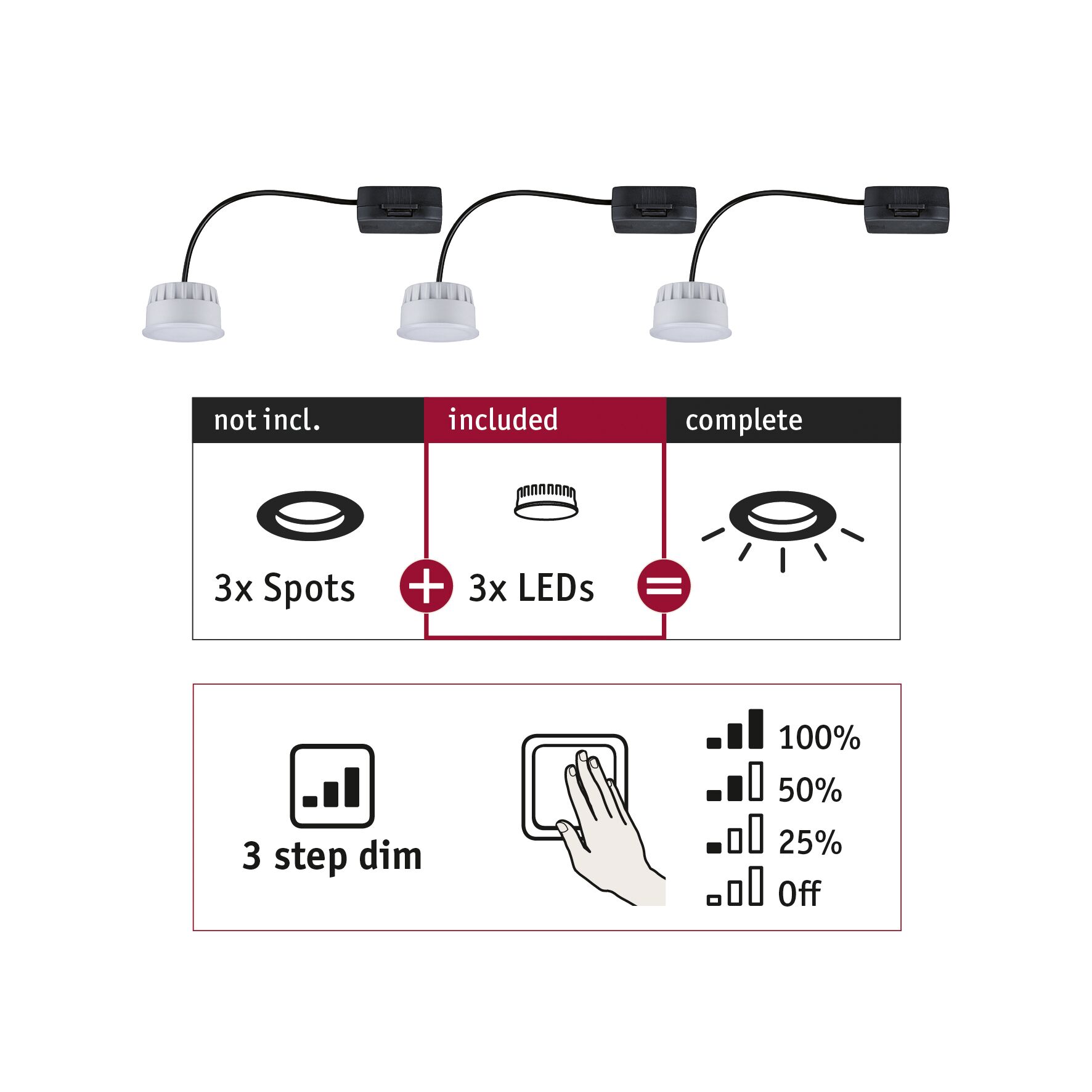

The flat coin lamps with 3-stage dimming are compatible with all mounting rings from the Choose series. The integrated 3-step dimming function offers three dimming levels with multiple pushes of a regular commercial light switch. Choose lets you combine any recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
- Can be dimmed with a standard light switch, with 3 dimming levels

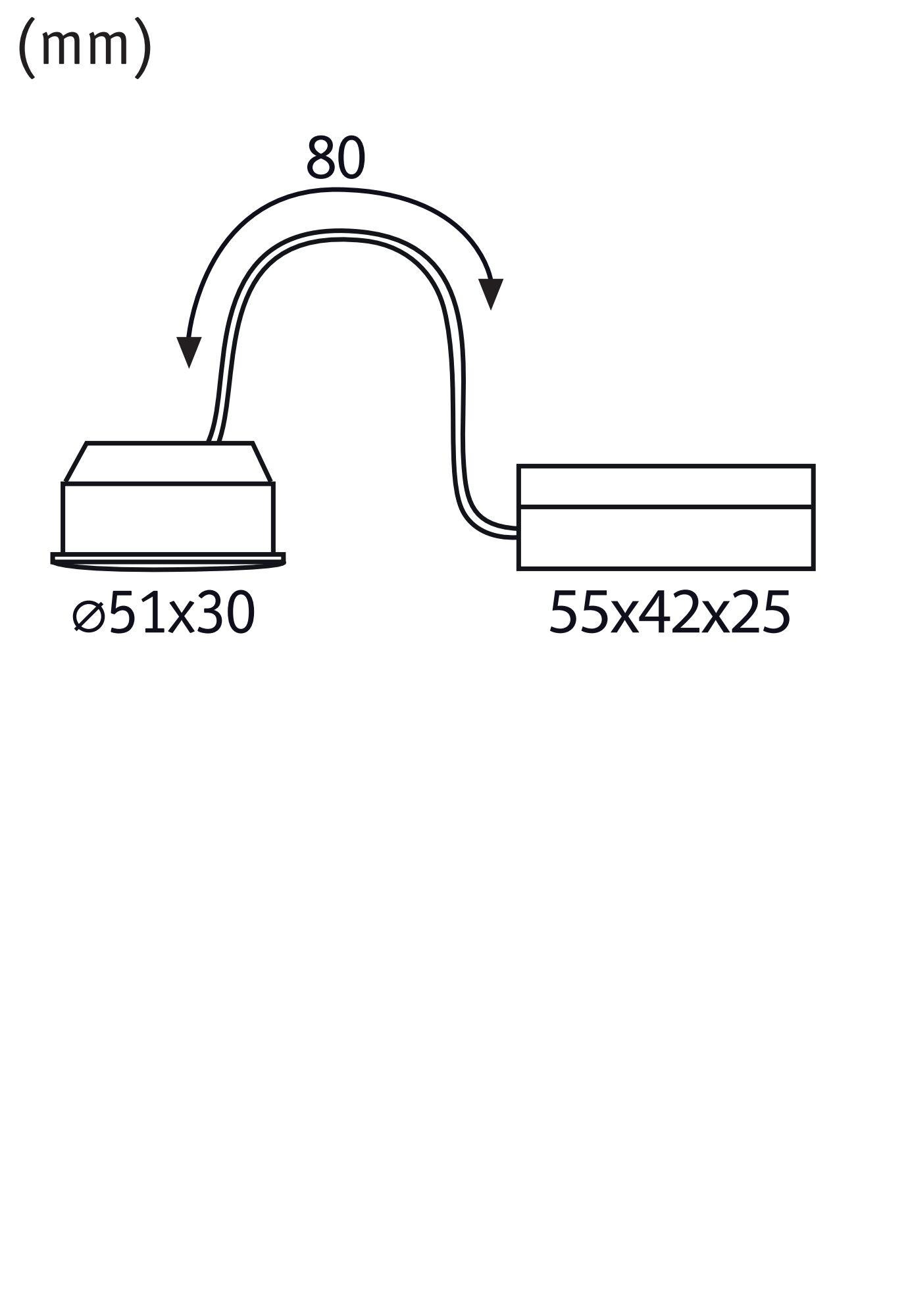

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Diameter | 50 mm |
| Built-in diameter | 68 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Satin |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 96 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel |
| Incandescent Equivalent | 40 W |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Power consumption | 7 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
