Article-No.:
70920
LED Floor luminaire3-Step-Dim
Ramos
2700K 840lm / 320lm 7,5W / 3,5W Matt white/Chrome
2700K 840lm / 320lm 7,5W / 3,5W Matt white/Chrome
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
- Including foot dimmer and switch

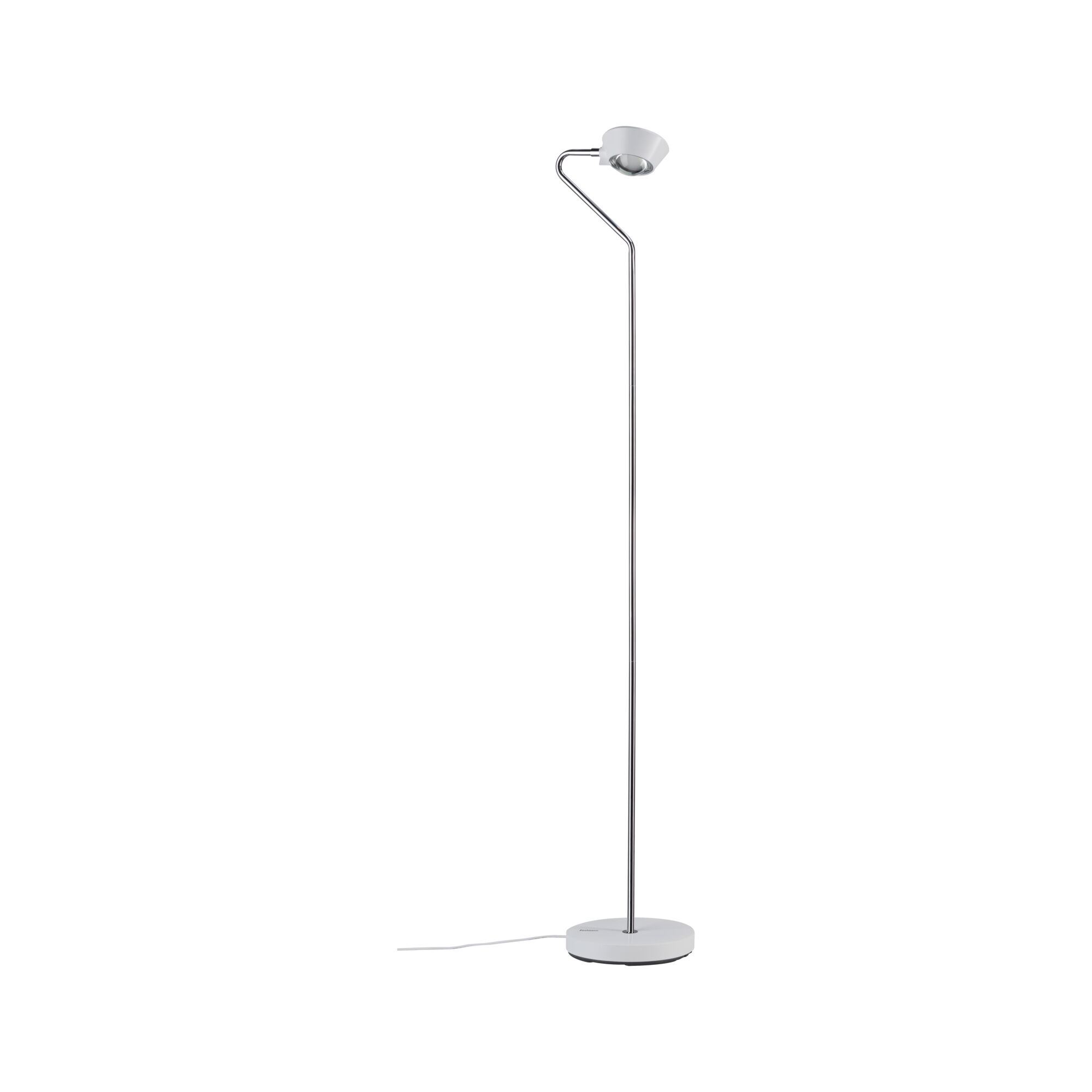

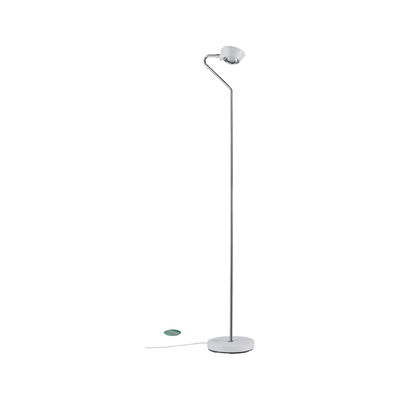

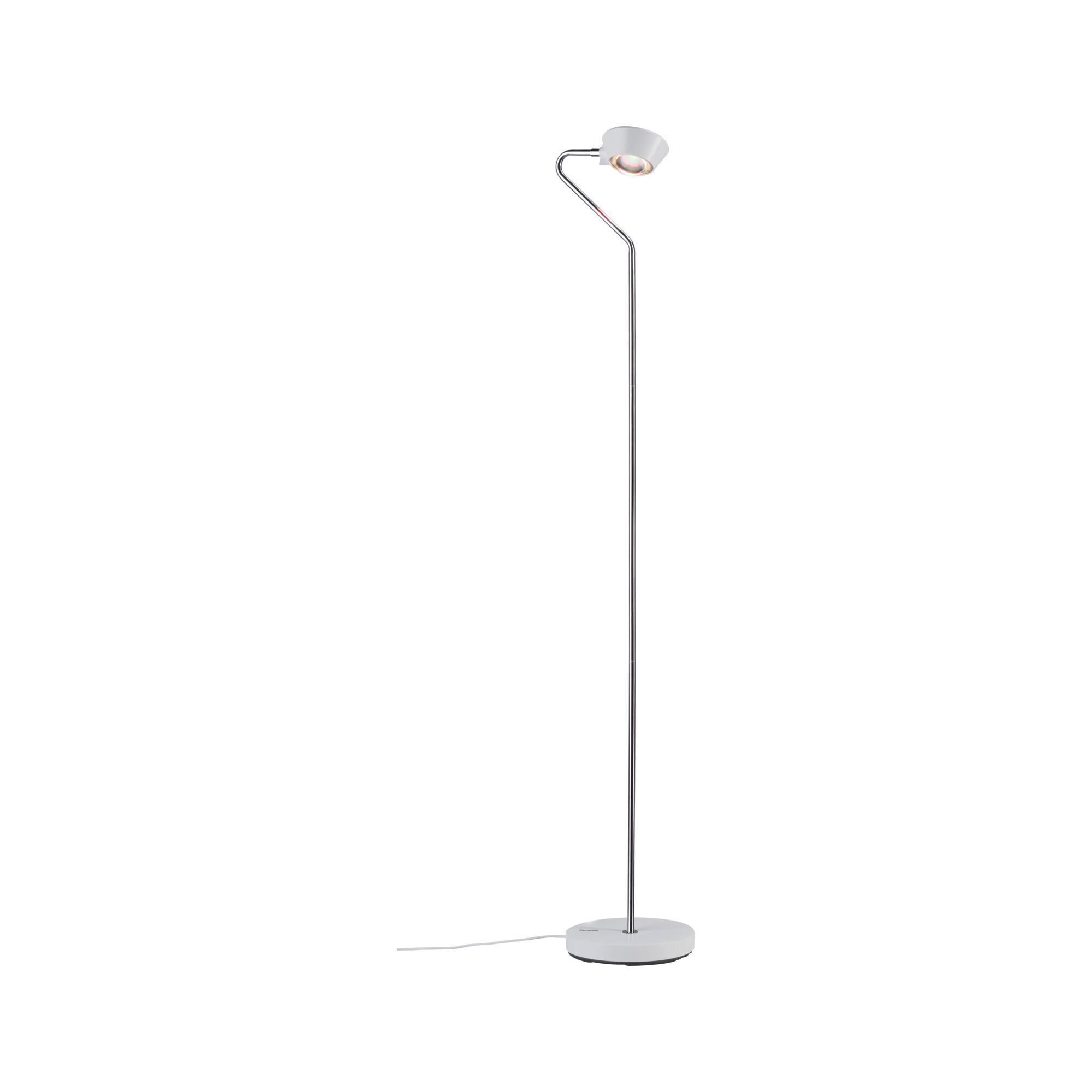

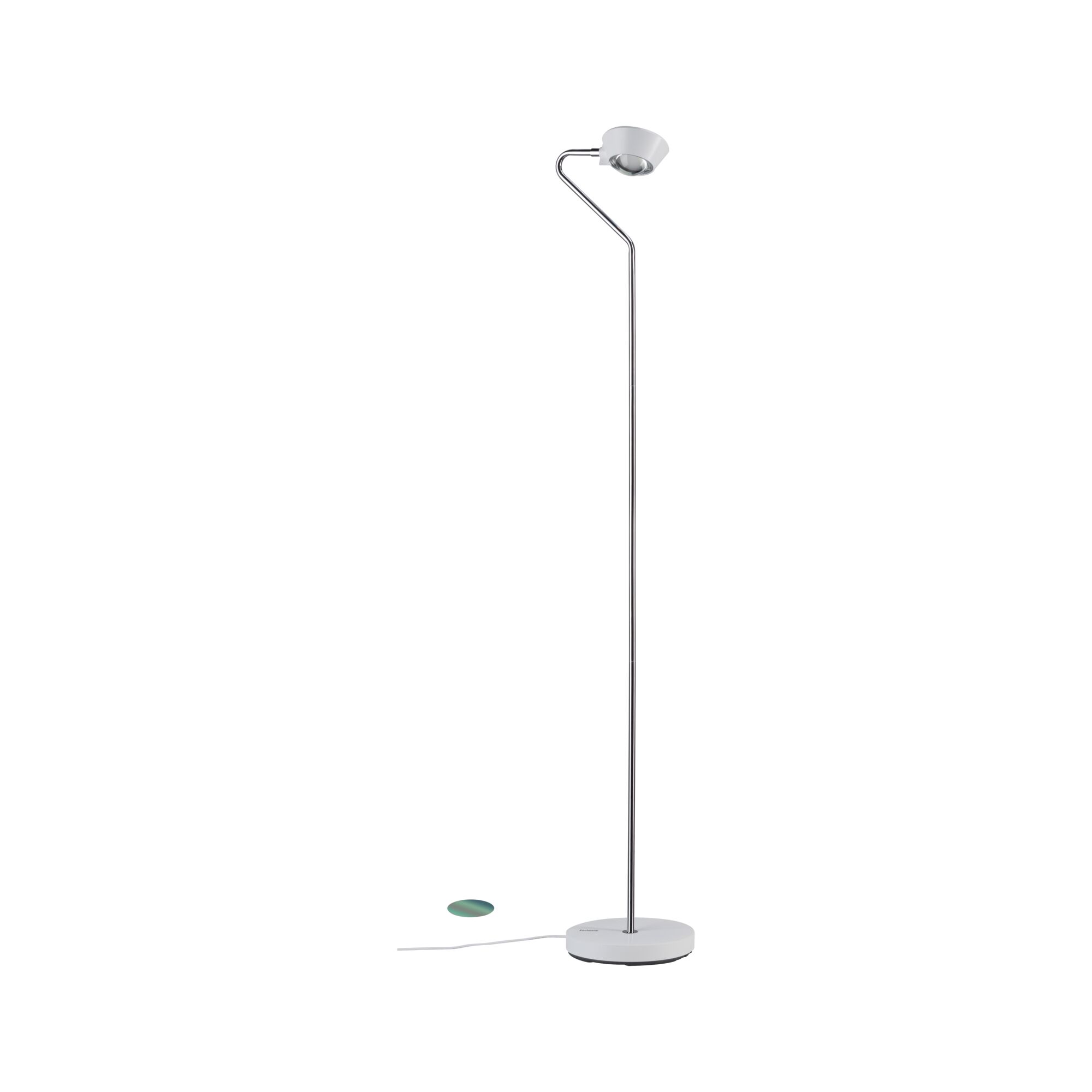

LED Floor luminaire 3-Step-Dim Ramos 2700K 840lm / 320lm 7,5W / 3,5W Matt white/Chrome

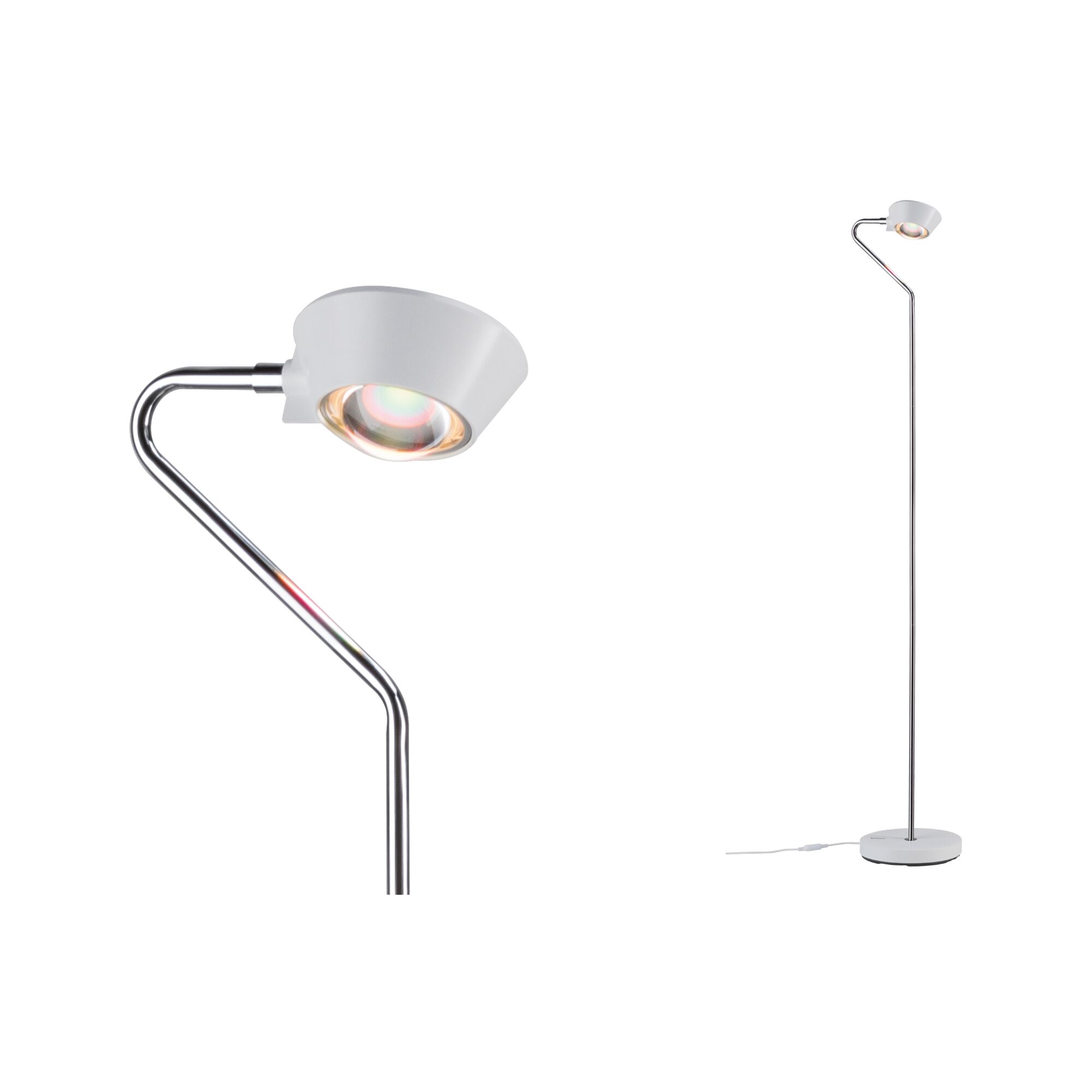

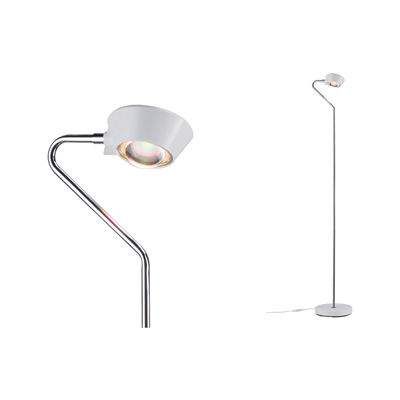

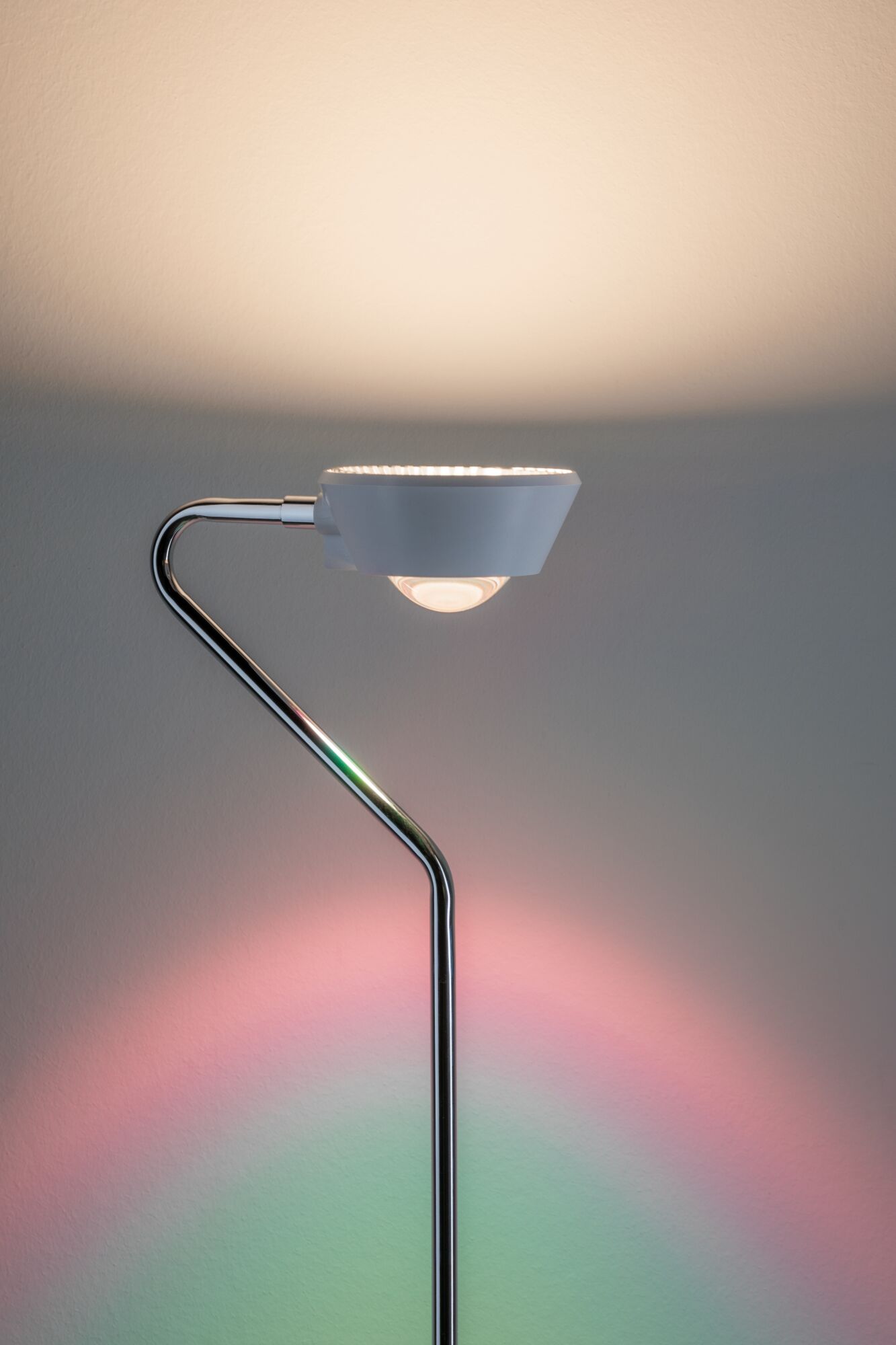

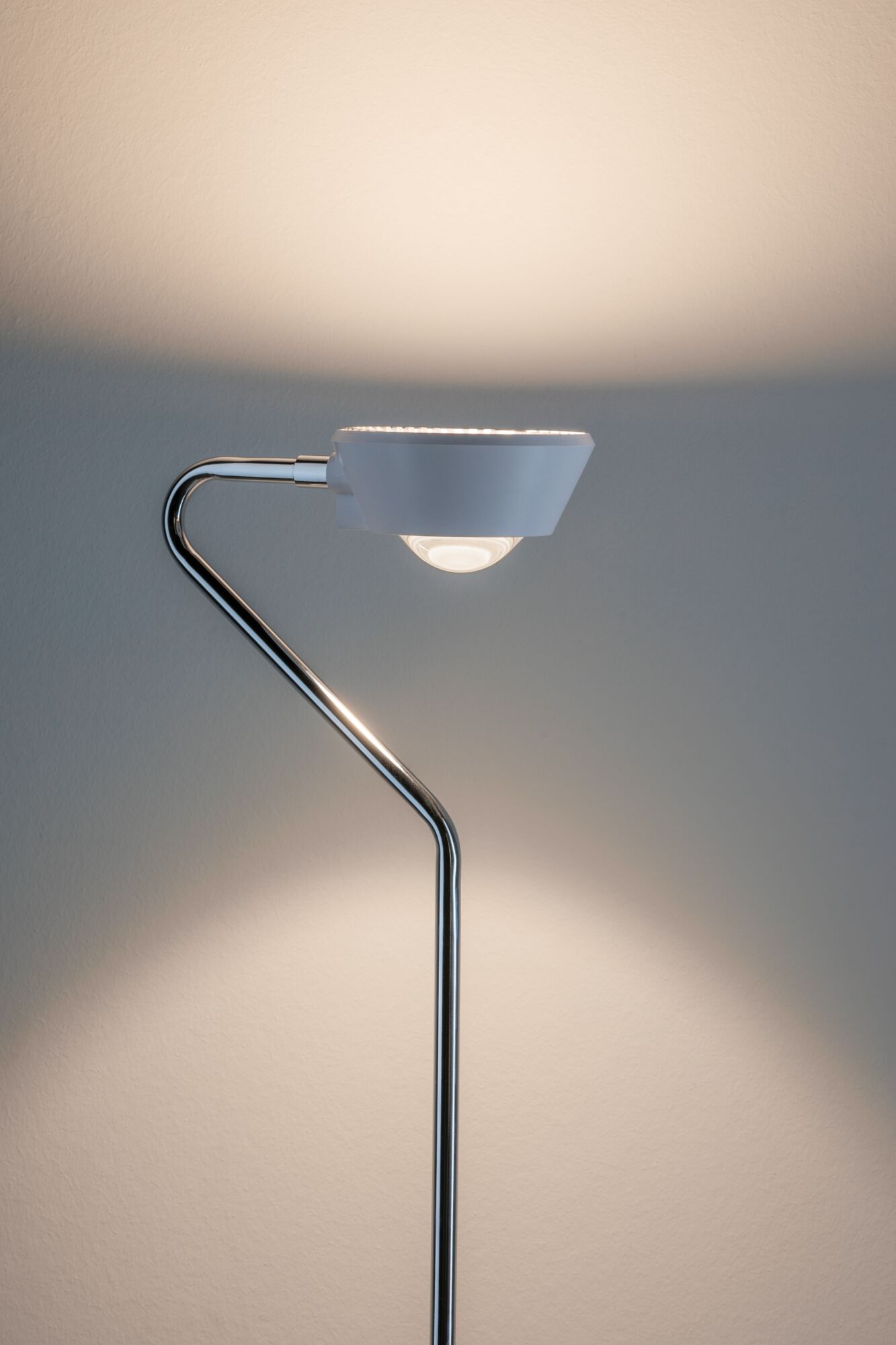

The Ramos floor luminaire emits light upwards and downwards. For special lighting accents, a dichroic film can be attached to the glass lens in the lower area using a snap ring. The spot head can be swivelled by up to 355 degrees, enabling you to easily illuminate the wall and thus create indirect illumination.
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
- Including foot dimmer and switch
| Dimension | |
|---|---|

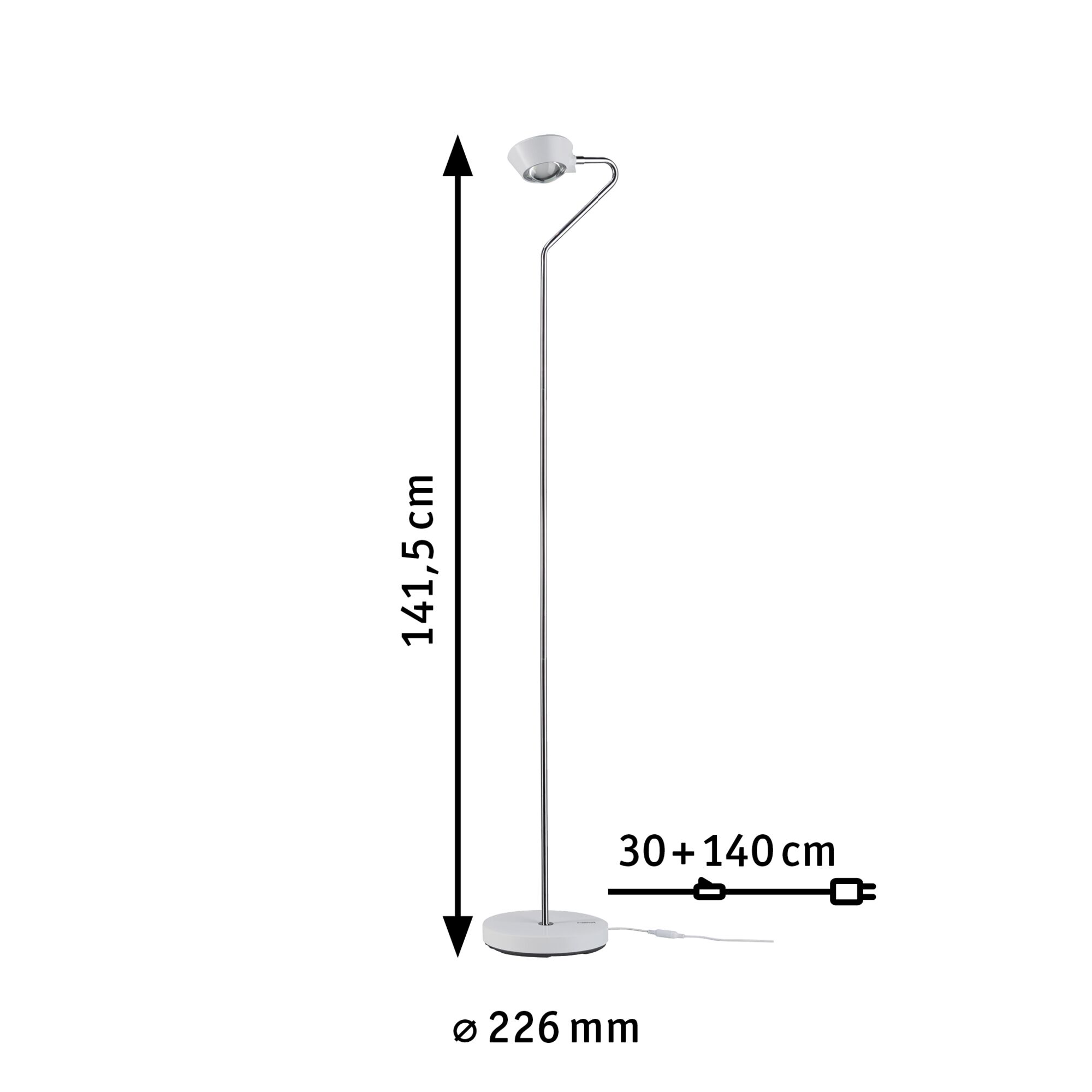

| Dimensions (Height x Width x Depth) | H: 1415 mm |
| Diameter | 226 mm |
| Plug depth | 38 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Chrome, Matt white |
| Material | Metal, Plastic |
| Collection | Technical luminaires, Trend Black & White |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 560 lm |
| useful luminous flux 2 | 220 lm |
| Luminous flux LED module | 1160 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | dimmable in 3 steps with integrated switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Swivel range | 355 ° |
| Maximum wattage range | max. 13 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 7,5 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 24 VA |
| Transformer height | 80 mm |
| Transformer width | 50 mm |
| Transformer depth | 35 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
