Article-No.:
93106

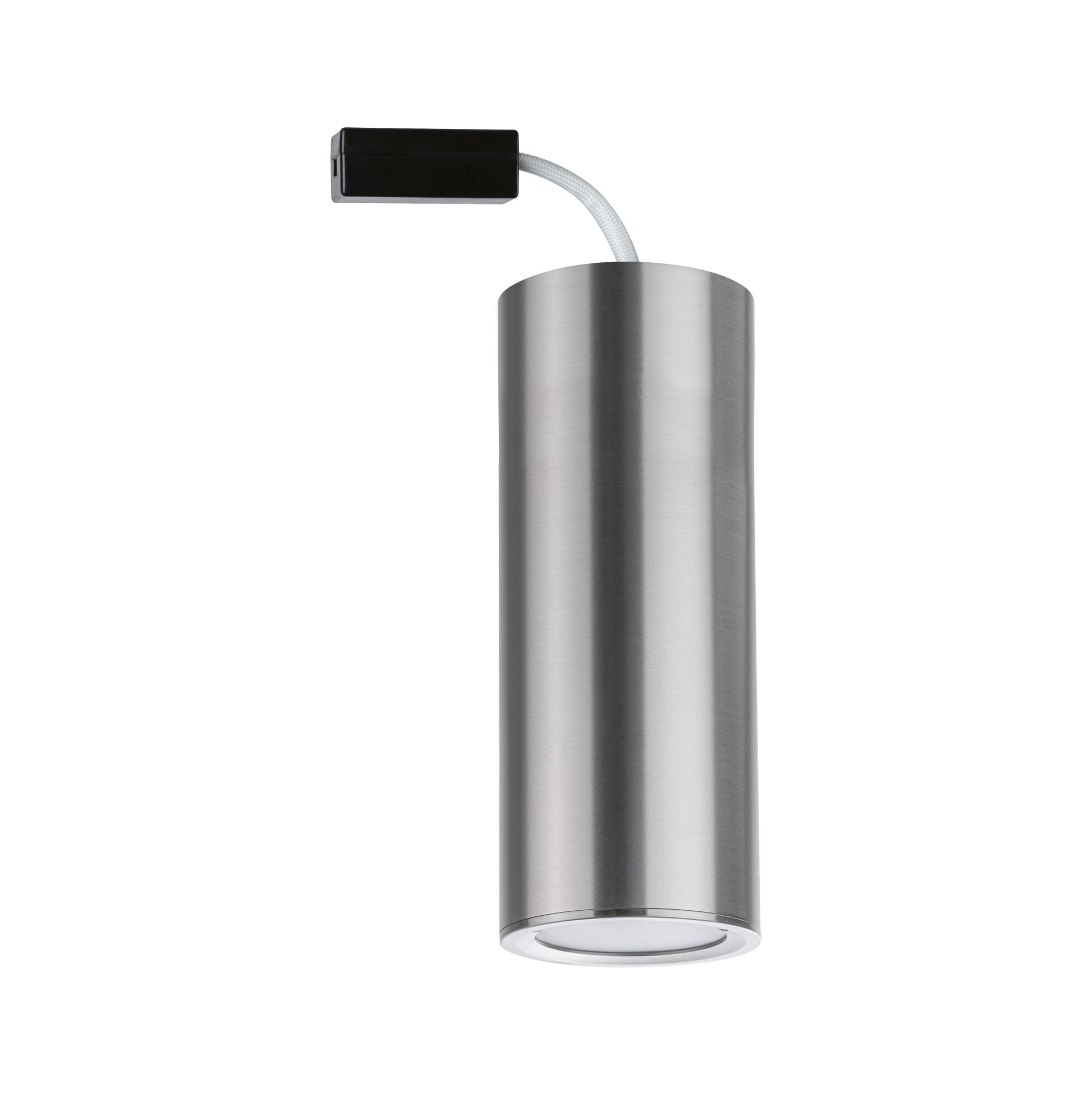

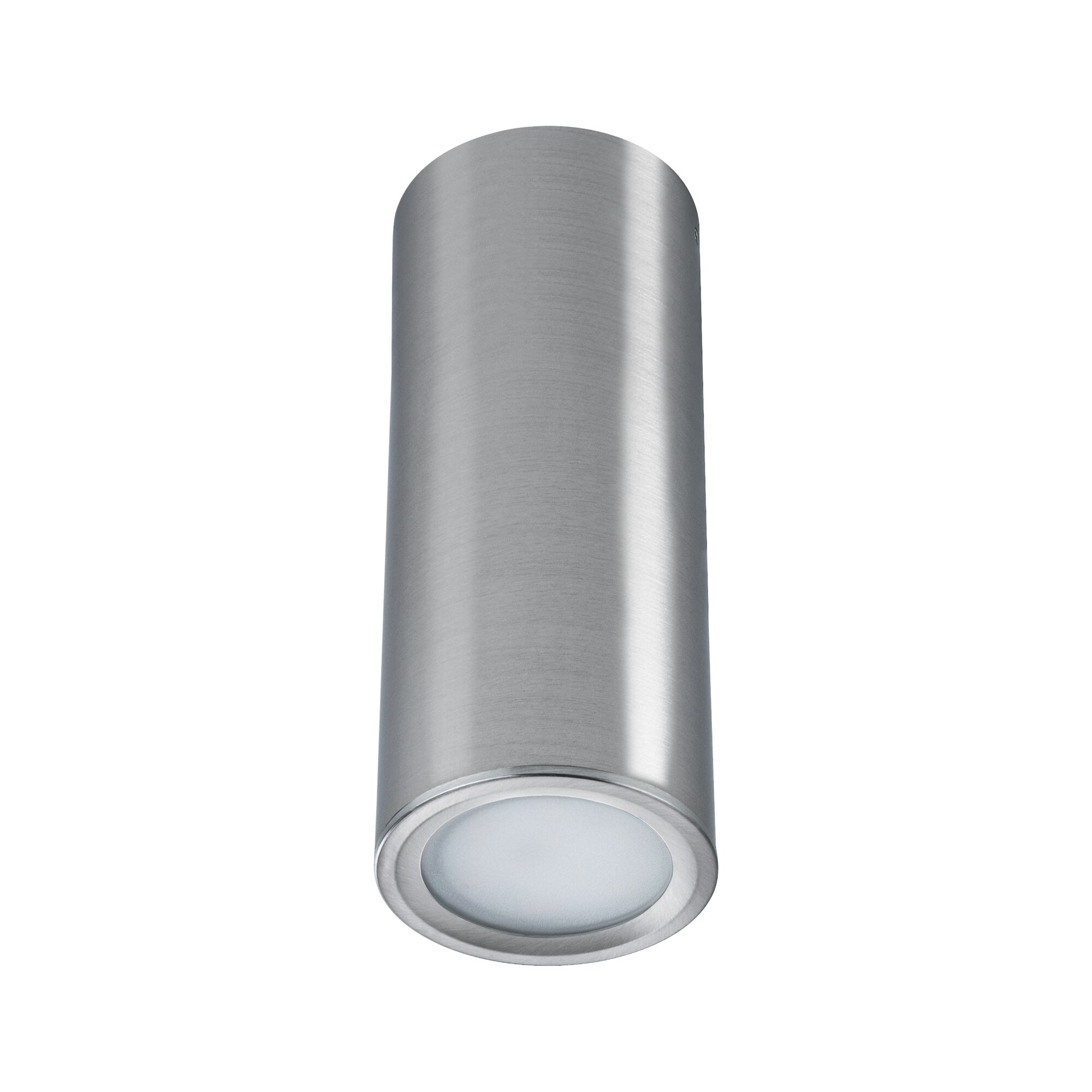

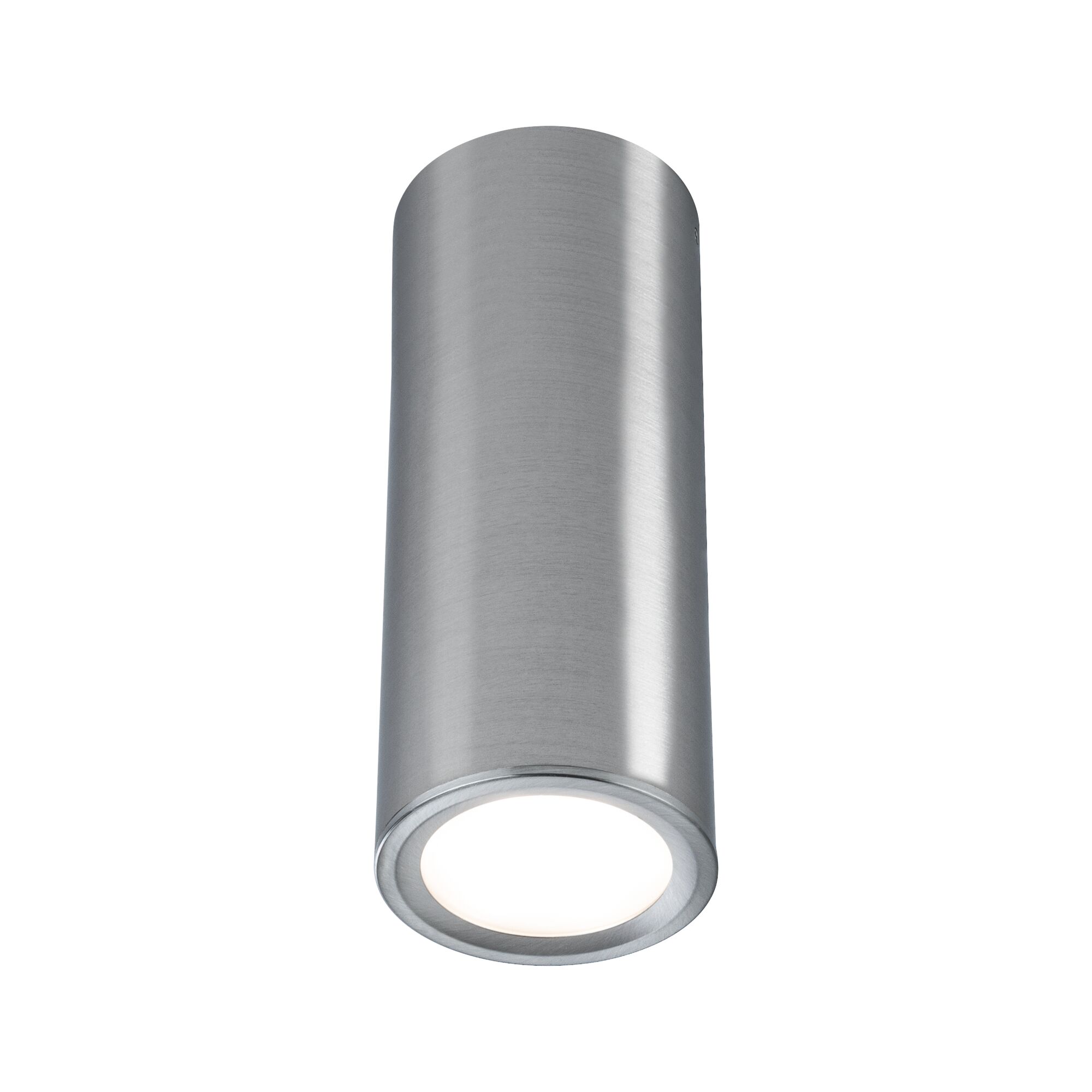

LED Ceiling luminaire3-Step-Dim
Barrel
2700K 470lm 230V 6W dimmable Brushed iron
2700K 470lm 230V 6W dimmable Brushed iron
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
- 3 brightness levels
LED Ceiling luminaire 3-Step-Dim Barrel 2700K 470lm 230V 6W dimmable Brushed iron

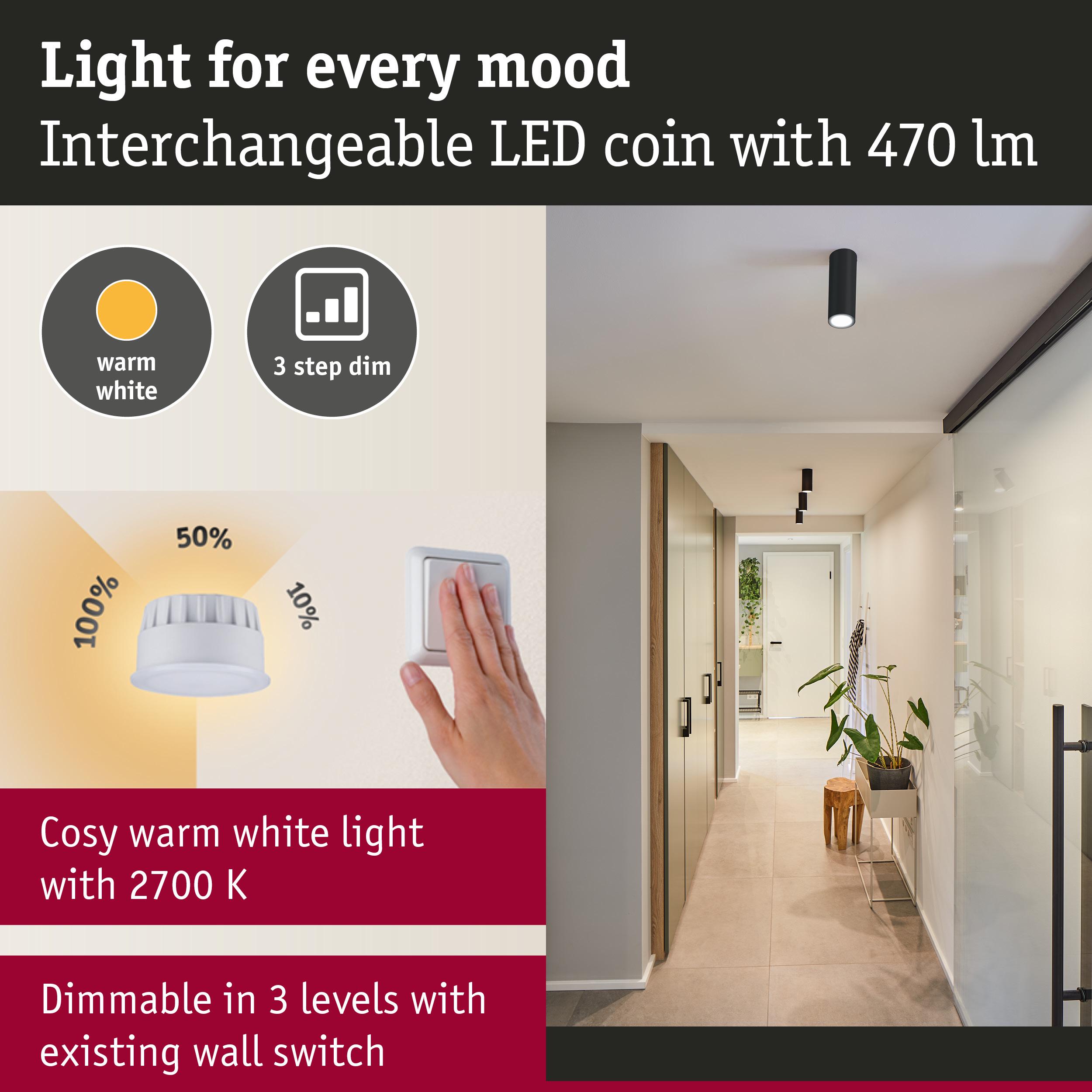

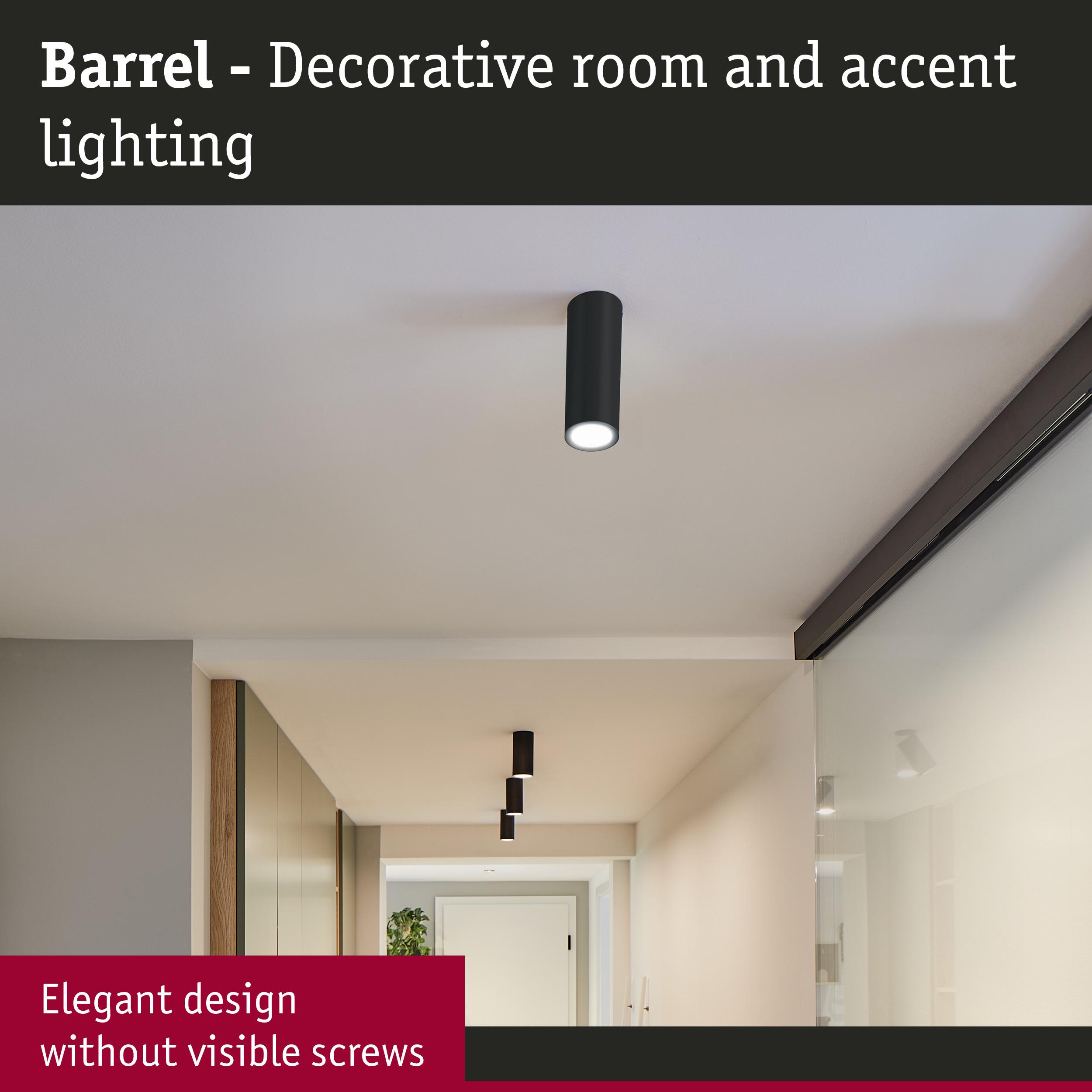

The rigid surface-mounted luminaire Barrel in Brushed iron has a beam angle of 100° and is an eye-catching feature on your ceiling. It is the ideal solution for lighting counters, kitchen islands and hallways. The surface-mounted luminaire can be dimmed in three stages via a conventional wall switch. The diffuse light emission optimally illuminates the entire room. The colour temperature of 2700 Kelvin means warm white, gentle light.
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
- 3 brightness levels
| Dimension | |
|---|---|

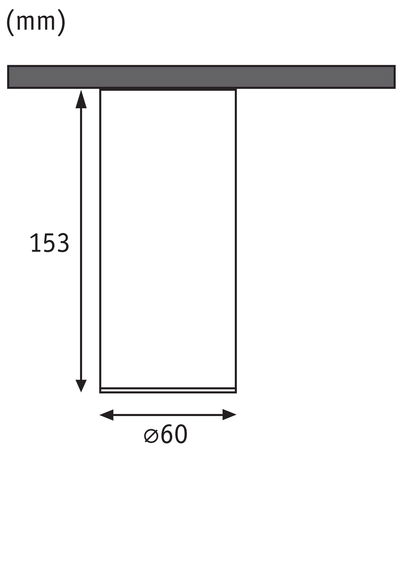

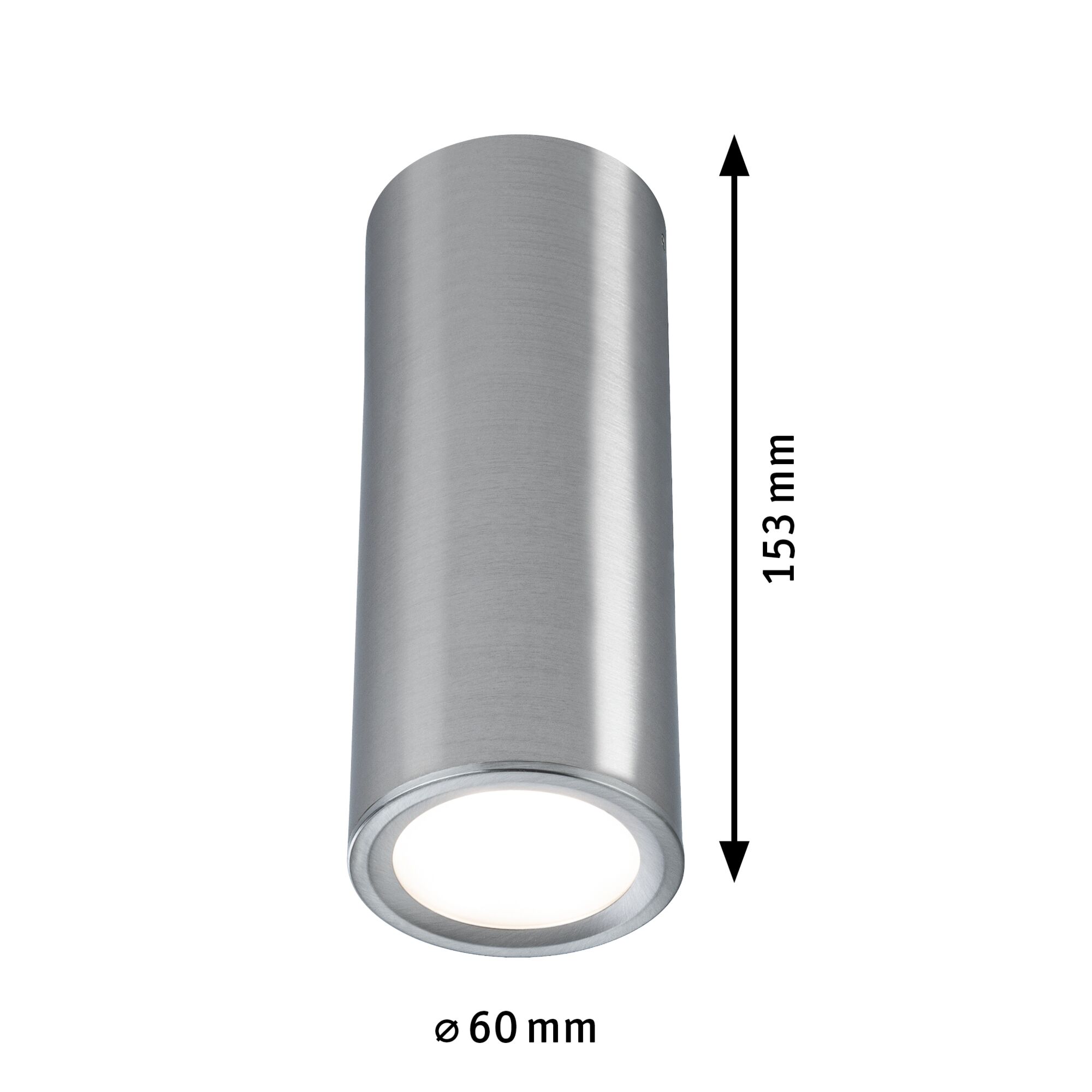

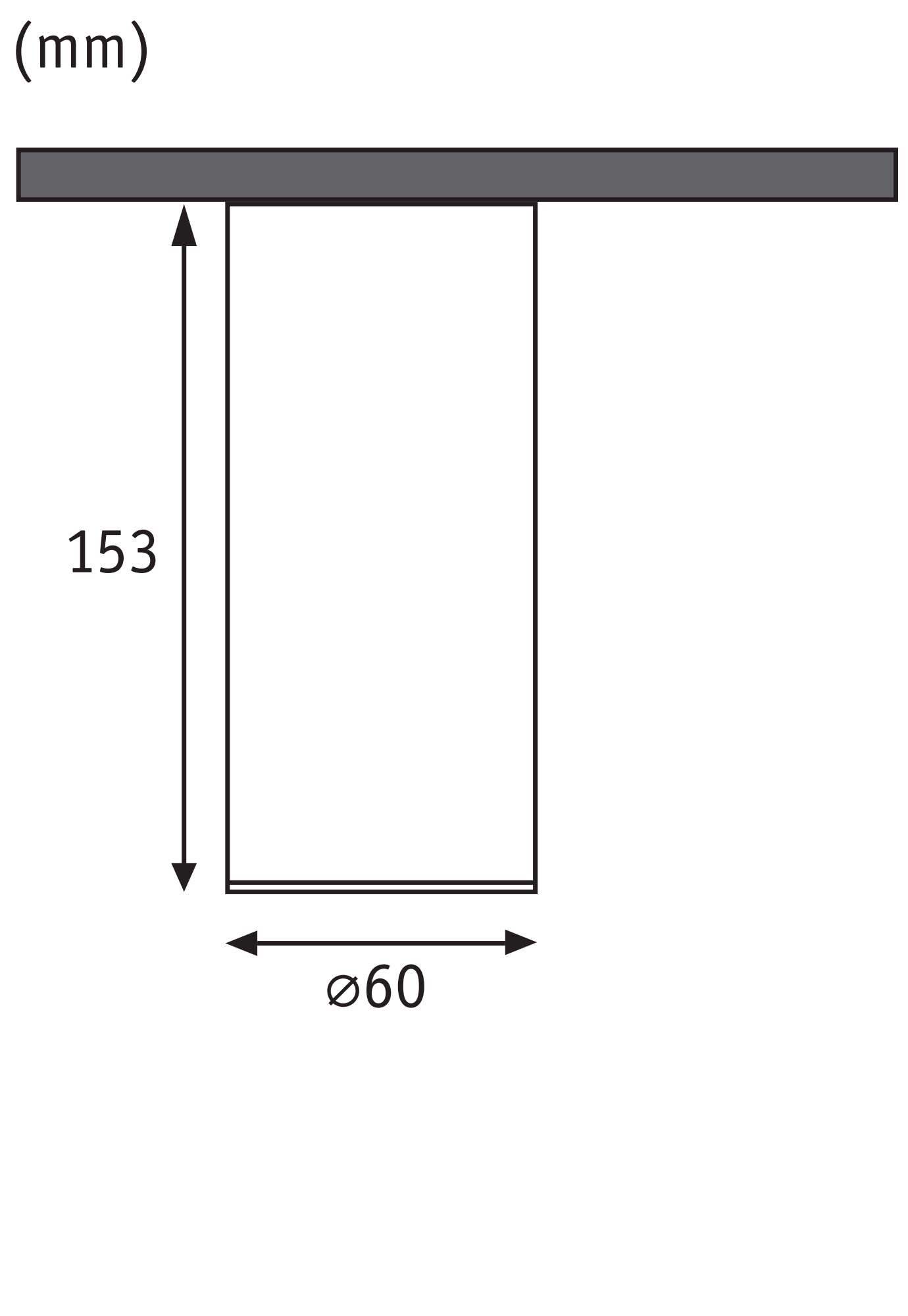

| Dimensions (Height x Width x Depth) | H: 153 mm |
| Diameter | 60 mm |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Brushed iron |
| Material | Metal |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Luminous flux LED module | 470 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | dimmable in 3 steps with integrated switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 38 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |

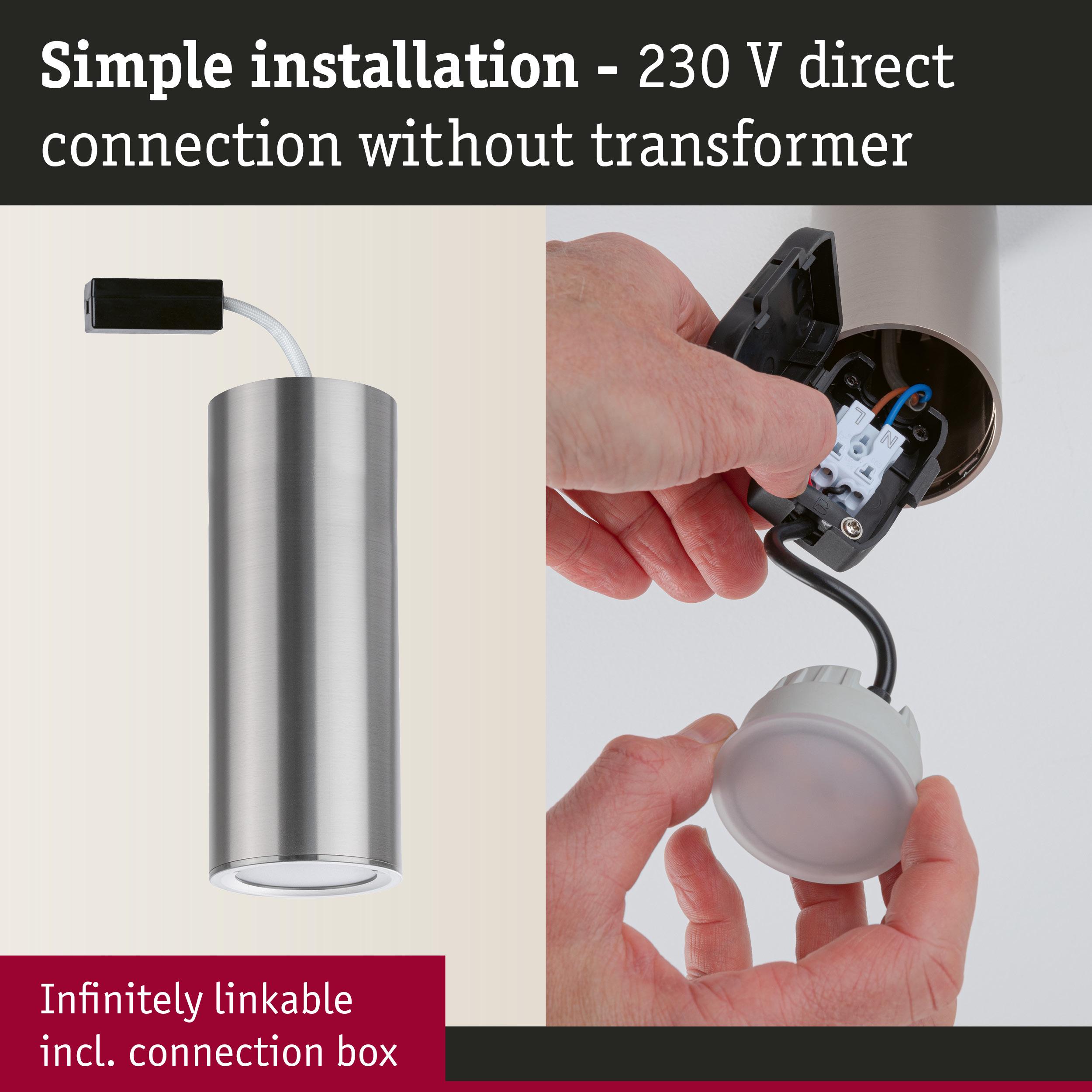

| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 6 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
