Article-No.:
94105
LED Cable system
RoundMac Basic Set
4x200lm 4x4,3W 2700K 230/12V Matt white
4x200lm 4x4,3W 2700K 230/12V Matt white

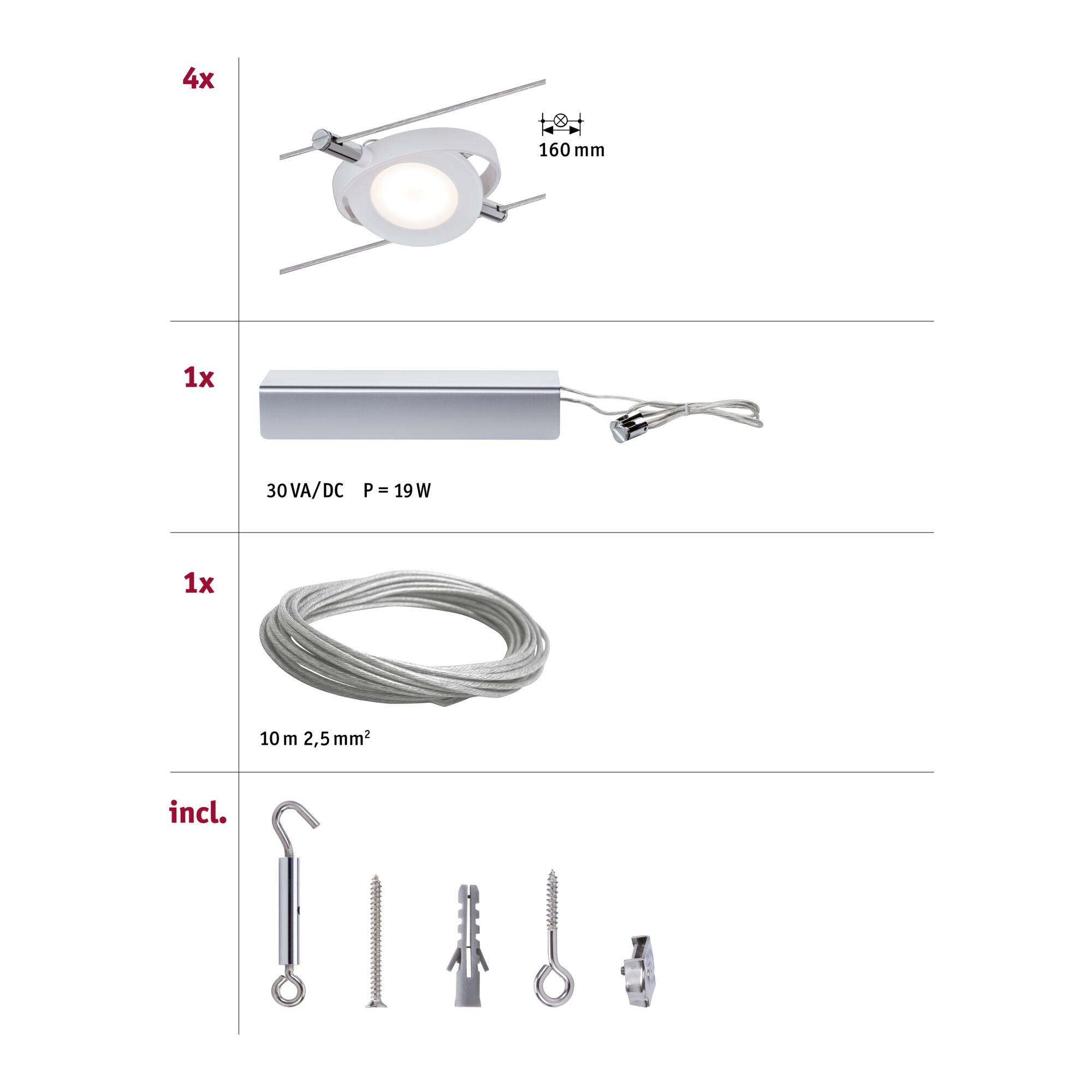

- Complete set consisting of transformer, cable, spots and installation instructions
- Including LED bulb (built-in)
- Surface/color: White matt

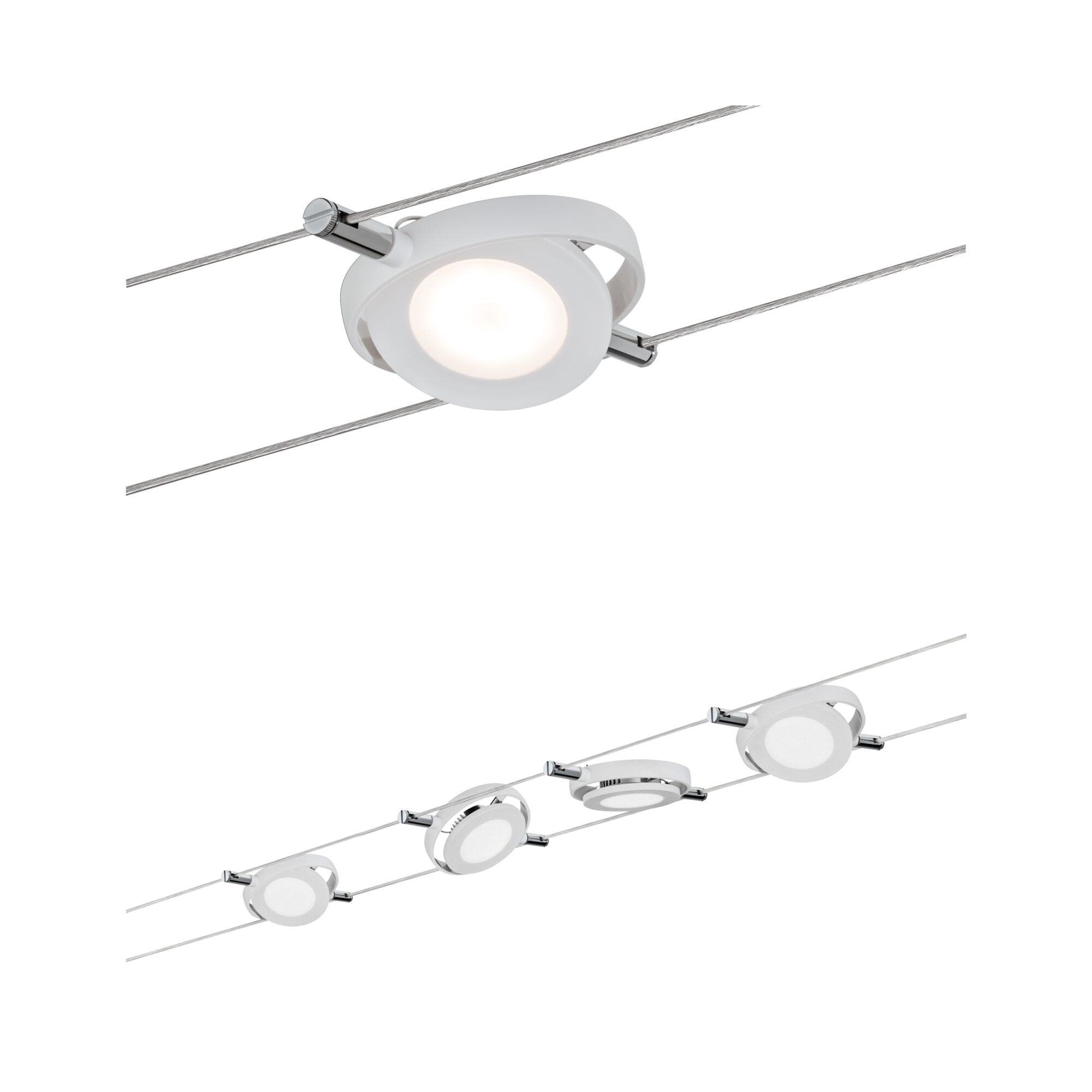

LED Cable system RoundMac Basic Set 4x200lm 4x4,3W 2700K 230/12V Matt white
The 4-lamp LED cable system -RoundMac- is an innovation in LED technology with a total output of 16 watt. The system is suitable for wall and ceiling mounting and is an -all-rounder- in the realm of individual lighting solutions with the appropriate accessories, such as diffusers.
- Complete set consisting of transformer, cable, spots and installation instructions
- Including LED bulb (built-in)
- Surface/color: White matt
- Sweeping diffusion of light for ideal room illumination
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Can only be extended with 12V direct current (DC) products, not compatible with 12V alternating current (AC) products
| Dimension | |
|---|---|
| Wire distance | 160 mm |
| Span width | 5 m |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 200 lm |
| Luminous flux LED module | 450 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 4x200 lm |
| Lamp Features | |
|---|---|
| Component parts | 4,3 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 4x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| apparent power | 20 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
