Article-No.:
94457
CorDuoLED Cable system
ClearLED
5x150lm 5x4W 2700K 230/12V Black/Chrome
5x150lm 5x4W 2700K 230/12V Black/Chrome

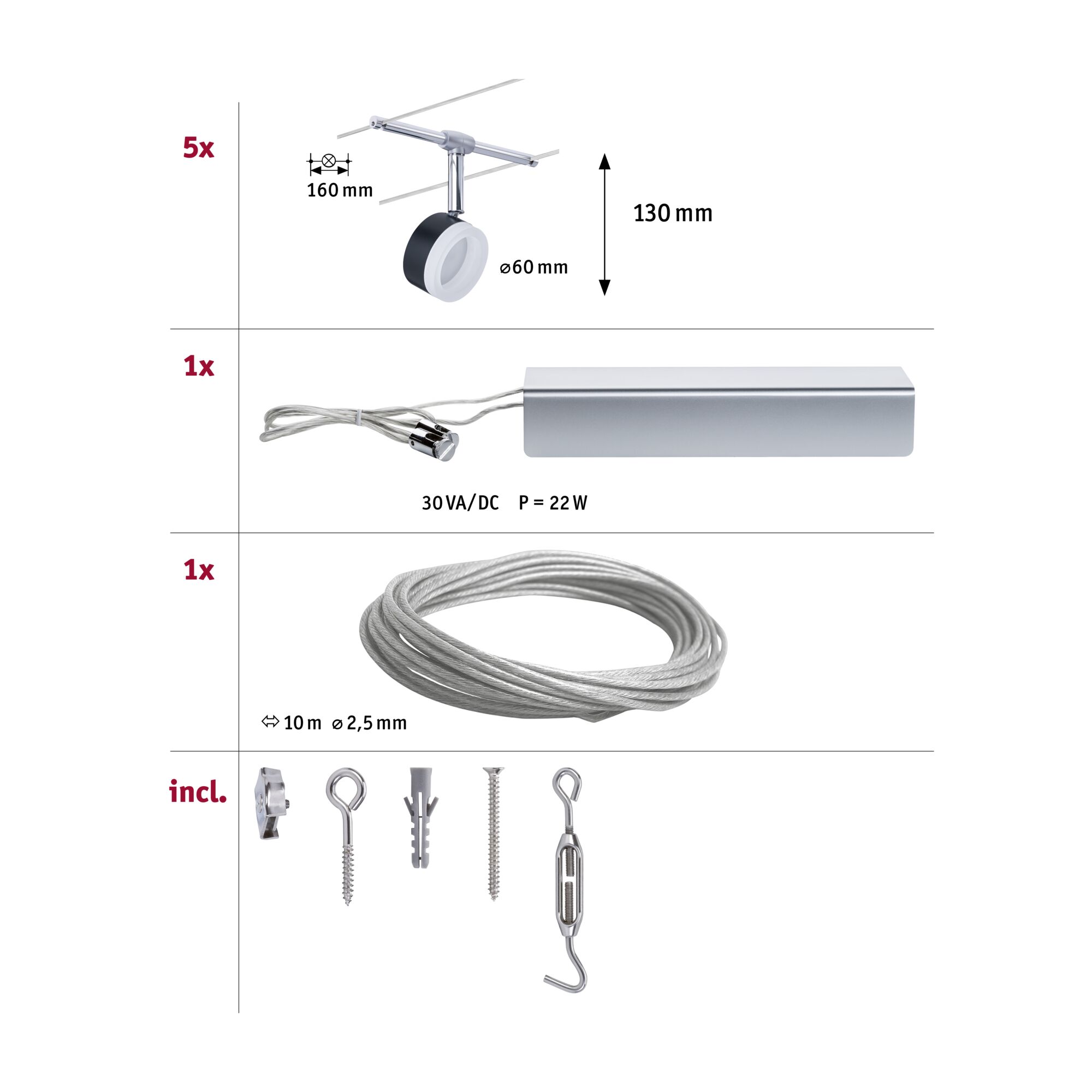

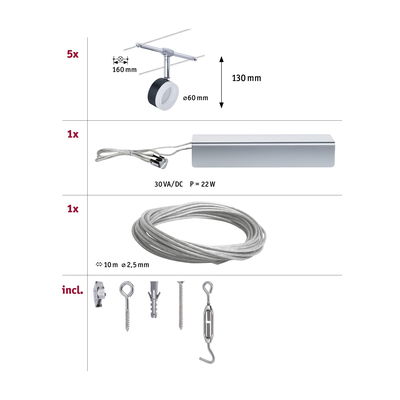

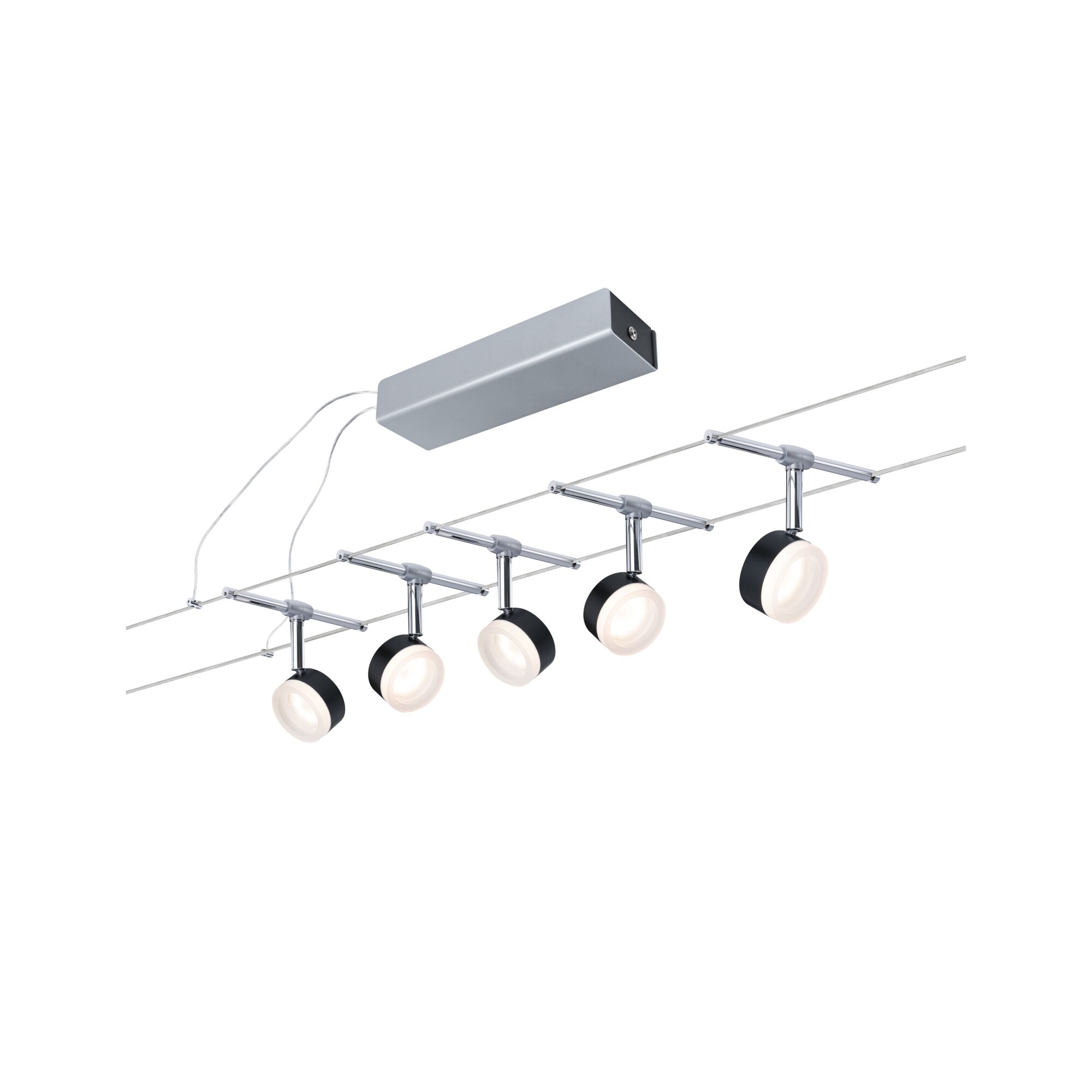

- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Including bulb (built-into lamp)

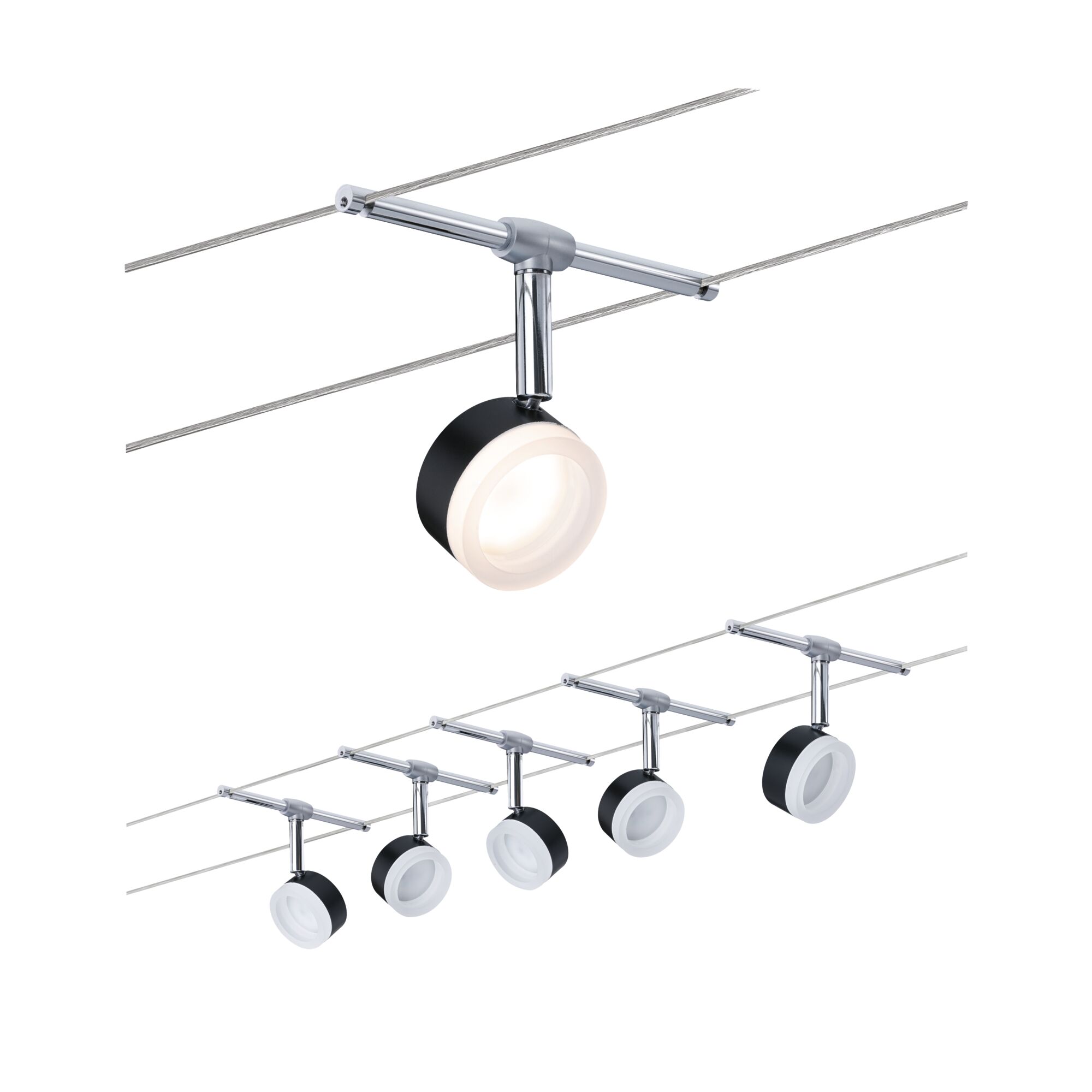

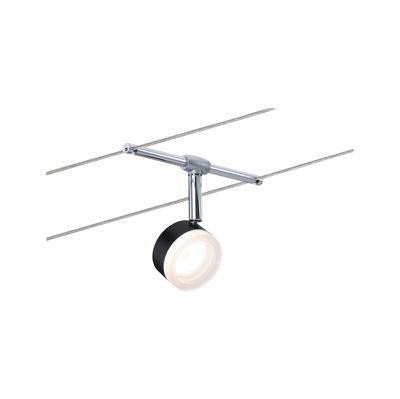

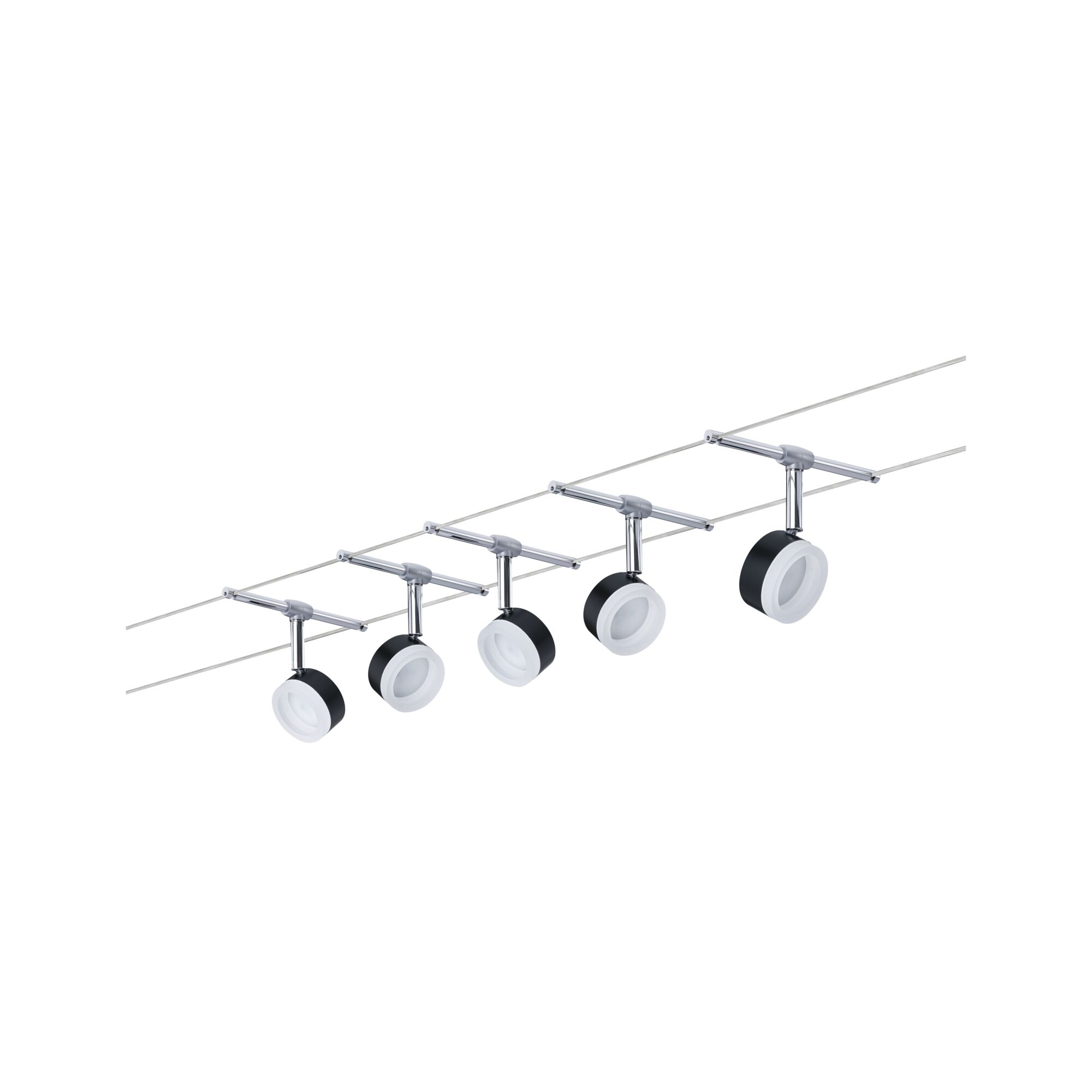

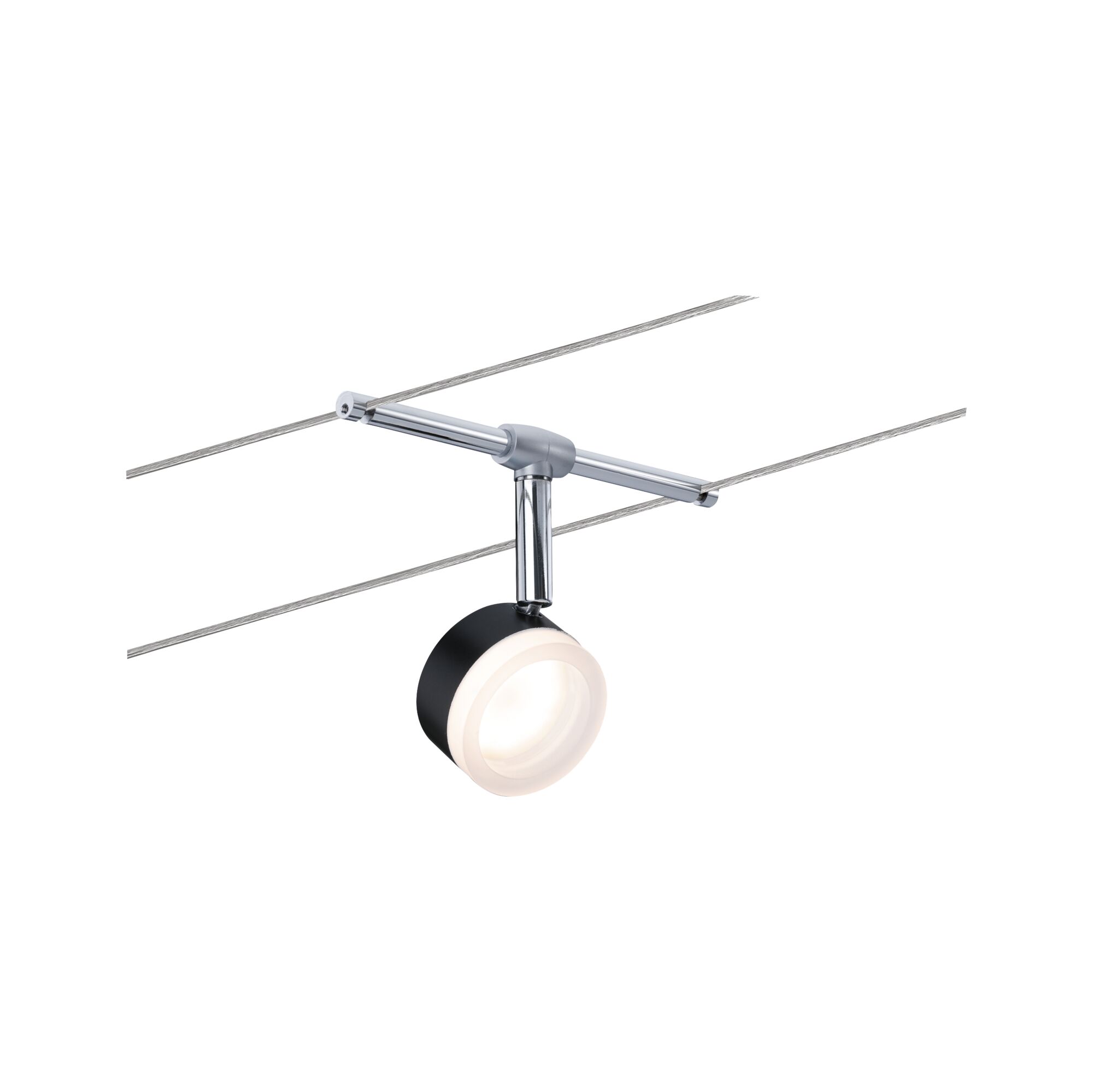

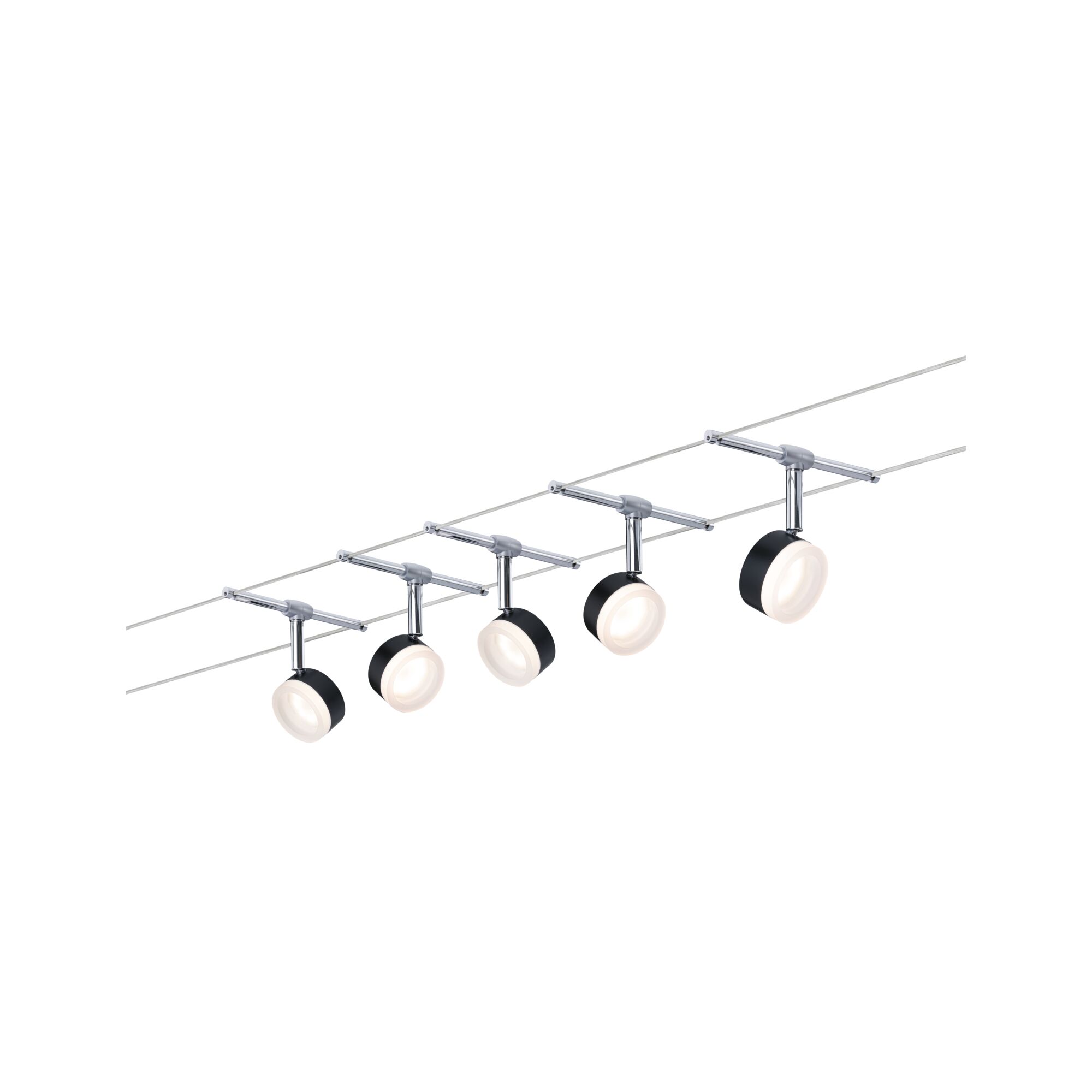

CorDuo LED Cable system ClearLED Basic Set 5x150lm 5x4W 2700K 230/12V Black/Chrome

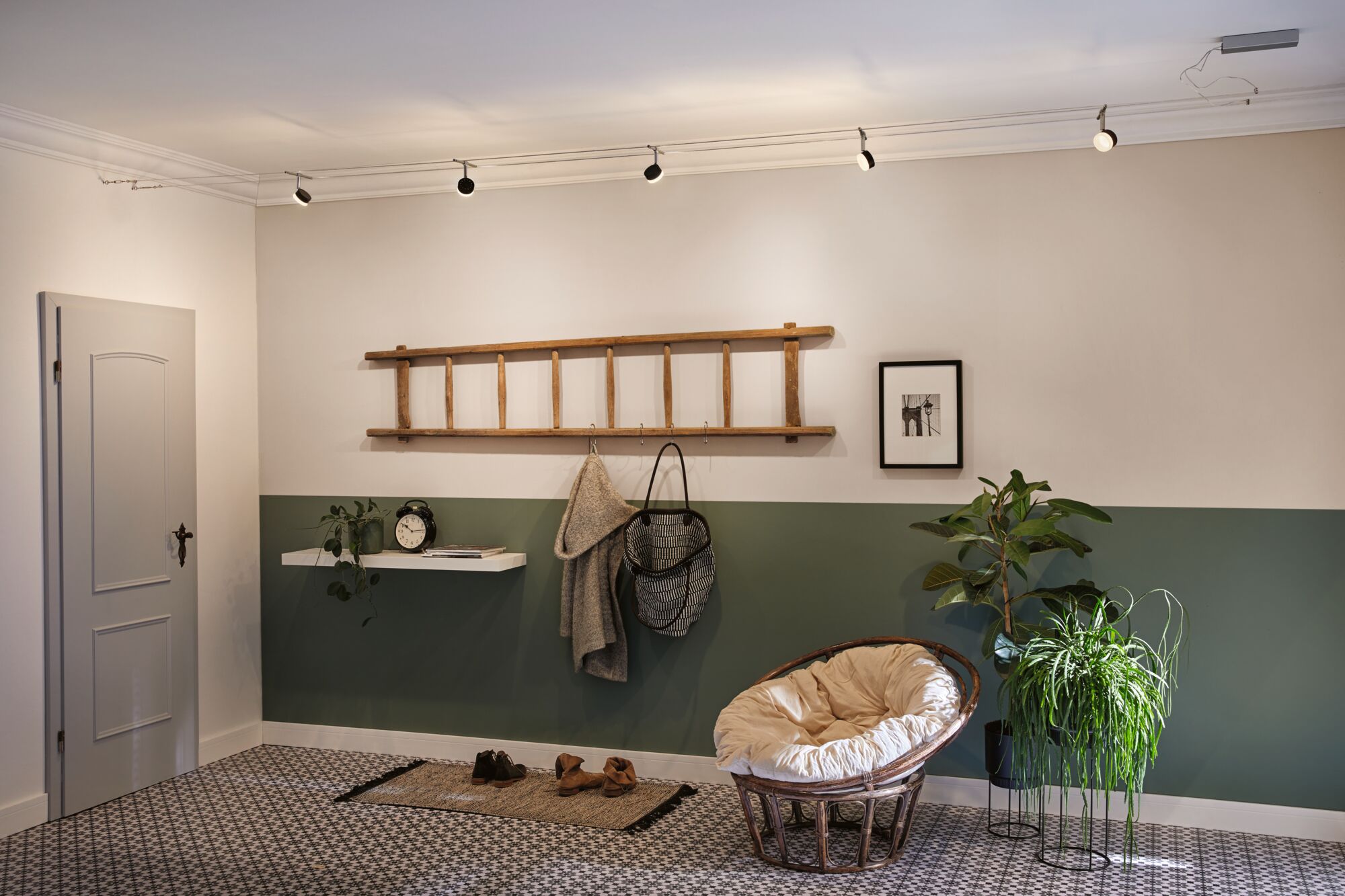

The ClearLED series in Black/Chrome, with a blue decorative ring, can be installed on the wall or on the ceiling for unlimited design possibilities. Whether straight, sloped or angled – wire systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The basic set can be supplemented with individual spots, deflectors and other accessories. The wire, with a length of 10 m, can be separated in the middle so the system can be suspended across a max. distance of 5 m. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Including bulb (built-into lamp)
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 130 mm |
| Wire distance | 160 mm |
| Span width | 5 m |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Chrome, Black |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 150 lm |
| Luminous flux LED module | 300 lm |
| Colour temperature | Warm white, 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Technique | LED |
| Inclusive lamp | yes |
| Incandescent Equivalent | 56 W |
| Adjustability | adjustable |
| Lamp property | Leuchtmittel fest integriert |
| Dimmable | No |
| Number of component parts | 5x |
| Protection class | Protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 22 W |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 30 VA |
| apparent power | 25 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
