Article-No.:
94429
CorDuo
Cable system
Basic set
max. 60W 230/12V Matt white
max. 60W 230/12V Matt white

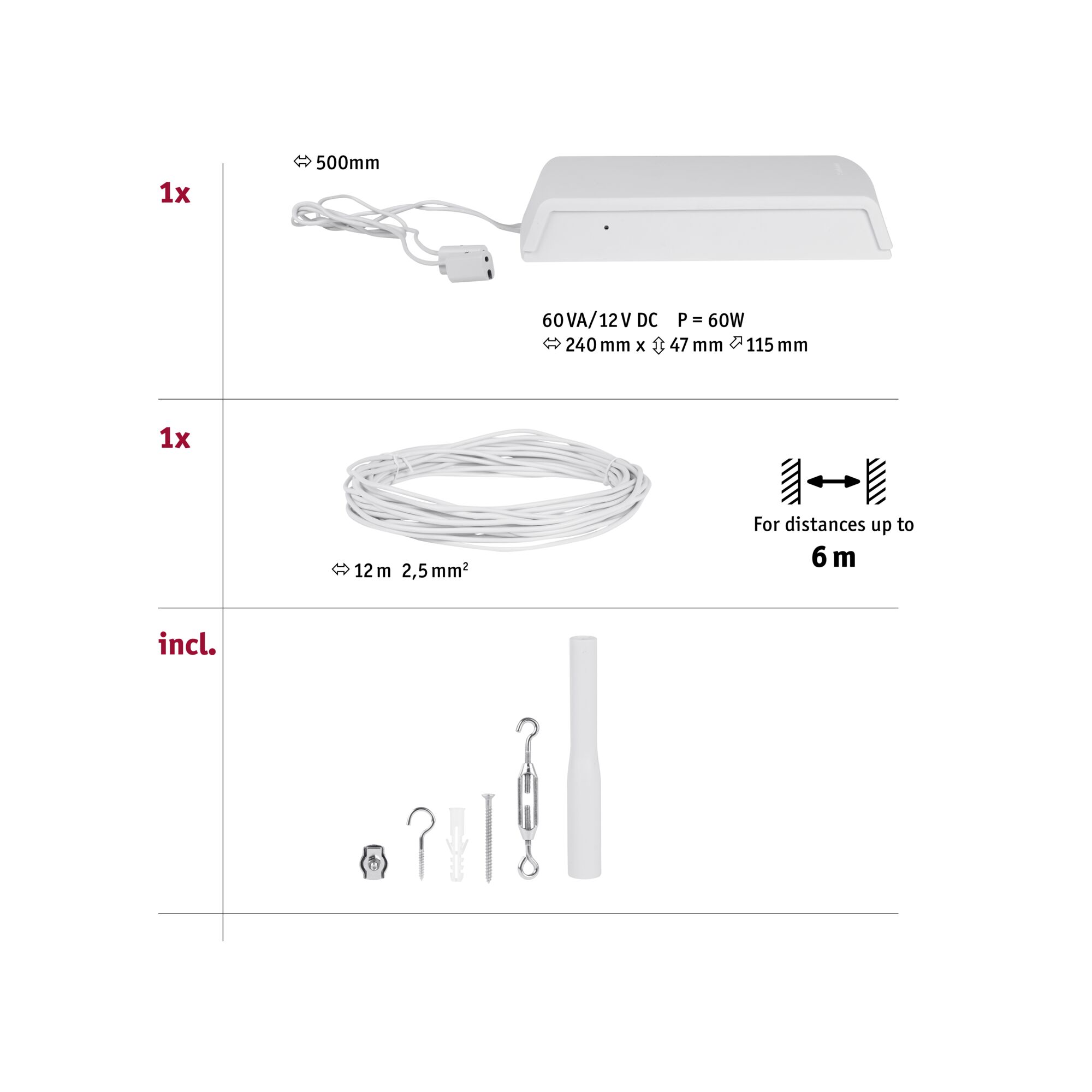

- Complete set consisting of transformer, cable and installation instructions
- Suitable for wall and ceiling mounting
- Freely selectable lamps

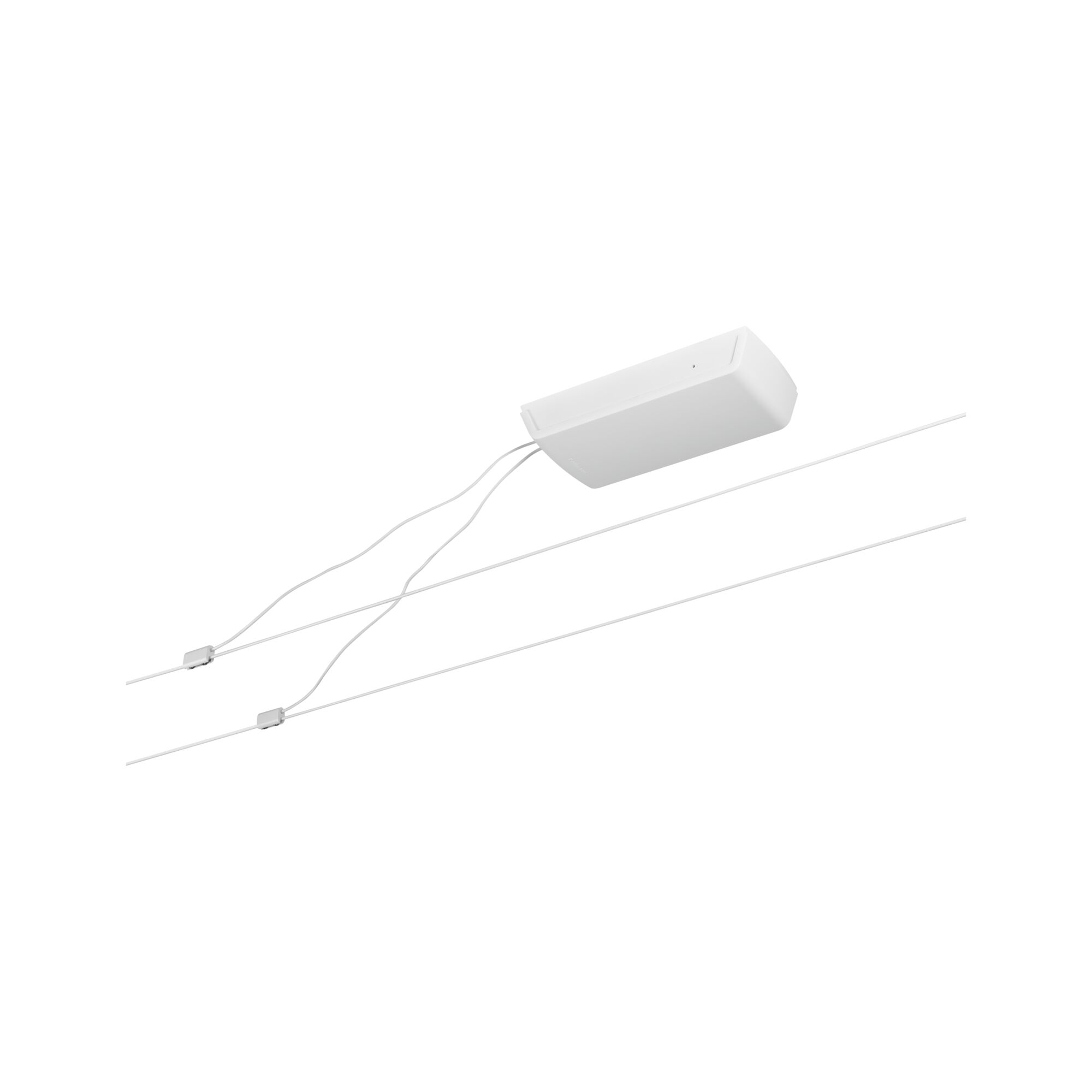

CorDuo Cable system Basic set max. 60W 230/12V Matt white

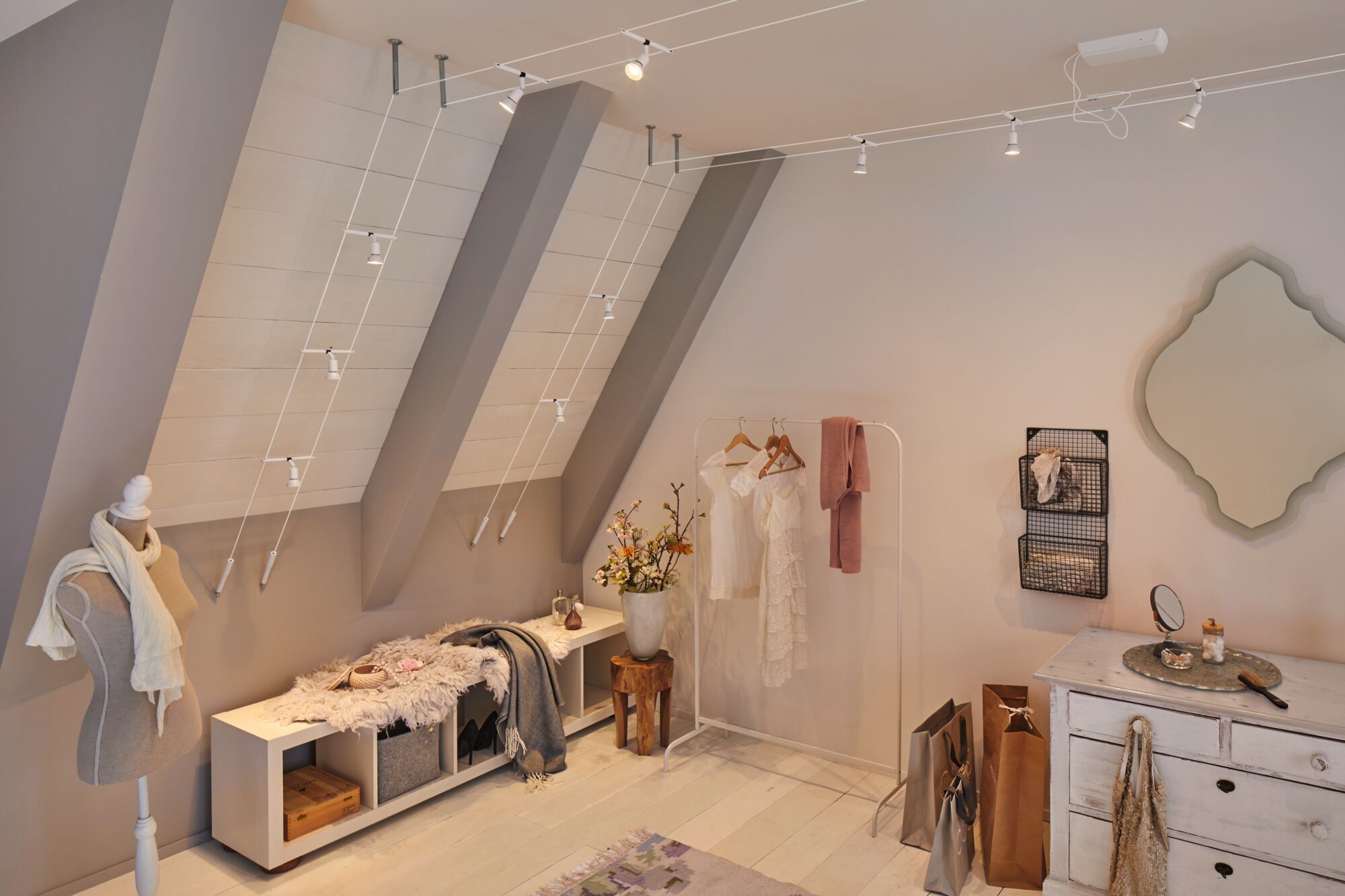

The basic set in Matt white can be installed on the wall or on the ceiling for unlimited design possibilities. Whether straight, sloped or angled – cable systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The basic set can be supplemented with individual spots, deflectors and other accessories. The cable, with a length of 12 m, can be separated in the middle so the system can be suspended across a max. distance of 6 m. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Complete set consisting of transformer, cable and installation instructions
- Suitable for wall and ceiling mounting
- Freely selectable lamps
- Don’t forget: Include a suitable lamp in your order!
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Span width | 6 m |
| Dimensions (Height x Width x Depth) | H: 47 x B: 115 x T: 240 mm |
| Length | 12 m |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Technique | Lamp without bulb |
| Dimmable | No |
| Inclusive lamp | no |
| Total Width | 115 mm |
| Maximum wattage range | max. 60 W |
| protection class | protection class II |
| Replacable | 5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
