Article-No.:
797200

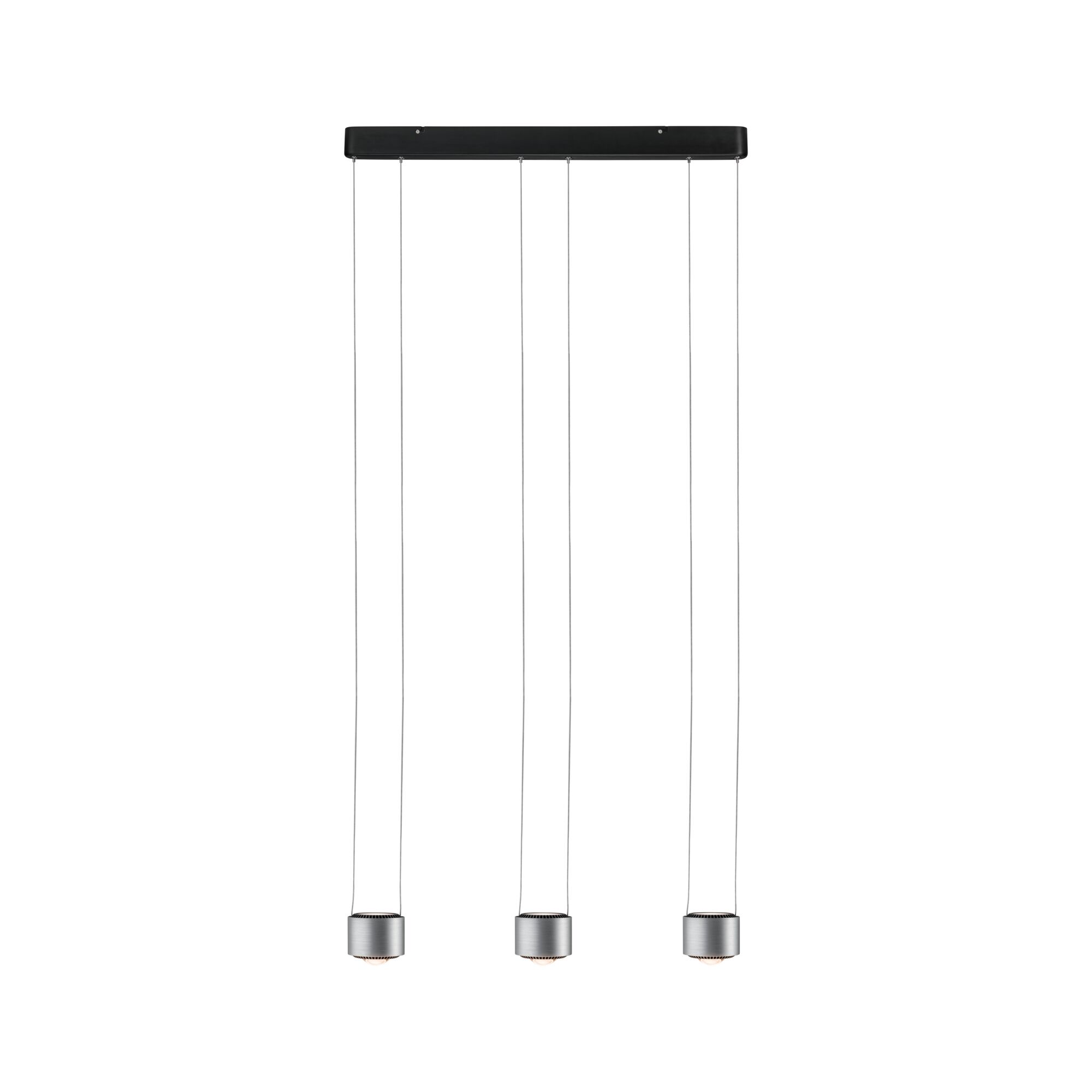

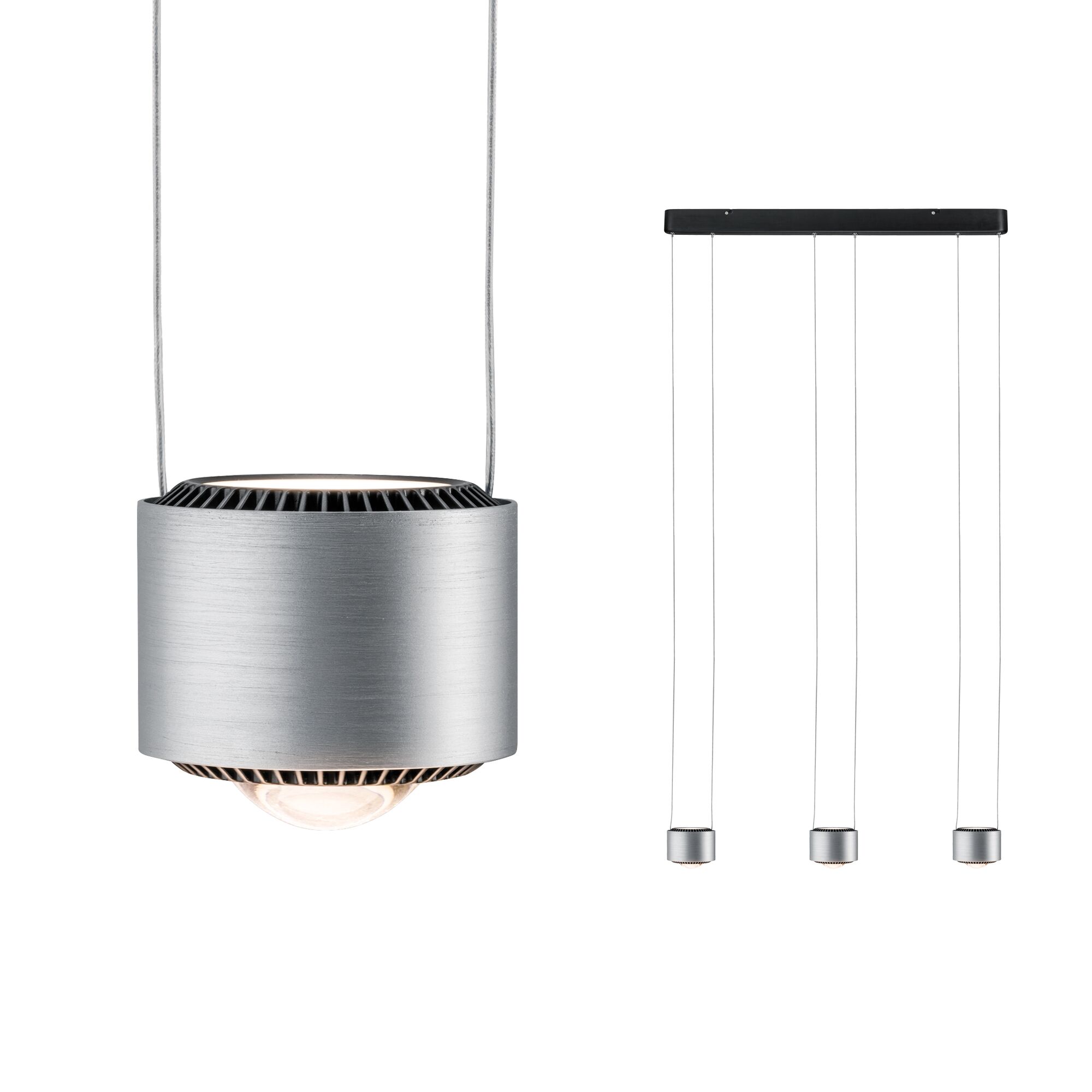

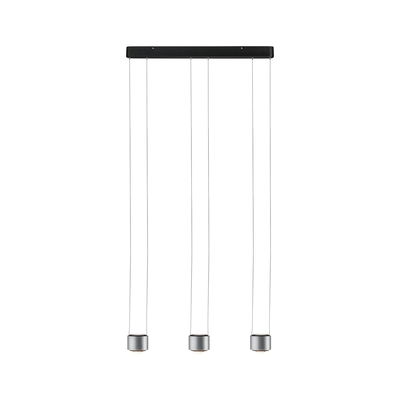

Aldan LED pendant luminaire 3-lamp 3x9W Black/brushed aluminium dimmable
- Pendant length individually adjustable
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
Aldan LED pendant luminaire 3-lamp 3x9W Black/brushed aluminium dimmable

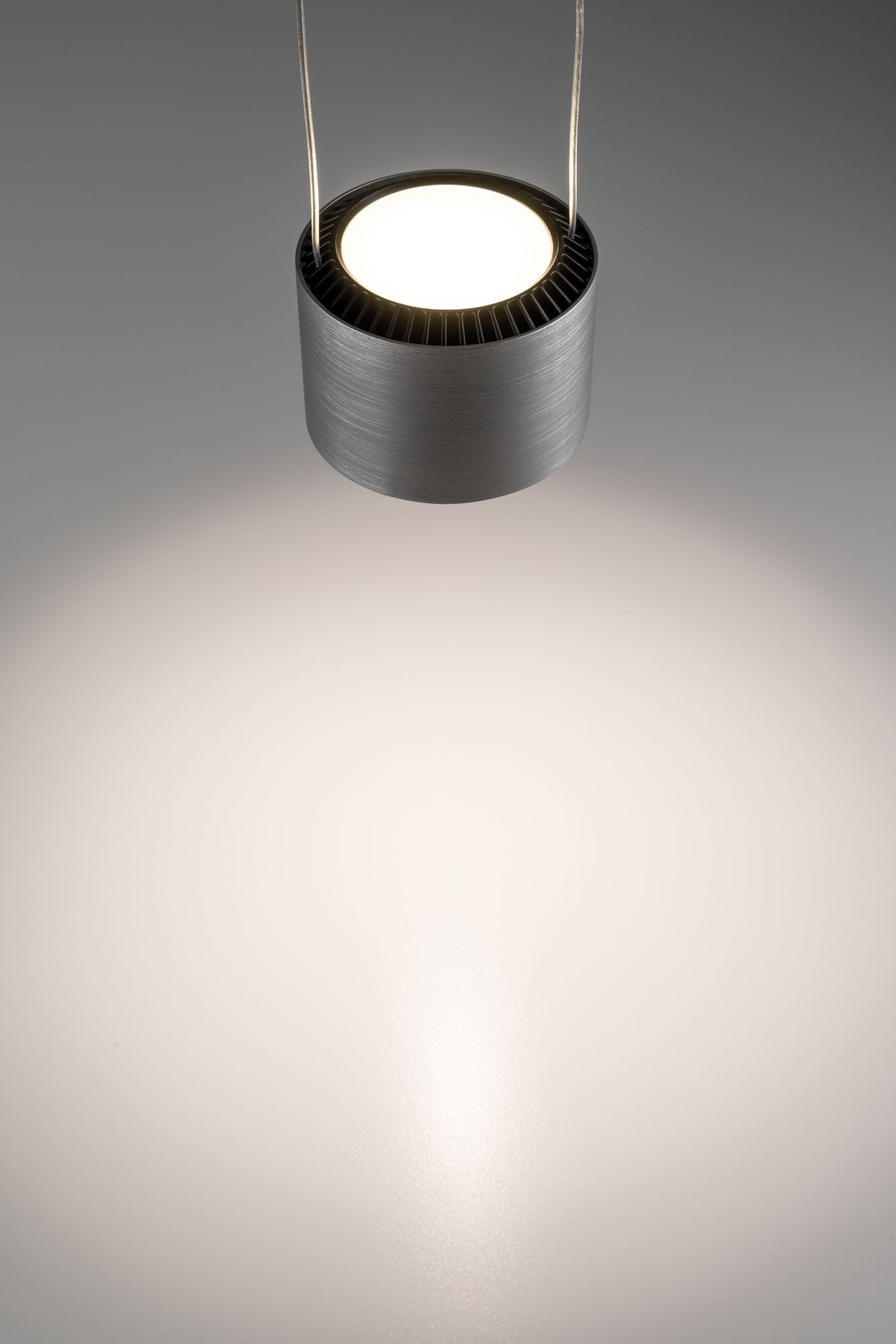

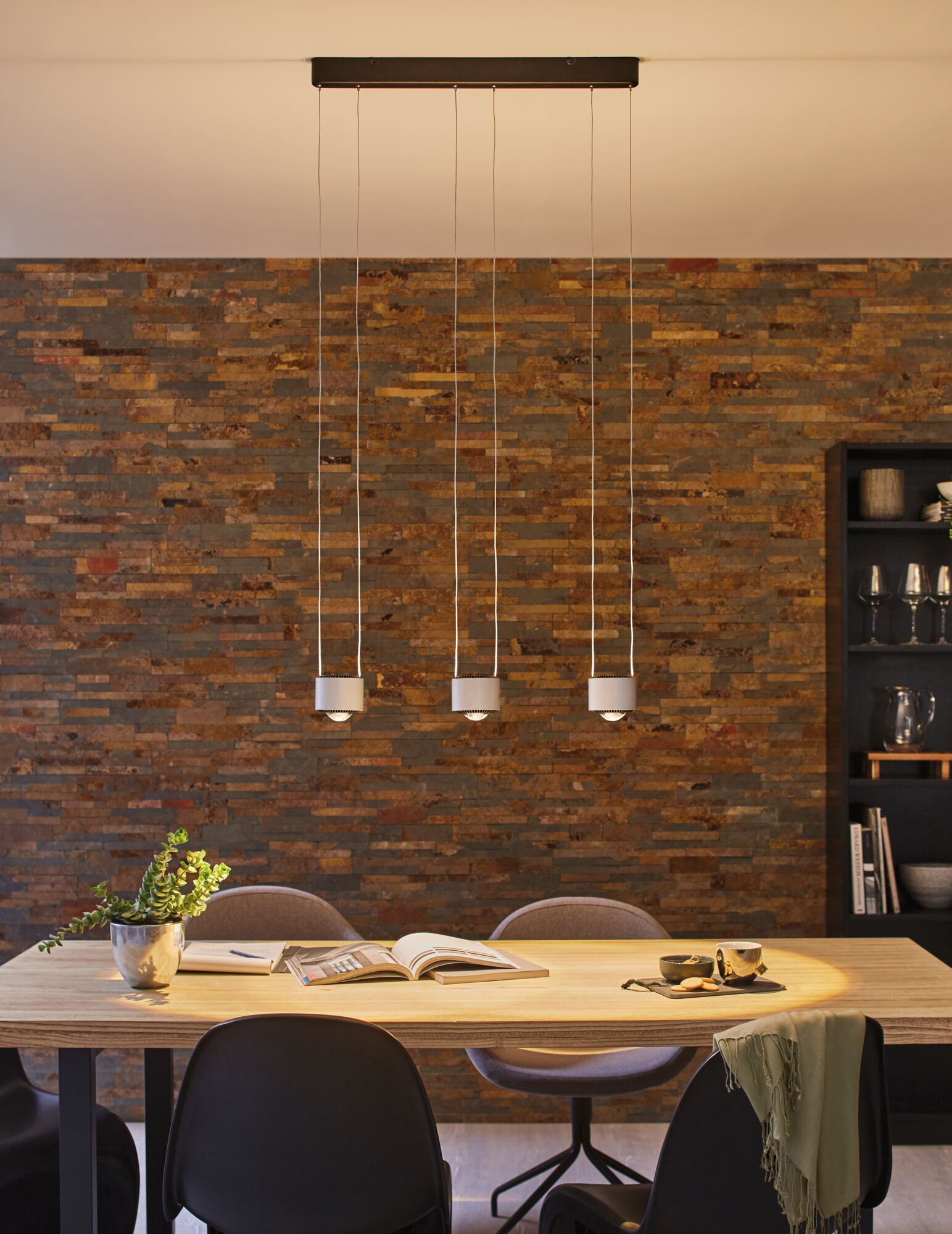

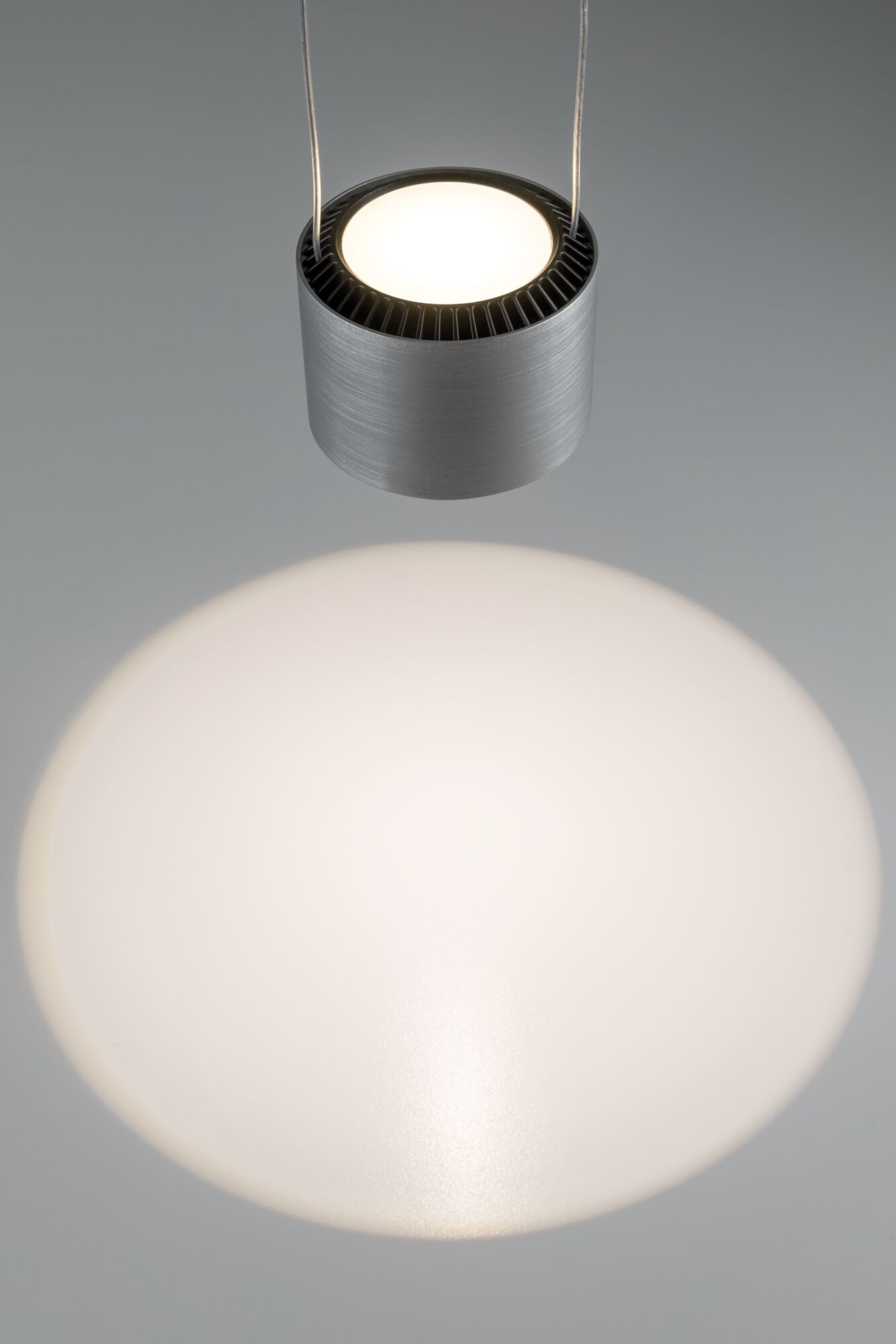

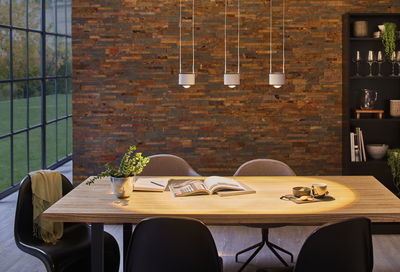

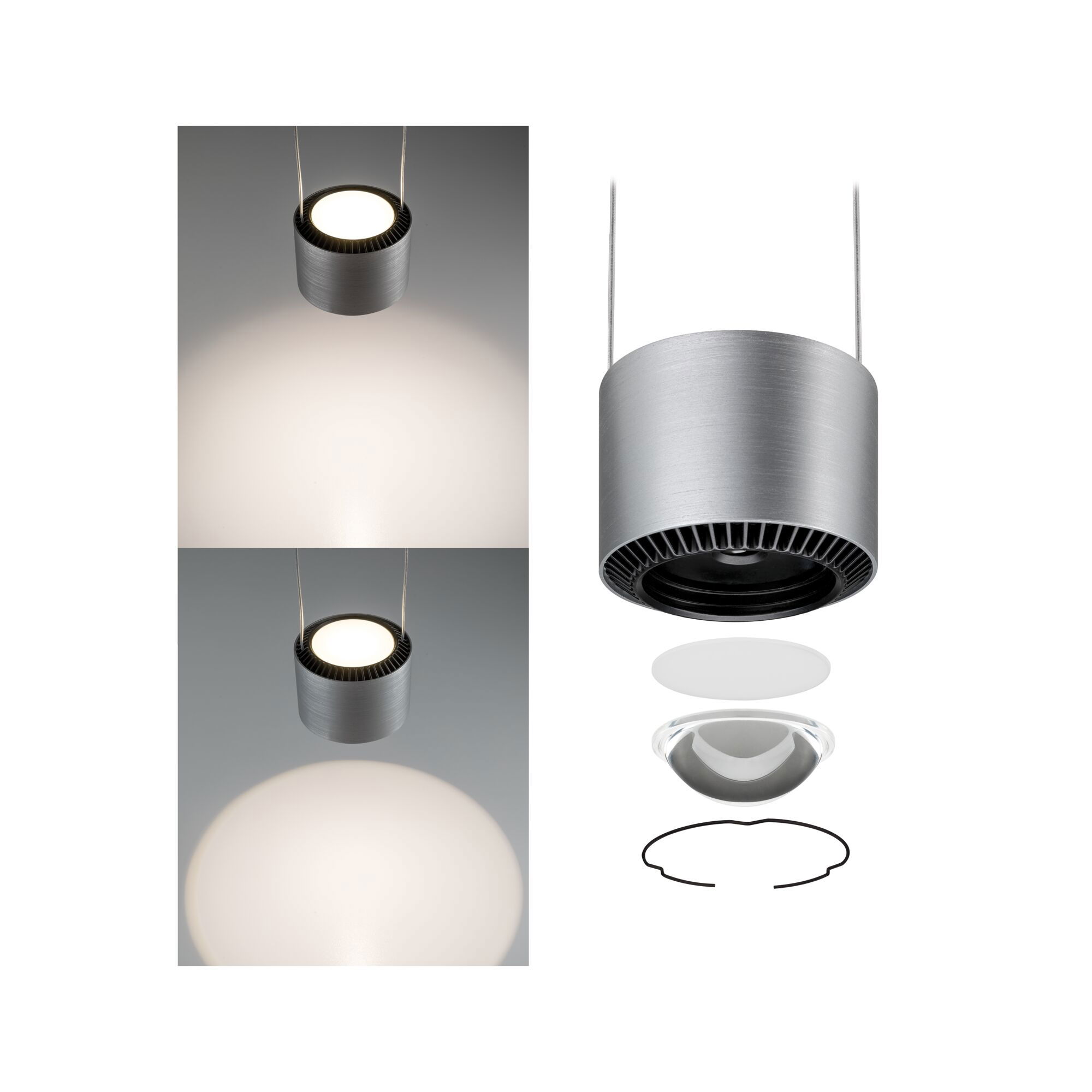

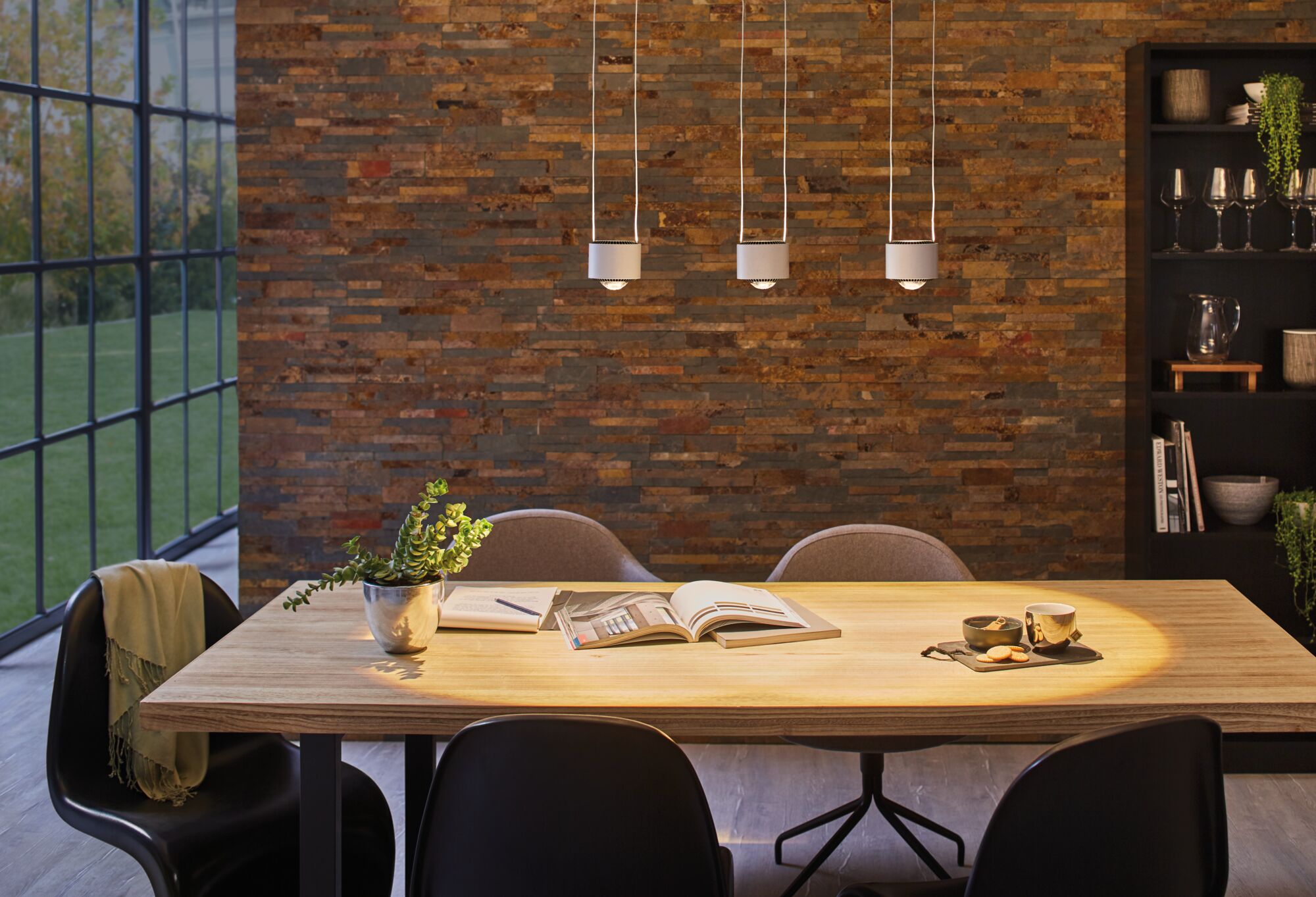

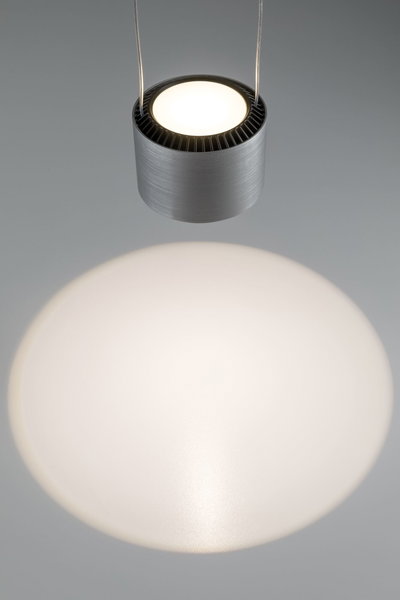

The Aldan 3-lamp pendant luminaire combines modern technology with elegant design. The spots emit light upwards as well as downwards, which creates decorative lighting accents. The pendant lengths can be adjusted as required.
- Pendant length individually adjustable
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|

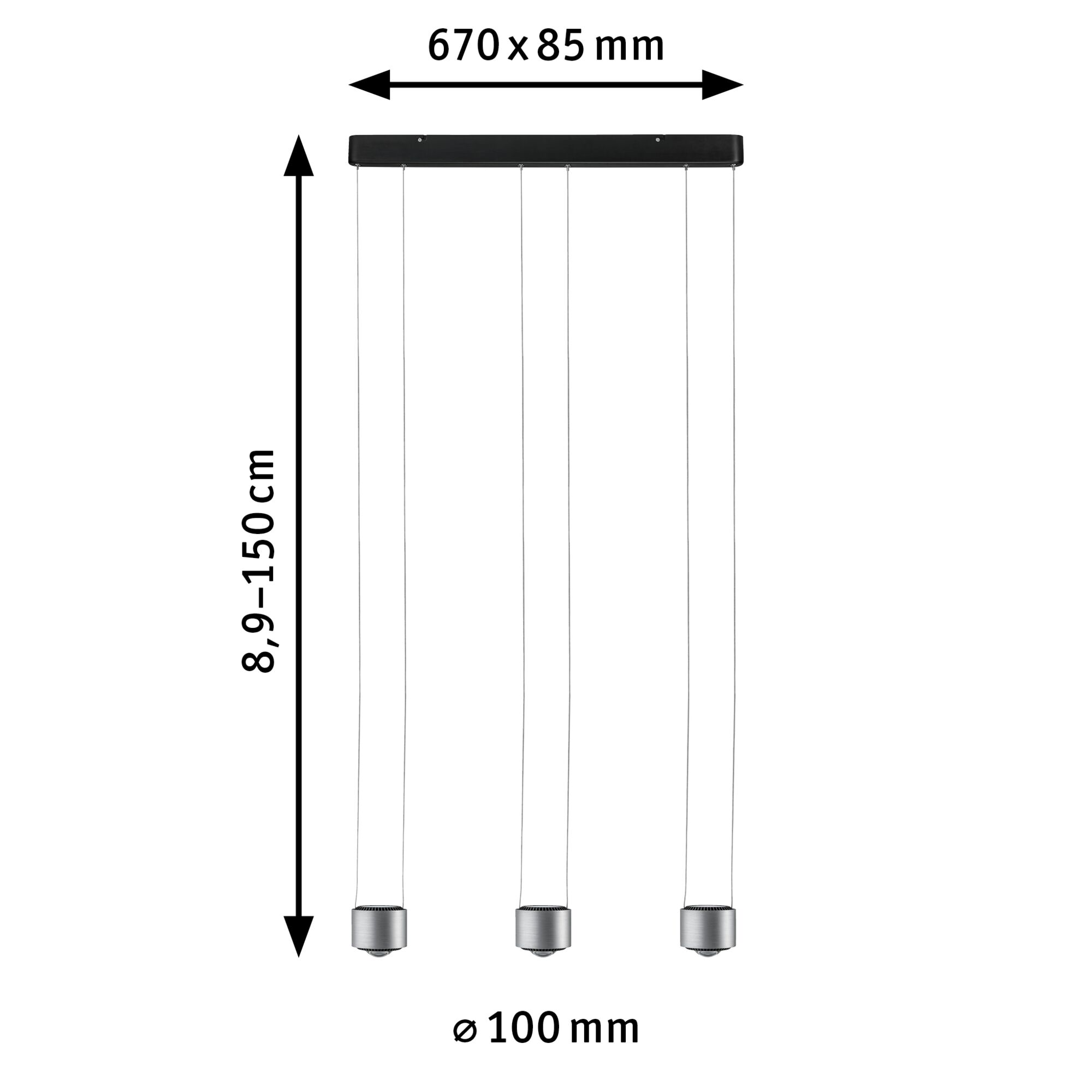

| Dimensions (Height x Width x Depth) | H: 85 x B: 670 mm |
| Ø | 100 mm |
| Pendulum length range | 8,9-150 cm |
| Design and Material | |
|---|---|
| Colour | Brushed aluminium, Black |
| Collection | Technical luminaires, Trend Black & White |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | RL Jung 225 NV DE, RL Gira 2262 00/I00, RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RL Kopp 8428, Paulmann Smart Home BLE 500.18, RC Gira 0307 00/I02, RLC Busch-Jäger 6523-U-102, RC Busch-Jäger 6513U-102, RL REV Ritter 501418851 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Usable luminous flux | 1570 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| Inclusive lamp | yes |
| Adjustability | height adjustable |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Number of component parts | 3x |
| protection class | Protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 28 W |
| Transformer | |
|---|---|
| apparent power | 30 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
