Article-No.:
28820
230 V Standard
LED Pin base 1-piece set
300lm 4W Dim to warm dimmable Clear
300lm 4W Dim to warm dimmable Clear
- Uncomplicated replacement: Simply plugged in thanks to G9 socket
- all-around light
- Color temperatur: 2700K - Warm white - 6500K -Daylight white

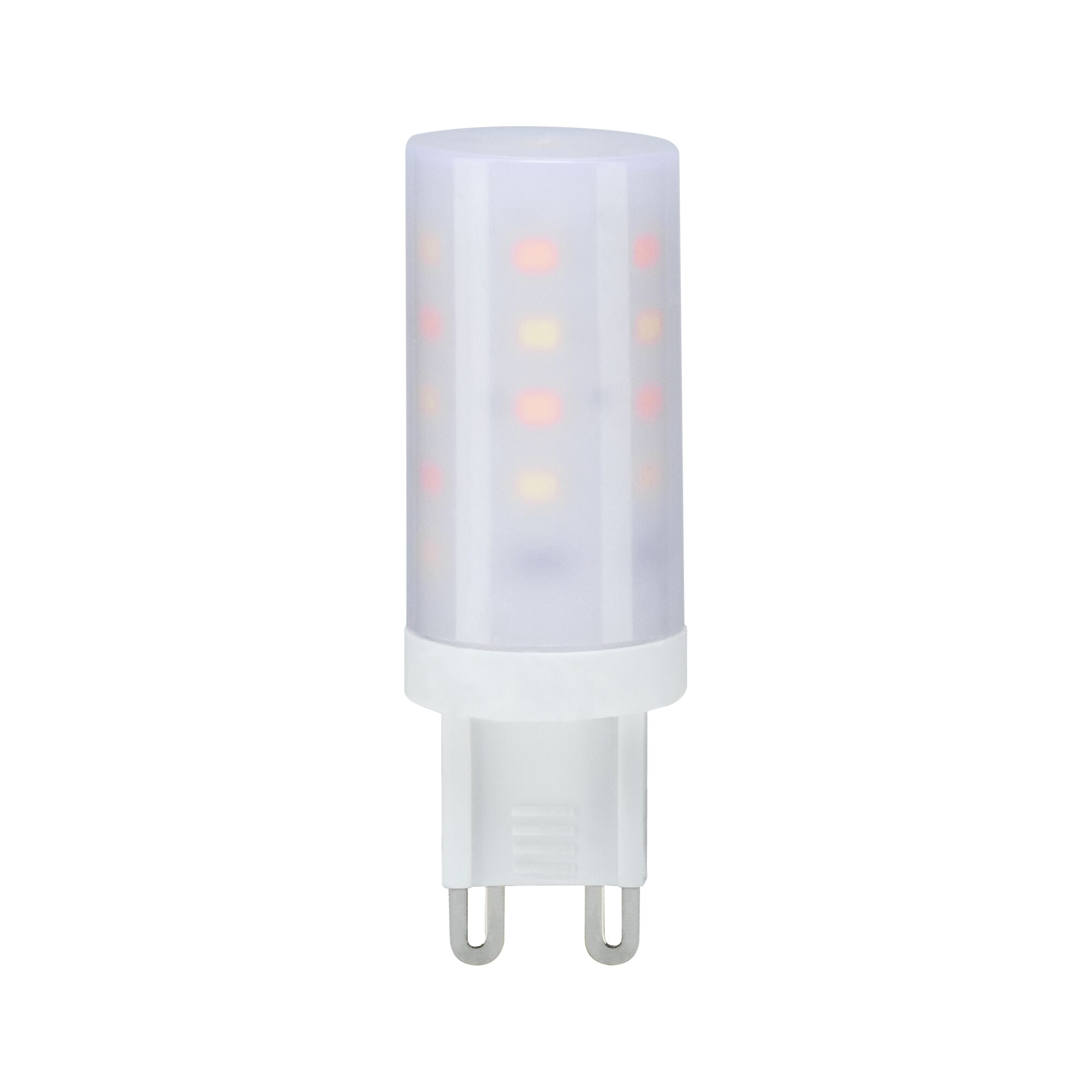

230 V Standard LED Pin base G9 1-piece set 300lm 4W Dim to warm dimmable Clear
Small, compact and powerful. Despite its compact design, this LED pin base lamp with an output of 4 watts, made of Plastic, emits a pleasant light. Thanks to the intelligent Tunable White light control, the light colour can be varied individually – ranging from daylight white work light to warm white relaxation light. As a result, the pin base lamp can be used in any living space. It is particularly suitable for use in the smallest luminaires or spot heads and ensures effective and uniform light distribution. It is ideal for the replacement of old halogen lamps. The Paulmann LED lamps with the Eye friendly label emit gentle-on-the-eyes, comfortable light. Luminaires help create eye comfort – while working, reading, or relaxing.
- Uncomplicated replacement: Simply plugged in thanks to G9 socket
- all-around light
- Color temperatur: 2700K - Warm white - 6500K -Daylight white

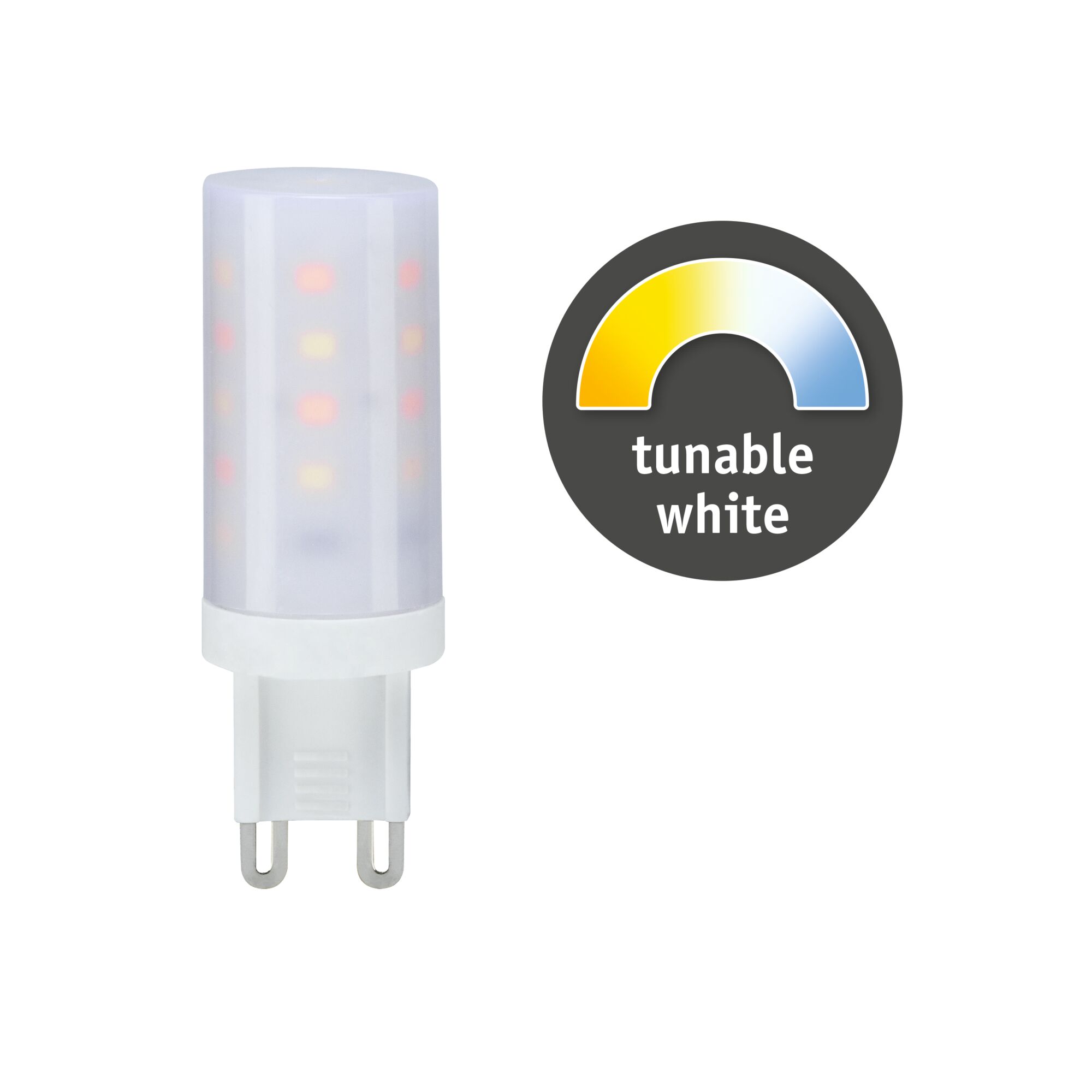

- With white-light control (Tunable White)
- Small and bright
| Dimension | |
|---|---|

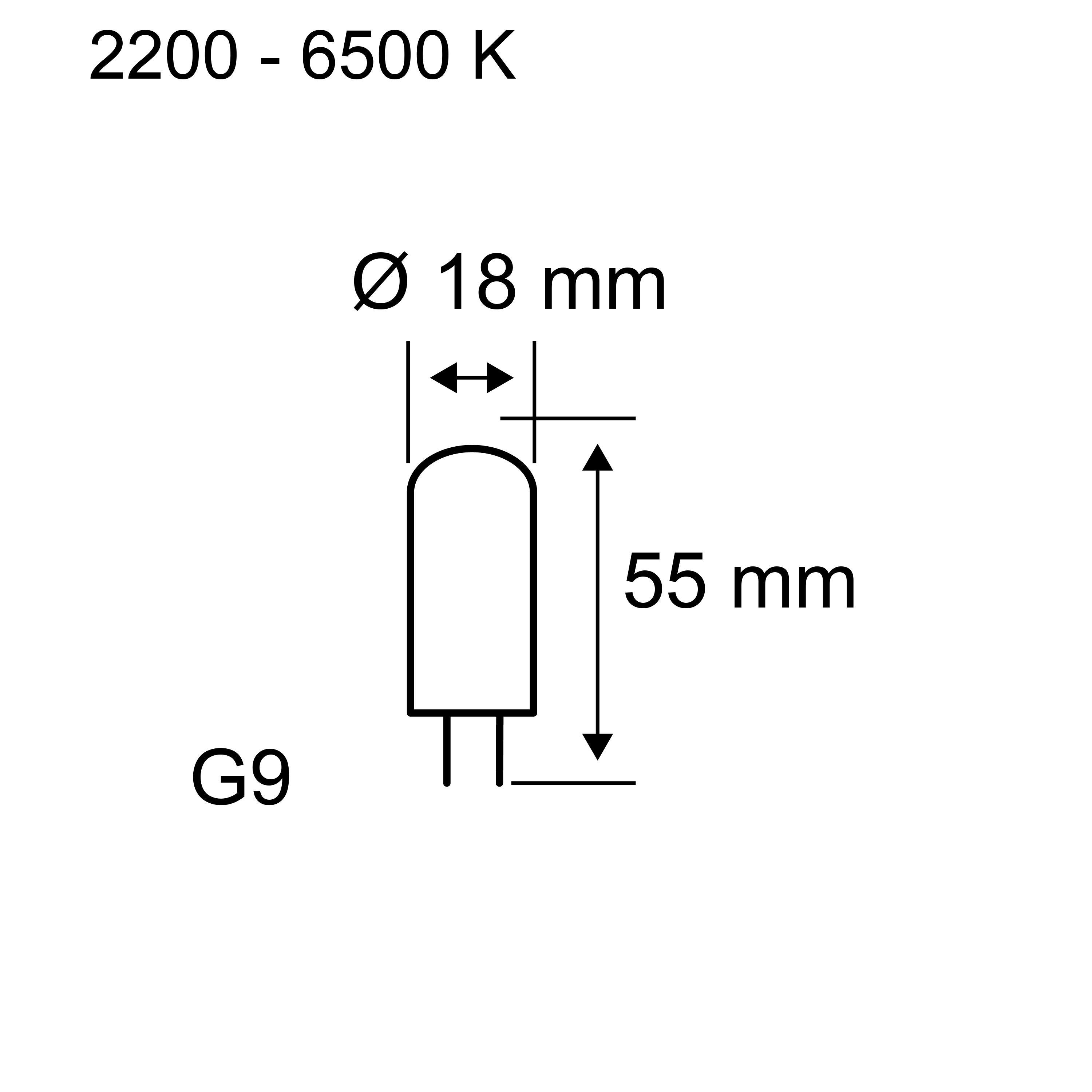

| Dimensions (Height x Width x Depth) | H: 55 mm |
| Ø | 18 mm |
| Design and Material | |
|---|---|
| Colour | Clear |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, Paulmann Smart Home BLE 500.20, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, Paulmann URail 952.94/-95, Paulmann Smart Home BLE 500.18, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 15000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2200 K |
| Colour change | Dim to warm |
| Usable luminous flux | 300 lm |
| color temp | 2200 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 300 lm |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Technique | LED |
| Socket | G9 |
| Type | Bipin |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 28 W |
| Number of component parts | 1x |
| Replacable | 7 not concerned. |
