Article-No.: 50044

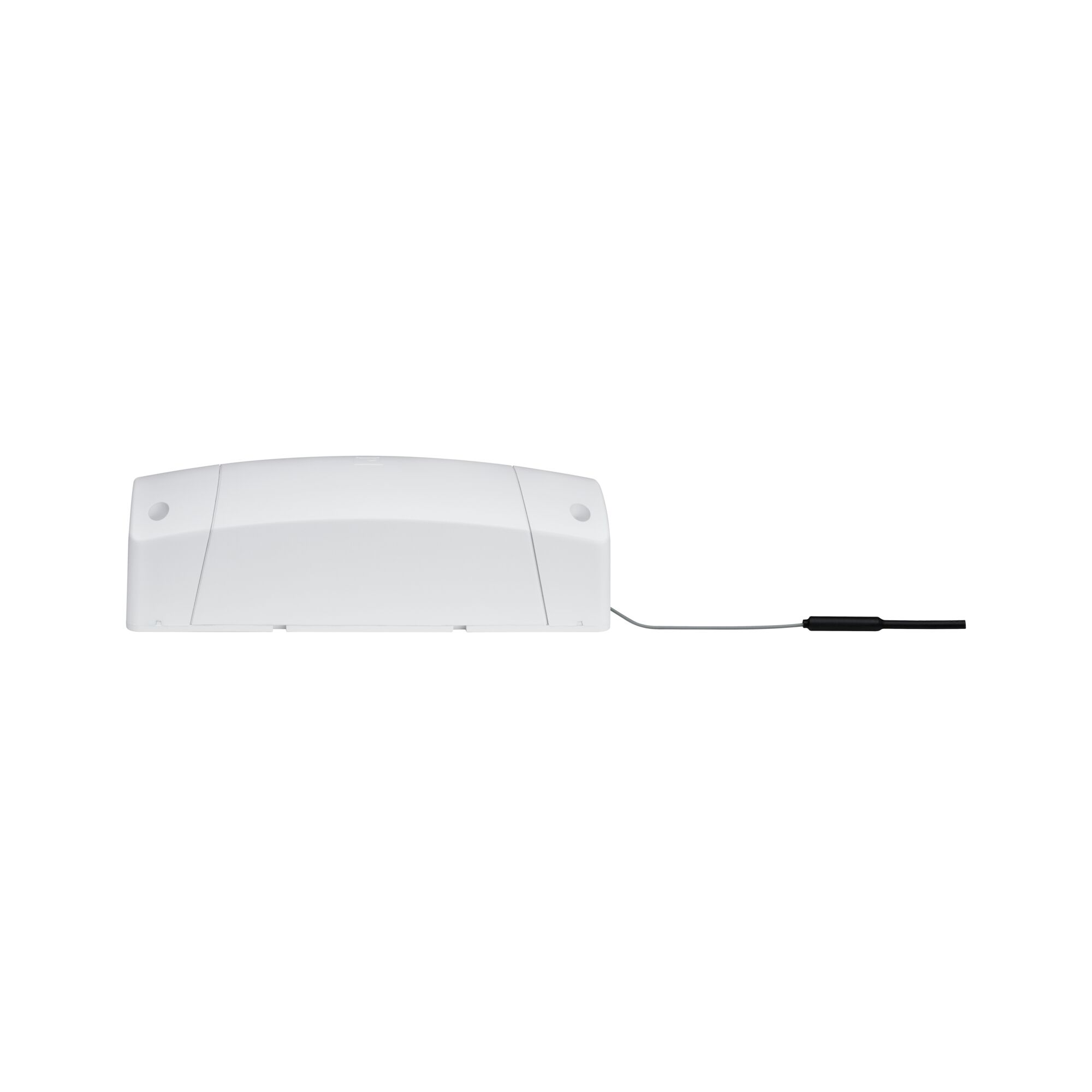

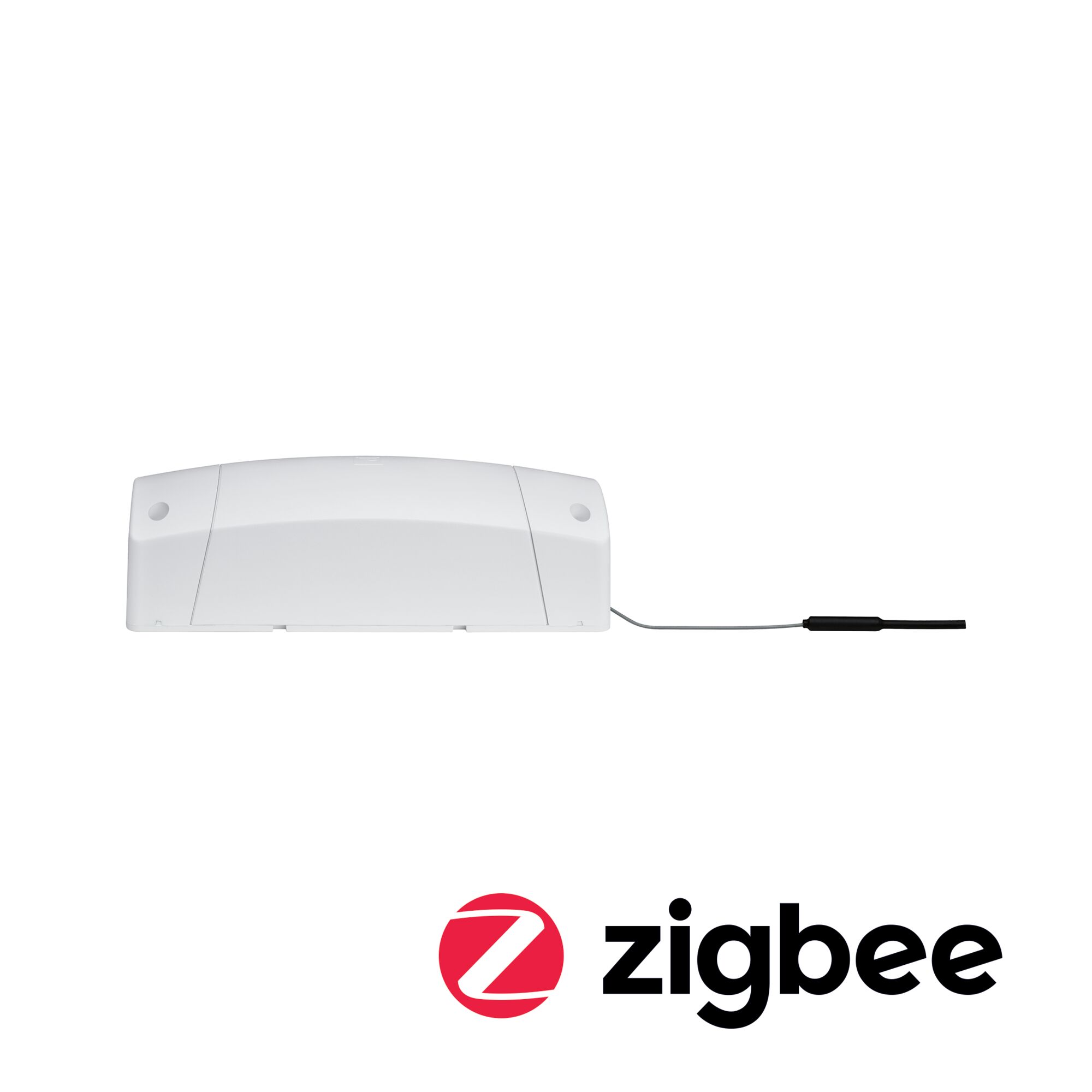

Controller Smart Home Zigbee 3.0 Cephei

230V max. 400W White/Grey

Version: Master dim/switch

  • Usable with smart home gateways that have a Zigbee interface
  • Can be controlled with the Smart Home Zigbee remote control
  • Can still be switched on and off with the light switch

Controller Smart Home Zigbee 3.0 Cephei 230V max. 400W White/Grey

With the Cephei dimming and switching controller, you can switch and dim any luminaires. It is simply fitted between the 230 V connection and the luminaire or ballast. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
  • Usable with smart home gateways that have a Zigbee interface
  • Can be controlled with the Smart Home Zigbee remote control
  • Can still be switched on and off with the light switch
  • Bidirectional data transfer
  • Mesh-capable: range increases from product to product
  • For the wireless control of luminaires
  • Max. 400 W resistive load (halogen and incandescent lamps)
  • Max. 150 W capacitive load (electronic ballasts)
  • With strain relief and aerial
Dimension
Dimensions (Height x Width x Depth) H: 53 x B: 163 x T: 60 mm
Design and Material
Colour White, Grey
Material Plastic
Installation
can be used with the following dimmers Paulmann SmartHome Zigbee Gent2 501.40
Service life
Lifetime 30.000 h
Lamp Features
Compatible Smart Home technology Zigbee
Technique Accessories without bulbs
Dim with Smart Home
Dimmable Yes
Total Width 163 mm
Maximum wattage range max. 400 W
protection class protection class II
Radio frequency 2,4 GHz
Radio range 20 m
Replacable 7 not concerned.
Transformer
Capacitive load 150 W
Resistive load 400 W
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
