Article-No.:
93562
LED Under-cabinet luminaire
Leaf
3x3,6W 80mm 3x260lm 230/12V round Brushed aluminium
3x3,6W 80mm 3x260lm 230/12V round Brushed aluminium
- Material: Alu
- Color: Brushed alu
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
LED Under-cabinet luminaire Leaf 3x3,6W 80mm 3x260lm 230/12V round Brushed aluminium

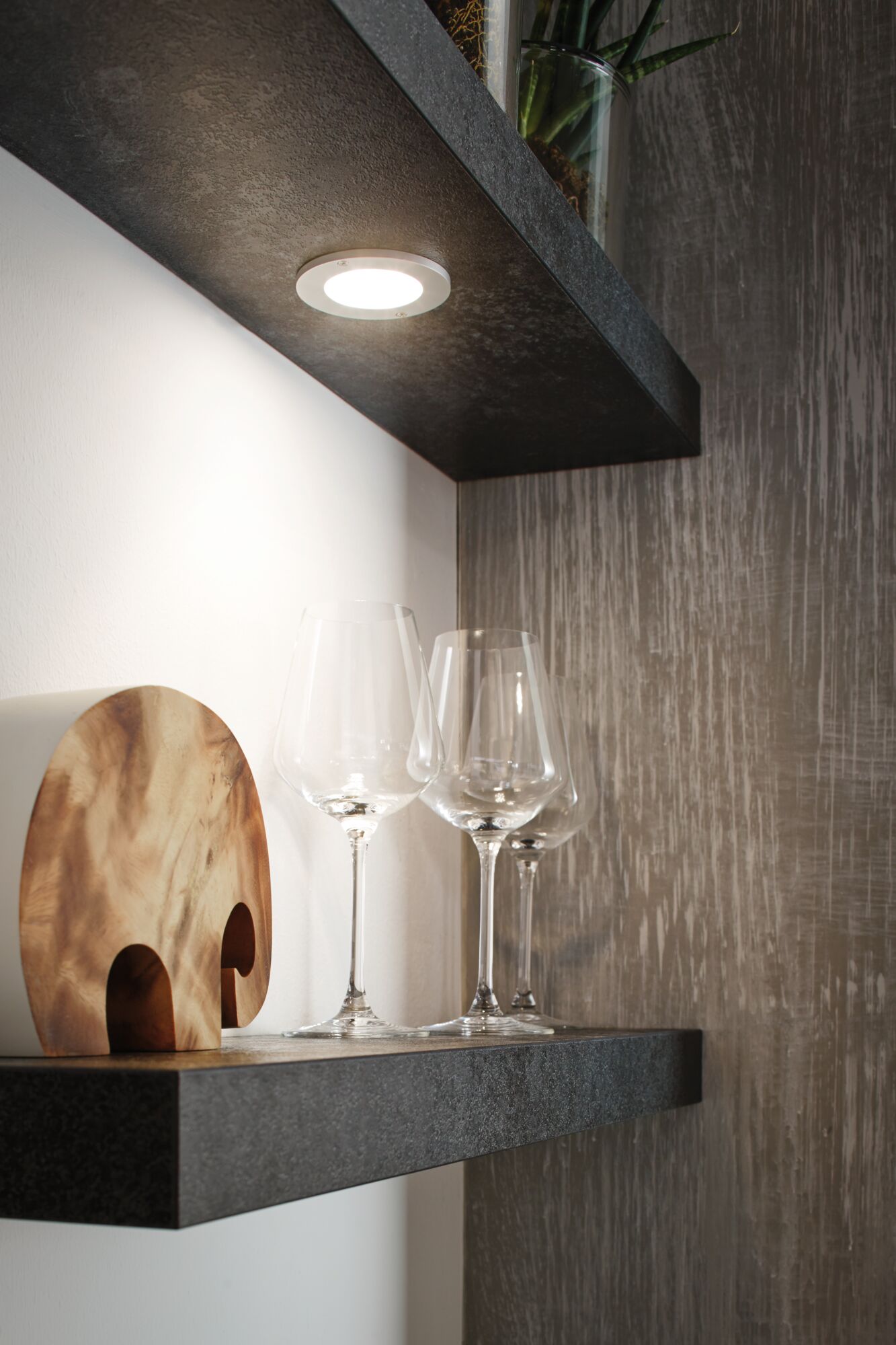

The Micro Line LED offers super-flat housing without installation depth. It is especially suited, therefore, for areas with little space such as shelves, loft beds or wall cupboards.
- Material: Alu
- Color: Brushed alu
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Diameter: 80mm
- Operating voltage: 230/12 V
- protection class II
- Color temperatur: 2700K - Warm white

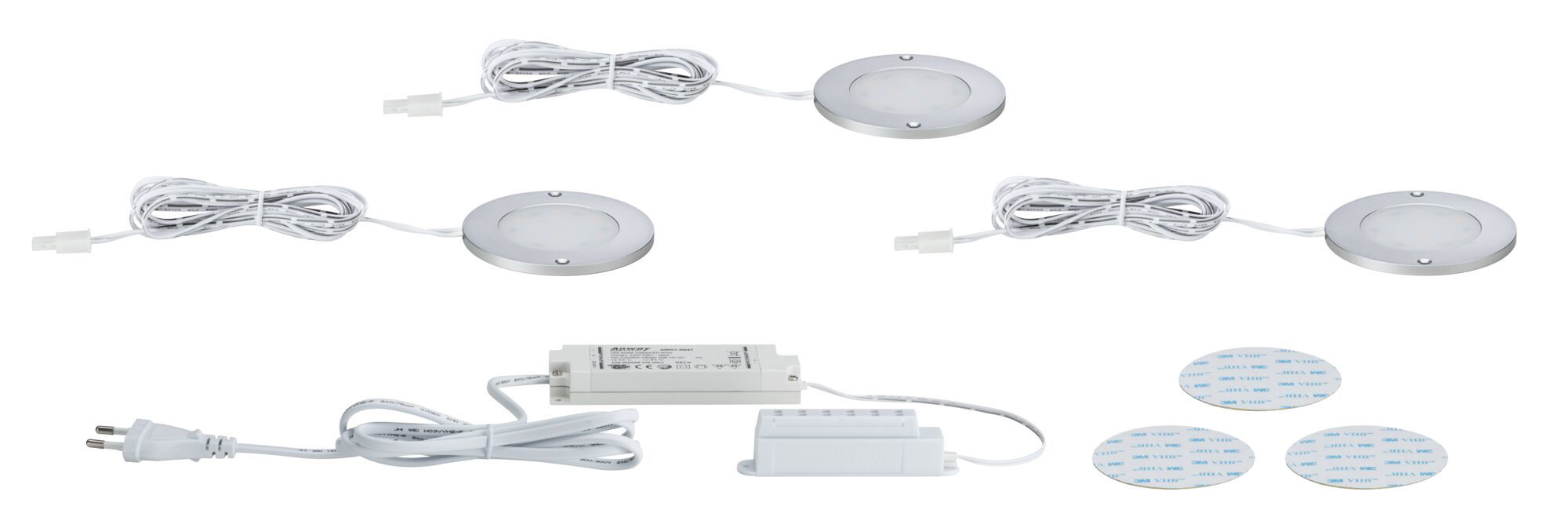

- Incl. plug-in connector and transformer
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4,5 mm |
| Diameter | 80 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed aluminium |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 260 lm |
| Luminous flux LED module | 380 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 120 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 3,6 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 16,5 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 12 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
