Article-No.:
94088
LED Cable system
RoundMac Individual Spot
200lm 4W 2700K 12V Matt white
200lm 4W 2700K 12V Matt white
- Surface/color: White matt
- Single luminaire (component) for 12 V DC cable systems incl. assembly instructions
- Including bulb (built-into lamp)

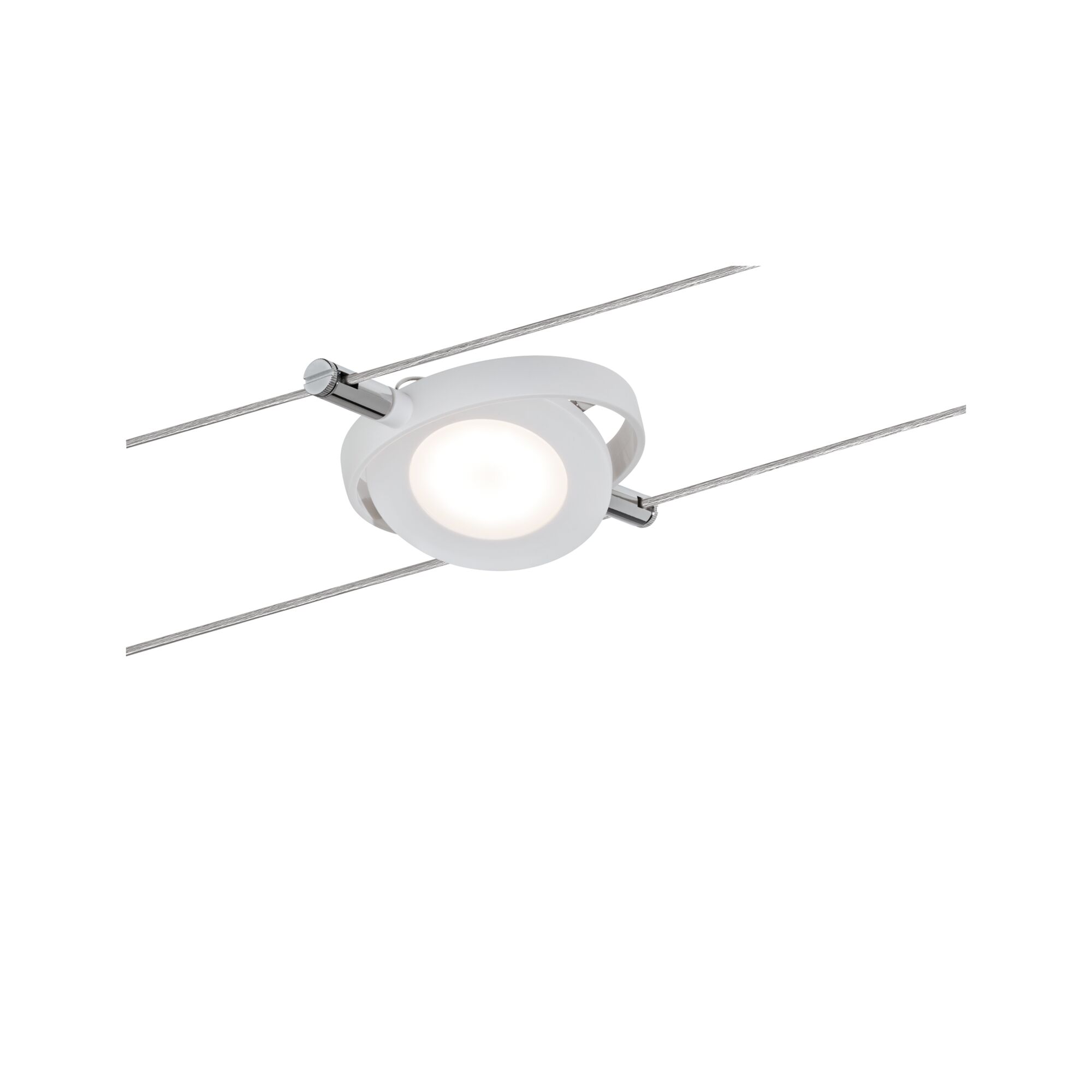

LED Cable system RoundMac Individual Spot 200lm 4W 2700K 12V Matt white
The -RoundMac- single wire luminaire gives a slightly directed light diffusion which allows it to provide good room lighting and adds light accents.
- Surface/color: White matt
- Single luminaire (component) for 12 V DC cable systems incl. assembly instructions
- Including bulb (built-into lamp)
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|

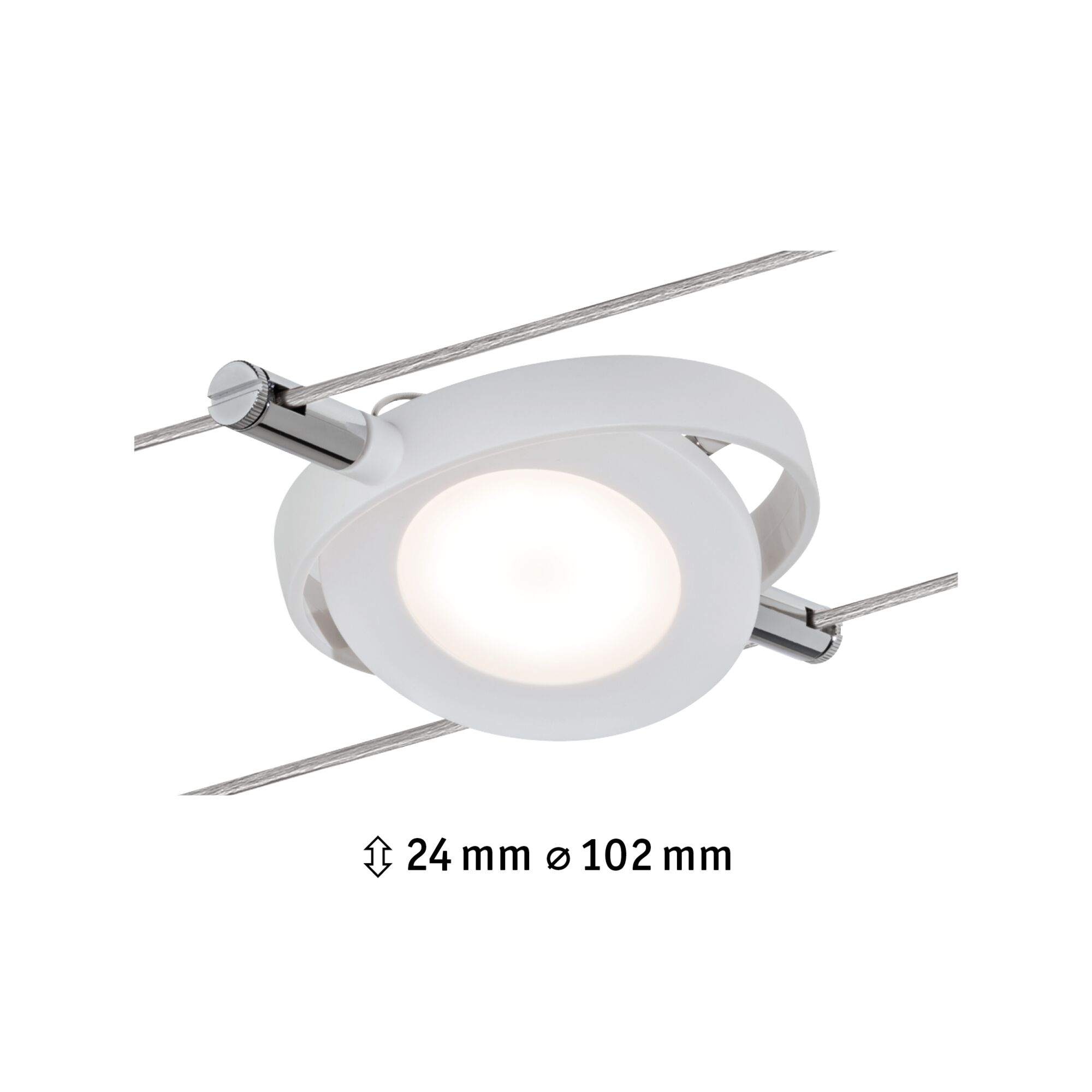

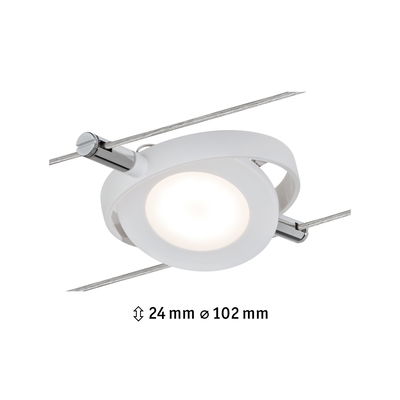

| Dimensions (Height x Width x Depth) | H: 24 mm |
| Diameter | 102 mm |
| Wire distance | 160 mm |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 200 lm |
| Luminous flux LED module | 380 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Protection class | Protection class III |
| Technique | LED |
| Component parts | 4 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 4 W |
| Adjustability | swivelling/tilting |
| Voltage | 12 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
