Article-No.:
95382
VariFitLED Recessed panel
Veluna
IP44 round 215mm 17W 1300lm White Switch Transparent
IP44 round 215mm 17W 1300lm White Switch Transparent
- IP protection: IP44 splash-protected
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- Even room light based on cutting-edge LED technology
VariFit LED Recessed panel Veluna IP44 round 215mm 17W 1300lm White Switch Transparent

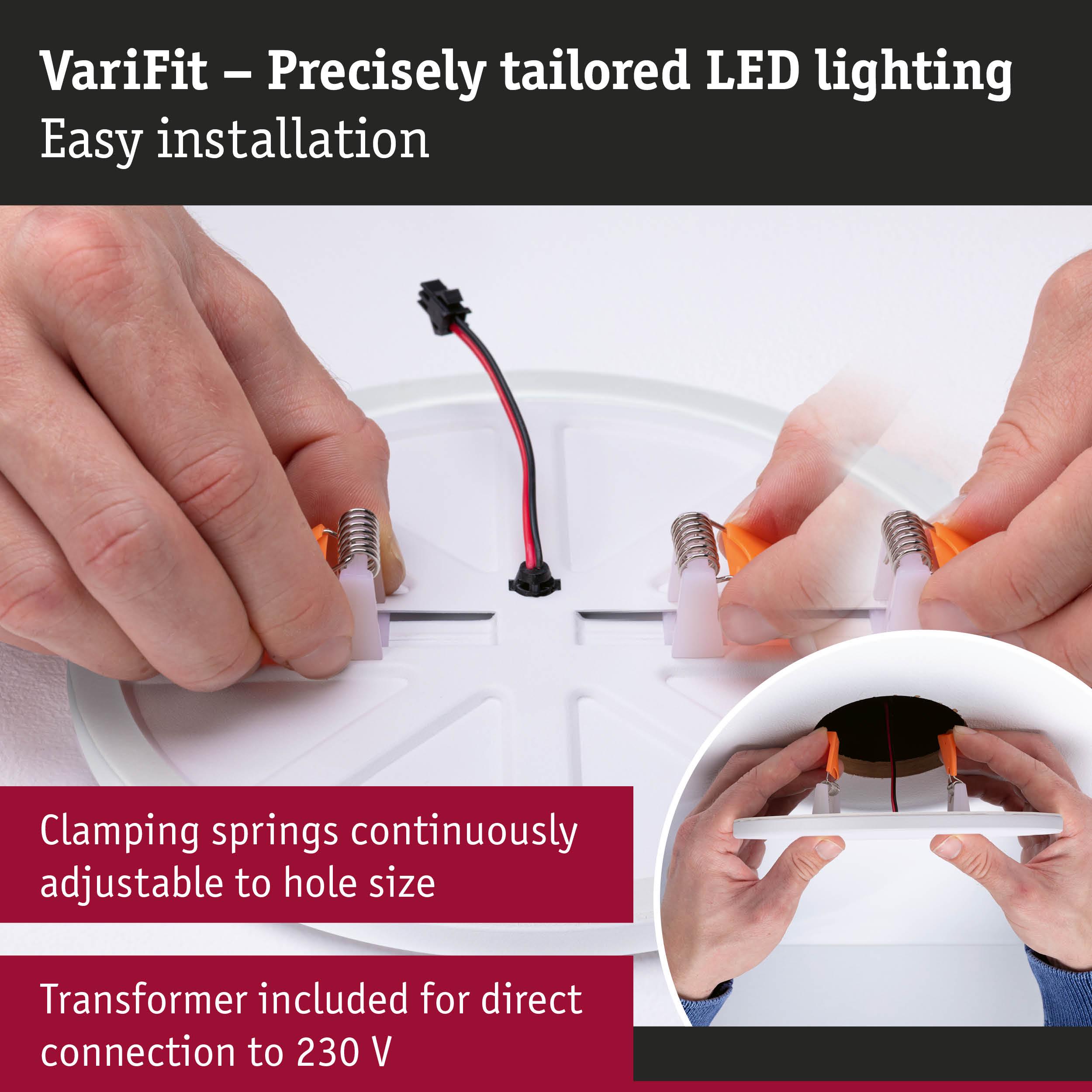

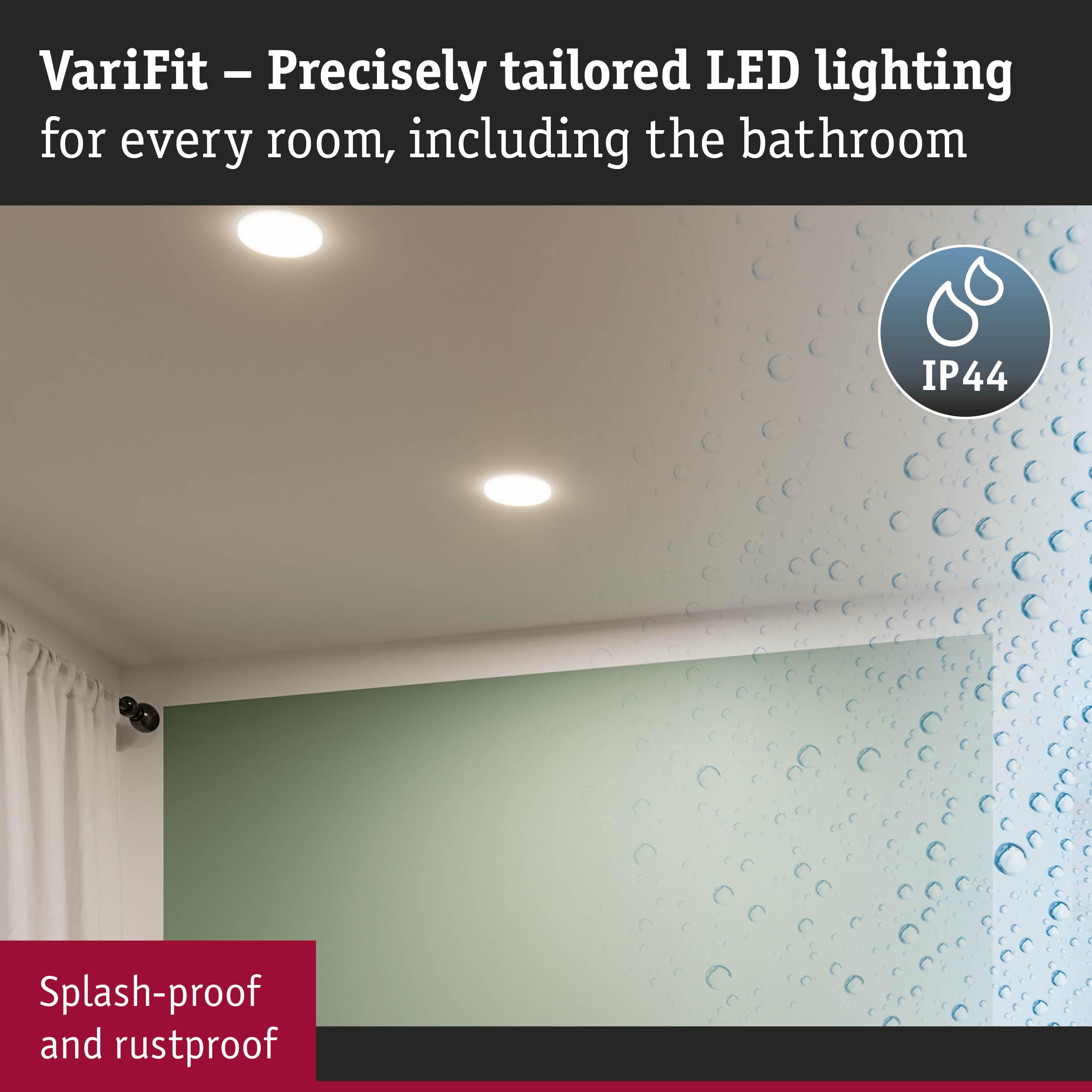

More flexibility than ever before! The Veluna VariFit recessed panel with a diameter of 215 mm features a completely edgeless and homogeneous light surface. With a super slim installation height of only 10 mm, the panel blends almost seamlessly into the ceiling or wall. Suitable for use in bathrooms or other wet rooms thanks to splash protection. The satined surface of the diffuser plate casts a pleasant light across a wide area. The spring clamps for installation are infinitely adjustable to any standard recess opening between 45 and 160 mm, so old systems can be replaced with ease. The panel is equipped with the WhiteSwitch function, so the colour temperature can be set in three stages by pressing the wall switch several times.
- IP protection: IP44 splash-protected
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Diameter | 215 mm |
| Built-in diameter | 60 - 190 mm |
| Mounting depth | 45 mm |
| installation depth to | 70 mm |
| Depth of hollow wall | 30-55 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Transparent |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 1300 lm |
| Luminous flux LED module | 1900 lm |
| Color rendering index | > 80 Ra |
| Colour change | White Switch |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 120 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 17 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 21 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 36 VA |
| Transformer height | 27 mm |
| Transformer width | 45 mm |
| Transformer depth | 133 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
