Article-No.:
5453
URail
Rail spot
Smart Home Zigbee 3.0
Tarie
Starter set Cable power supply 4x4,5W 230V Black matt
Starter set Cable power supply 4x4,5W 230V Black matt
- The perfect introduction to the URail system

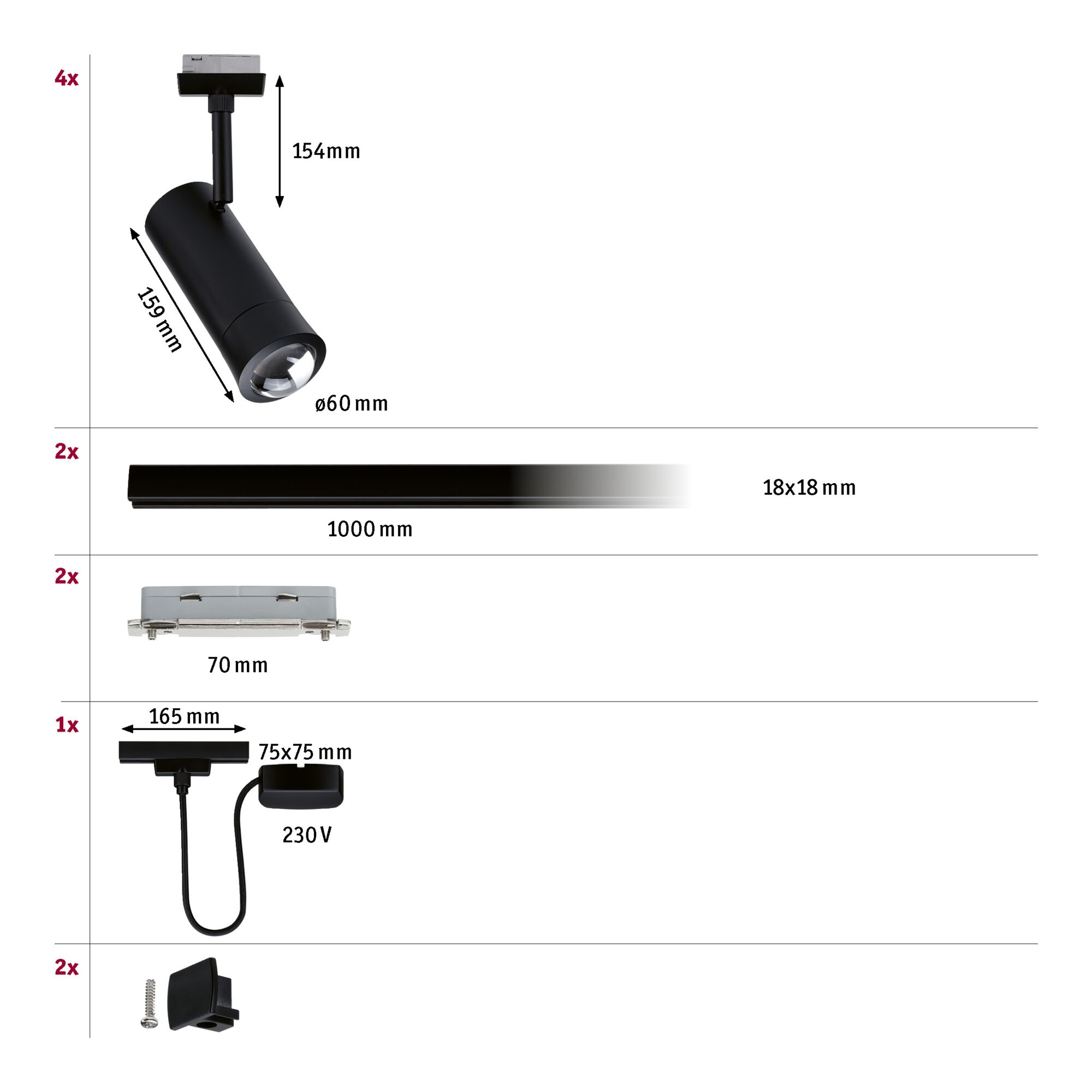

- Package contents: 4x URail Spot Tarie, 2x 1m rails, cable power supply and 2x line connectors
- Ball lens for glare-free, decorative light emission
URail Rail spot Smart Home Zigbee 3.0 Tarie Starter set Cable power supply 4x4,5W 230V Black matt

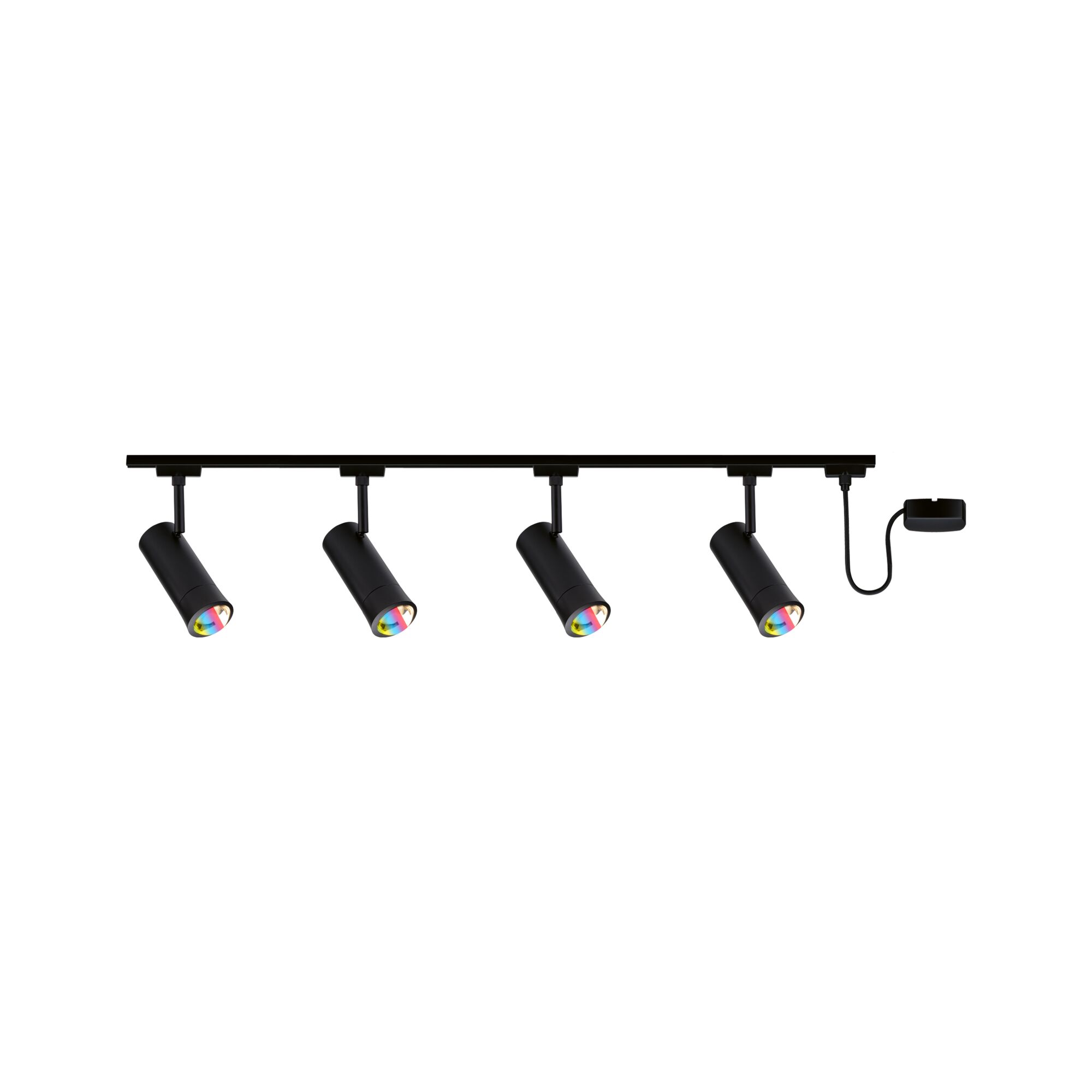

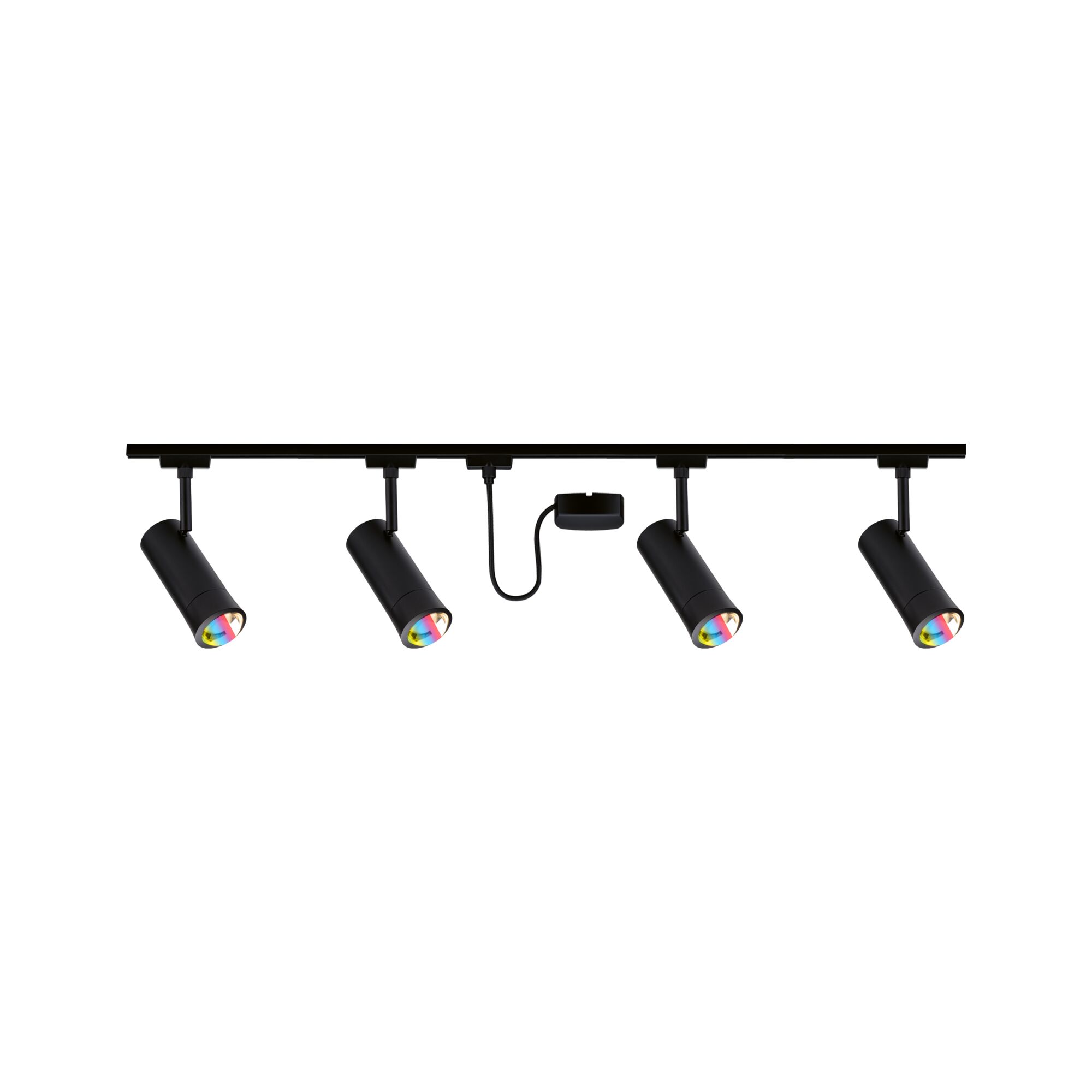

This URail set consists of various components that enable a perfect lighting installation. Two 1-meter-length URail tracks in black matt form the base, onto which four URail Tarie rail spots in black matt can be mounted. These spots can be individually adjusted to direct the light precisely where it’s needed. Each rail spot integrates seamlessly into existing Zigbee smart home systems and can be conveniently controlled via voice command, through the gateway, or with a remote control (e.g., the Gent 1 or 2). Whether you want to adjust the brightness individually, select different color tones, or create atmospheric lighting scenes—the possibilities are virtually endless! The package also includes a URail cable power supply in black matt, which blends in perfectly with the lighting installation and enables a flexible connection to the power source. Particularly practical are the two internal line connectors, which disappear invisibly into the rails after installation, thus enabling a seamless Gesaappearance.
- The perfect introduction to the URail system
- Package contents: 4x URail Spot Tarie, 2x 1m rails, cable power supply and 2x line connectors
- Ball lens for glare-free, decorative light emission
- Coloured light and infinitely variable white tones thanks to RGBW and Tunable White function
- Color: Matt black
| Dimension | |
|---|---|
| Diameter | 60 mm |
| Dimensions (Height x Width x Depth) | H: 160,5 x B: 159 mm |
| Net weight | 3116 g |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Black matt |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| URail Inline Adapter | No |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | mit Smart Home |
| Inclusive lamp | yes |
| Component parts | 4,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 33 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | rotating and tilting |
| Dimmable | Yes |
| Protection class | Protection class I |
| Number of component parts | 4x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 22 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Transformer height | 18 mm |
| Transformer width | 80 mm |
| Transformer depth | 38 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 30 m |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 230 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Luminous flux LED module | 360 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 160,5 x 159 mm |
