Article-No.:
5063
Plug & ShineSetSmart Home Zigbee 3.0
LED Recessed floor luminaire MicroPen
IP67 3000K 5x0,2W 21VA Silver Smart Home Zigbee
IP67 3000K 5x0,2W 21VA Silver Smart Home Zigbee
- Bundle includes 1x 93695 and 1x 93999

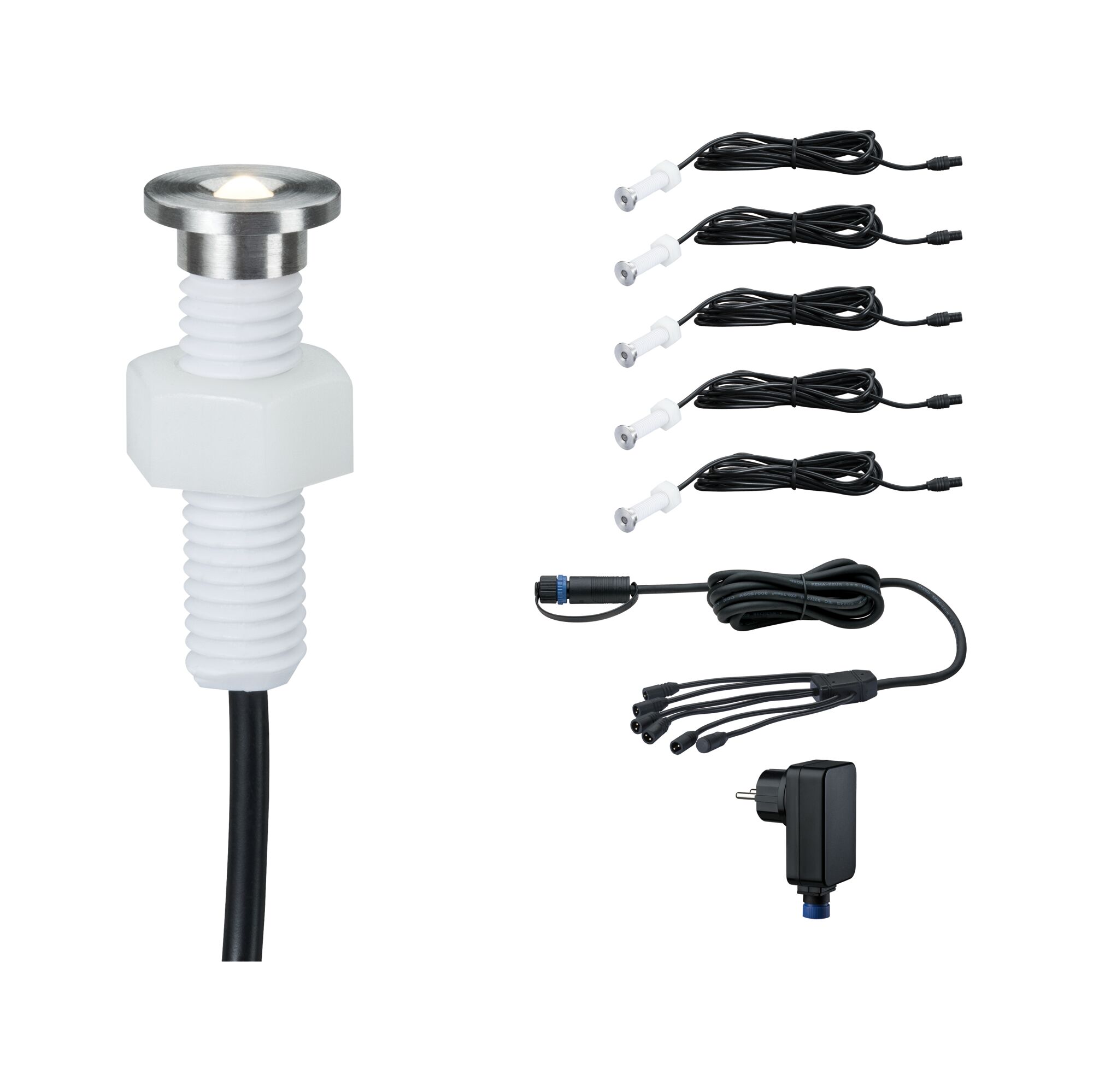

- Plug & Shine basic set consisting of 5 luminaires, connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
Plug & Shine Set Smart Home Zigbee 3.0 LED Recessed floor luminaire MicroPen IP67 3000K 5x0,2W 21VA Silver Smart Home Zigbee
The smart Plug & Shine MicroPen II Zigbee 3.0 set offers full flexibility. Comprising warm white recessed floor luminaires, transformer, connecting cable and a Plug & Shine Zigbee 3.0 controller, it offers an ideal introduction to smart outdoor lighting. The Plug & Shine Zigbee 3.0 controller allows switching and dimming of the 24-volt light installation. The weather-resistant spotlights create decorative light points on paths, driveways and patios. The system can be expanded with additional Plug & Shine components, if required.
- Bundle includes 1x 93695 and 1x 93999
- Plug & Shine basic set consisting of 5 luminaires, connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Usable with smart home gateways that have a Zigbee interface
- IP protection: IP68 - protected against continuous immersion
| Dimension | |
|---|---|
| Depth of hollow wall | 31 mm, 31 mm |
| Total Mounting depth | 46 mm |
| Dimensions (Height x Width x Depth) | H: 30 T: 40 mm |
| Ø | 15 mm |
| Mounting hole | 10 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Stainless steel |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 22 ° |
| Usable luminous flux | 1,8 lm |
| Luminous flux LED module | 3 lm |
| color temp | 3000 K |
| Beam angle LED module | 23 ° |
| Lamp Features | |
|---|---|
| Component parts | 0,22 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 2.2 W |
| Number of component parts | 5x |
| Maximum load | 130 kg |
| Replacable | 7 not concerned. |
| Power consumption | 2,1 W |
| Transformer | |
|---|---|
| Transformer power | 21 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
