Article-No.:
93695
Plug & Shine
LED Recessed floor light
MicroPen II Basic Set
IP67 3000K 5x0,2W 21VA Silver
IP67 3000K 5x0,2W 21VA Silver

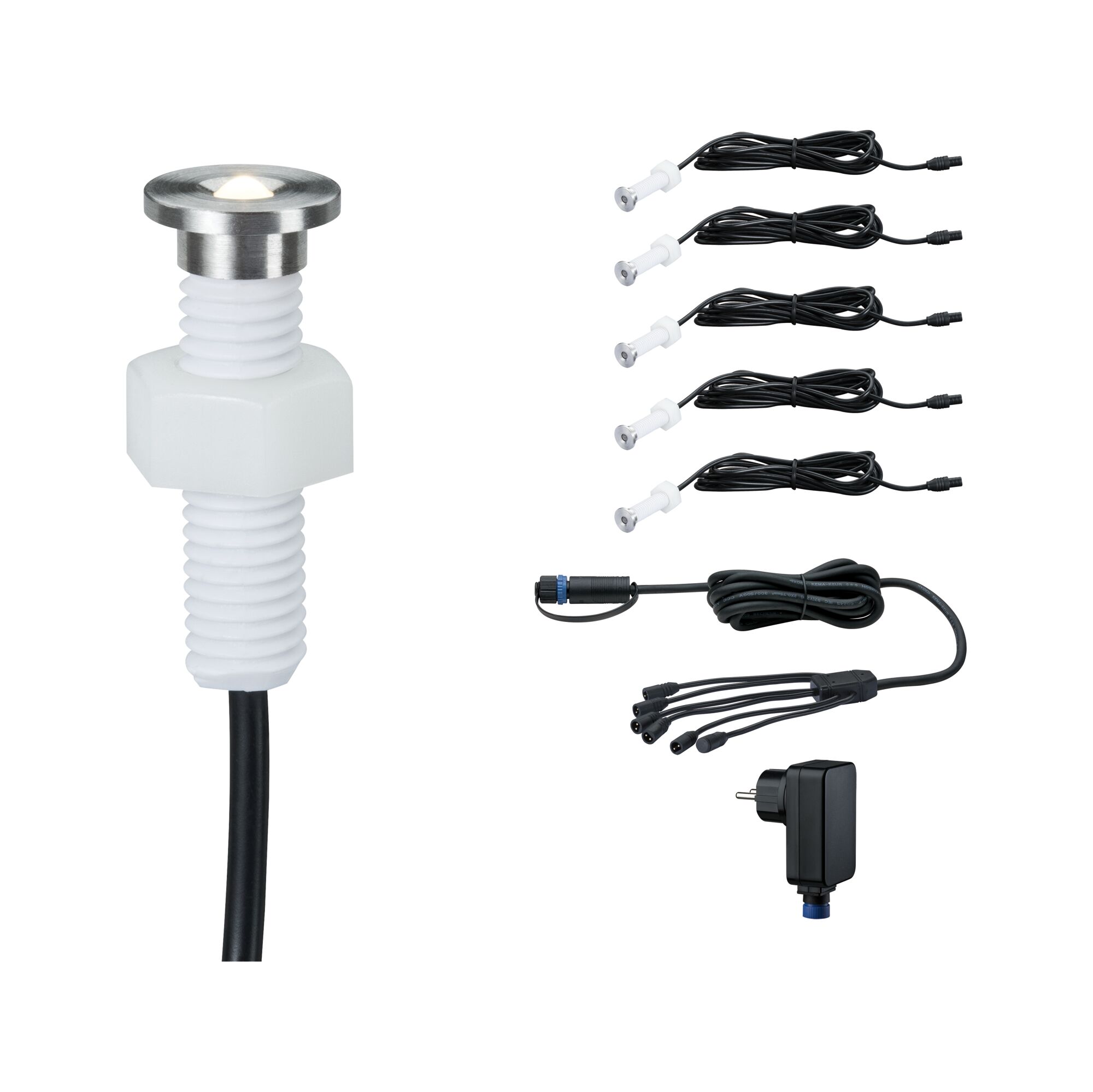

- Plug & Shine basic set consisting of 5 lights, connecting cable and transformer
- Can be combined with all lights and accessories from the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Recessed floor light MicroPen II Basic Set IP67 3000K 5x0,2W 21VA Silver
Just unpack, plug in, and illuminate your garden: the MicroPen II Plug & Shine starter set consisting of five warm white in-ground lights, transformer and connecting cable offers you the ideal start into outdoor lighting. The weather-resistant spotlights provide decorative light points on paths, in driveways or on patios. If required, you can expand the system with additional Plug & Shine components. You can close outlets that you do not need with the supplied cap. It can't be walked on or driven over.
- Plug & Shine basic set consisting of 5 lights, connecting cable and transformer
- Can be combined with all lights and accessories from the Plug & Shine series
- Color temperatur: 3000K - Warm white

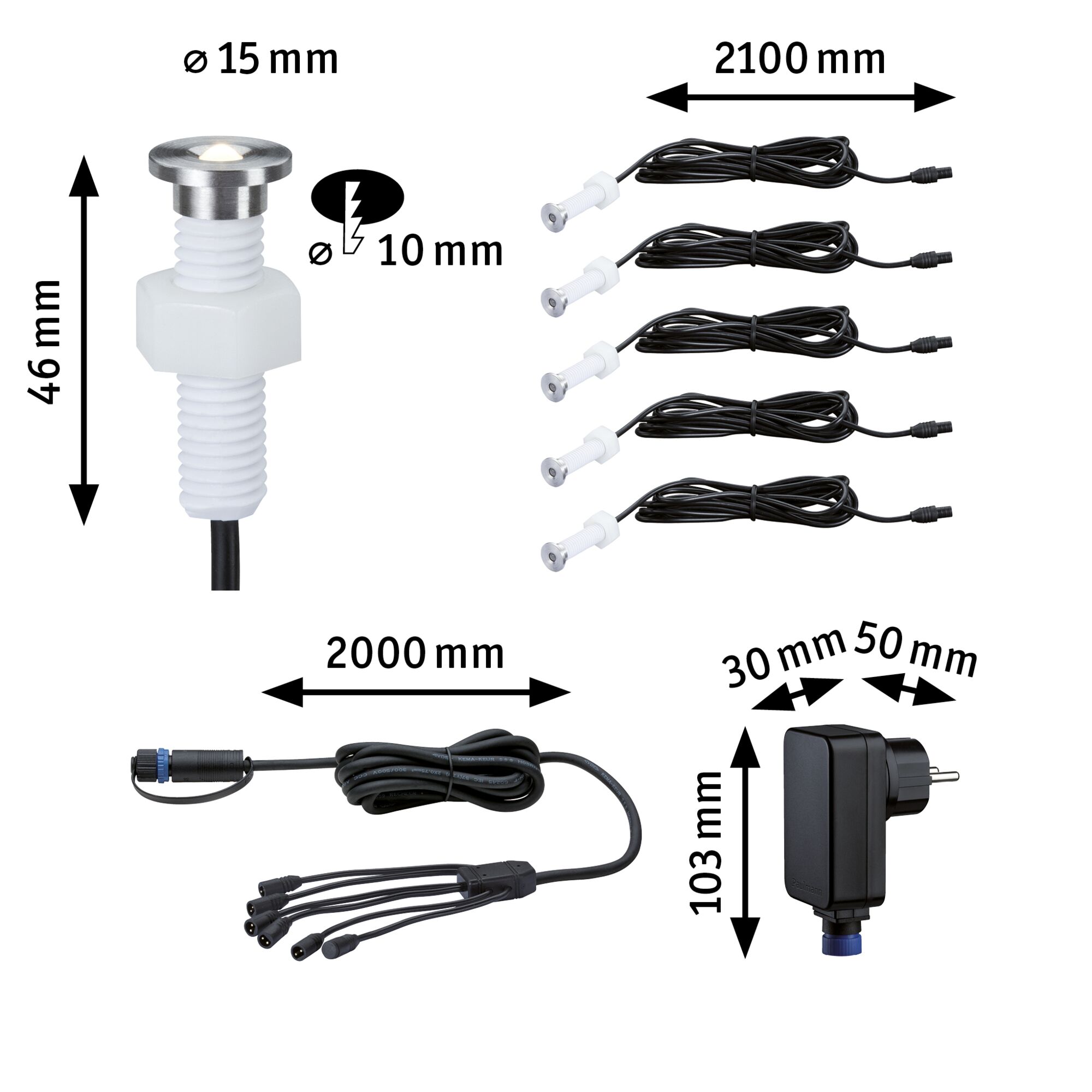

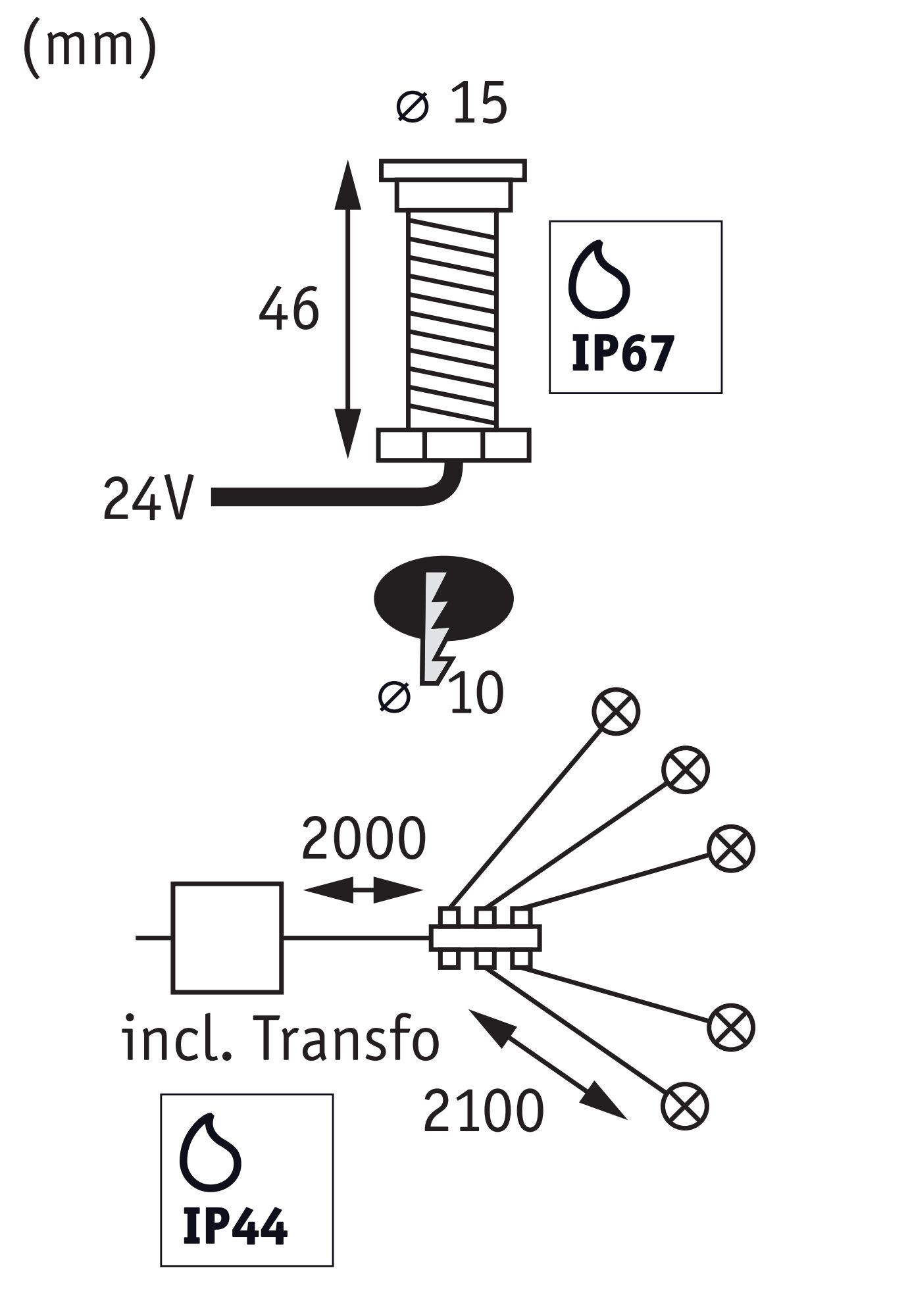

| Dimension | |
|---|---|
| Diameter | 15 mm |
| Plug depth | 48 mm |
| Built-in diameter | 10 mm |
| Mounting depth | 46 mm |
| Depth of hollow wall | 31 mm |
| net weight | 416 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1,8 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 22 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 3 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 0,22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 2.2 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP67 |
| Protection class | Protection class II |
| Number of component parts | 5x |
| Maximum load | 130 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 2,1 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
