Article-No.:
5028
Plug & ShineSetSmart Home Zigbee 3.0
LED Garden spotlight Sting
IP67 3000K 3x6W 75VA Anthracite
IP67 3000K 3x6W 75VA Anthracite
- Bundle includes 1x 93696 and 1x 93999
- Can be controlled with the Smart Home Zigbee remote control
Plug & Shine Set Smart Home Zigbee 3.0 LED Garden spotlight Sting IP67 3000K 3x6W 75VA Anthracite

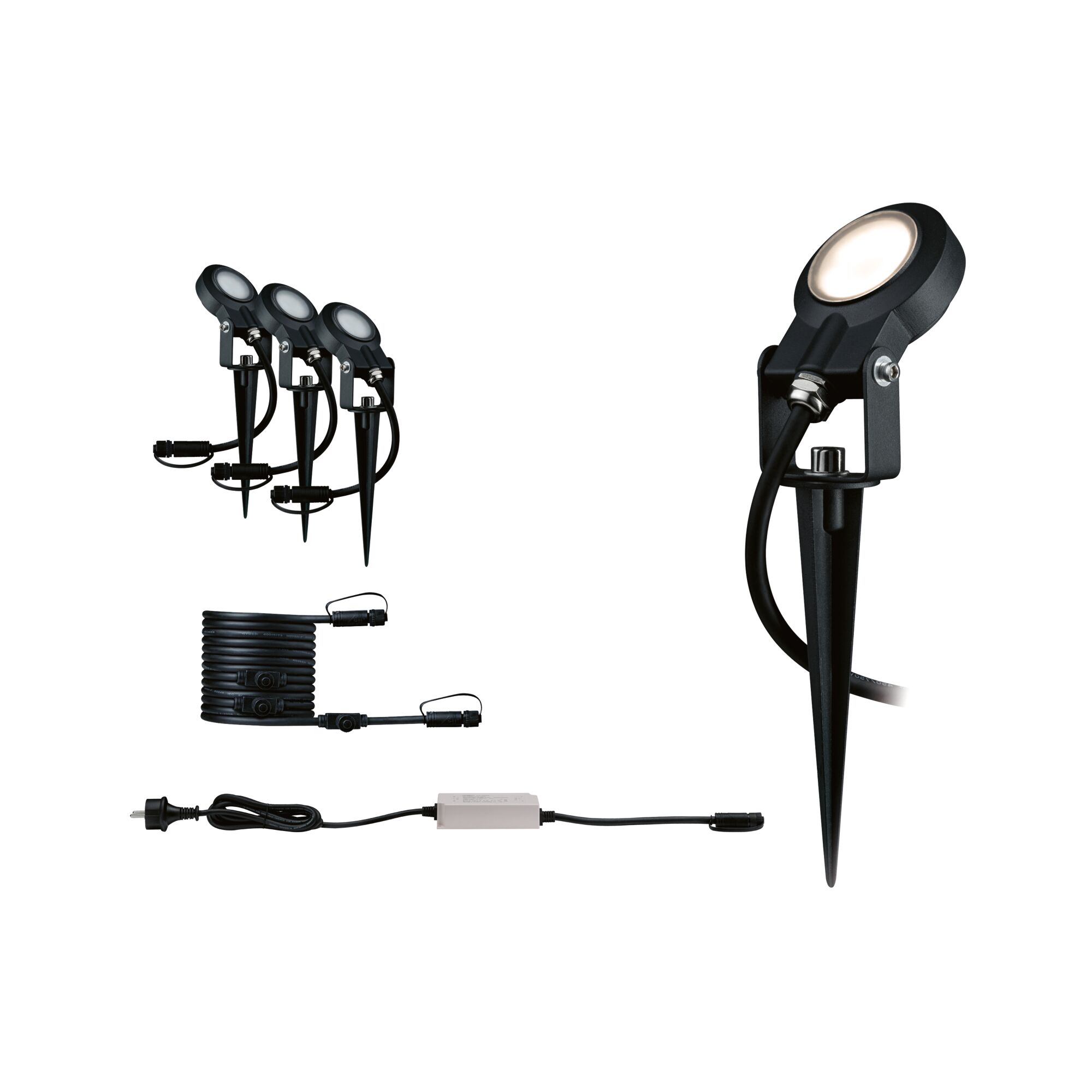

The smart Plug & Shine Outdoor set Sting sets the garden in the right atmosphere. The set comprises the Plug & Shine Sting starter set, comprising three warm white ground spikes, transformer and connecting cable and a Plug & Shine Zigbee 3.0 controller. It offers you the ideal introduction to outdoor lighting. The Plug & Shine controller allows switching and dimming of the outdoor 24-volt light installation.
- Bundle includes 1x 93696 and 1x 93999
- Can be controlled with the Smart Home Zigbee remote control
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 290 mm |
| Ø | 52 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Anthracite |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For illuminating plants and objects |
| Connections | |
|---|---|
| Number of connections | 4 |
| Position of connections | 2.00;3.50;4.90;5.00 m |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 100 ° |
| Usable luminous flux | 270 lm |
| Luminous flux LED module | 520 lm |
| color temp | 3000 K |
| Beam angle LED module | 114 ° |
| Lamp Features | |
|---|---|
| Component parts | 6,4 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| Transformer power | 75 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
