Article-No.:
93696
Plug & ShineLED Garden spotlight
Sting Basic Set
IP67 3000K 3x6,4W 75VA Anthracite
IP67 3000K 3x6,4W 75VA Anthracite

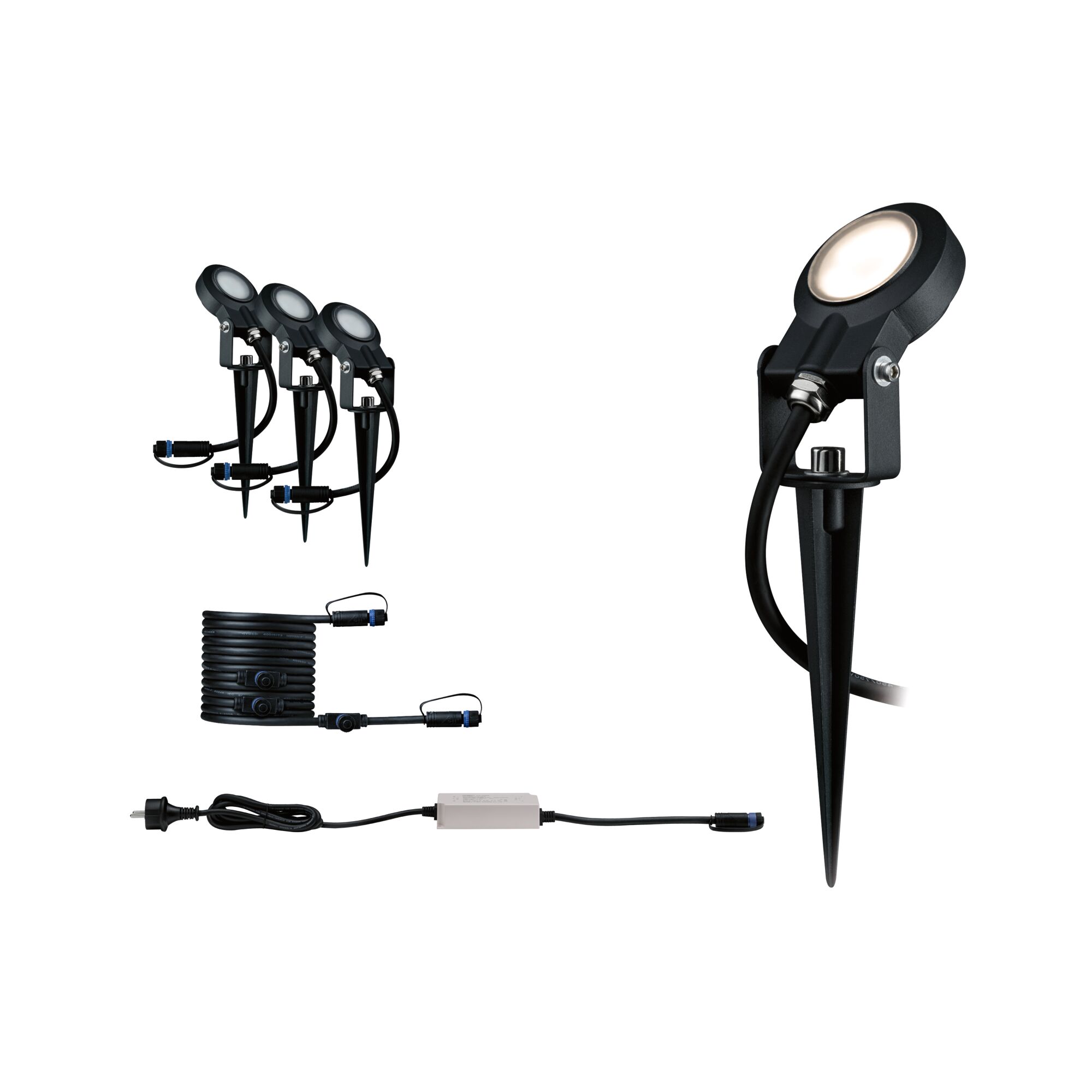

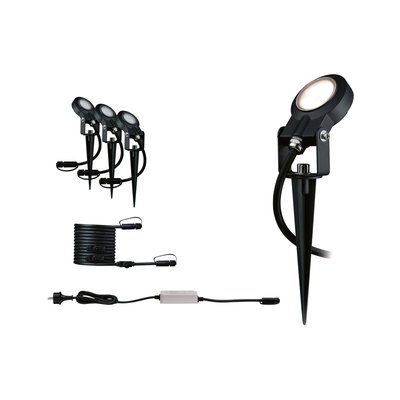

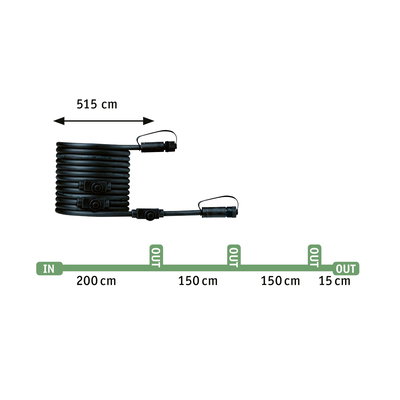

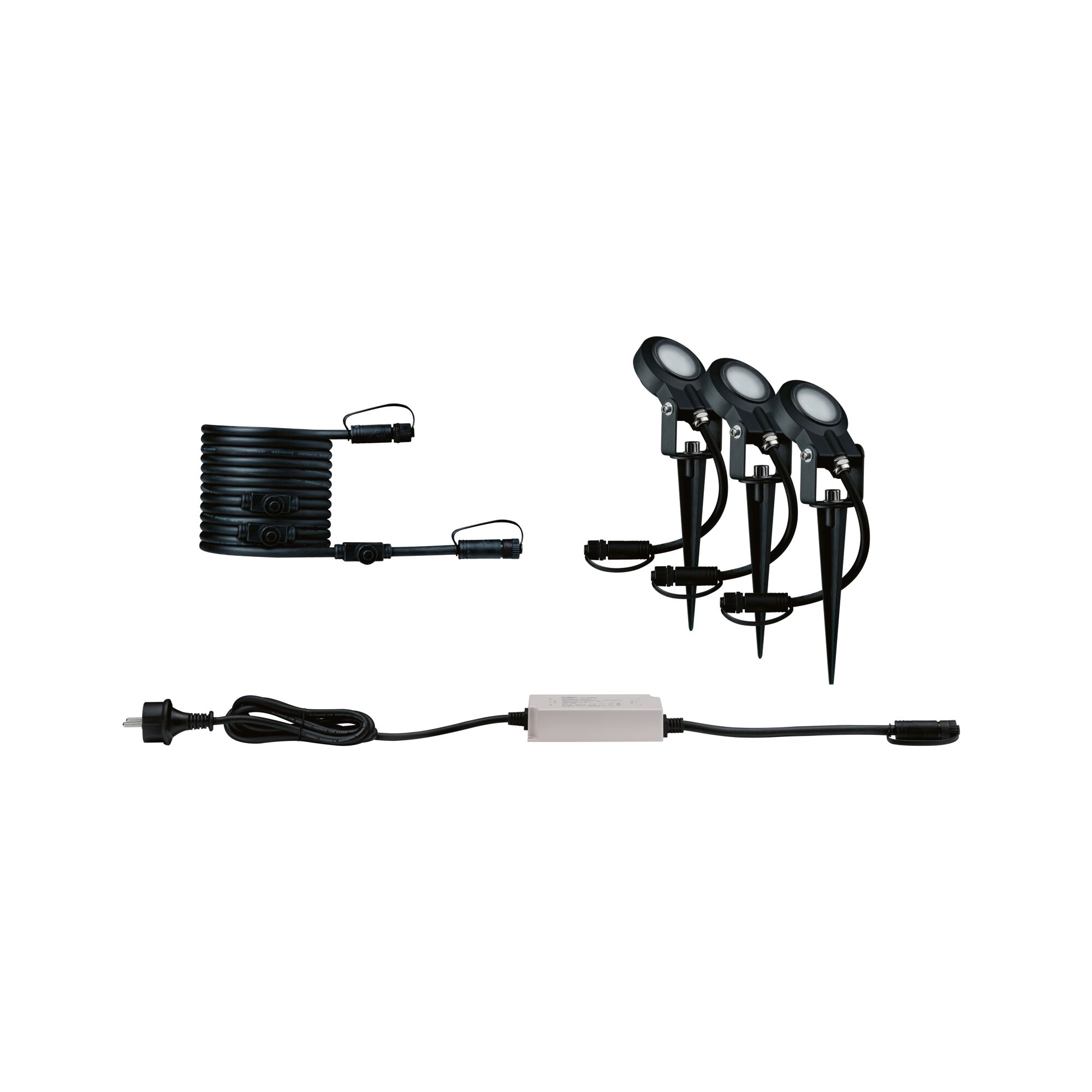

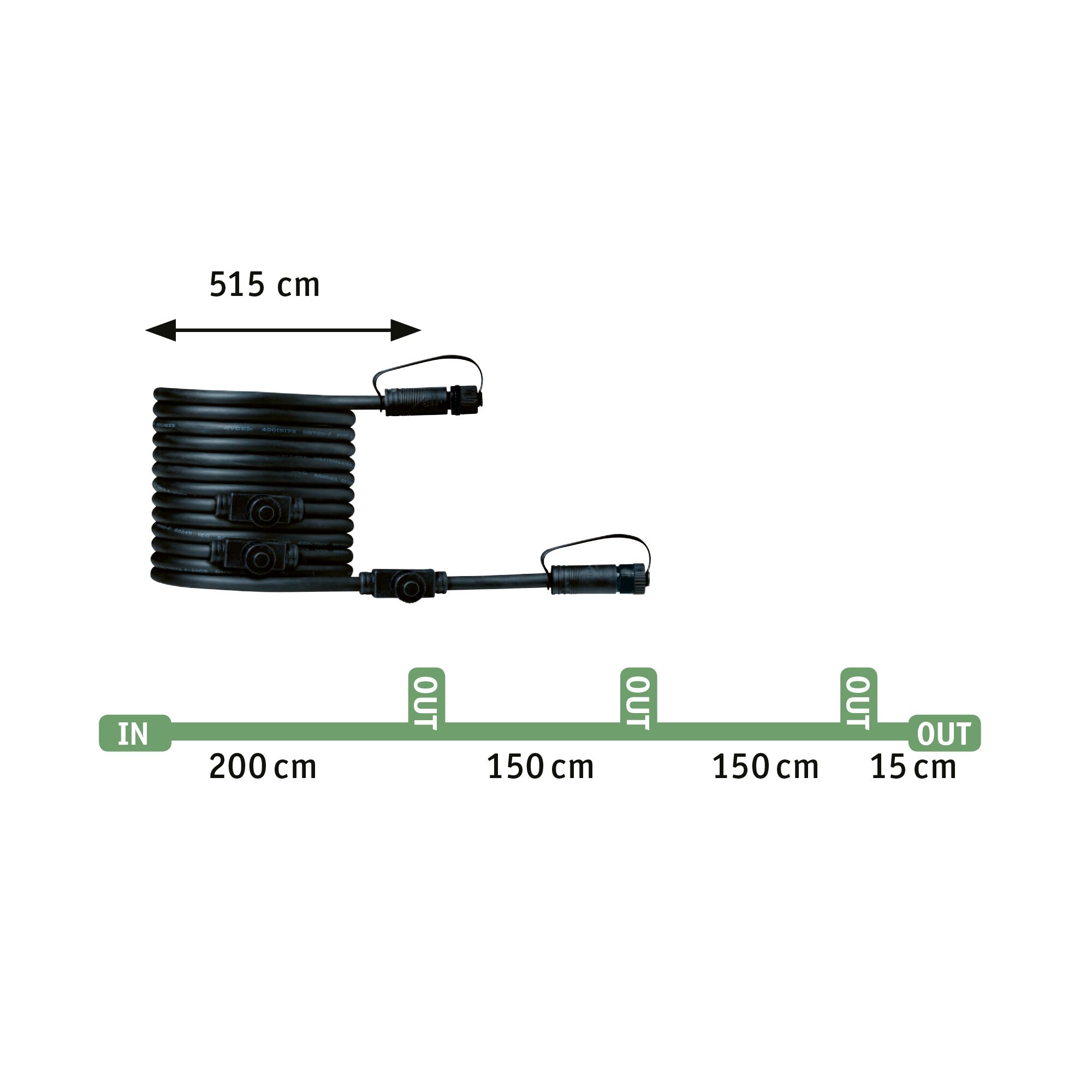

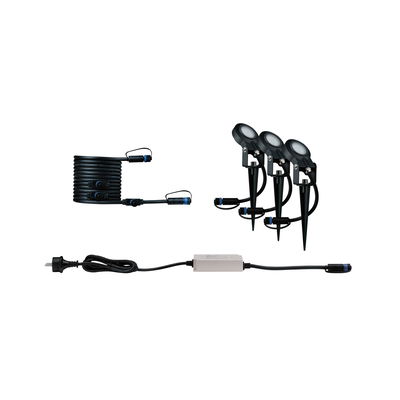

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Garden spotlight Sting Basic Set IP67 3000K 3x6,4W 75VA Anthracite

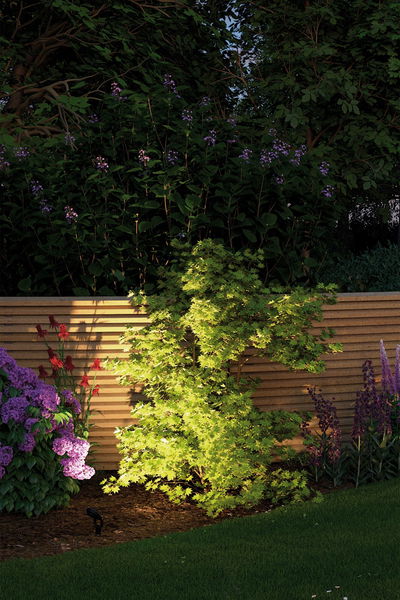

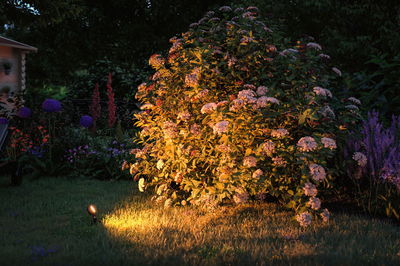

Just unpack, plug in, and illuminate your garden: the Plug & Shine Sting starter set consisting of three warm white ground spikes, transformer and connecting cable offers you the ideal start into outdoor lighting. The spikes are ideal for illuminating plants or other objects, they can be directed individually and are absolutely weather-resistant. If required, you can expand the system with additional Plug & Shine components.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer

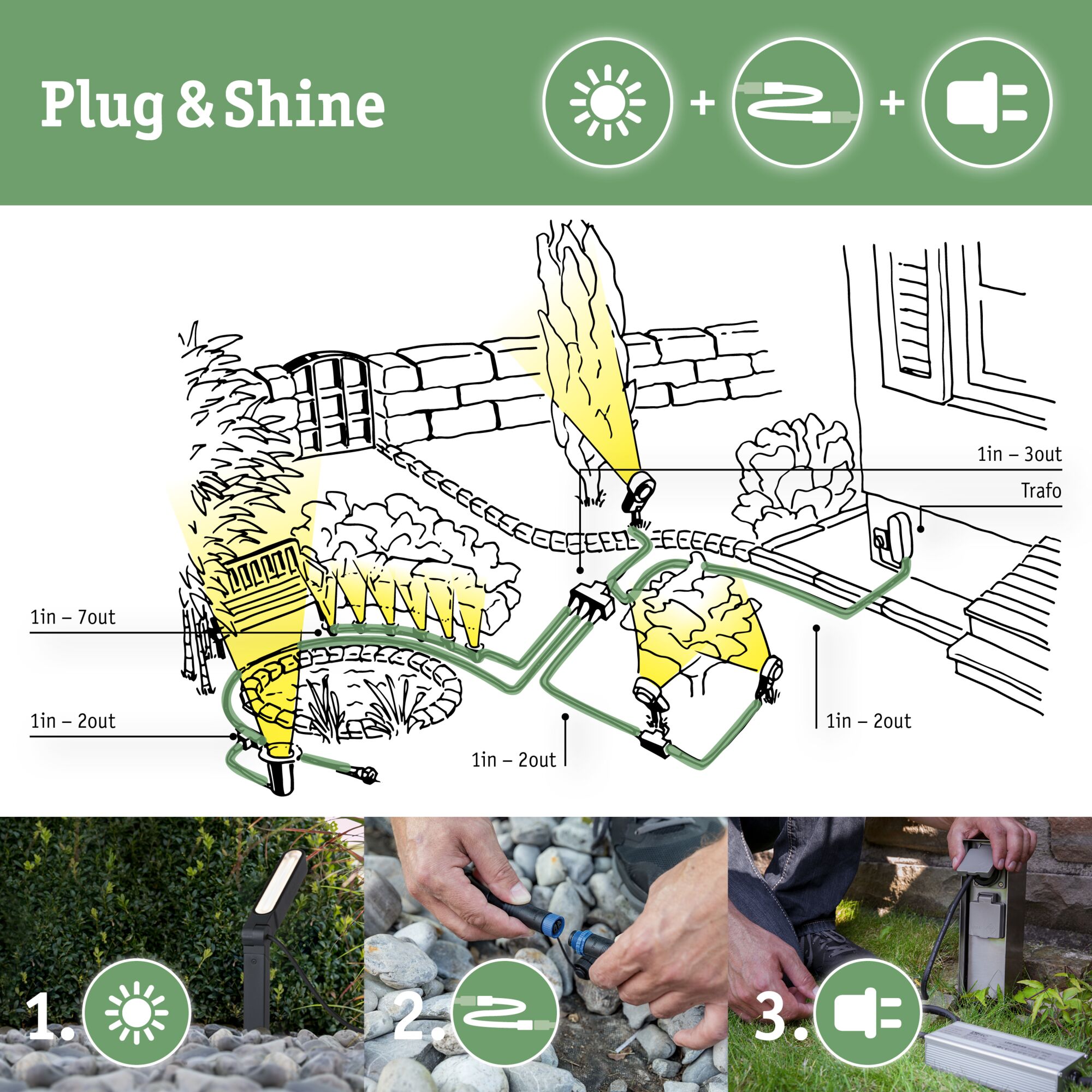

- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|

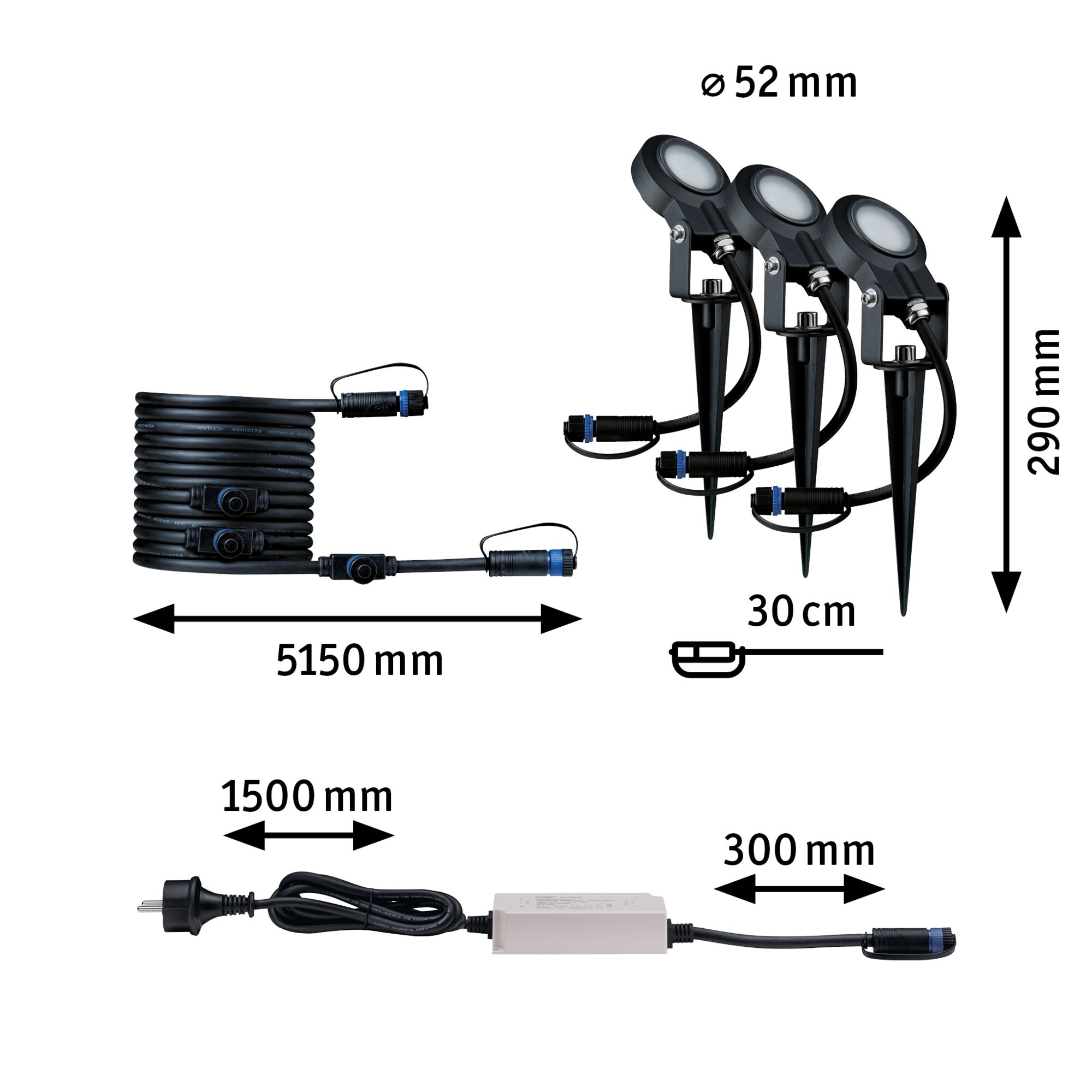

| Dimensions (Height x Width x Depth) | H: 290 mm |
| Ø | 52 mm |

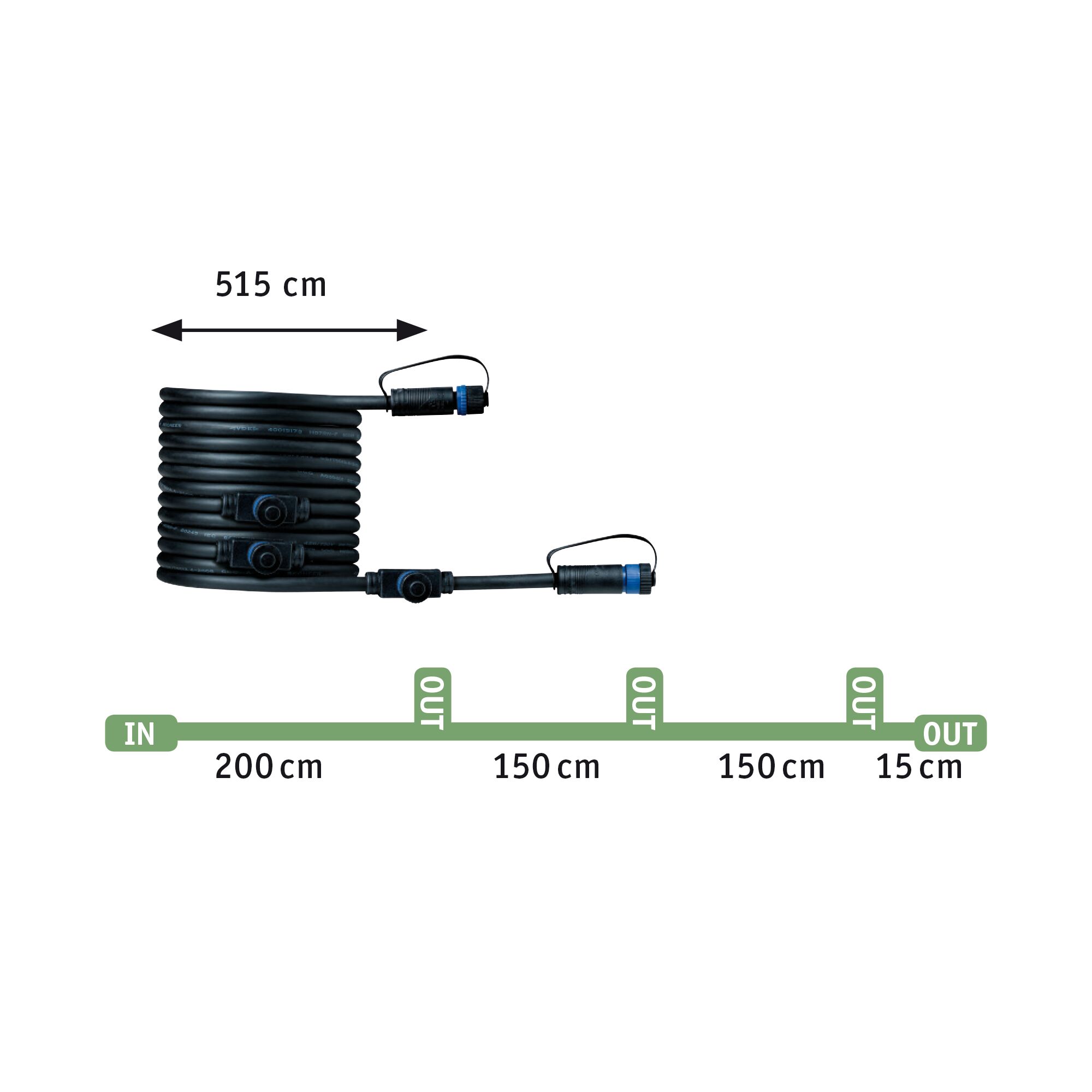

| Length | 5 m |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For illuminating plants and objects |
| Installation site (recommendation) | Floor mounting |
| Connections | |
|---|---|
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | 3000 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 270 lm |
| Luminous flux LED module | 655 lm |
| Beam angle LED module | 114 ° |
| Lamp Features | |
|---|---|
| Component parts | 6,4 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| Transformer power | 75 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
