Article-No.:
94191

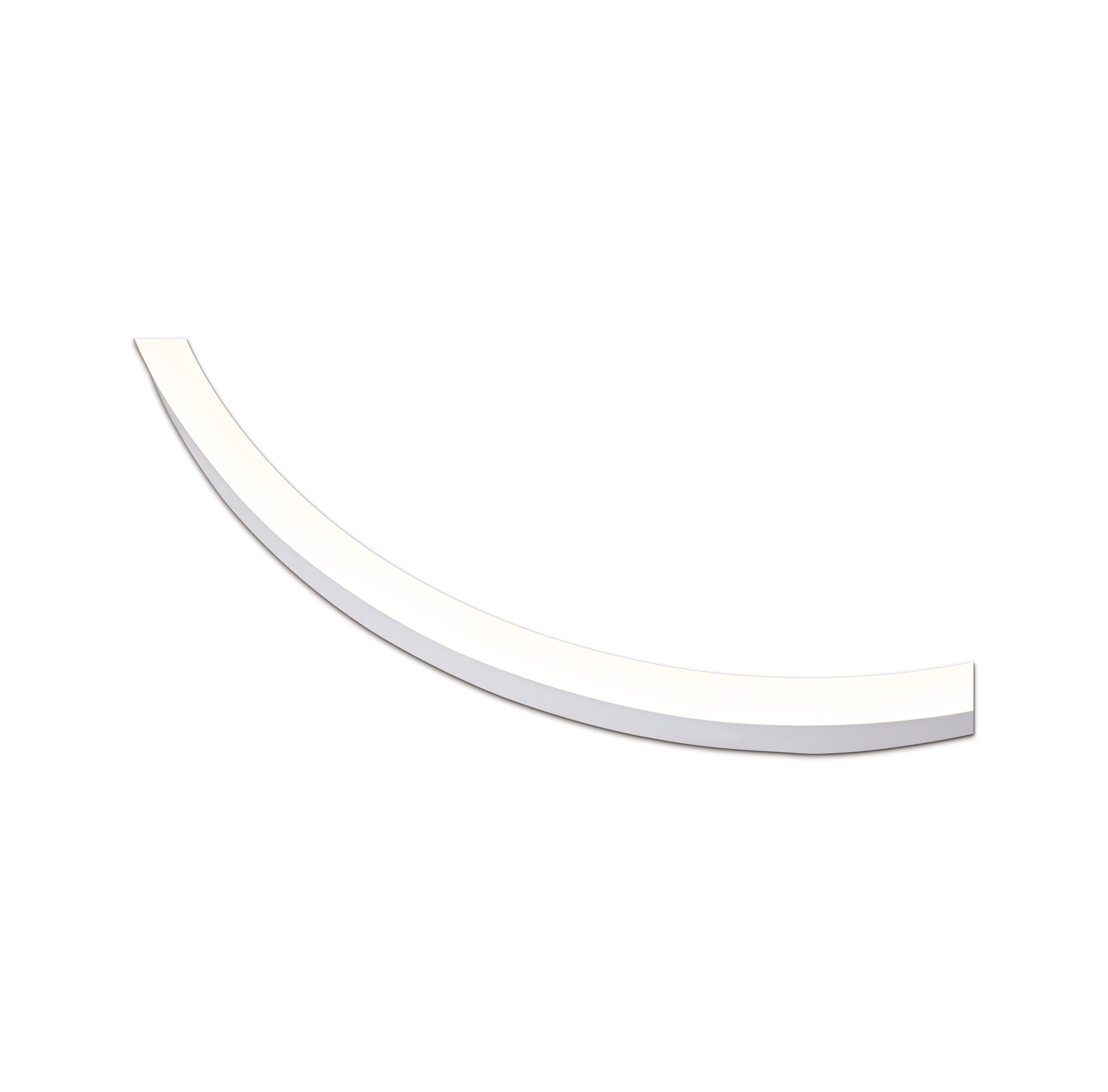

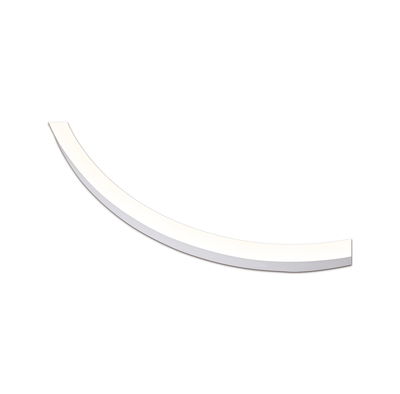

Plug & ShineLED Strip
Warm white
5m IP67 31W 2500lm 3000K
5m IP67 31W 2500lm 3000K

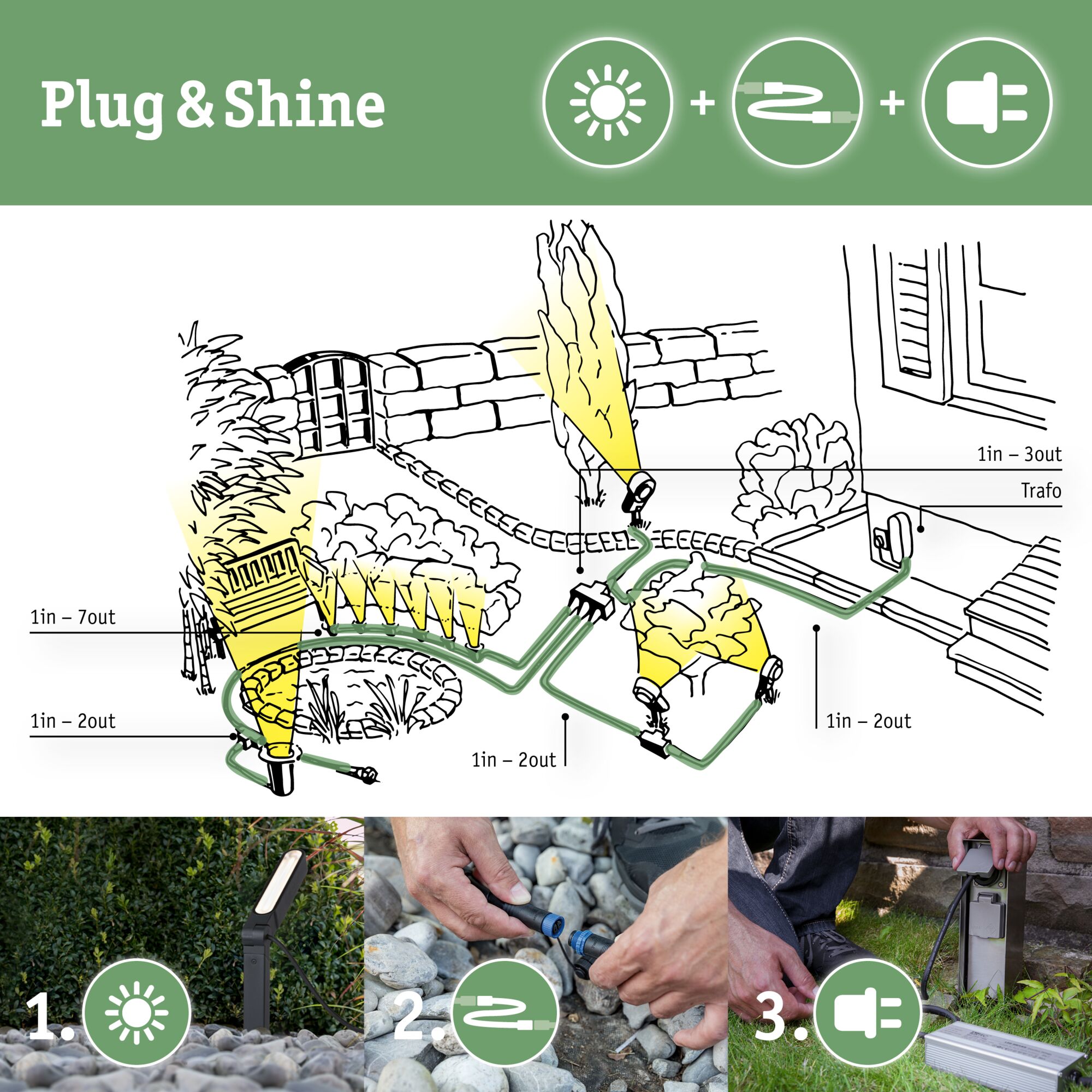

- Compatible with all luminaires and accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

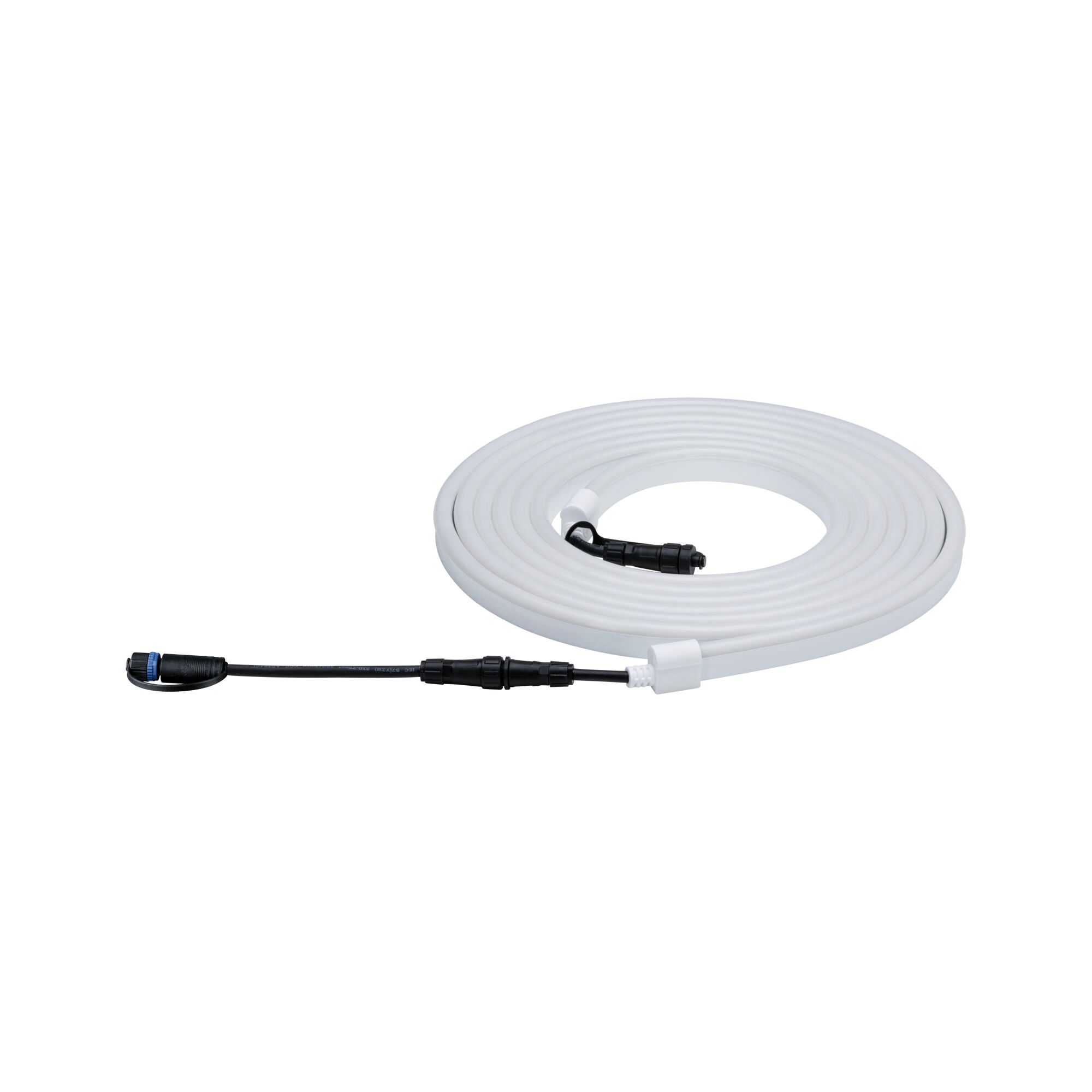

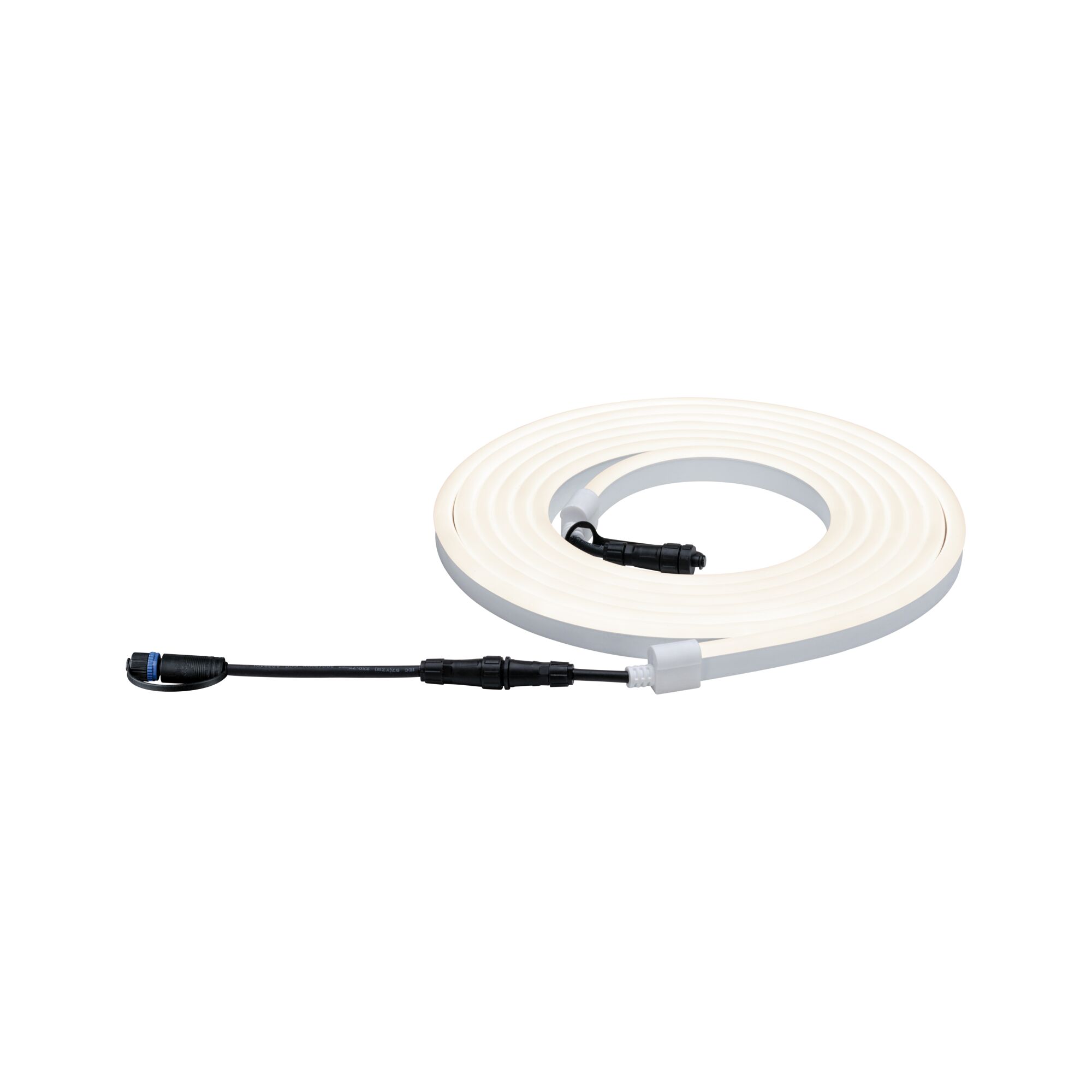

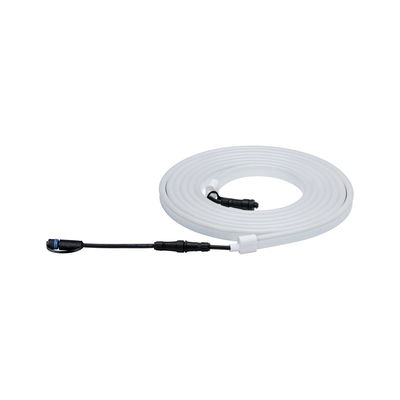

Plug & Shine LED Strip Warm white Individual Strip 5m IP67 31W 2500lm 3000K

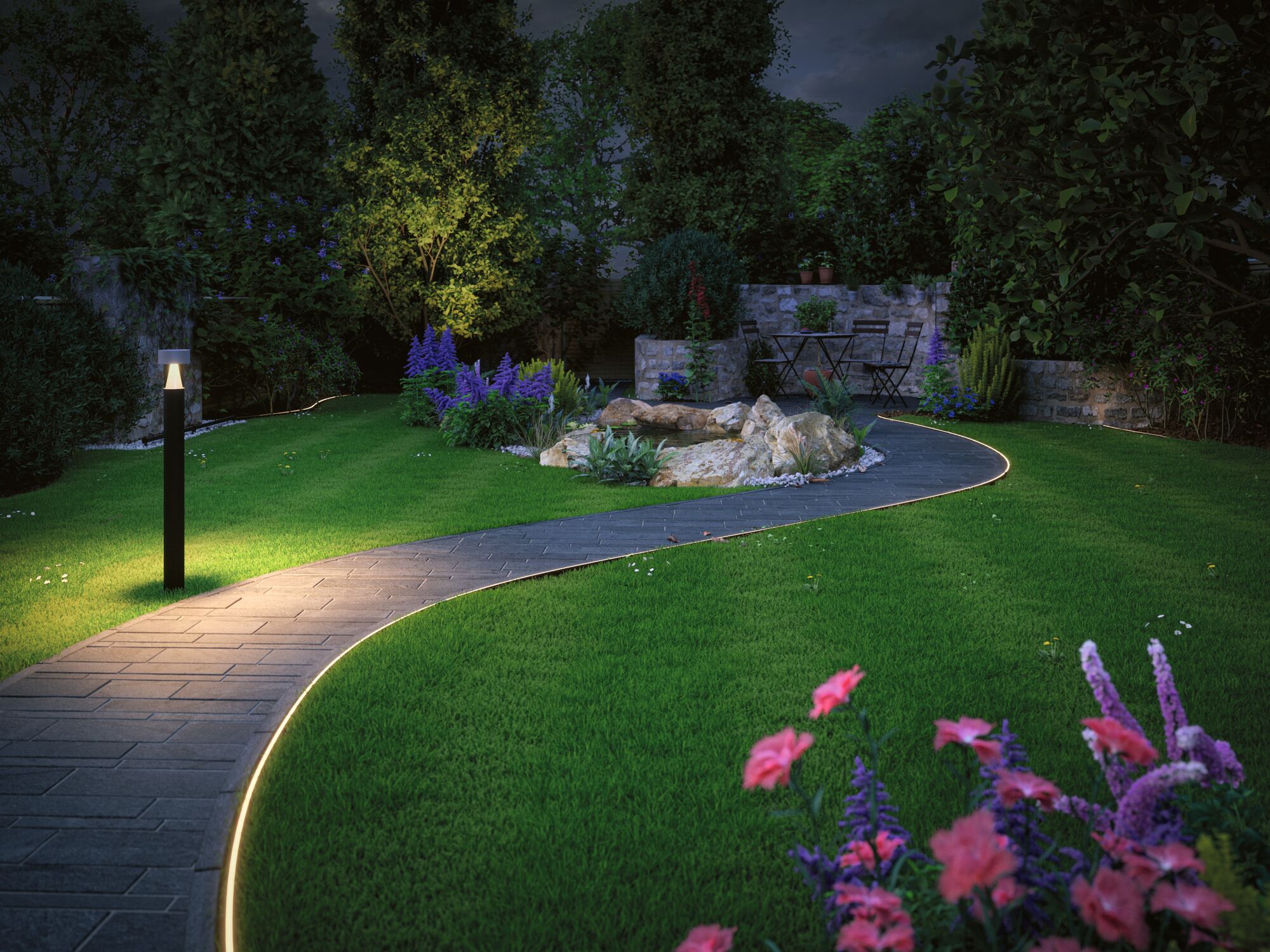

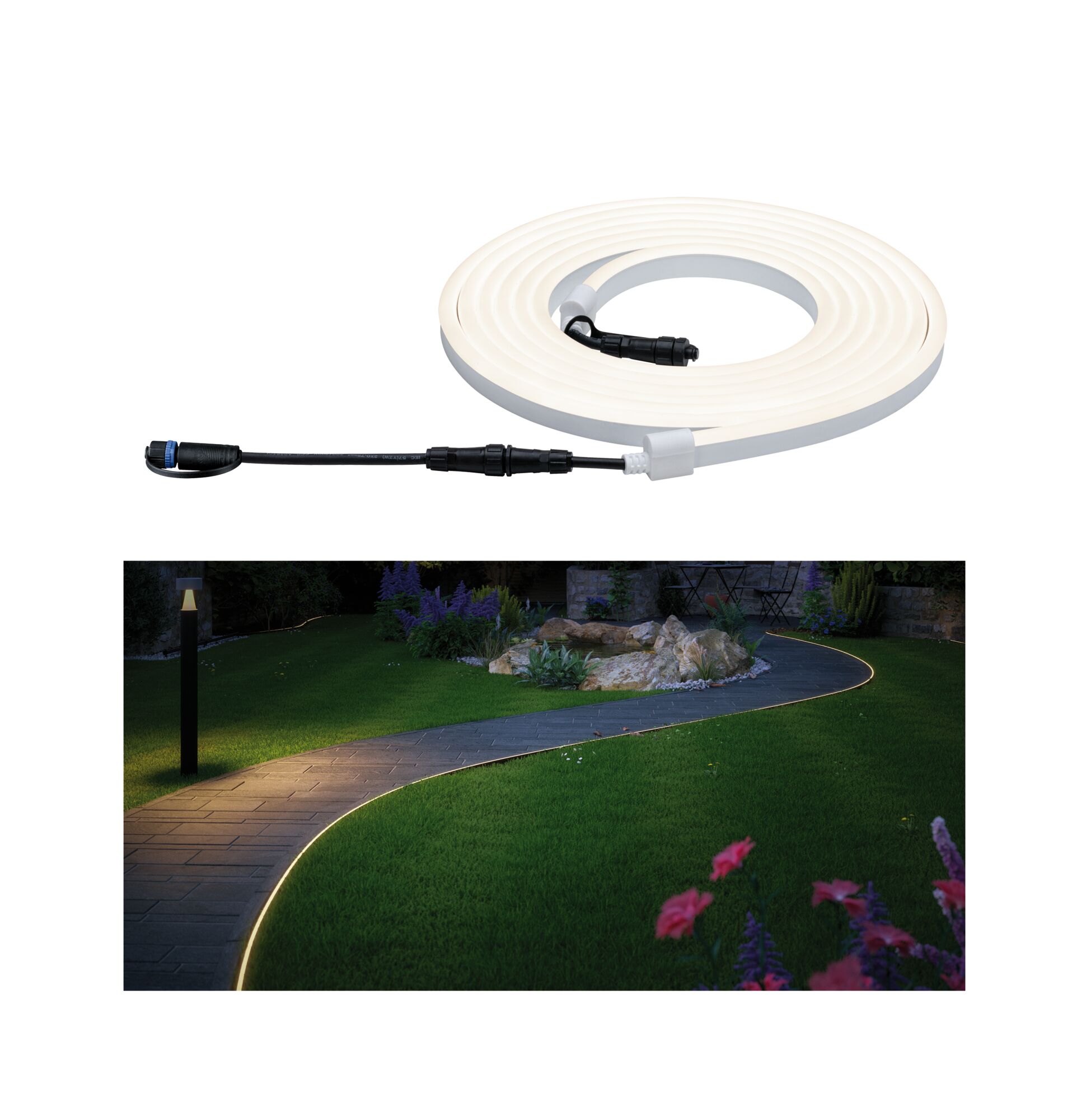

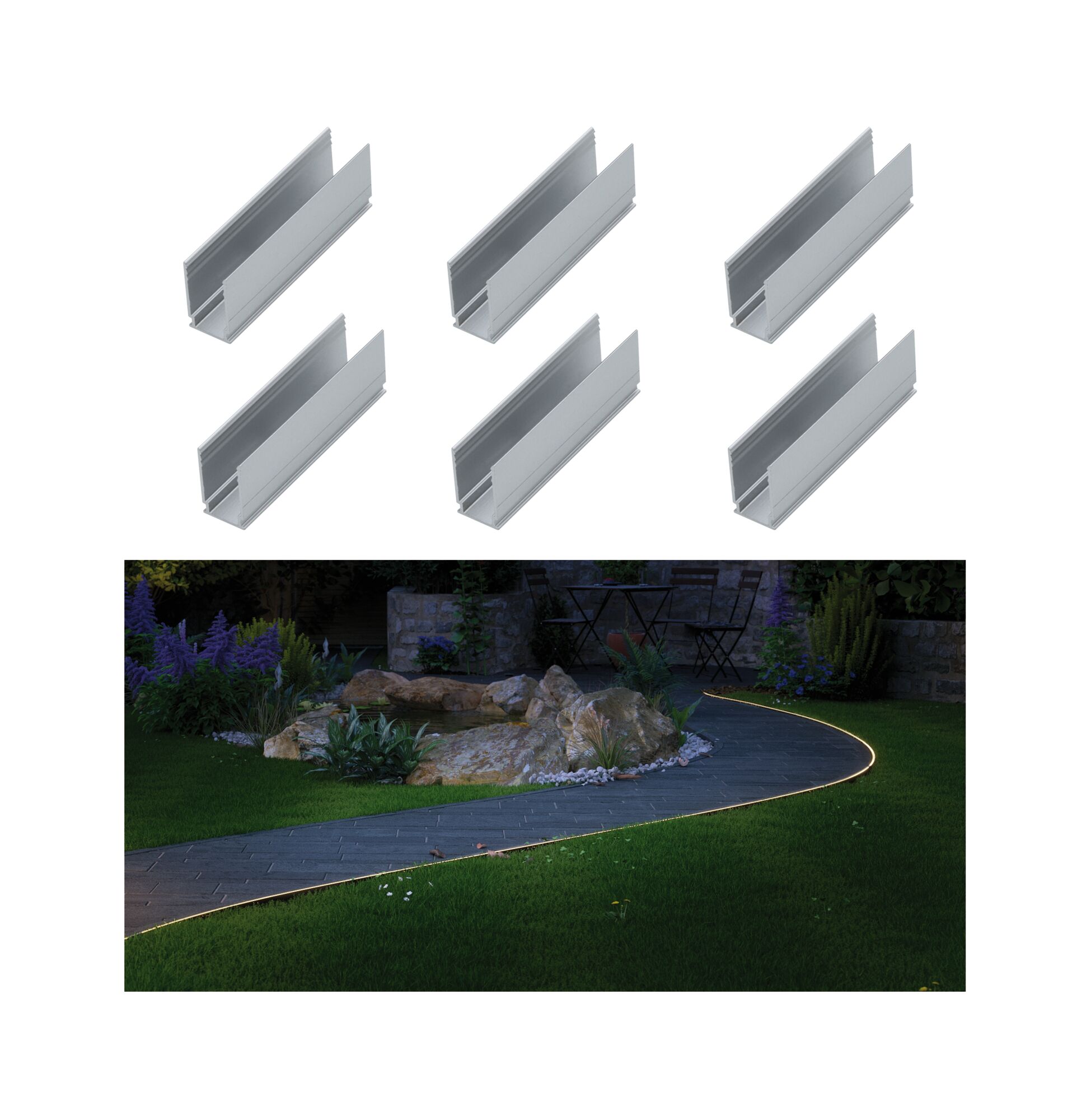

The Plug & Shine Neon LED Strip is completely weather-resistant and can be connected directly to the 24V system. It creates a homogeneous light, meaning there will be a line of light without visible LED points that can be installed flexibly. That is why it is a great choice for illuminating garden paths, flower beds or edges. The LED strip can only be extended once with the same strip. No cables or lights can be connected. We recommend using the matching mounting clips or the aluminium rail provided for optimal attachment.
- Compatible with all luminaires and accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
- Color temperatur: 3000K - Warm white
- Max. 2 strips can be combined
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 20 x B: 10 x mm |
| Length | 5 m |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |

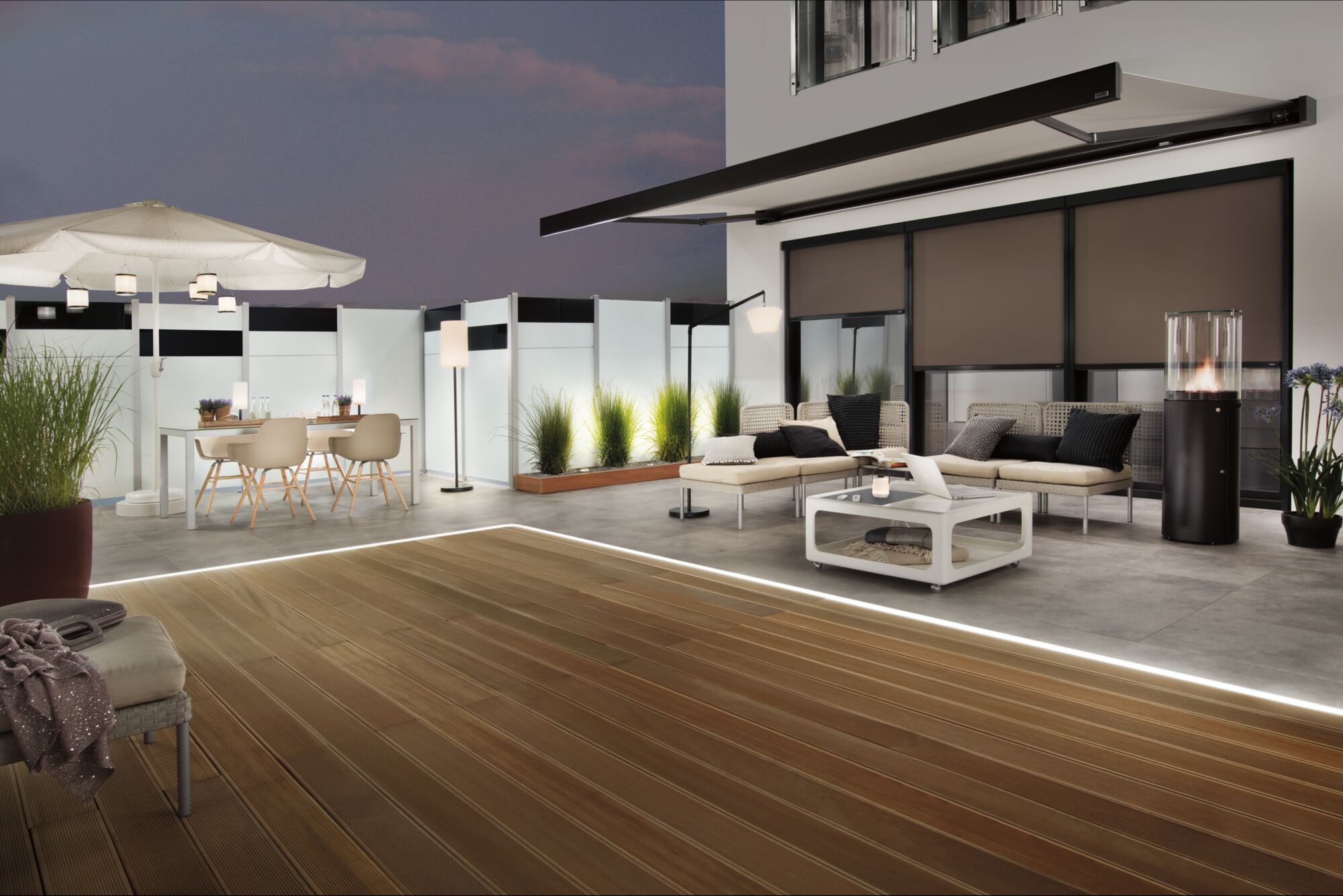

| Application | For the decorative illumination of paths and flower bed borders |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 2500 lm |
| Luminous flux LED module | 3500 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 31 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 180 W |
| Maximum wattage range | max. 31 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 31 W |
| Transformer | |
|---|---|
| apparent power | 36 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
