Article-No.:
79797
MaxLED
Controller
RGBW
DC 24V max. 144W White
DC 24V max. 144W White
- Easy plug-in system for hassle-free assembly

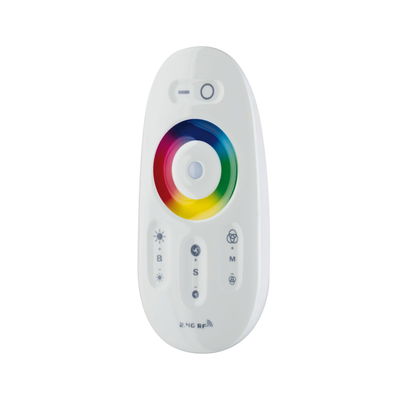

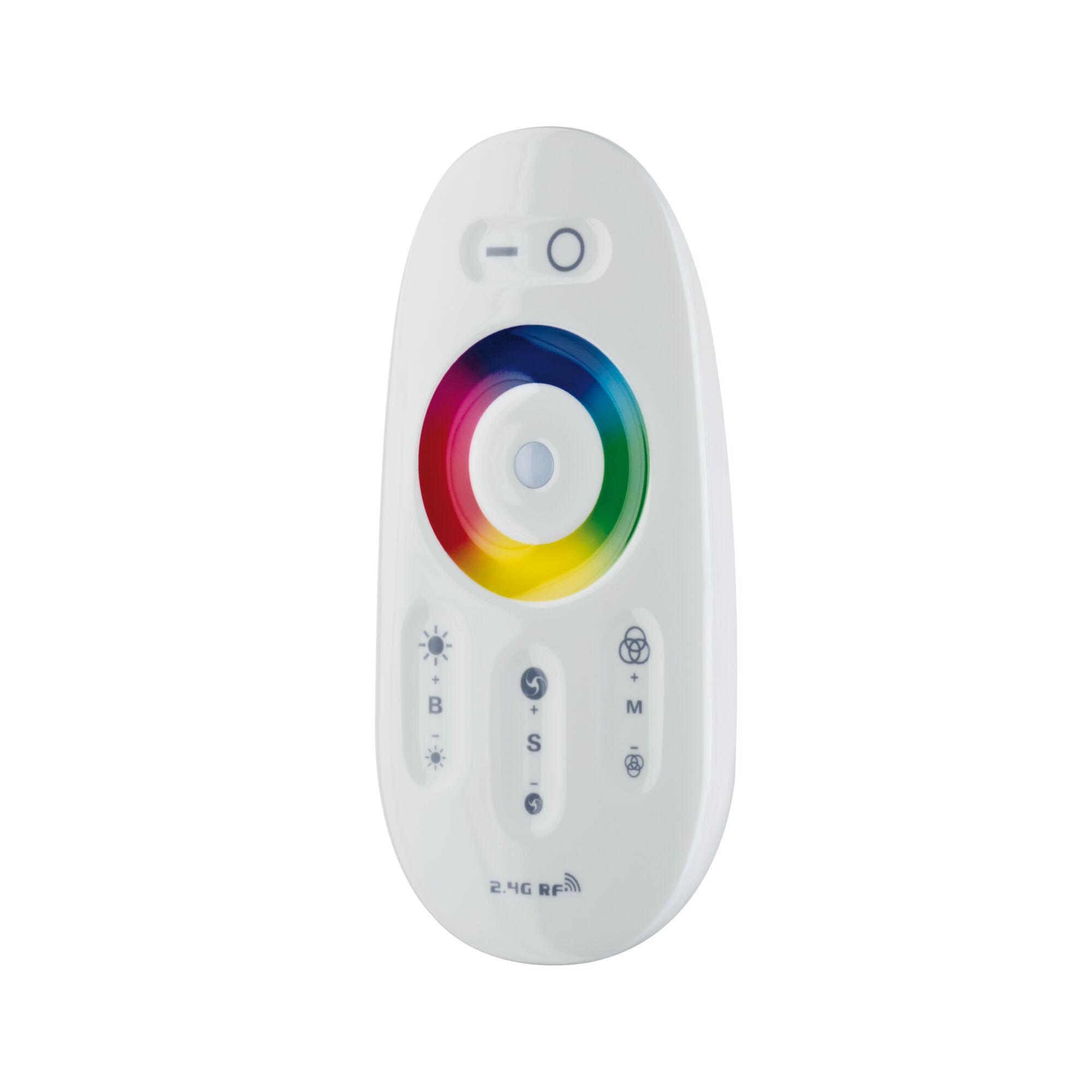

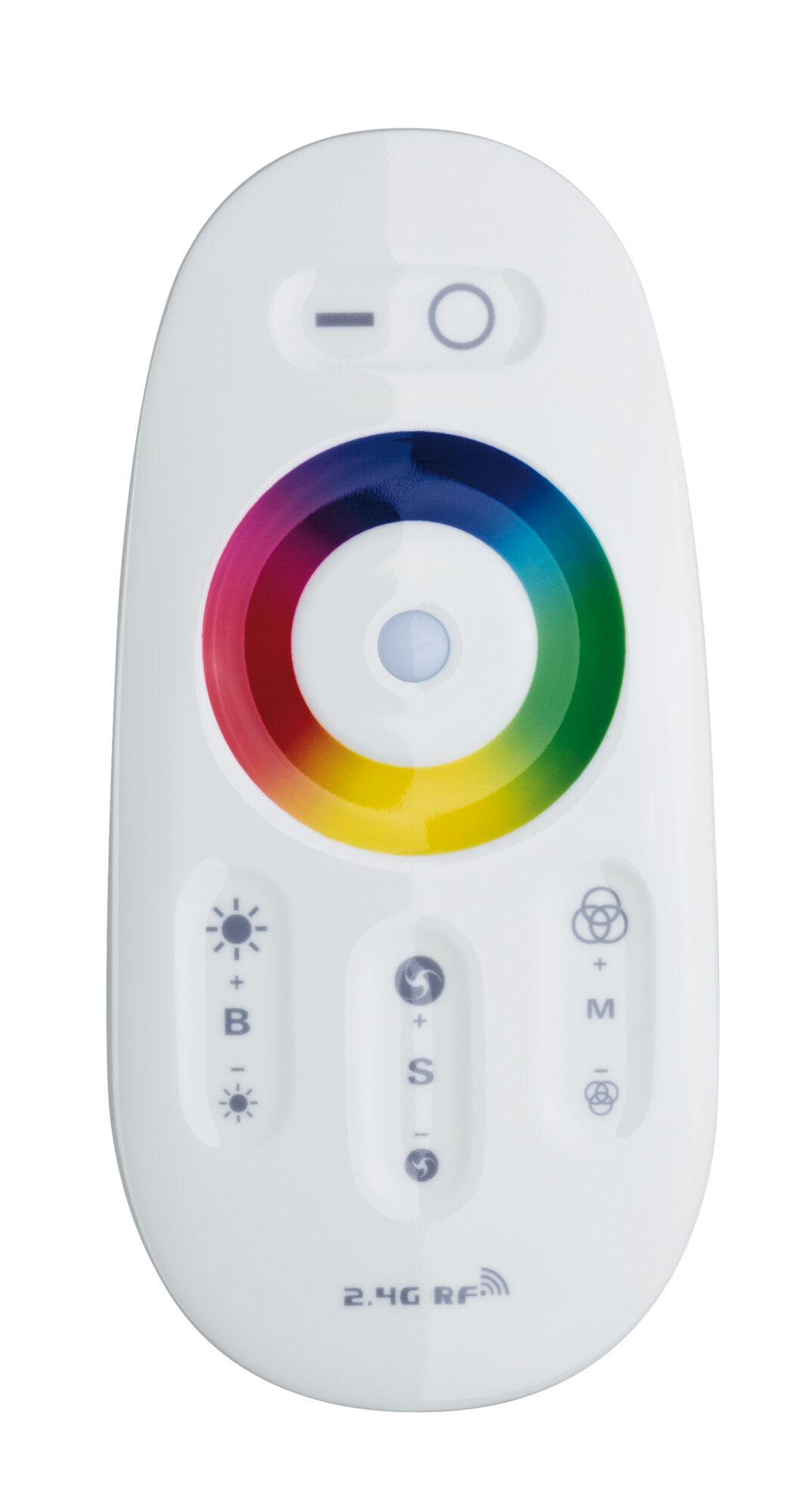

- Incl. remote control for switching, dimming, controlling and programming
- No line of sight between remote control and receiver necessary

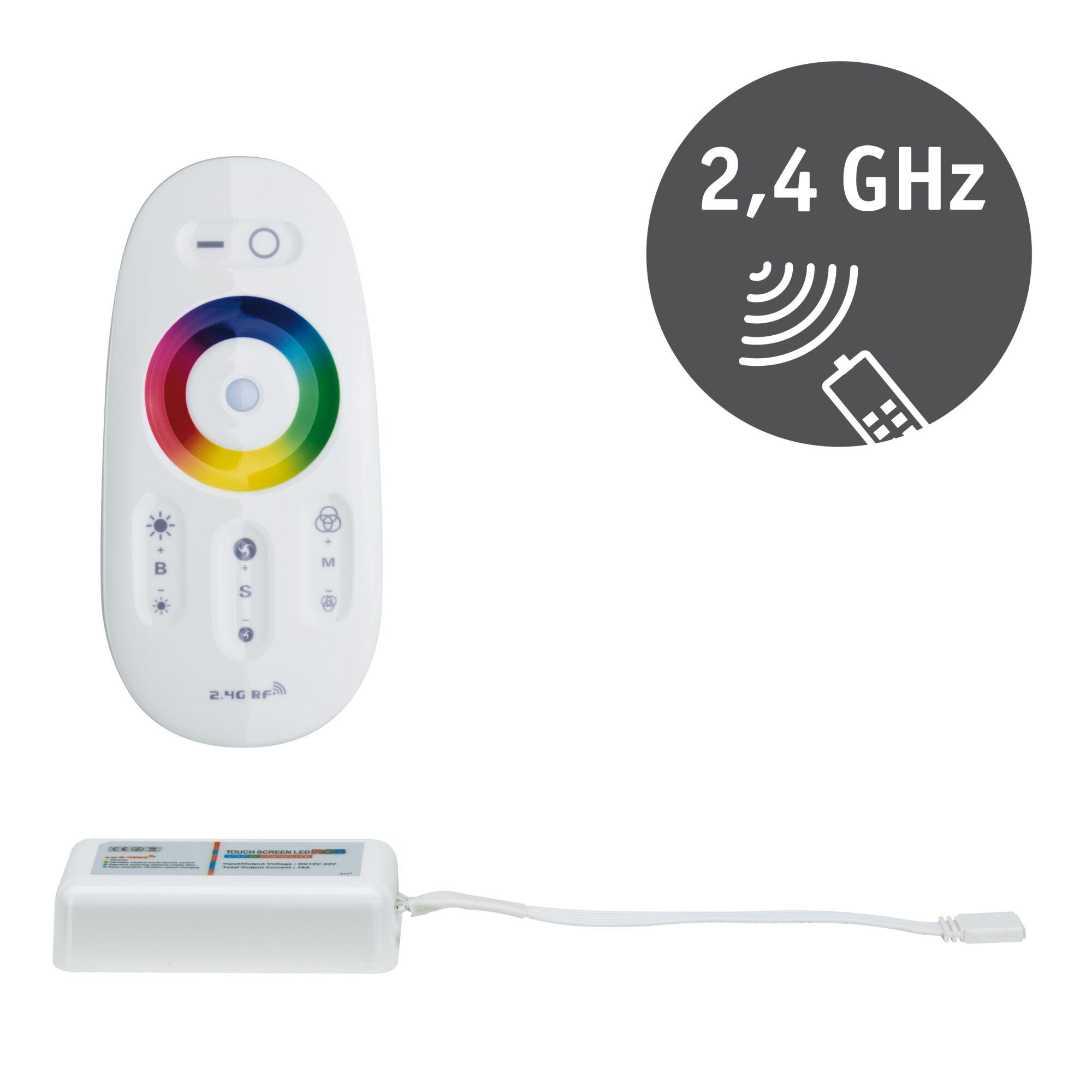

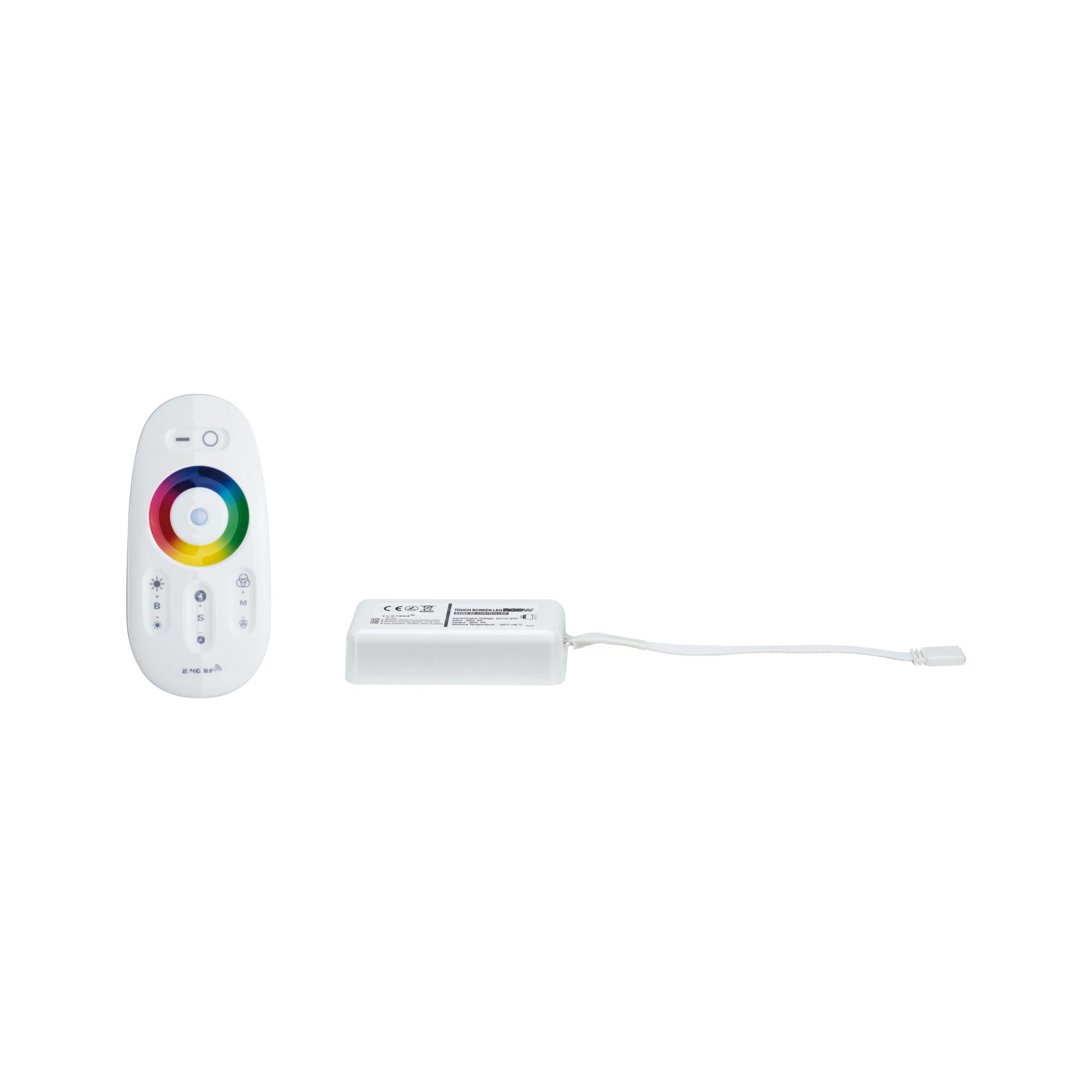

MaxLED Controller RGBW DC 24V max. 144W White
Multi-coloured MaxLED RGBW strips can be switched and dimmed, and lighting effects controlled using the MaxLED RGBW controller and the supplied wireless remote control. No line of sight is required between remote control and receiver for this purpose. Larger ranges up to 30Â metres can also be bridged without any problem.
- Easy plug-in system for hassle-free assembly
- Incl. remote control for switching, dimming, controlling and programming
- No line of sight between remote control and receiver necessary
- Remote control range up to 30Â m
- Including linking line
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|

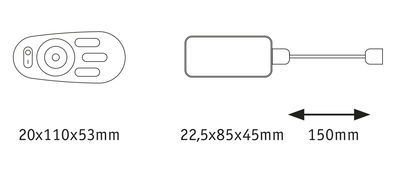

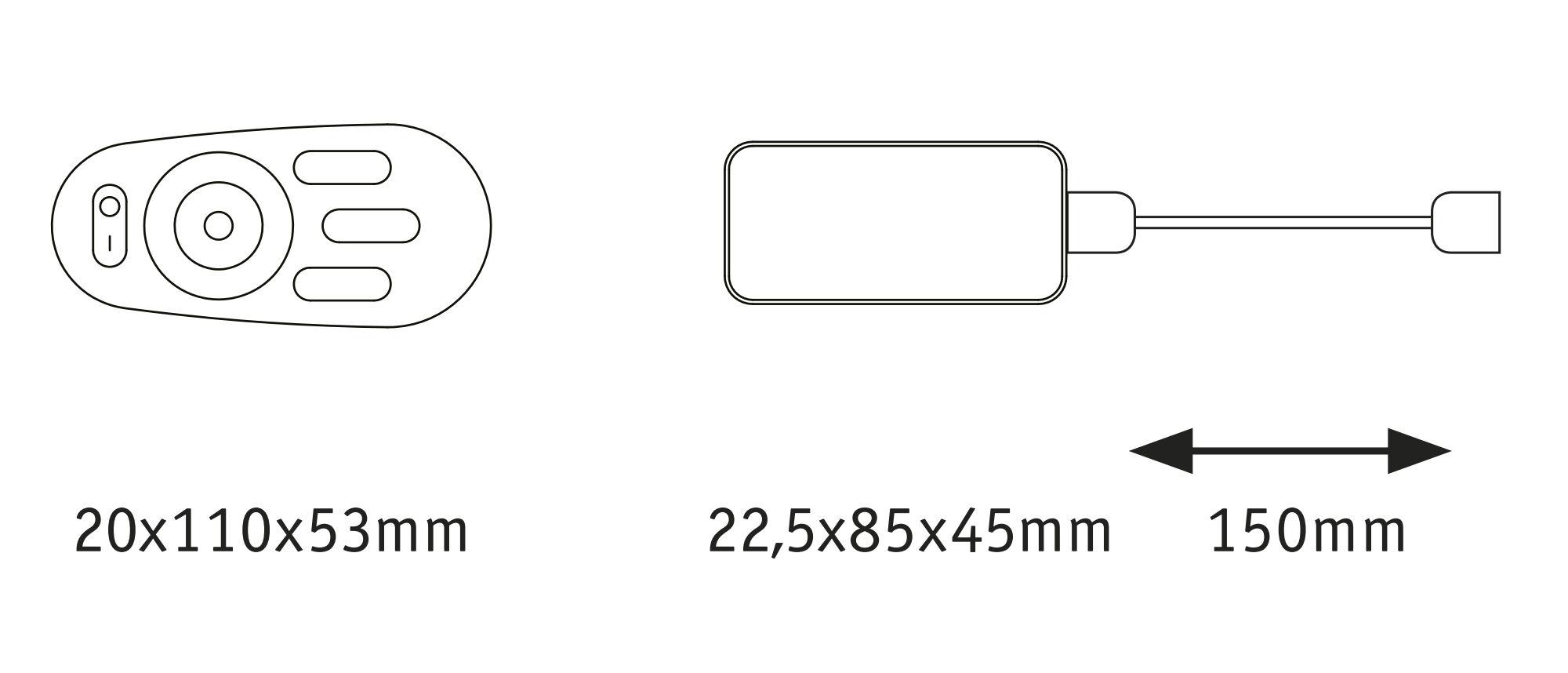

| Dimensions (Height x Width x Depth) | H: 20 x B: 110 x T: 53 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Features | |
|---|---|
| Blinking | Blinking |
| Flashlight function | Flashlight function |
| Freeze function | Freeze function |
| Light Characteristics | |
|---|---|
| Colour change | Color change RGBW, Tunable White |
| adjustable colors | adjustable colors |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dim | with remote control |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 110 mm |
| Maximum wattage range | max. 144 W |
| protection class | protection class III |
| Replacable | 7 not concerned. |
| Accessories | |
|---|---|
| Radio control included | Radio control |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
