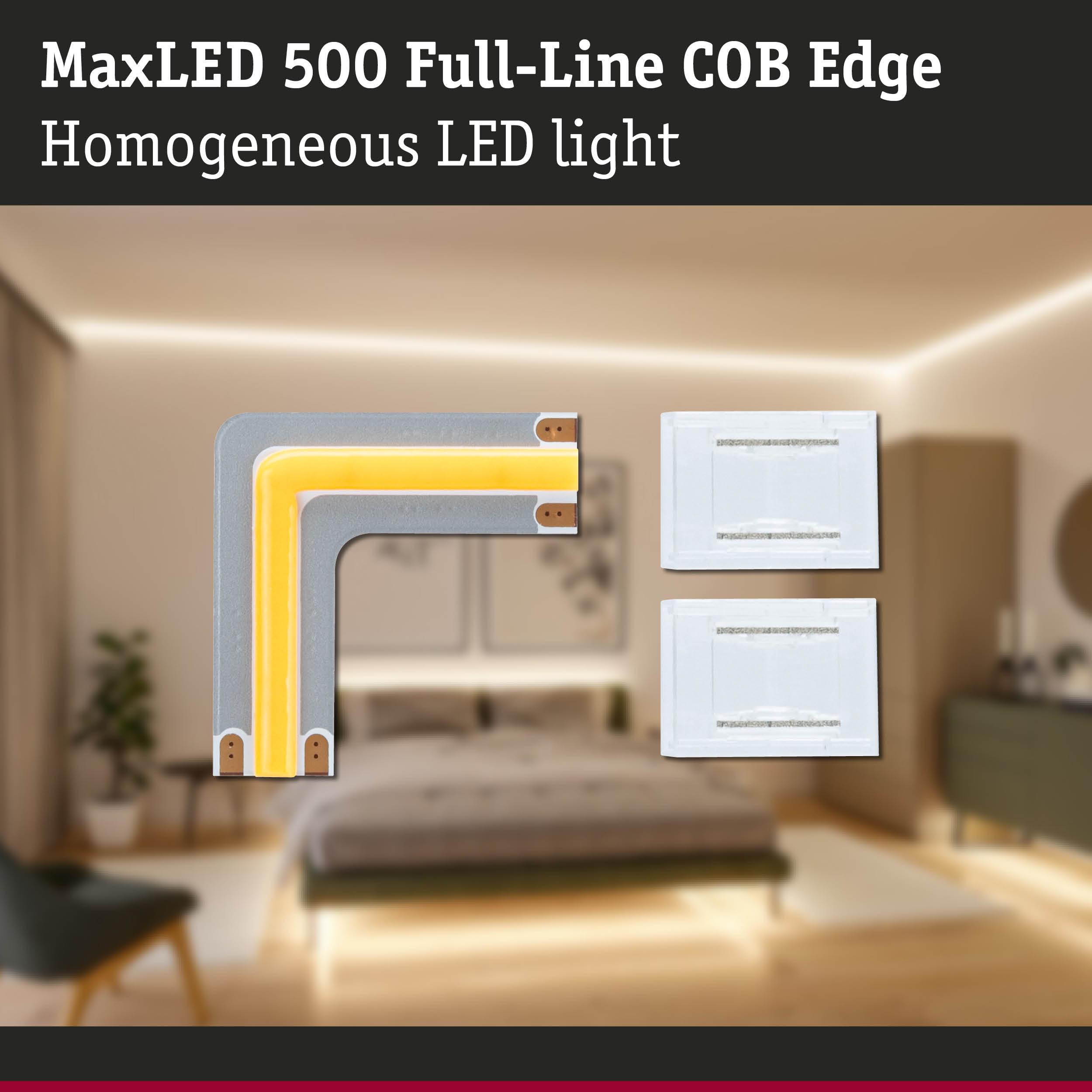

MaxLED 500 LED Strip Full-Line COB Edge Edge 90° 0,03m 0,3W 833lm/m 2700K

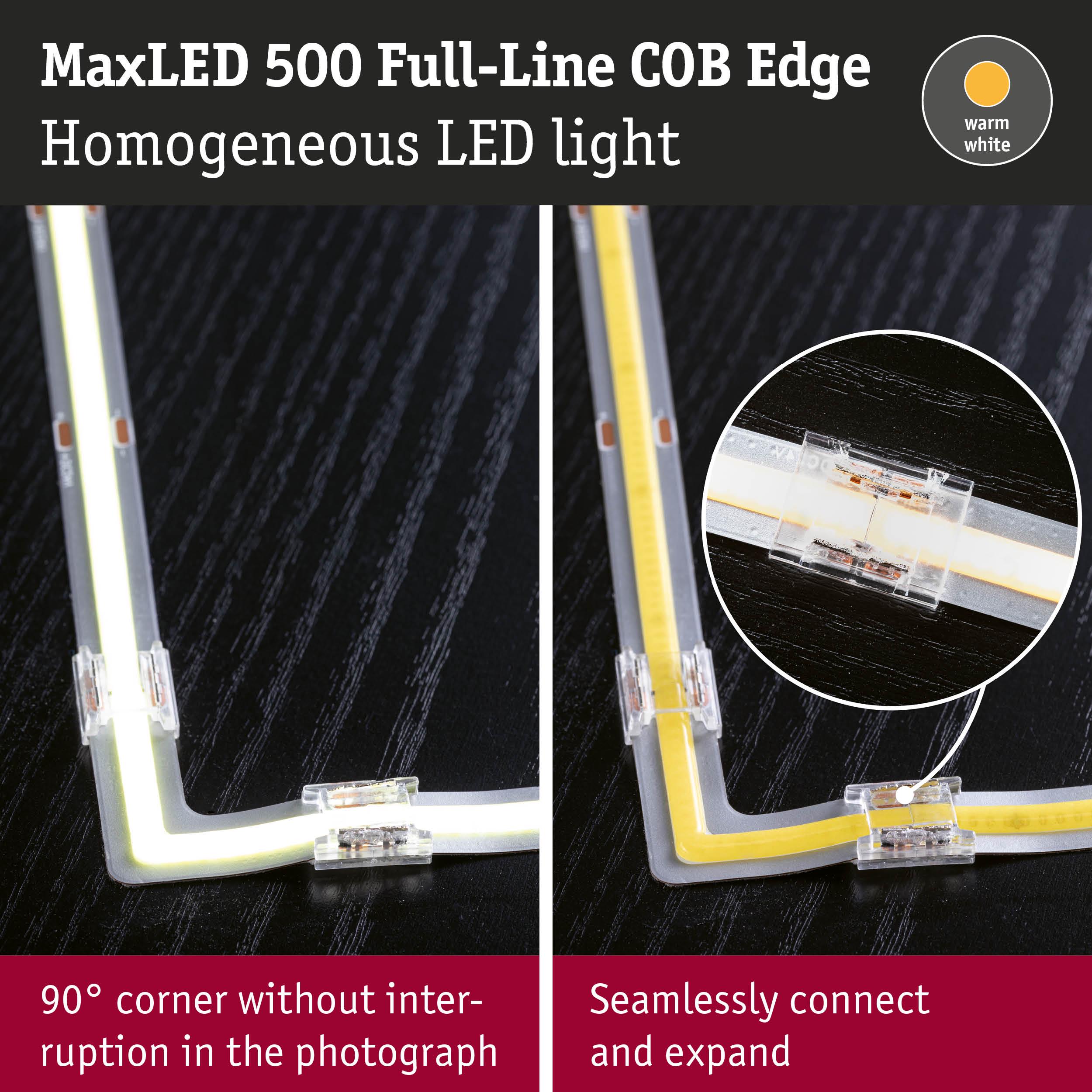

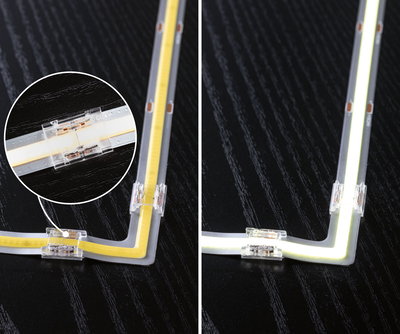

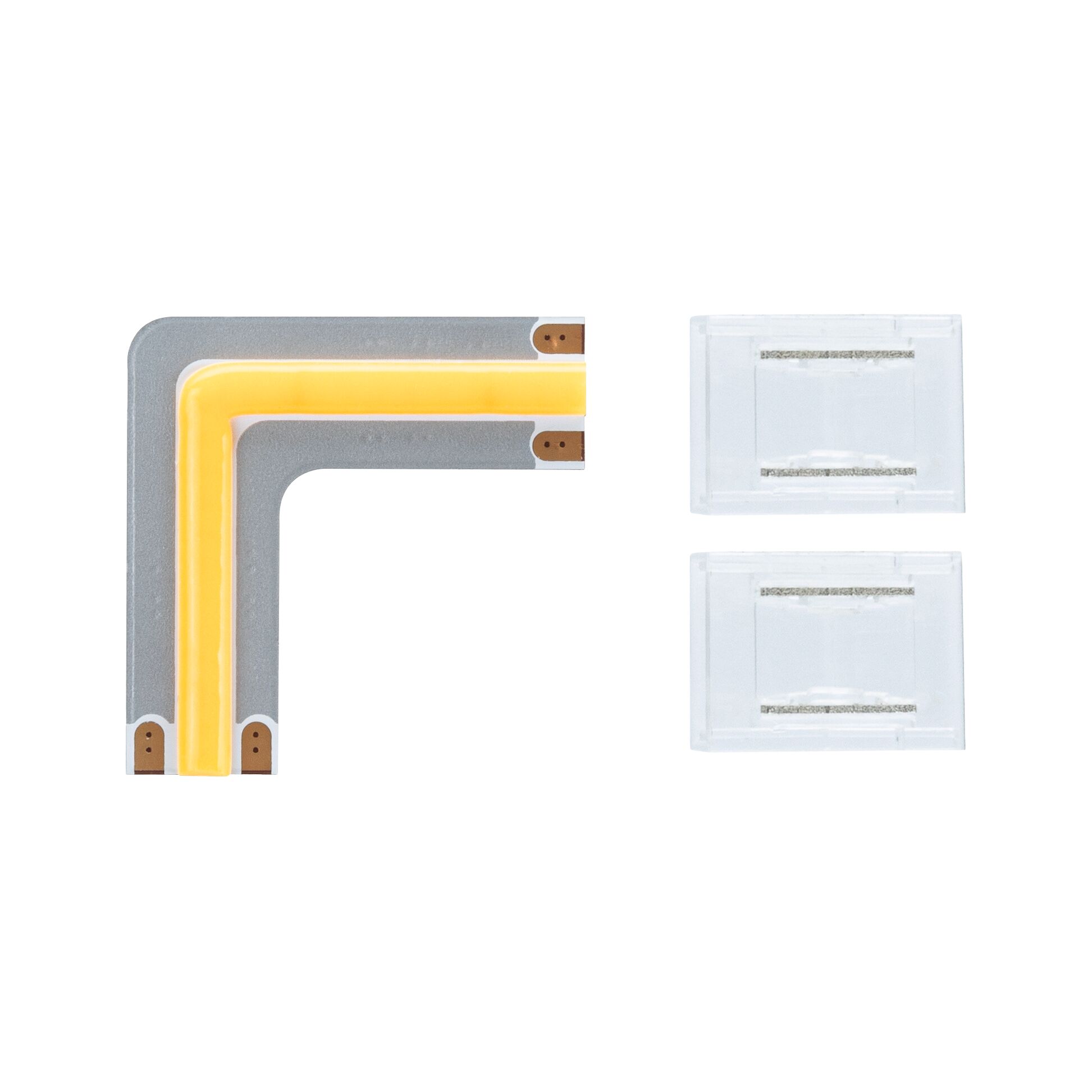

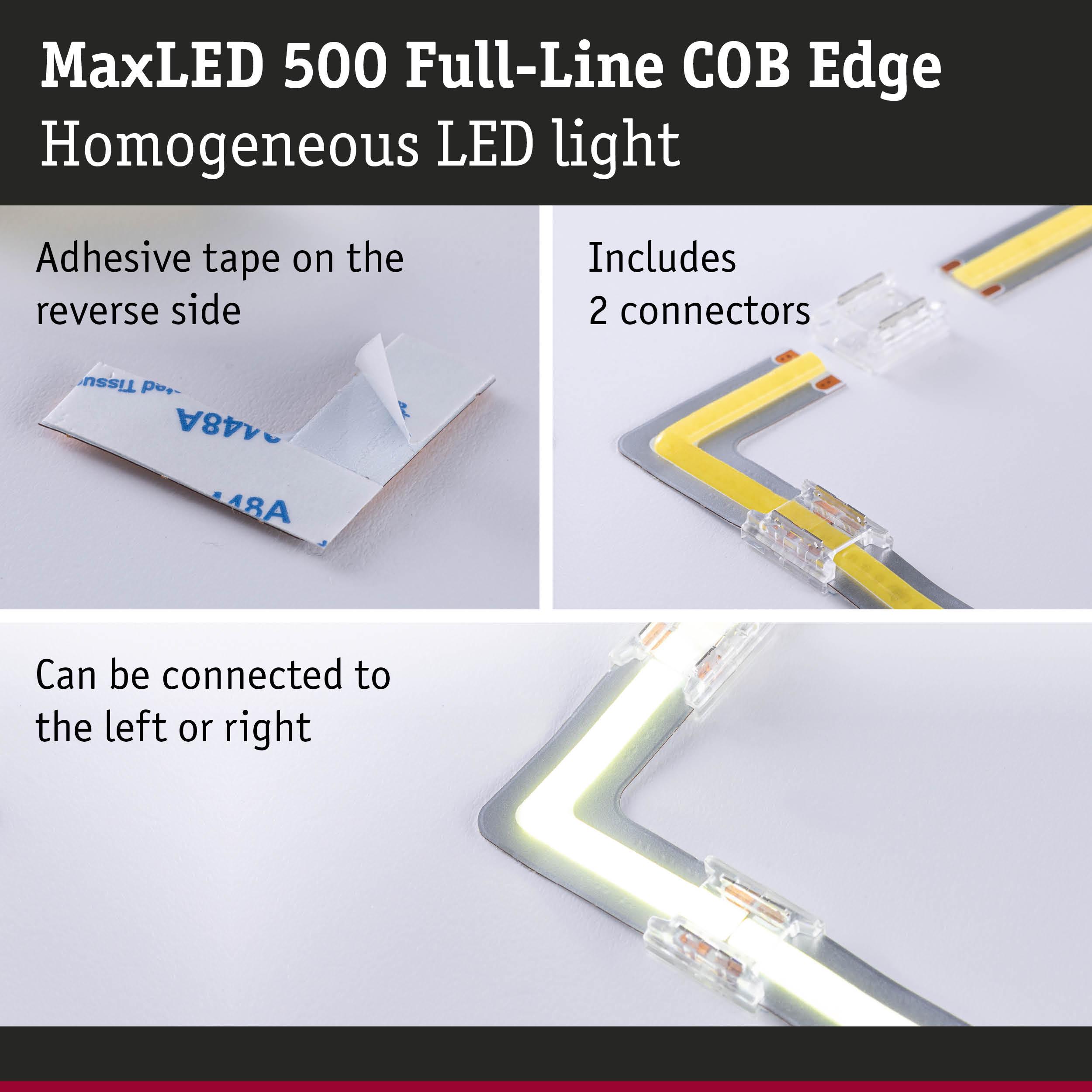

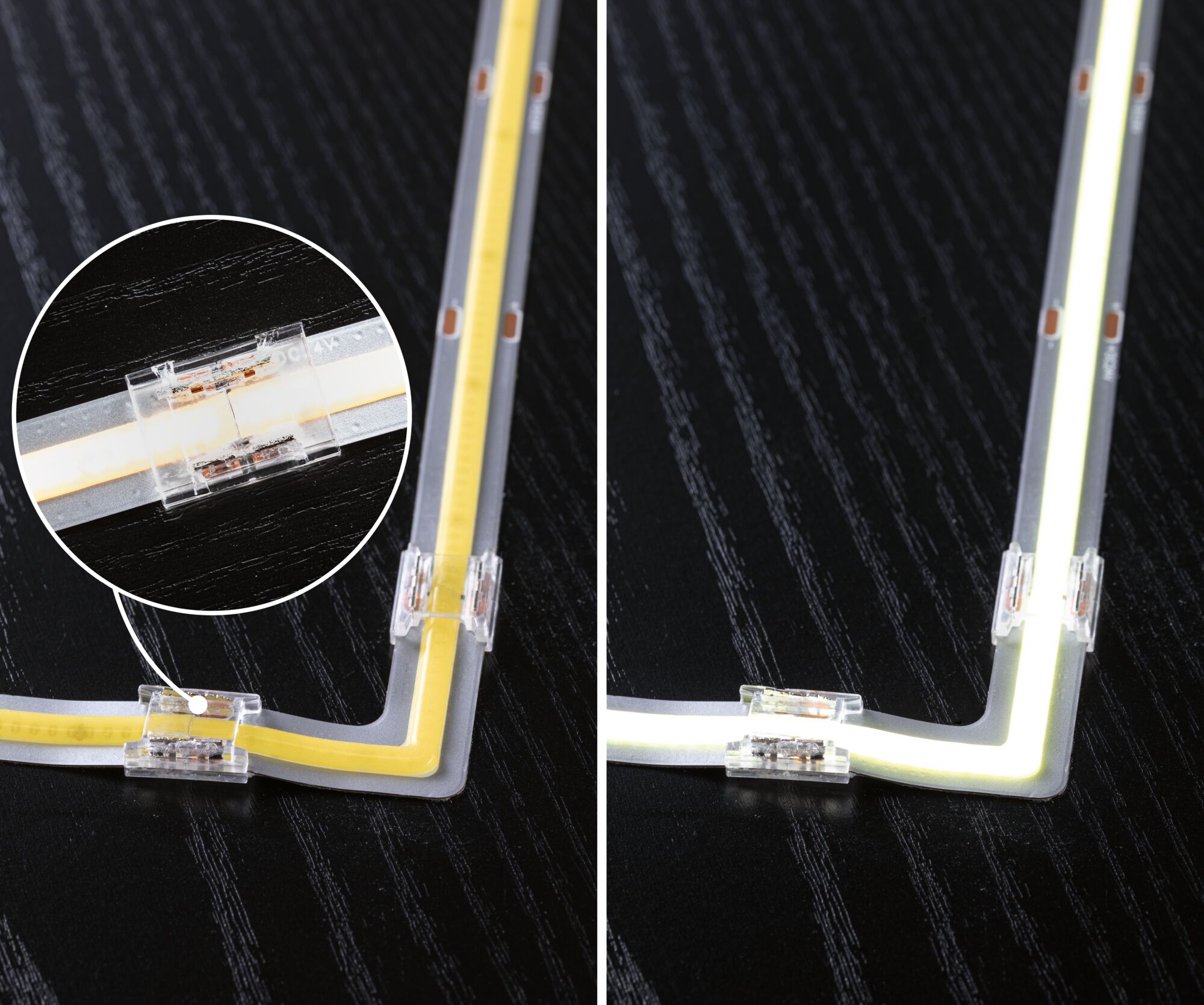

The MaxLED 500 Edge Full-Line COB corners are perfect additions for a MaxLED 500 Full-Line COB light concept, as they allow routing around corners. The COB corners for warm white strips ensure that the strips can be placed around 90-degree corners without a break in the light design. Each corner comes with two light connectors. Corners can be connected universally on the left or right. The MaxLED 500 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area.

Color temperatur: 2700K - Warm white
Simple plug-in system for easy installation

Dimension
Dimensions (Height x Width x Depth)	H: 1,6 x B: 10 x mm
Length	0,03 m

Design and Material
Colour	Silver
Material	Plastic

Installation
can be used with the following dimmers	Paulmann SmartHome BLE LED-Stripes 500.02, Paulmann SmartHome ZigBee LED-Stripes 500.45

Energy consumption
Energy efficiency (A to G)	G

Service life
Lifetime	20000 h

Light Characteristics
Colour temp.	2700 K
Usable luminous flux	25 lm
Luminous flux LED module	25 lm
color temp	2700 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	0,3 W
Technique	LED
IP protection	IP20
Dim	with Smart Home
Dimmable	Yes
Inclusive lamp	yes
Number of component parts	1x
protection class	protection class III
Number of LED's per meter	800
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.
Power consumption	0,3 W

Labelling
MM symbol	MM symbol
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions Flyer MaxLED-Strips and profiles
