Article-No.:
71045
MaxLED 500LED Strip
Basic set 1,5m 2700K
10W 500lm/m 2700K 25VA
10W 500lm/m 2700K 25VA
- Complete set incl. strip and power supply
- homogeneous light
- Color temperatur: 2700K - Warm white

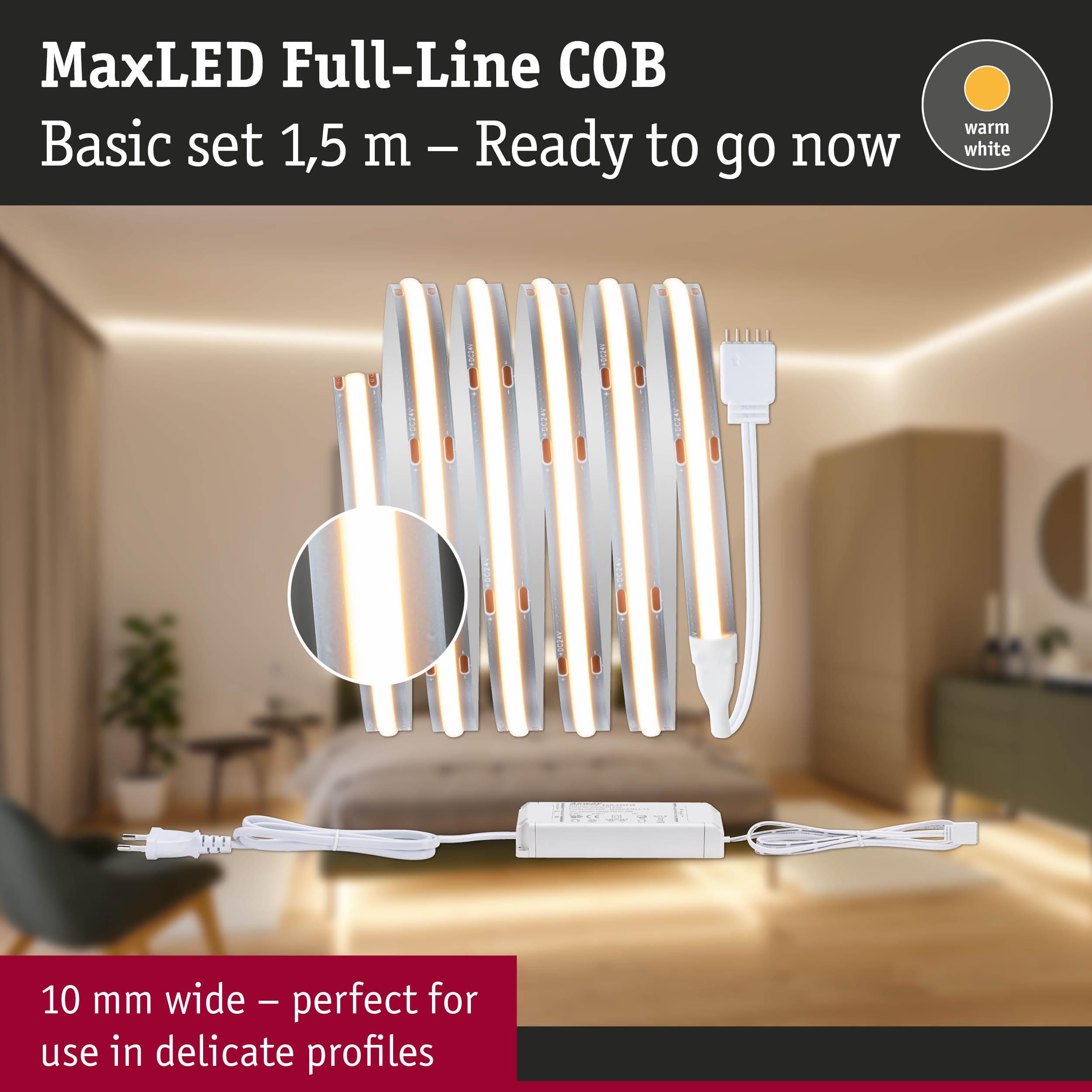

MaxLED 500 LED Strip Basic set COB 1,5m 2700K 10W 500lm/m 2700K 25VA

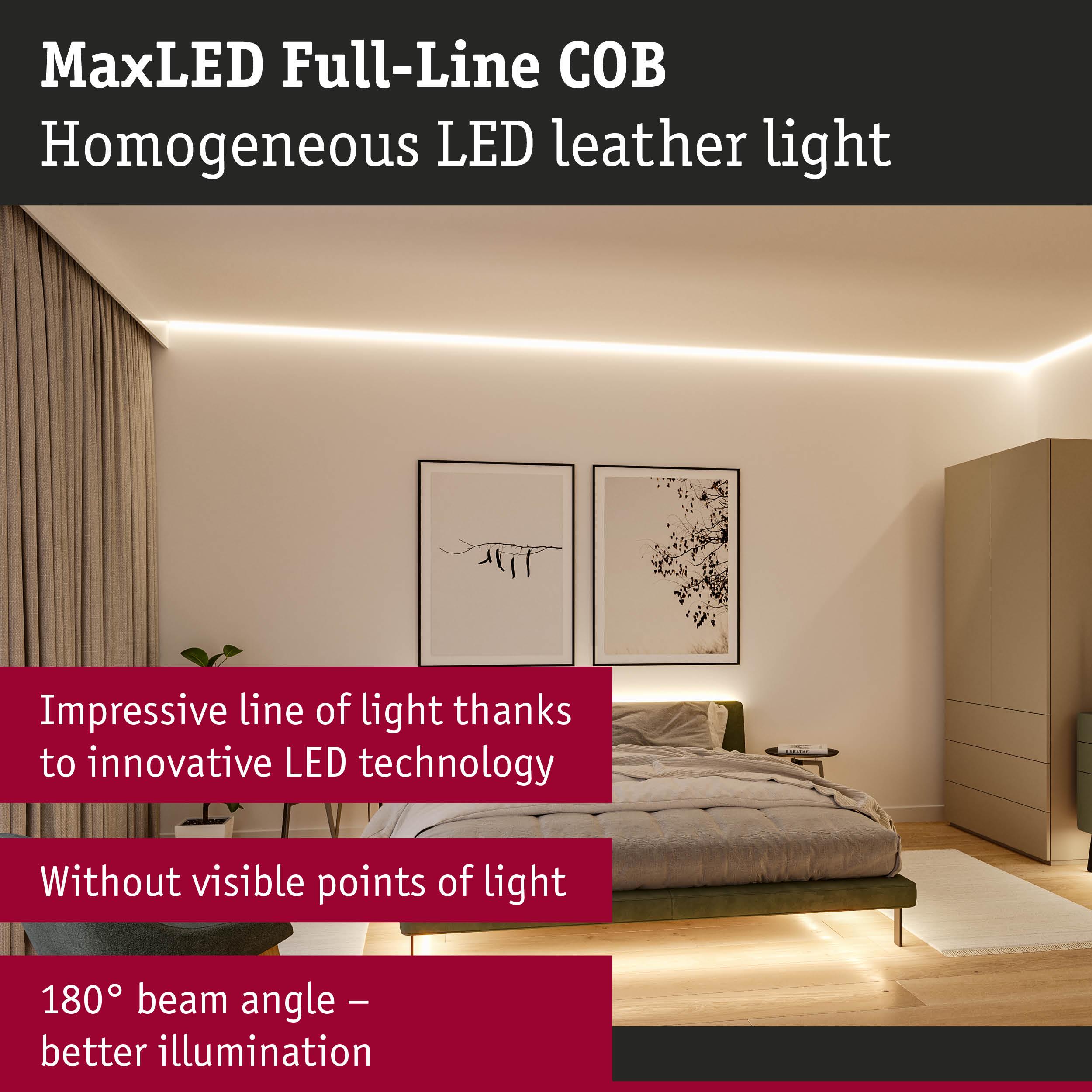

Perfect for kitchen workstations, workshops or other work surfaces – these MaxLED 500 Full-Line COB Strips are ideal for glare-free work lighting. The MaxLED 500 COB basic set with 480 LEDs/m produces an absolutely uniform light without visible light points. The light connector allows seamless connection and continues the linear light pattern without interruption. The strip is particularly narrow at 10 mm and therefore also fits into very delicate LED profiles. The wide beam angle of 180° optimally distributes the light without creating shadows. The phosphor coating throughout protects the LEDs from dust and moisture; the contact points have an IP20 rating. The warm white basic set can easily be extended with the matching single strip.
- Complete set incl. strip and power supply
- homogeneous light
- Color temperatur: 2700K - Warm white

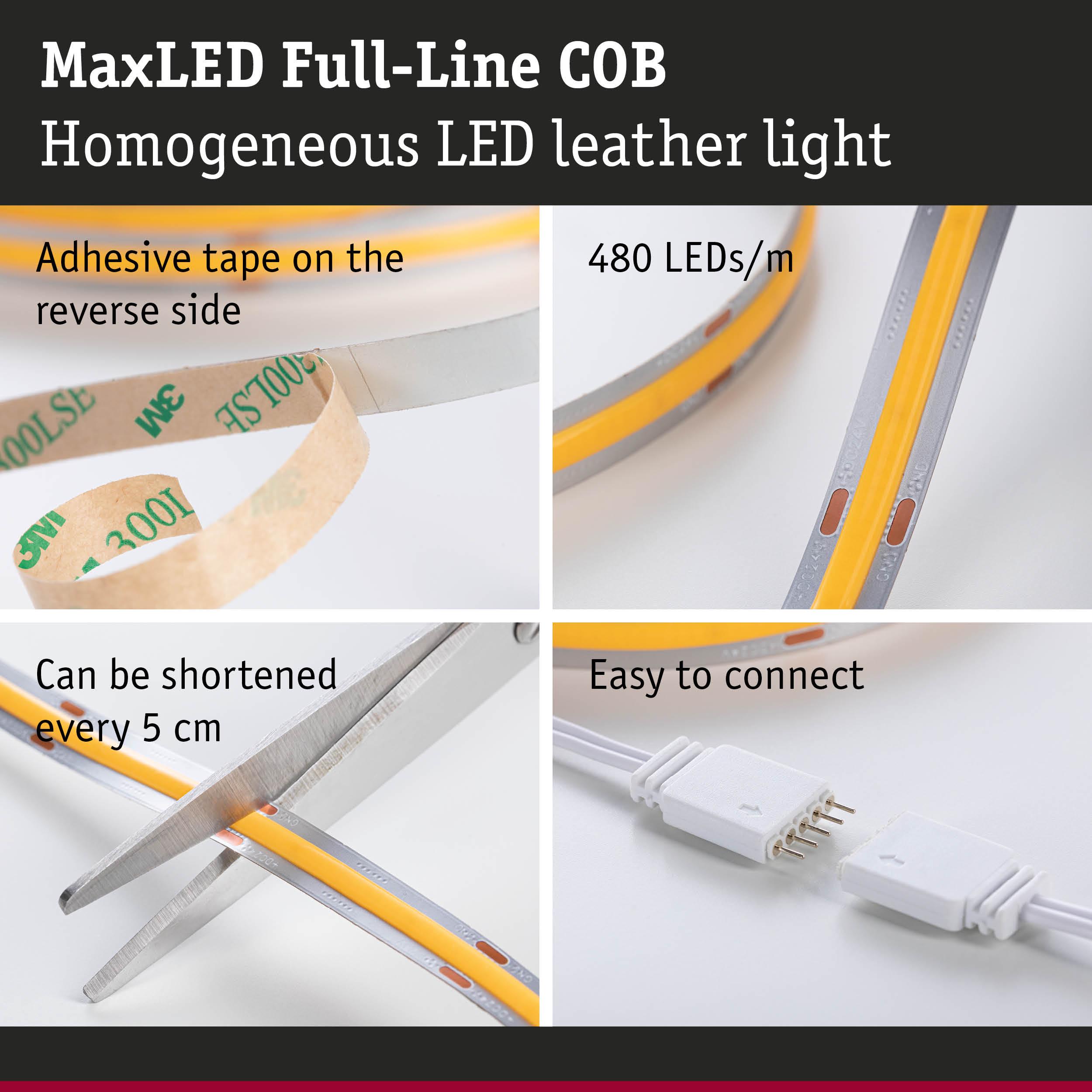

- Can be shortened as required
- Coating protects against splashing water and dust
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 10 mm |
| Length | 1,5 m |
| Shortenability Strips | 50 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 4 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 750 lm |
| Luminous flux LED module | 750 lm |
| Lumens per metre | 500 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 10 W |
| Number of component parts | 1x |
| Number of LED's per meter | 480 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 12 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 12.5 VA |
| Transformer power range | 25 VA |
| Transformer height | 21,5 mm |
| Transformer width | 126 mm |
| Transformer depth | 42,5 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
- MaxLED 500
- LED Strip
