Article-No.:
94145
Cable system
Spice SaltLED Basic Set
GU5,3 max. 5x10W dimmable 230/12V Chrome matt
GU5,3 max. 5x10W dimmable 230/12V Chrome matt

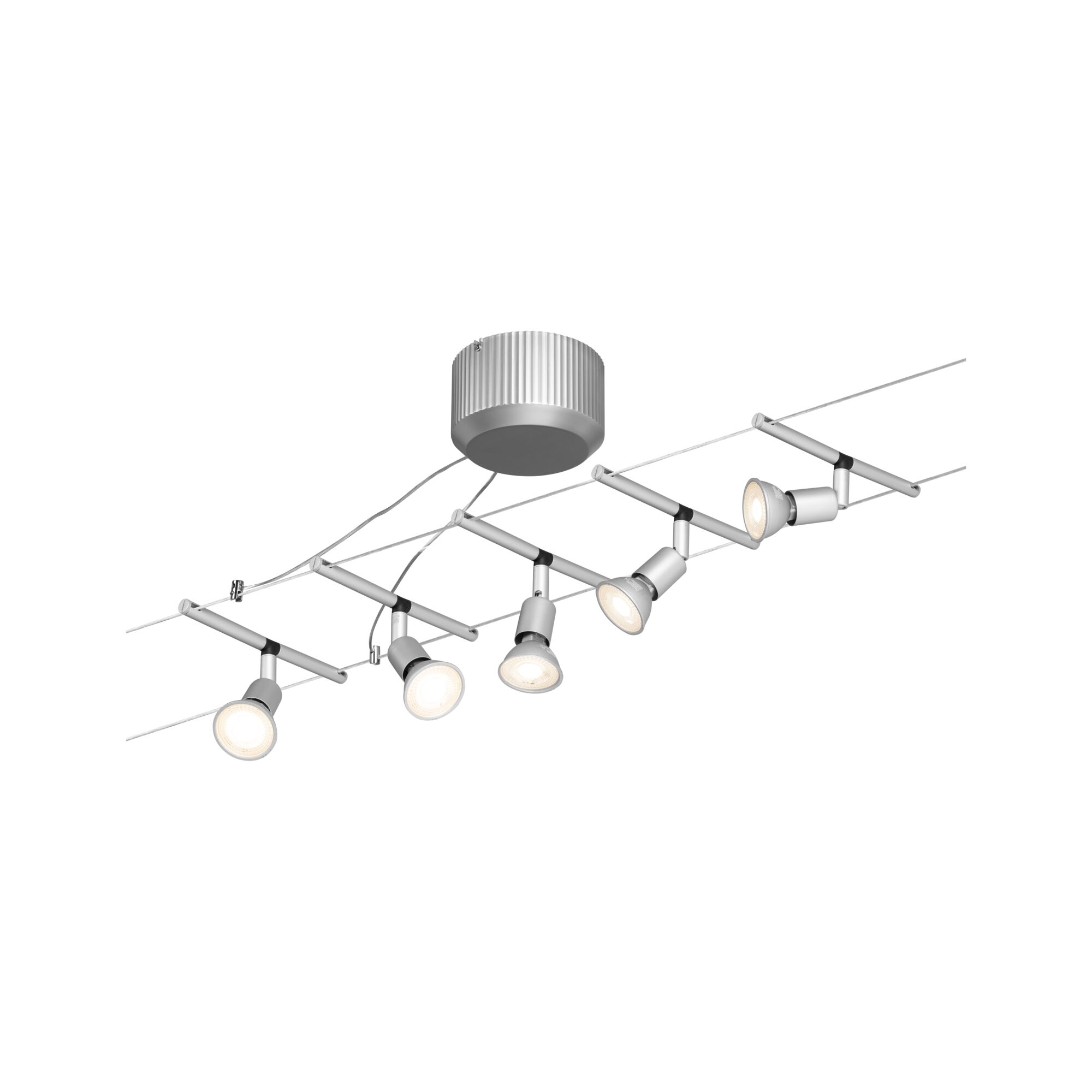

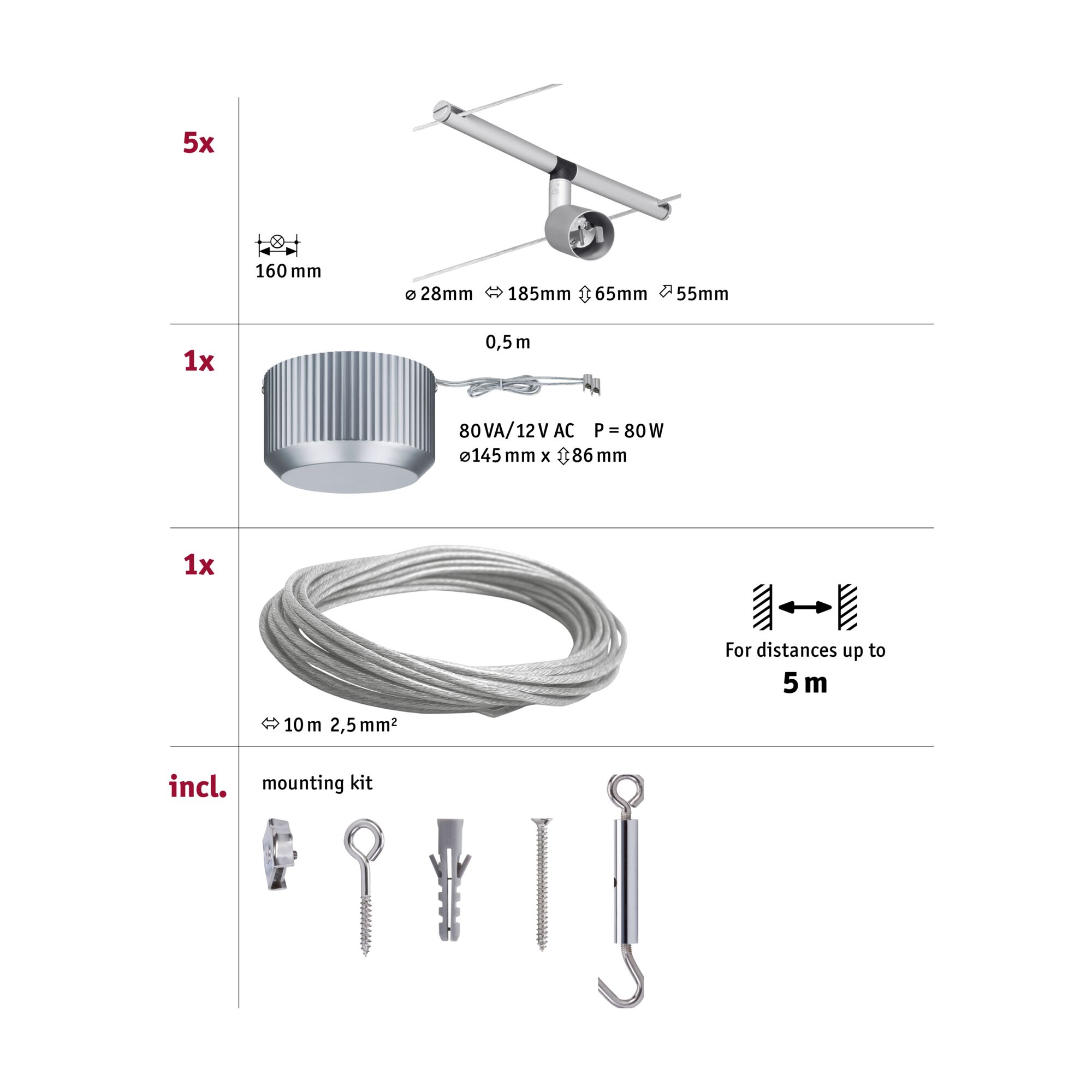

- Complete set consisting of transformer, cable, spots and installation instructions
- Ideal for illuminating large and angled spaces
- Freely selectable lamps

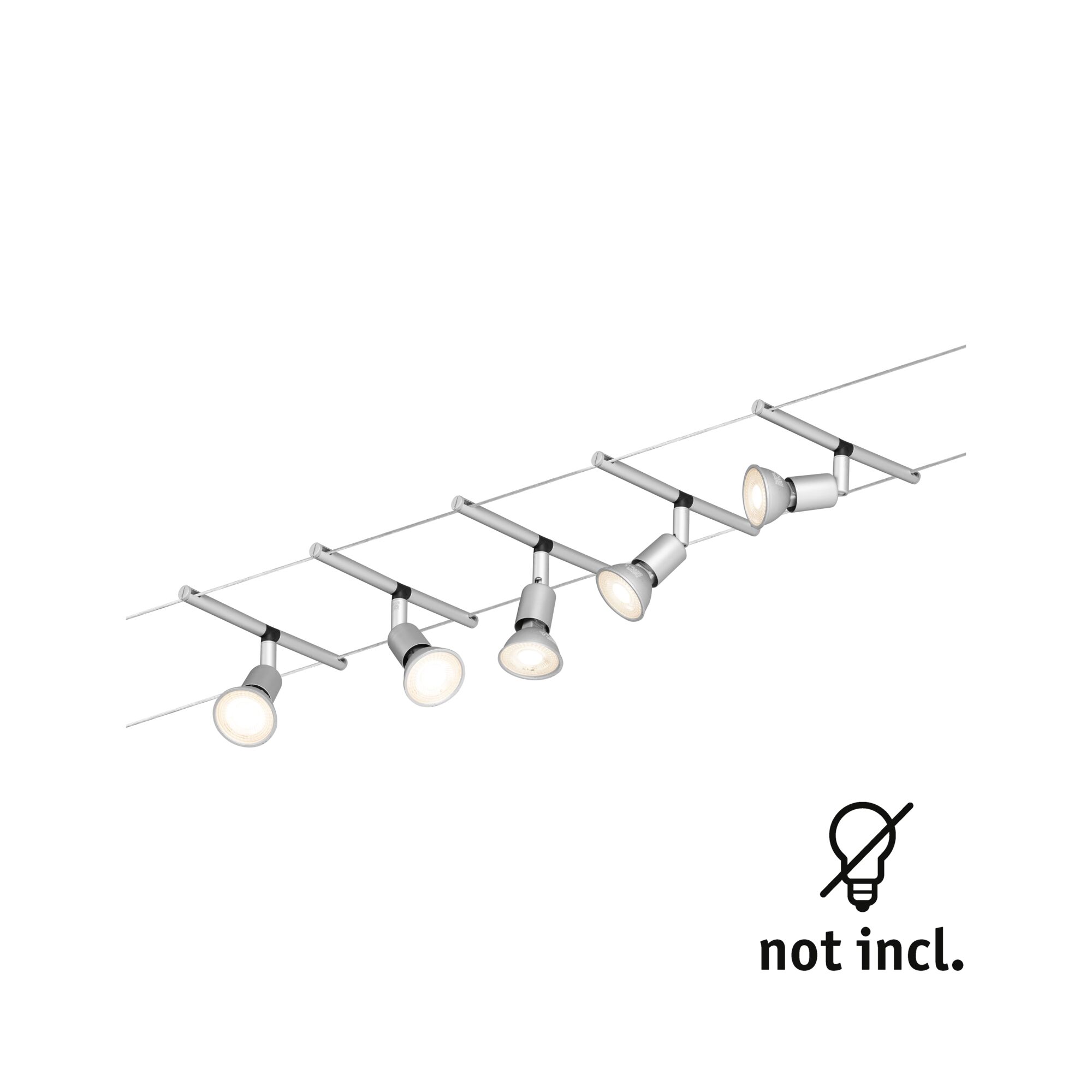

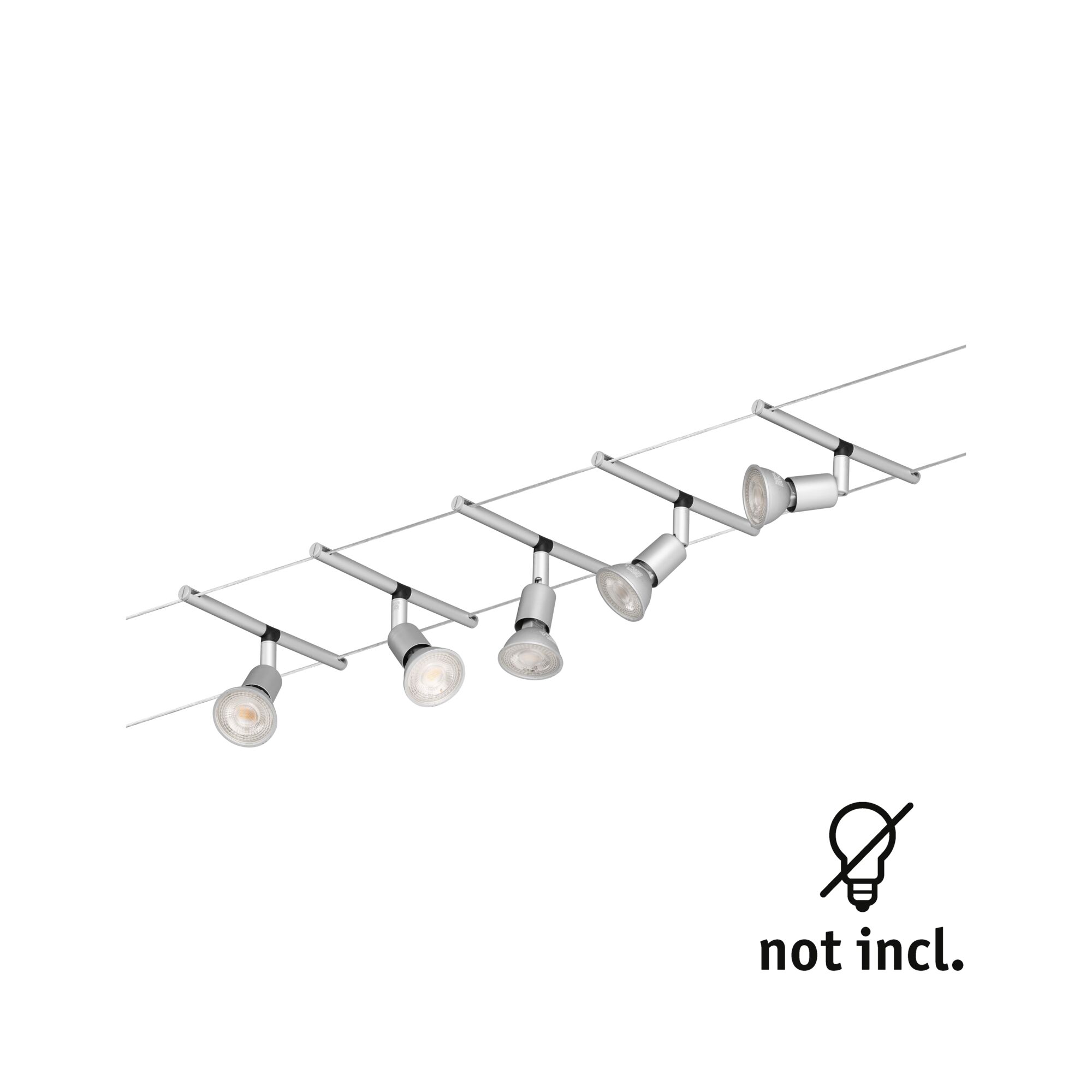

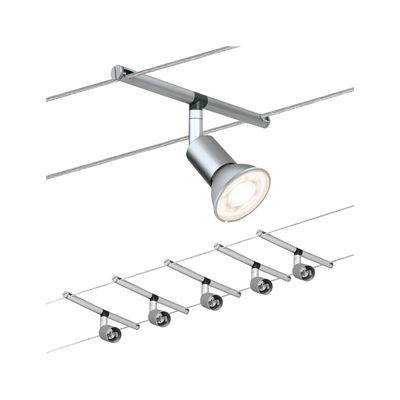

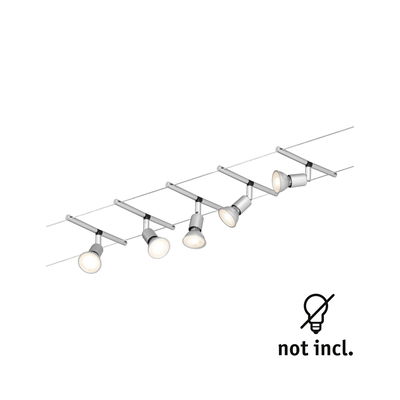

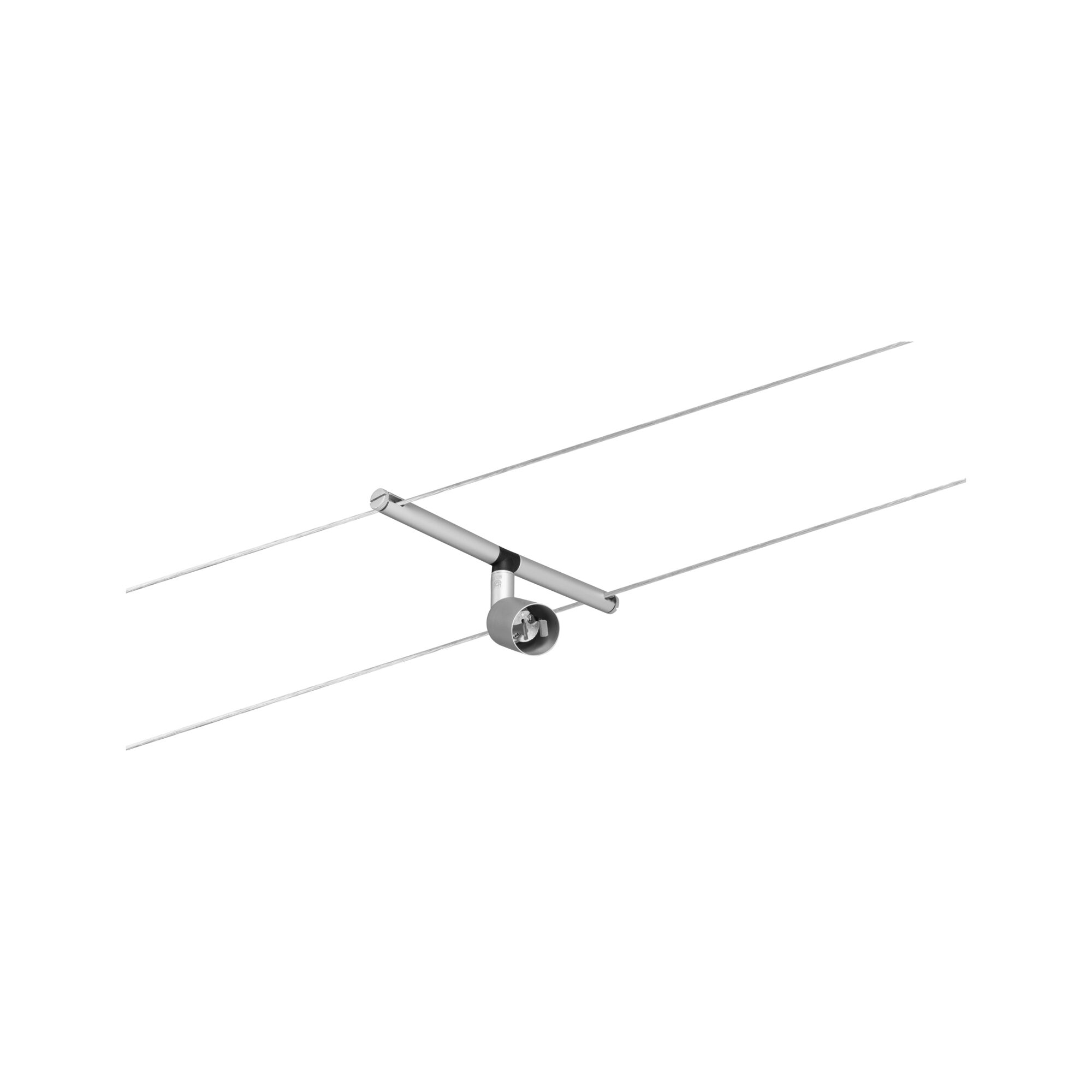

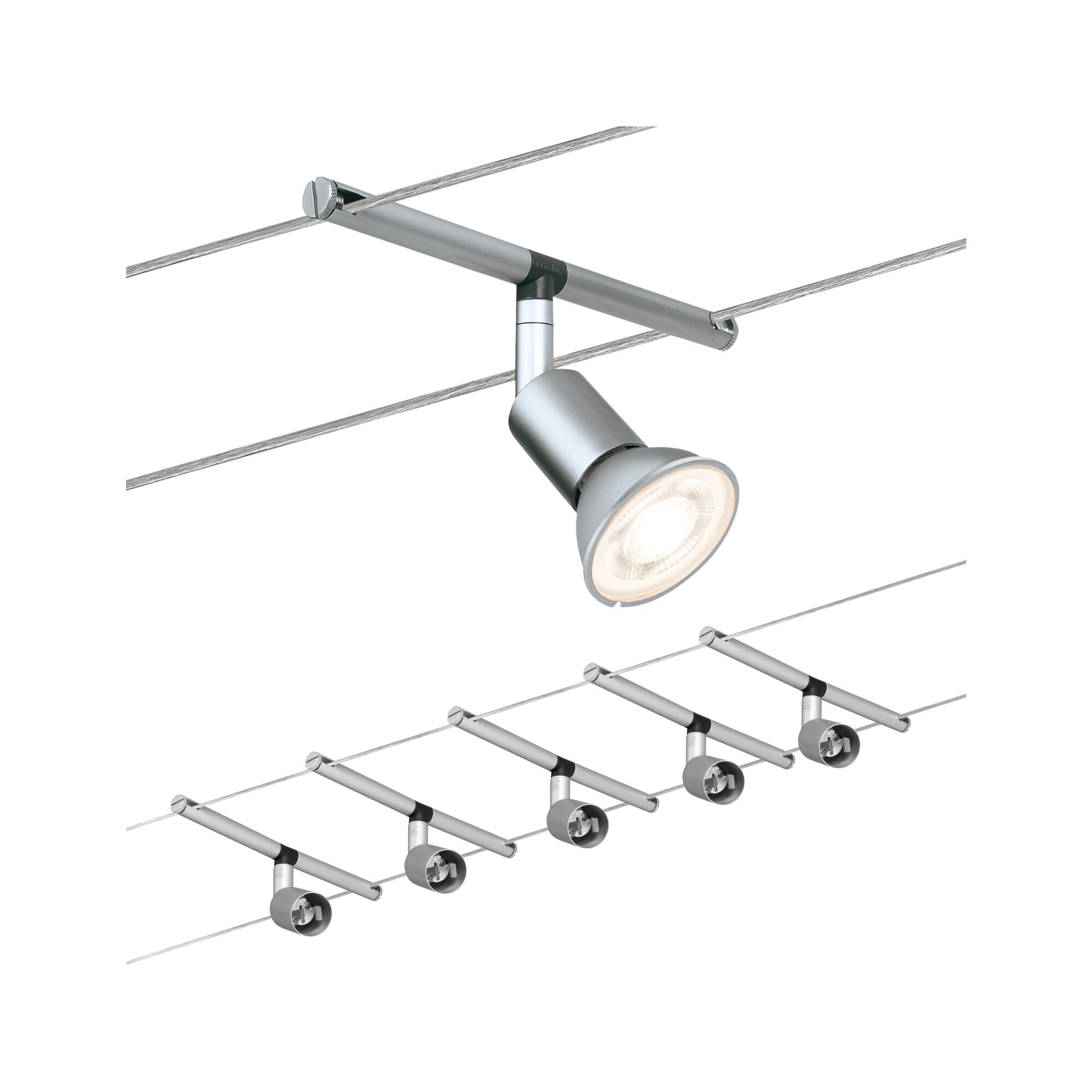

Cable system Spice SaltLED Basic Set GU5,3 max. 5x10W dimmable 230/12V Chrome matt

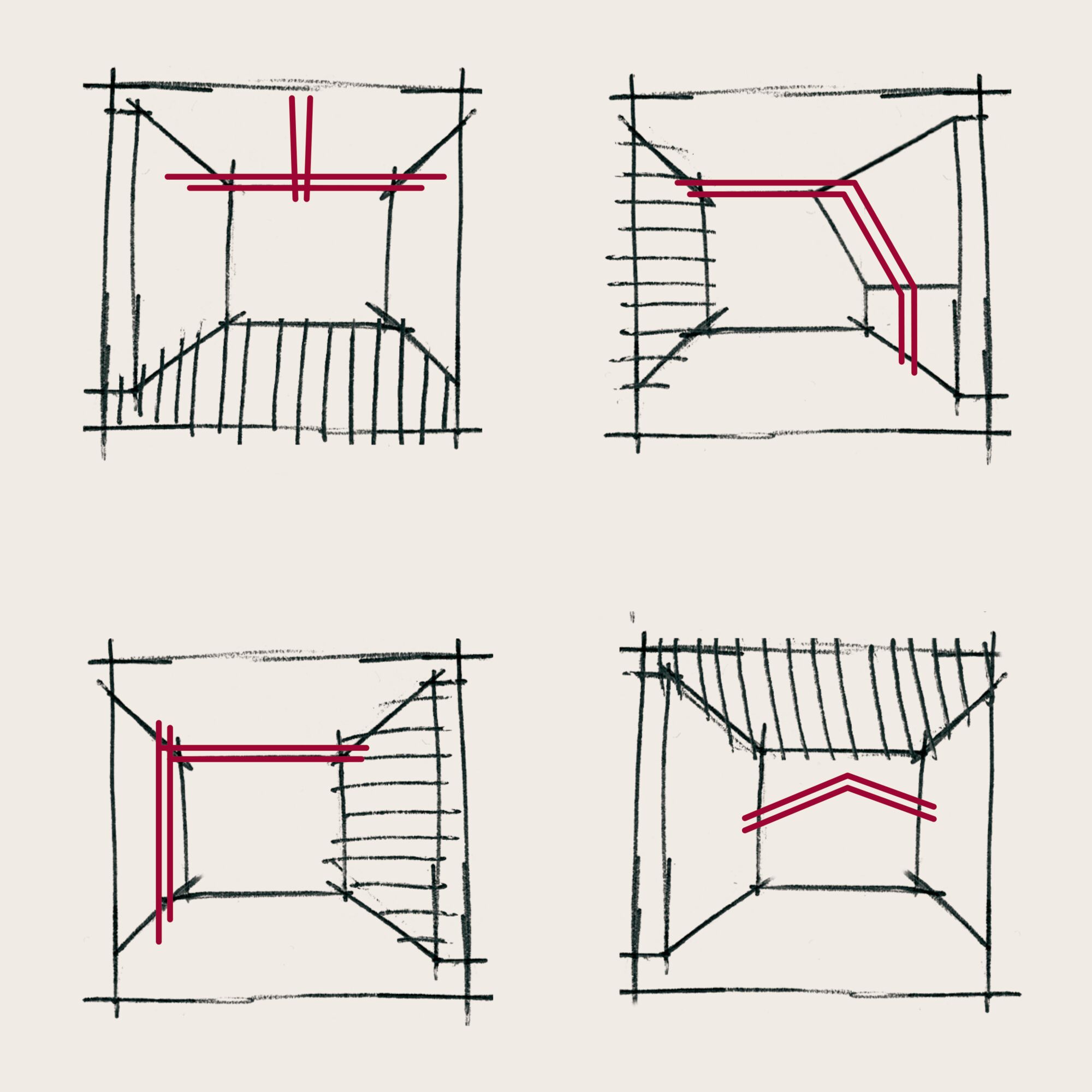

Whether straight, pitched or angled - cable systems fit into every room. The Salt series can be installed on the wall or on the ceiling, thus offering unlimited design possibilities. The basic set can be individually supplemented with individual spots, deflectors and other accessories - please note the maximum transformer load.
- Complete set consisting of transformer, cable, spots and installation instructions
- Ideal for illuminating large and angled spaces
- Freely selectable lamps

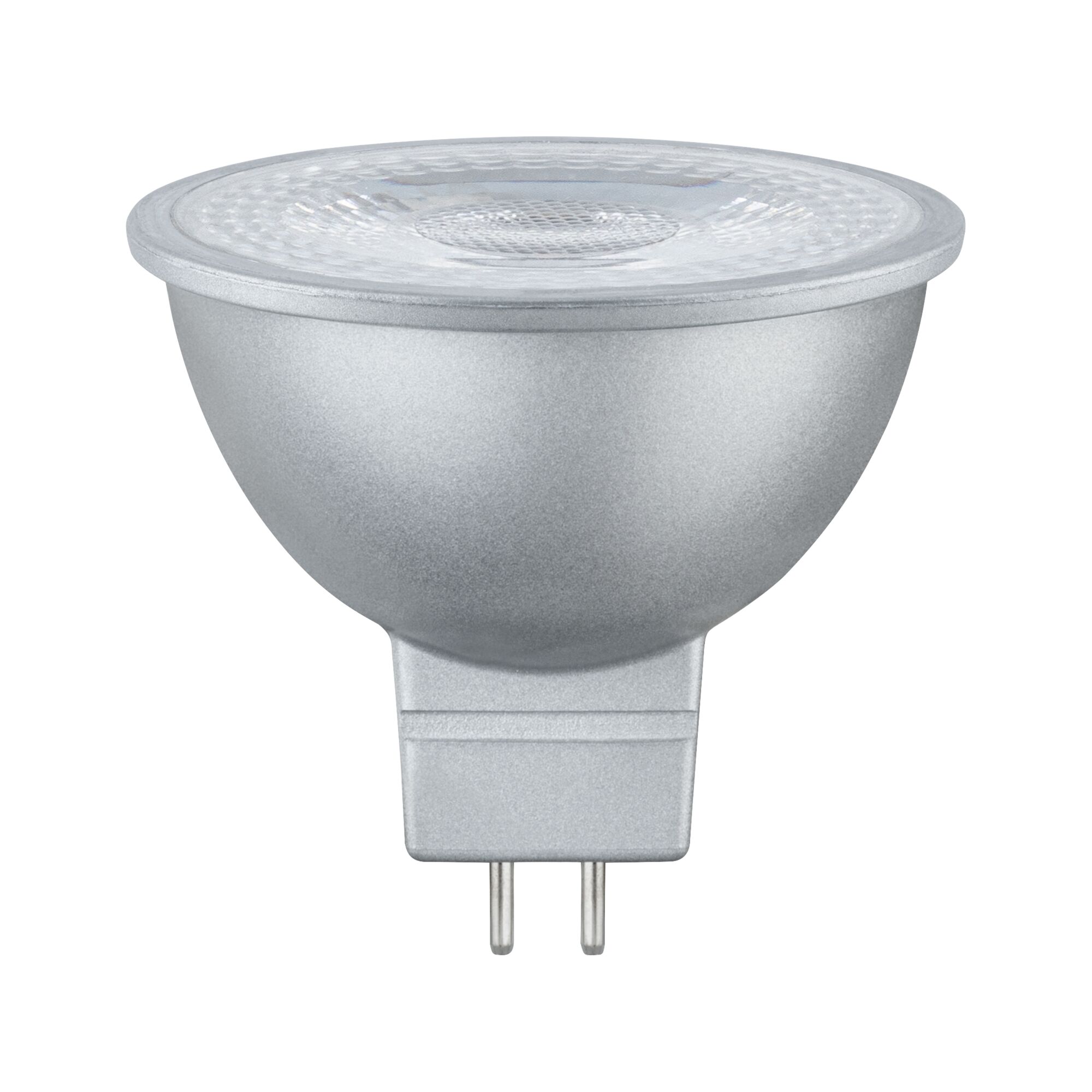

- Don’t forget: Include a suitable lamp in your order!
- Suitable for wall and ceiling mounting
| Dimension | |
|---|---|
| Diameter | 28 mm |
| Dimensions (Height x Width x Depth) | H: 65 x B: 185 x T: 55 mm |
| Length | 10 m |
| Wire distance | 160 mm |
| Span width | 5 m |
| net weight | 3425 g |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Base/Socket | GU5,3 |
| Technique | Lamp without bulb |
| Adjustability | swivelling/tilting |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Maximum wattage range | max. 5x10 W |
| Protection class | Protection class I |
| Number of component parts | 5x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Transformer height | 83 mm |
| Transformer width | 120 mm |
| Transformer depth | 120 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
