Article-No.:
28757
12 V Standard
LED Reflector 1-piece set
445lm 6,5W 2700K dimmable Black matt
445lm 6,5W 2700K dimmable Black matt

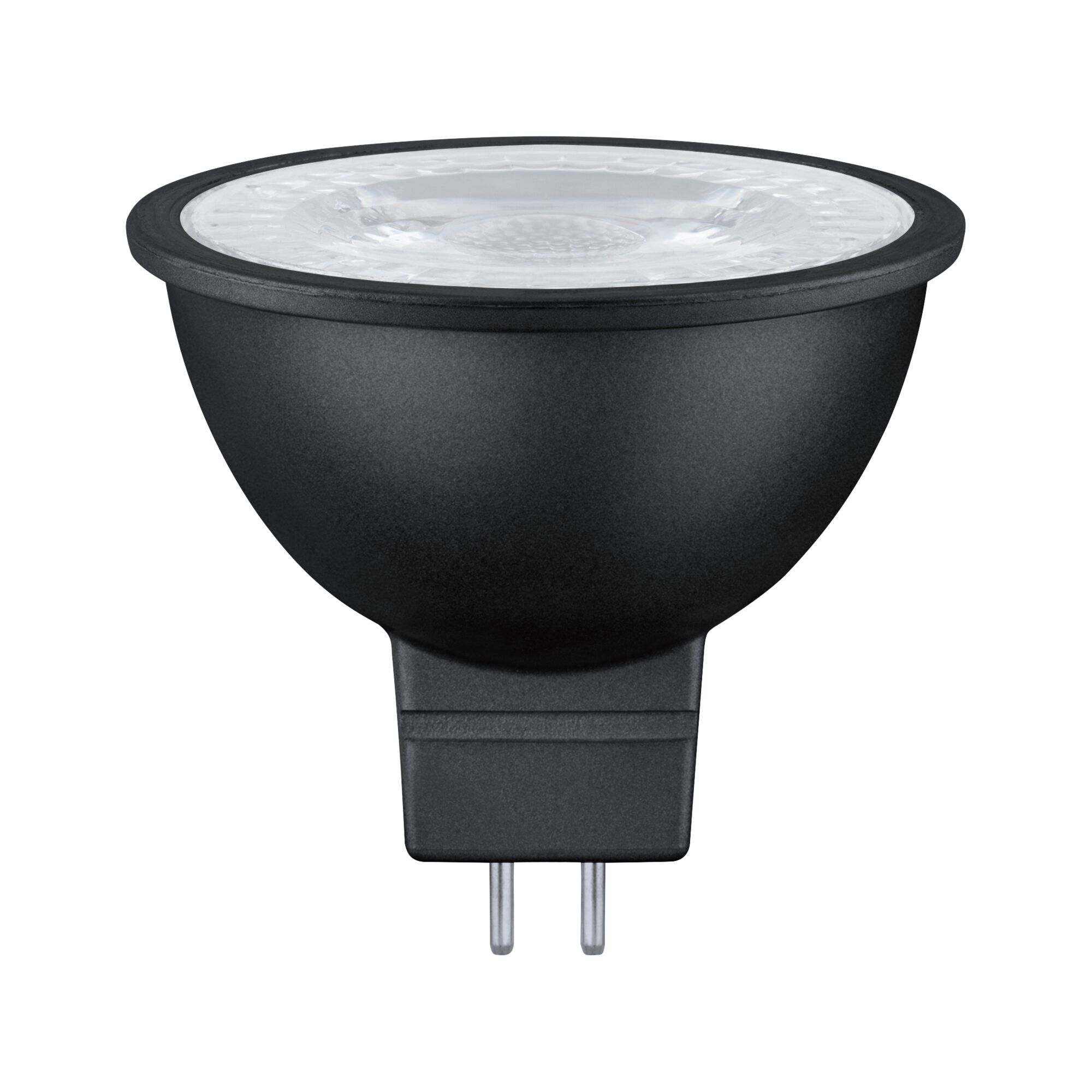

12 V Standard LED Reflector GU5,3 1-piece set 445lm 6,5W 2700K dimmable Black matt

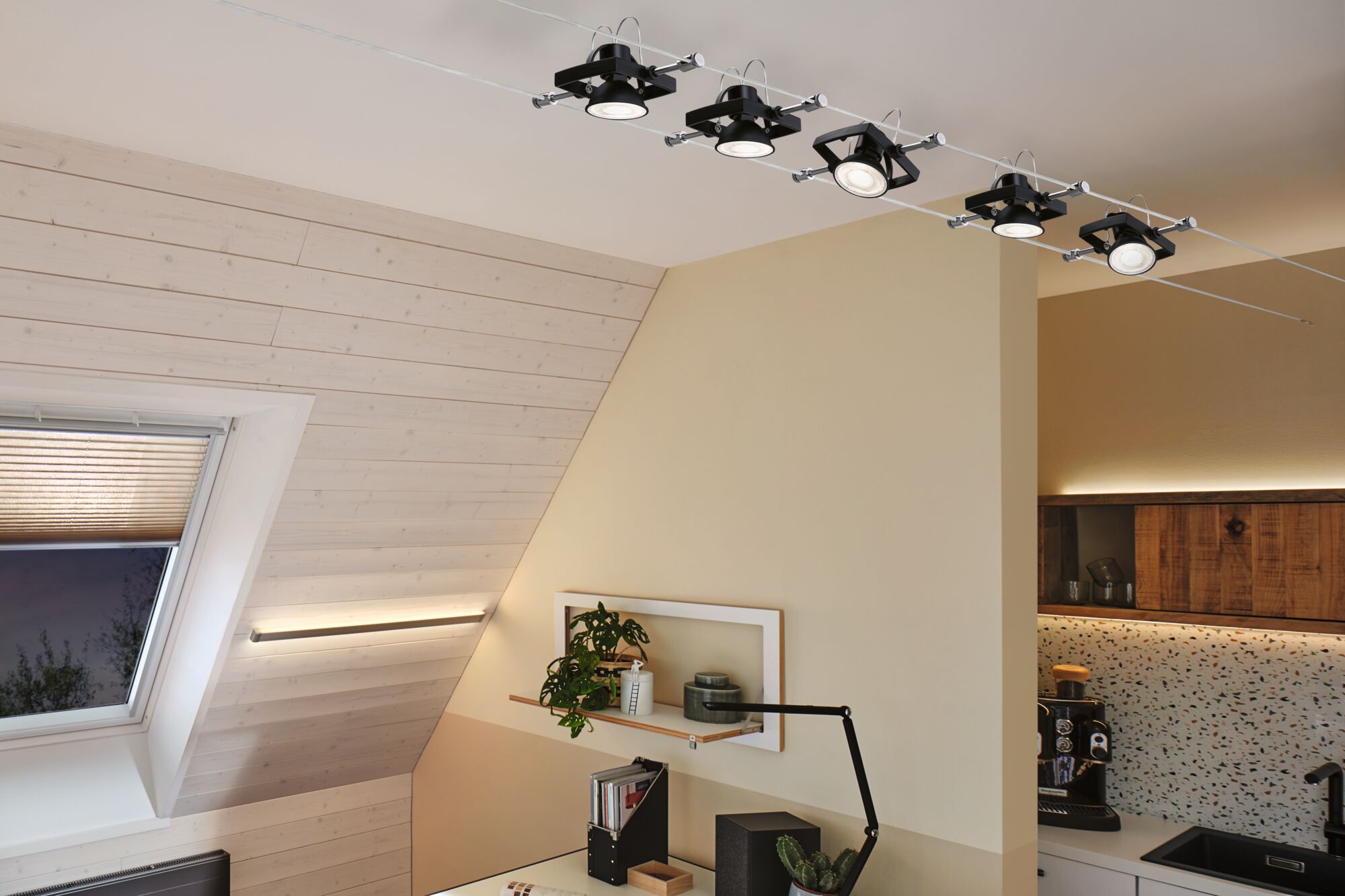

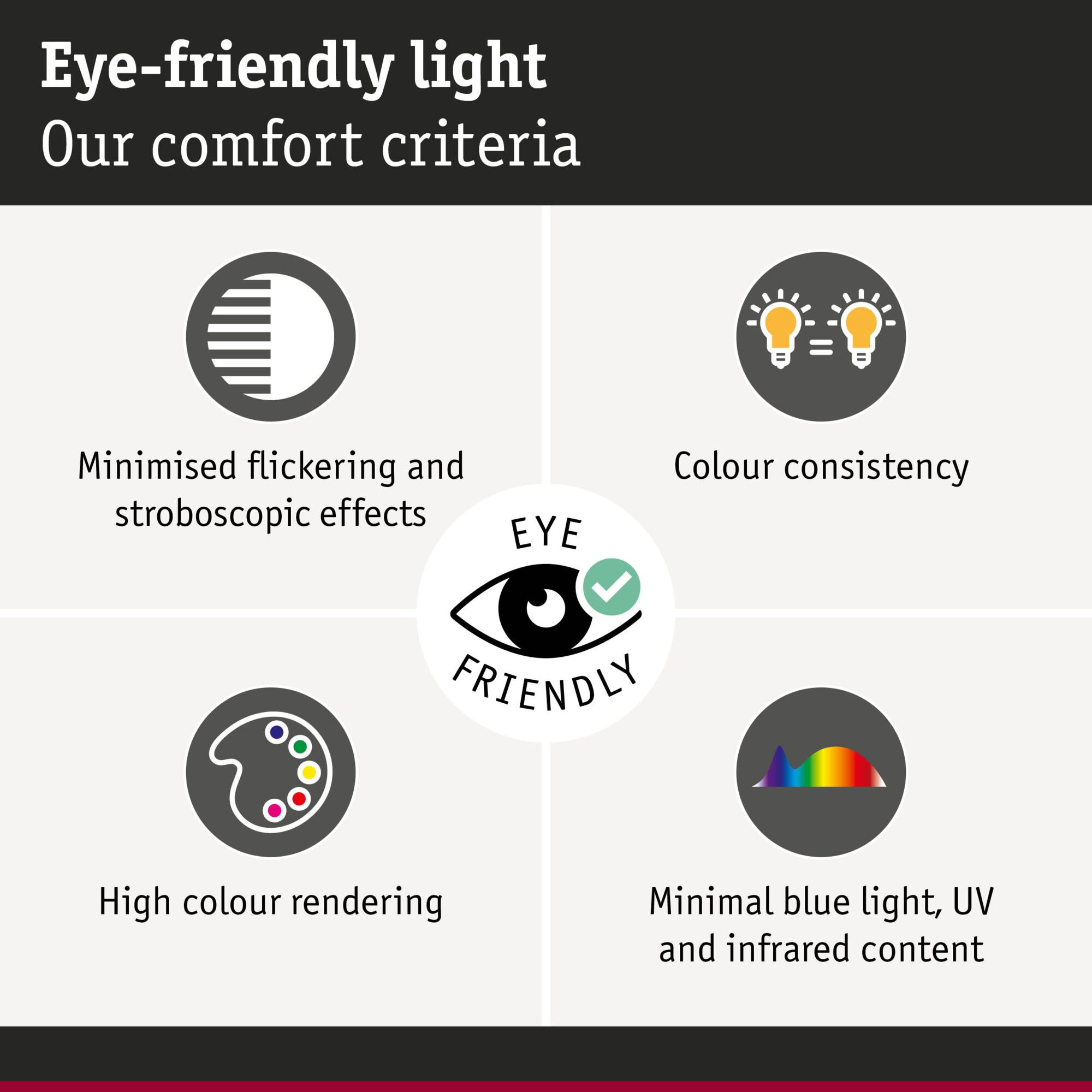

The GU5,3 reflector in Black matt matches the RAL material colours of the Paulmann cable systems. It emits a pleasant warm white light colour and is ideal for cable systems with a GU5,3 socket. The Paulmann LED lamps with the Eye friendly label emit gentle-on-the-eyes, comfortable light. Luminaires help create eye comfort – while working, reading, or relaxing.
- Reflector
- Directional light
- Color temperatur: 2700K - Warm white
- Efficient LED technology
- Dimmable
| Dimension | |
|---|---|

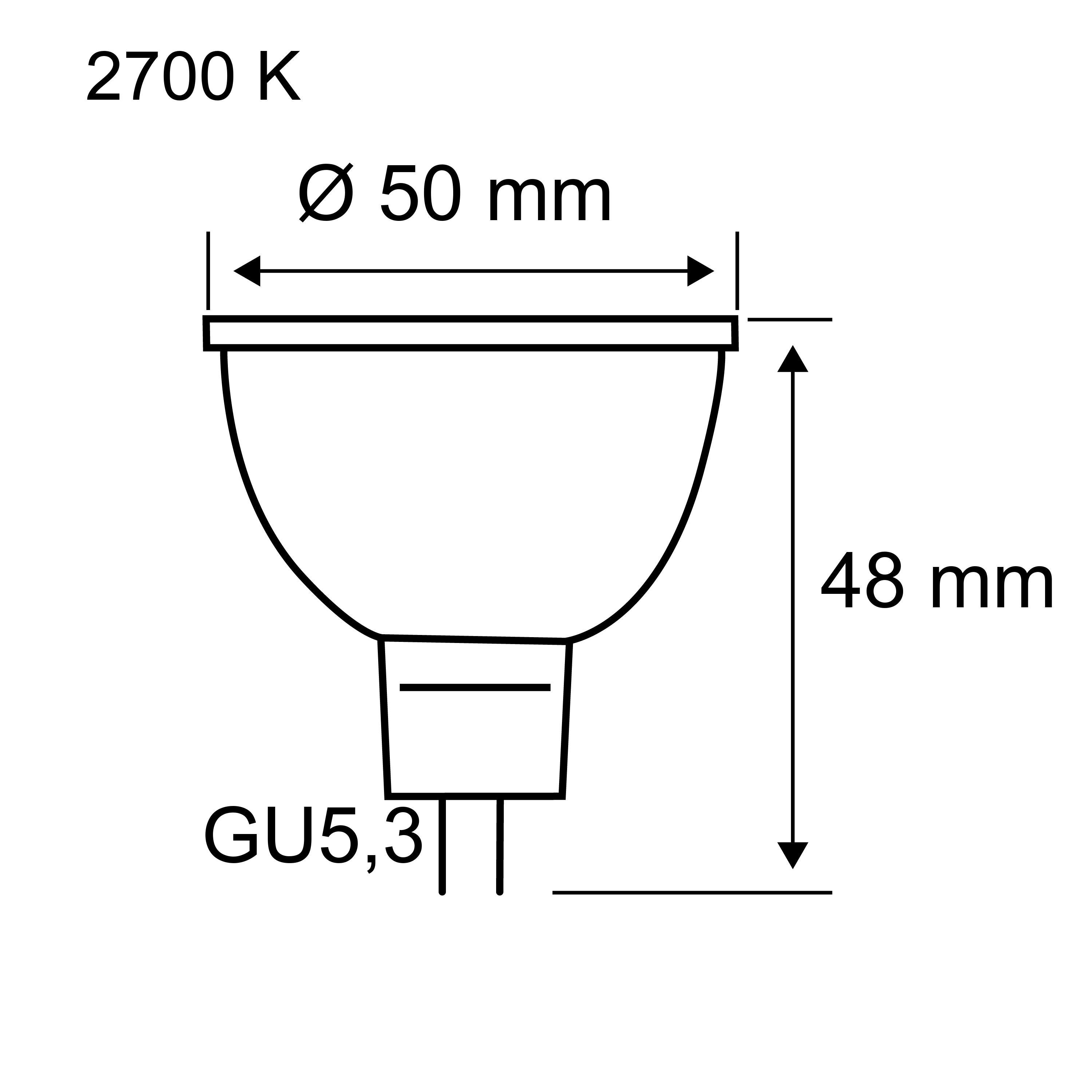

| Dimensions (Height x Width x Depth) | H: 48 mm |
| Ø | 50 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, RC Gira 0307 00/I02, RC Busch-Jäger 6513U-102 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 15000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 36 ° |
| Usable luminous flux | 445 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 900 cd |
| Luminous intensity | 900 cd |
| Rated luminous flux (Lumen) | 445 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |

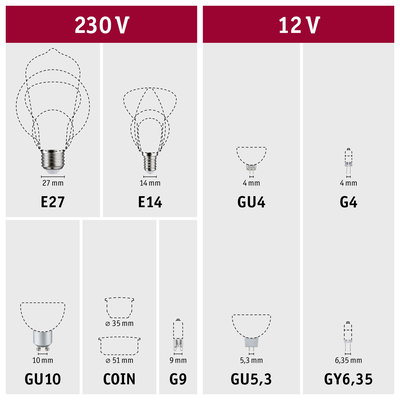

| Socket | GU5,3 |
| Type | Reflector |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 44 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| apparent power | 6.6 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
