Article-No.:
93414

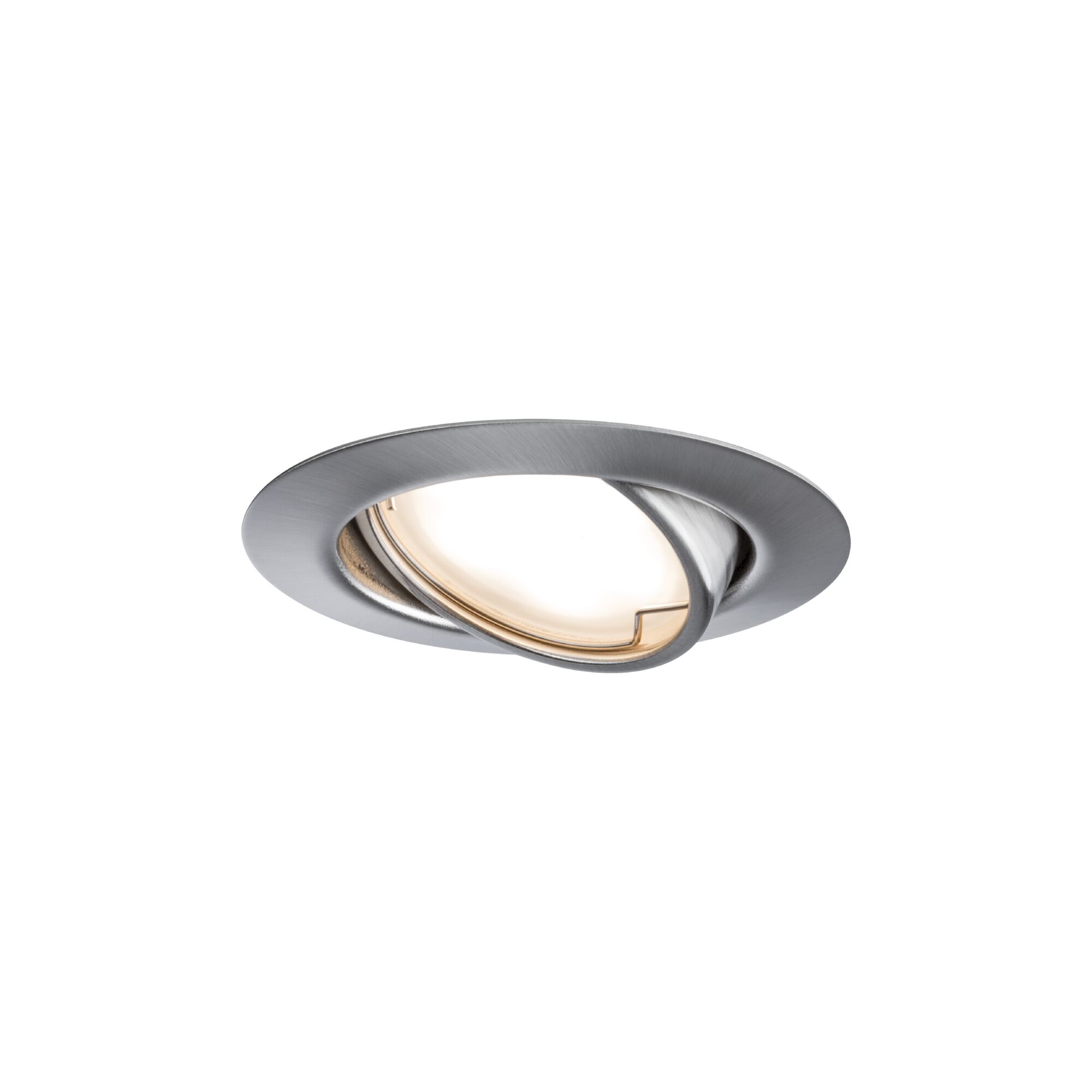

LED Recessed luminaire
Base Coin Single Luminaire Swivelling
round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron
round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron
- Incl. replaceable LED lamp
- Color temperatur: 3000K - Warm white
- With swivelling spots for ideal illumination
LED Recessed luminaire Base Coin Single Luminaire Swivelling round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron

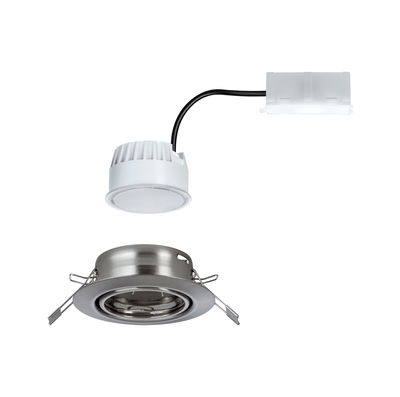

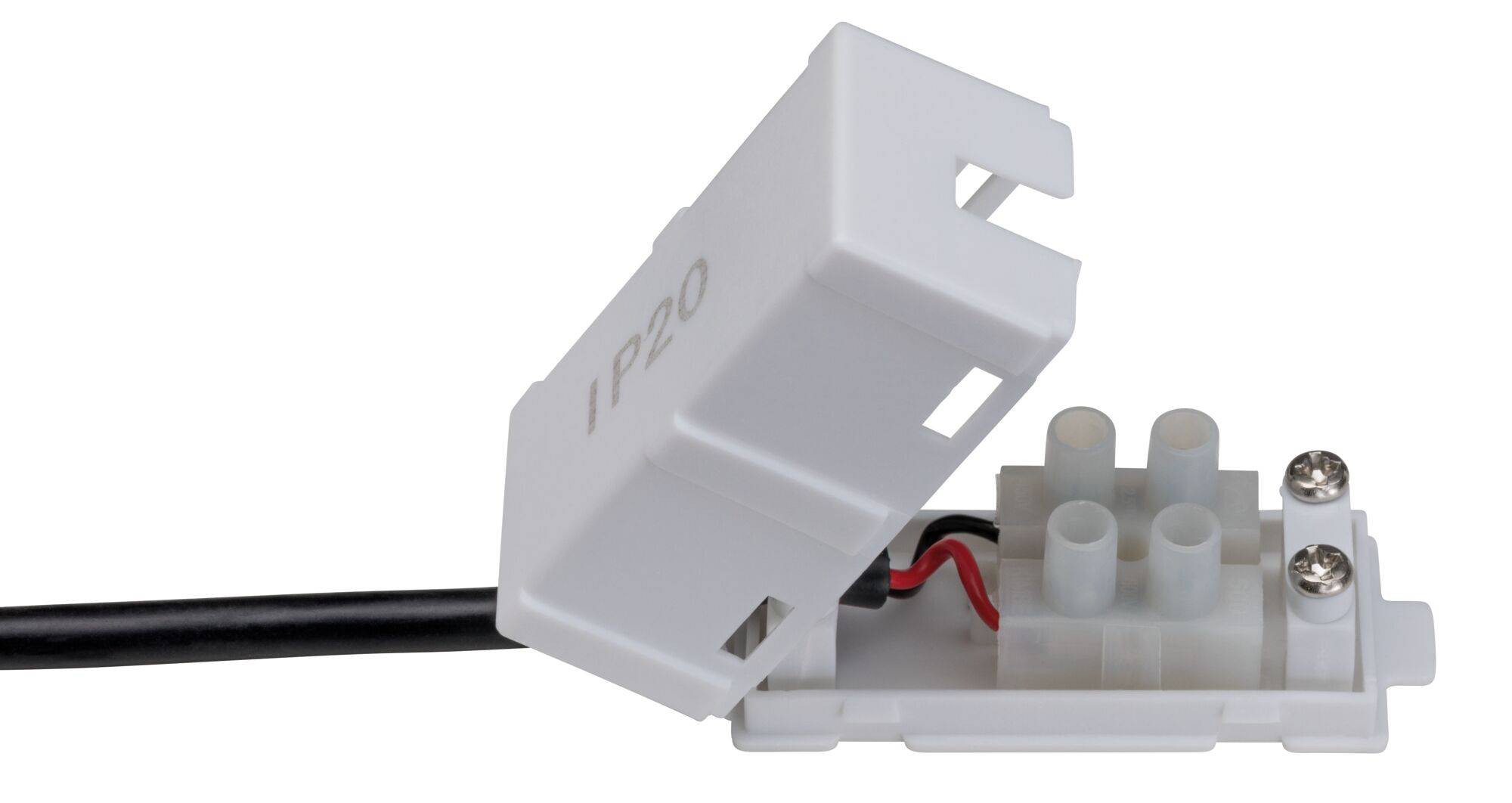

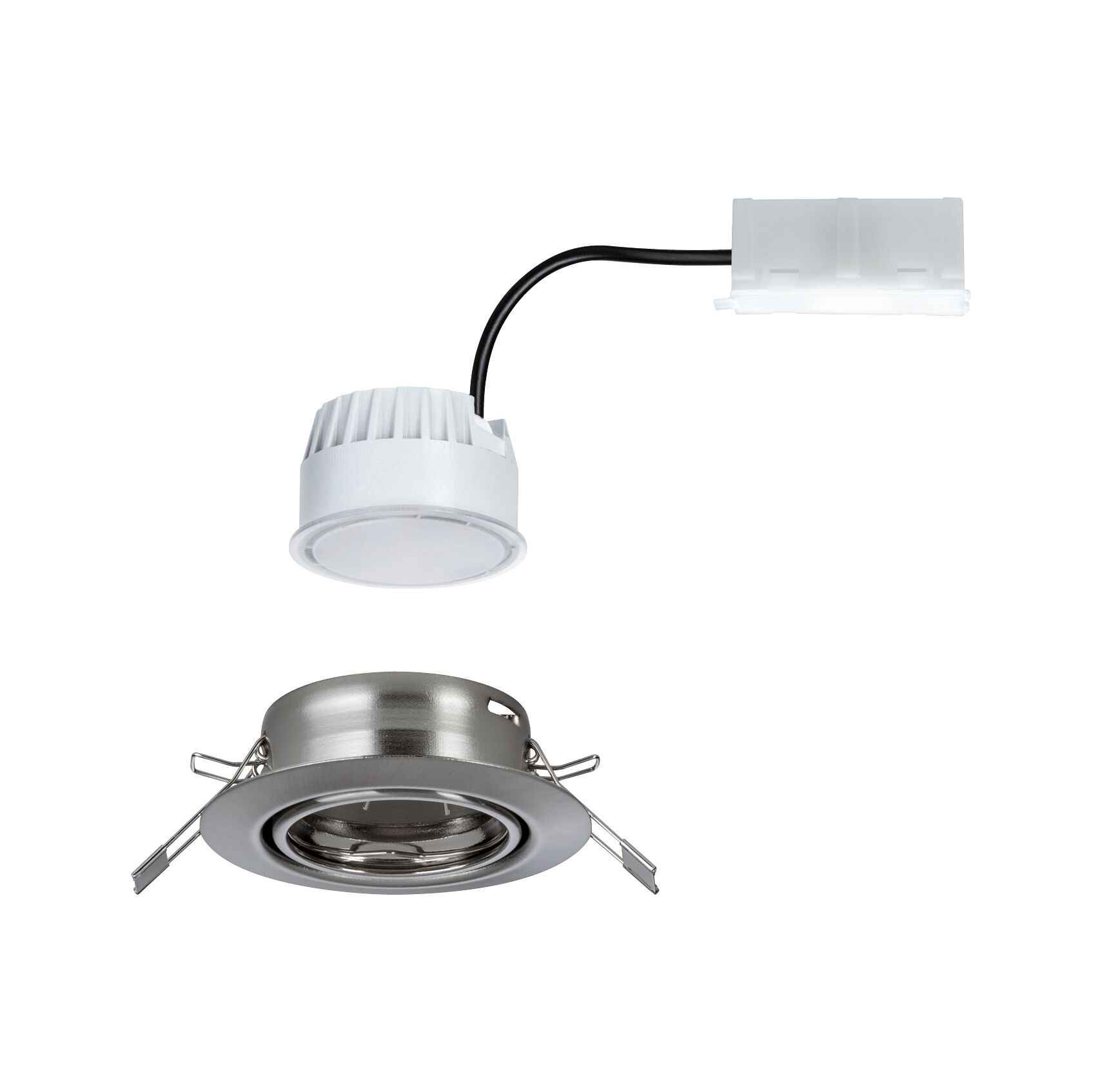

The robust and user-friendly Metal recessed Base spotlights 1x5W in Brushed iron are a great choice for new installations and for the replacement of existing installations. The junction box with quick clip for tool-less installation allow quick and easy – and most importantly: unlimited interlinking. The scope of delivery includes replaceable Coin LED lamps in warm white for a relaxing and attractive ambiance.
- Incl. replaceable LED lamp
- Color temperatur: 3000K - Warm white
- With swivelling spots for ideal illumination
- For 230 V direct connection

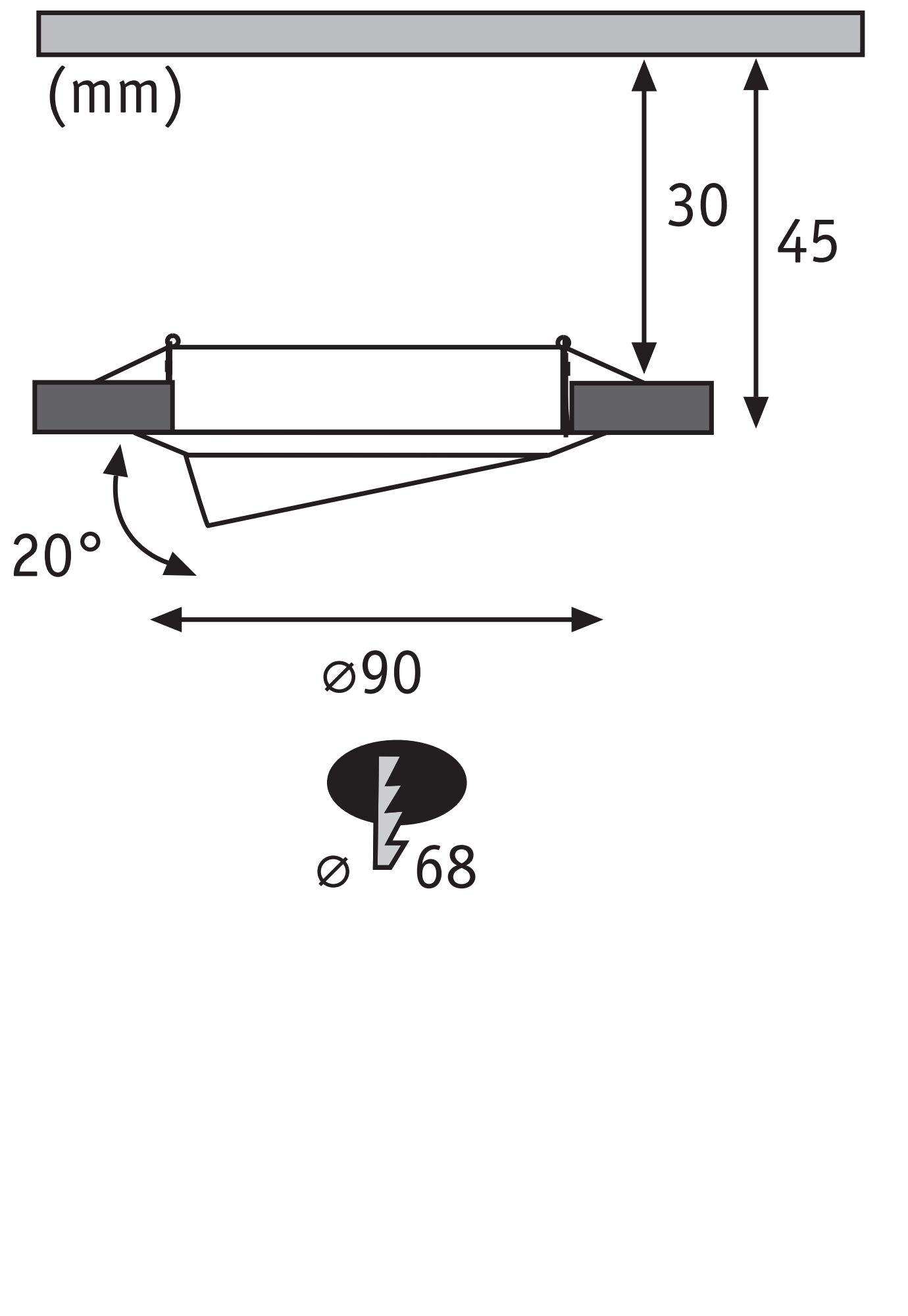

| Dimension | |
|---|---|
| Einbaudurchmesser | 68 - 73 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Diameter | 90 mm |
| Design and Material | |
|---|---|
| Recycled material included | false |
| Colour | Brushed iron |
| Material | Metal |
| Type | Coin |
| Form | round |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy consumption | 5 kWh_1000h |
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 100 ° |
| Nominal luminous flux | 370 lm |
| Color rendering index | > 80 Ra |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Swivel range | 20 ° |
| Technique | LED |
| Base/Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 34 W |
| Adjustability | swivelling/tilting |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | No |
| IP protection | IP20 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
