Article-No.:
70628

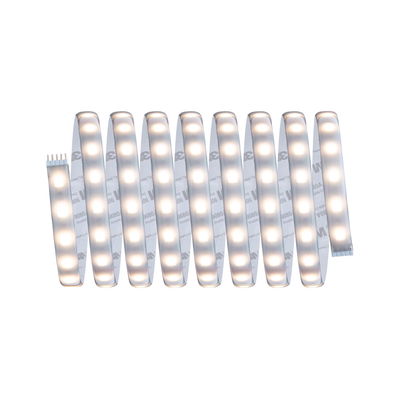

MaxLED 500
LED Strip
RGBW Basic Set
3m protect cover IP44 36W 440lm/m 60 LEDs/m RGBW+ 60VA
3m protect cover IP44 36W 440lm/m 60 LEDs/m RGBW+ 60VA

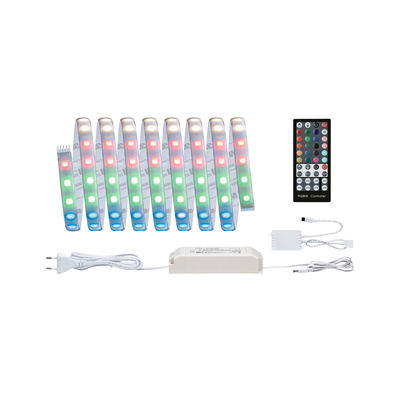

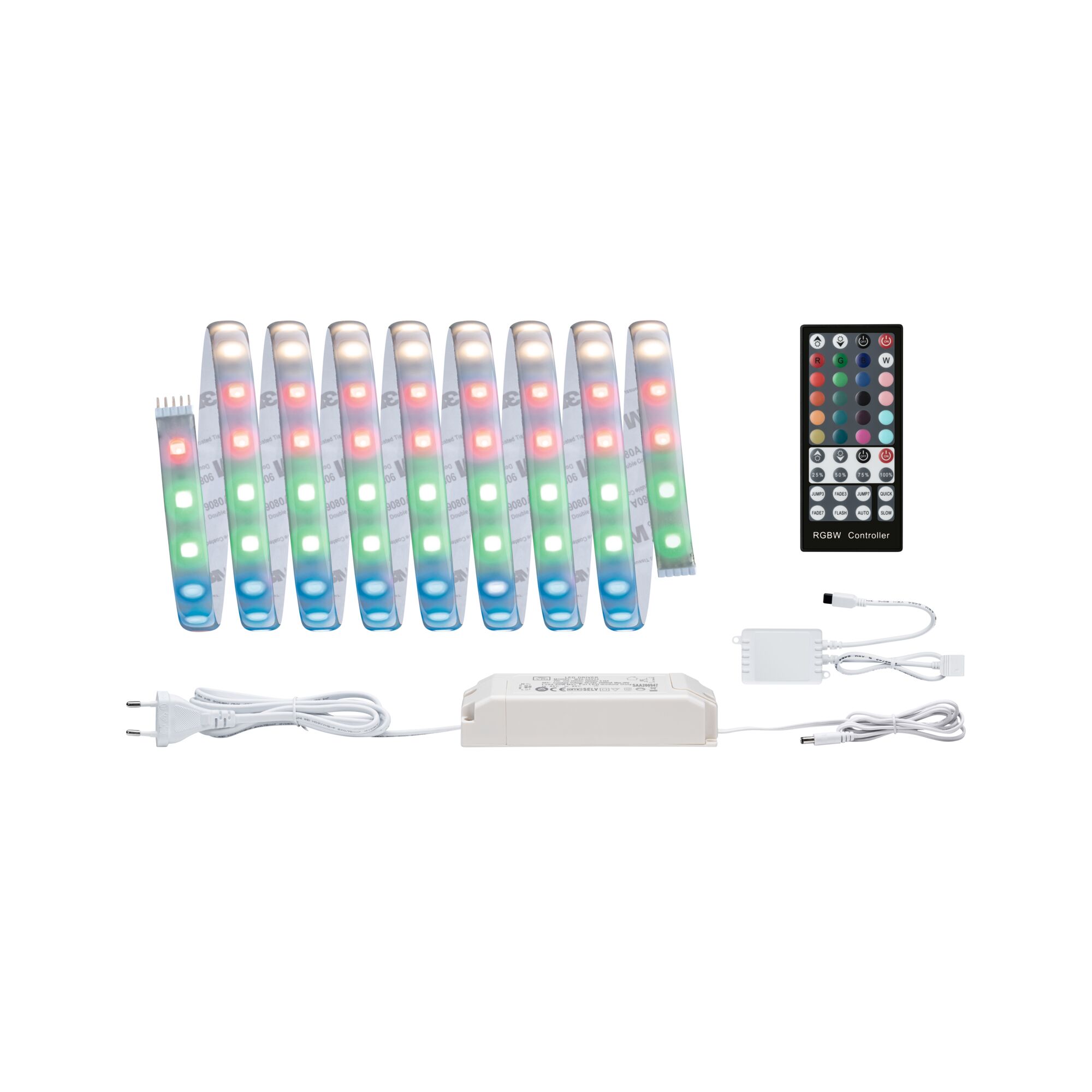

- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
MaxLED 500 LED Strip RGBW Basic Set 3m protect cover IP44 36W 440lm/m 60 LEDs/m RGBW+ 60VA
MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Thanks to the atmospheric colour change function they create an individual living ambience – where anything is possible, ranging from uni-coloured continuous lighting to multi-coloured light effects. A diode in white (W) additionally provides for a warm white light. As a result there is no need to mix white shade from the red, green and blue (RGB) colours. In addition to the strip, the basic set contains a suitable ballast and a control unit with remote control. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces

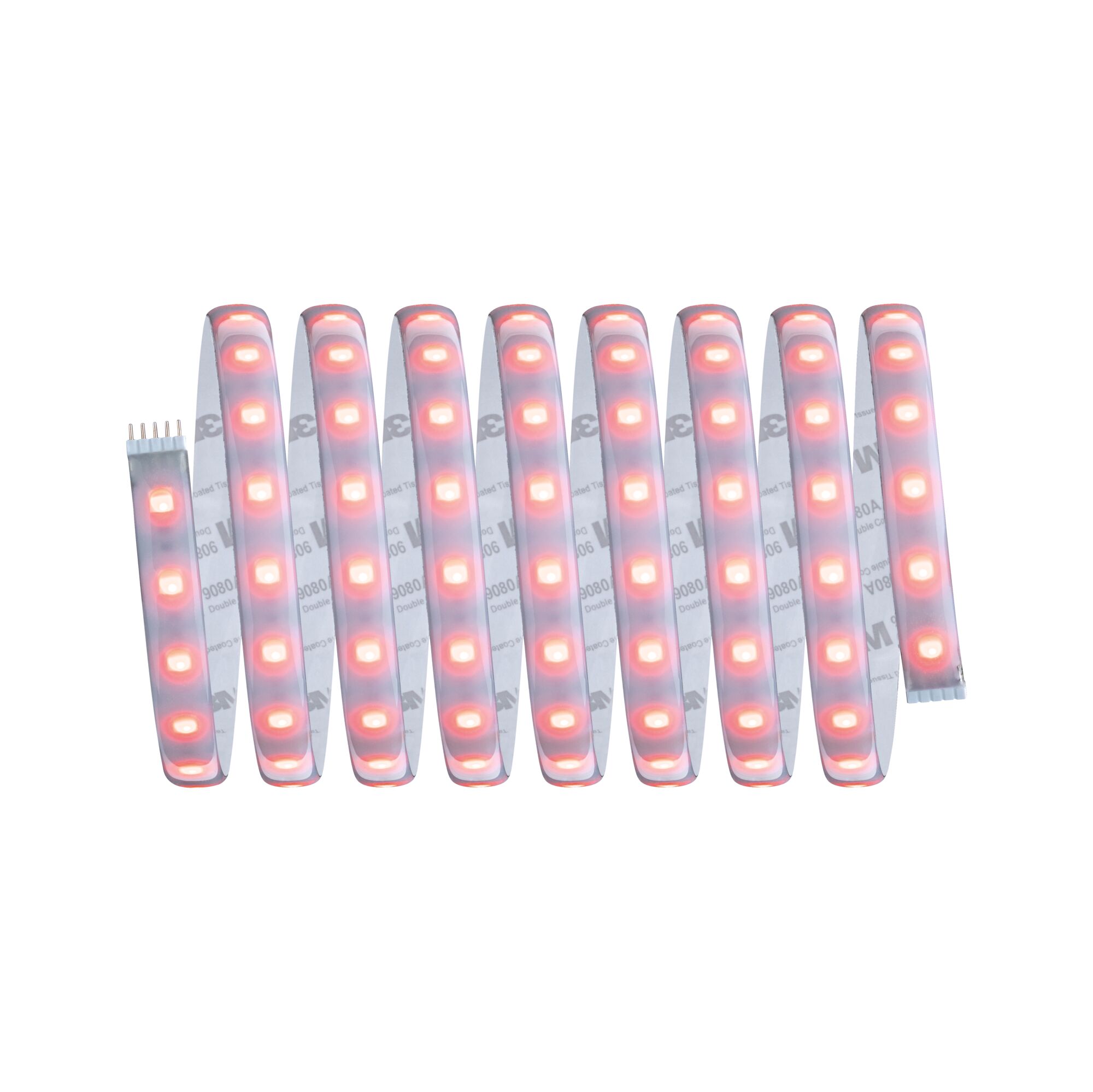

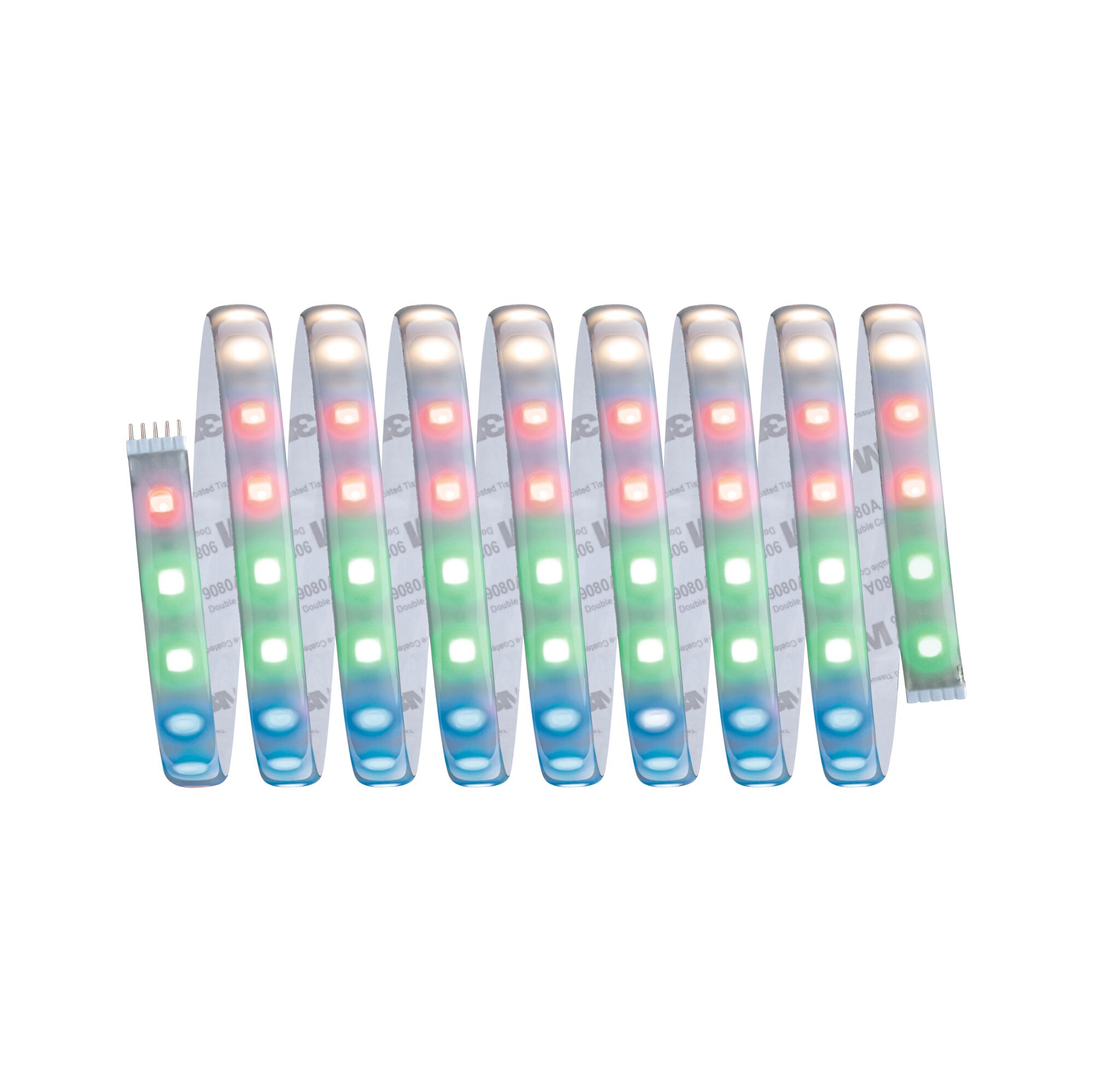

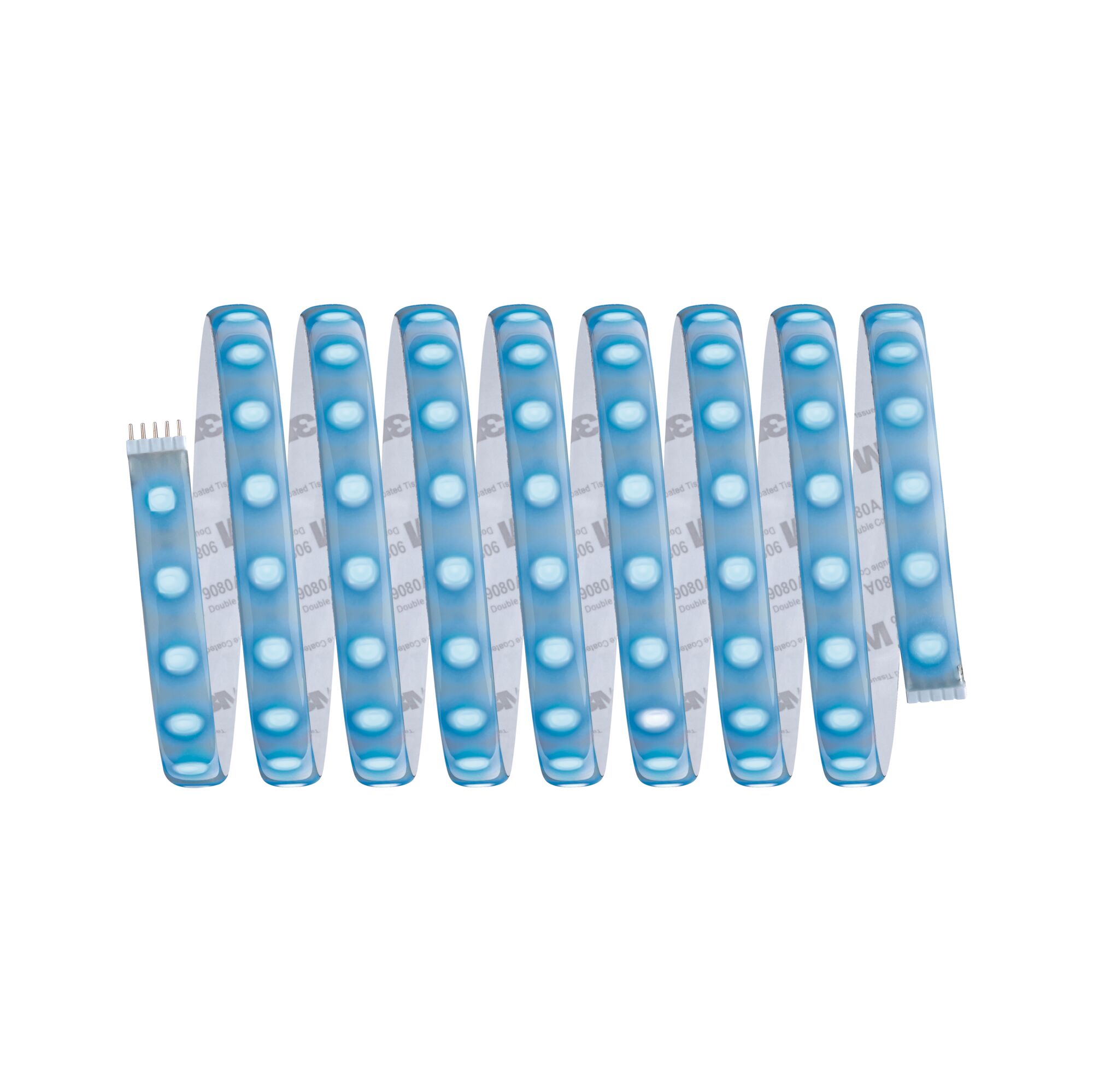

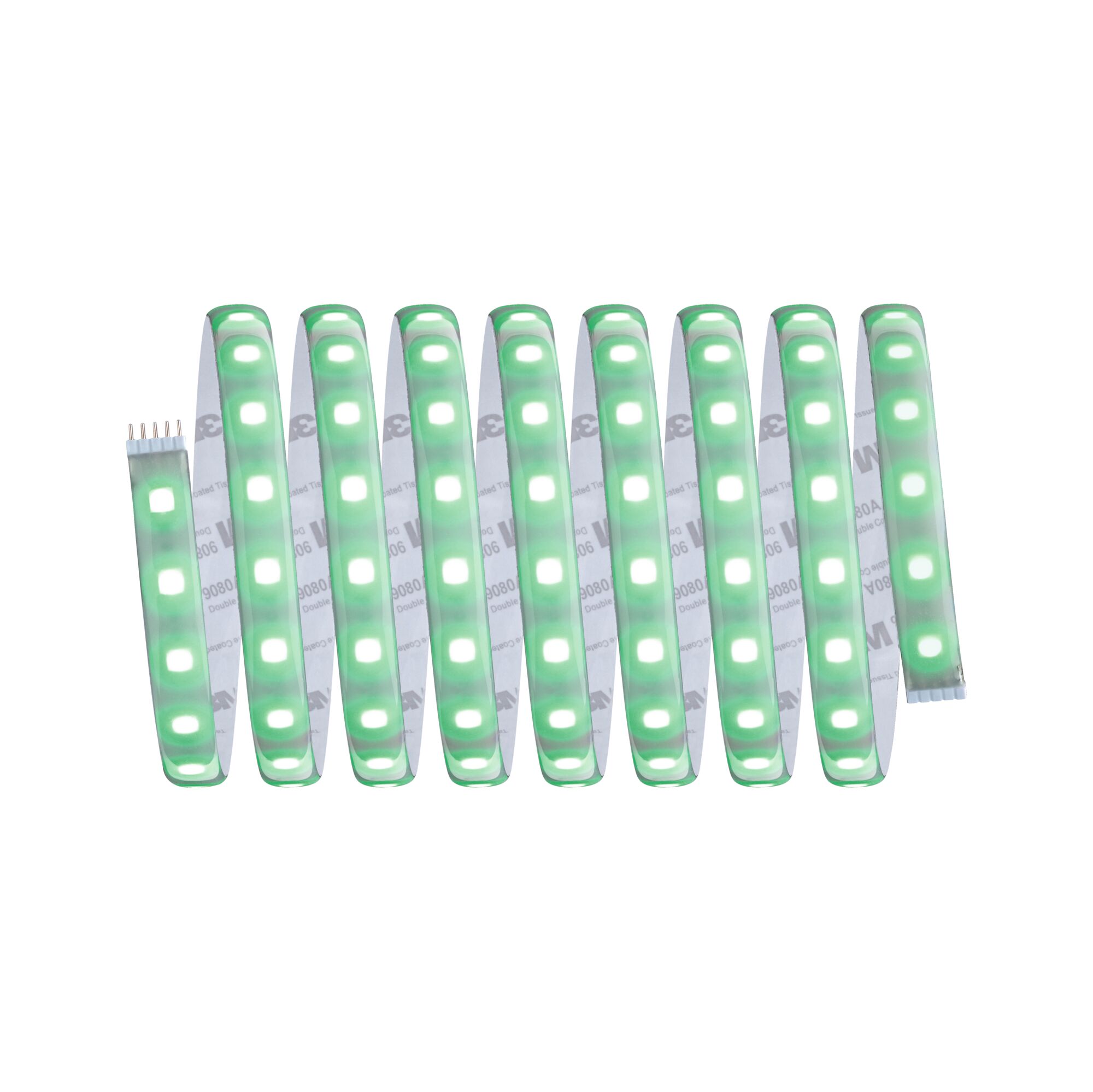

- RGB colour change

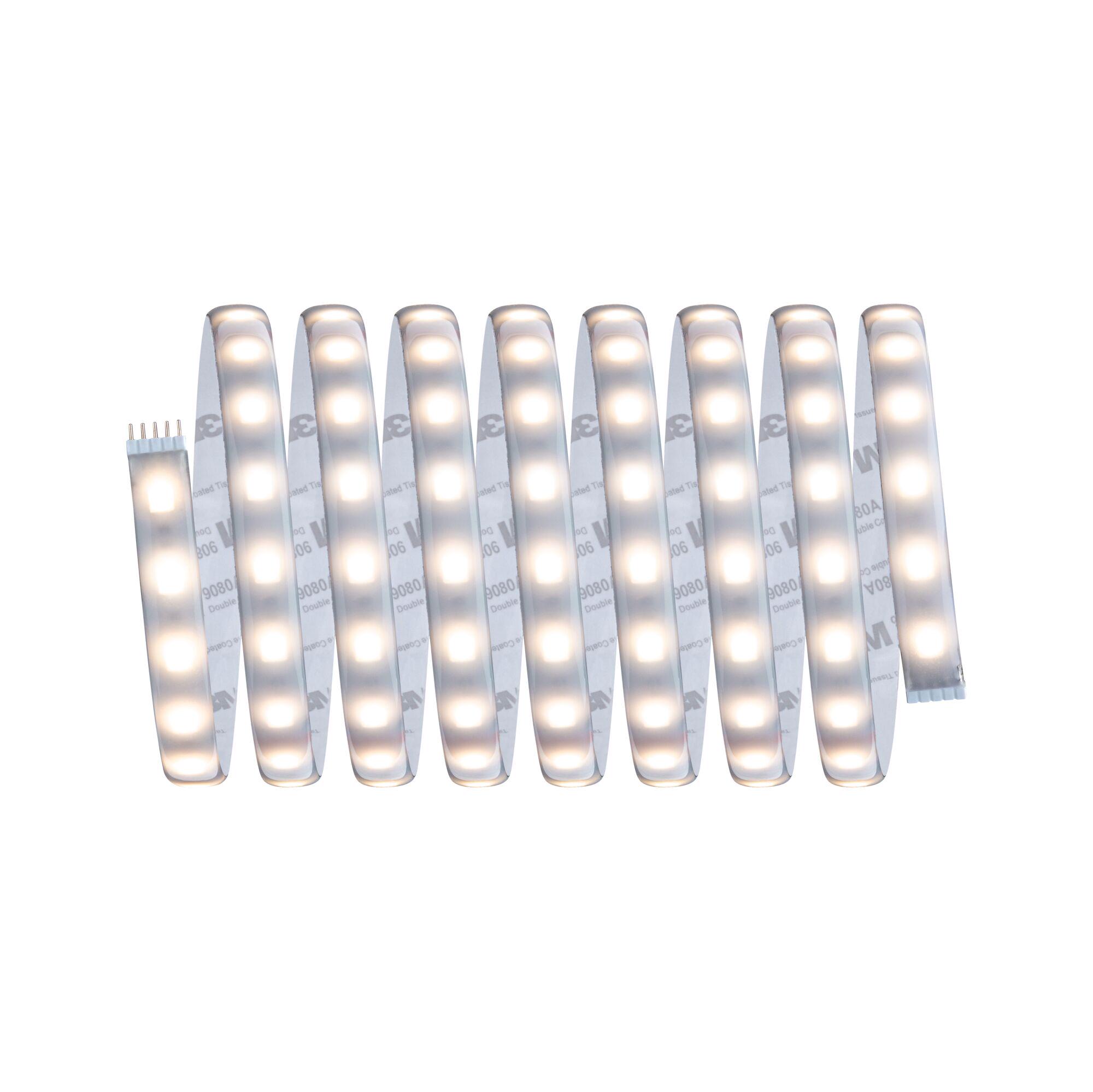

- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 T: 12,5 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 6 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Features | |
|---|---|
| Blinking | Blinking |
| Flashlight function | Flashlight function |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 120 ° |
| Usable luminous flux | 1320 lm |
| Luminous flux LED module | 1500 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| adjustable colors | adjustable colors |
| Rated luminous flux (Lumen) | 1160+1260 lm |
| Lamp Features | |
|---|---|
| Component parts | 36 W |
| Technique | LED |
| IP protection | IP44 |
| Dim | with remote control |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 99 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 38 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Accessories | |
|---|---|

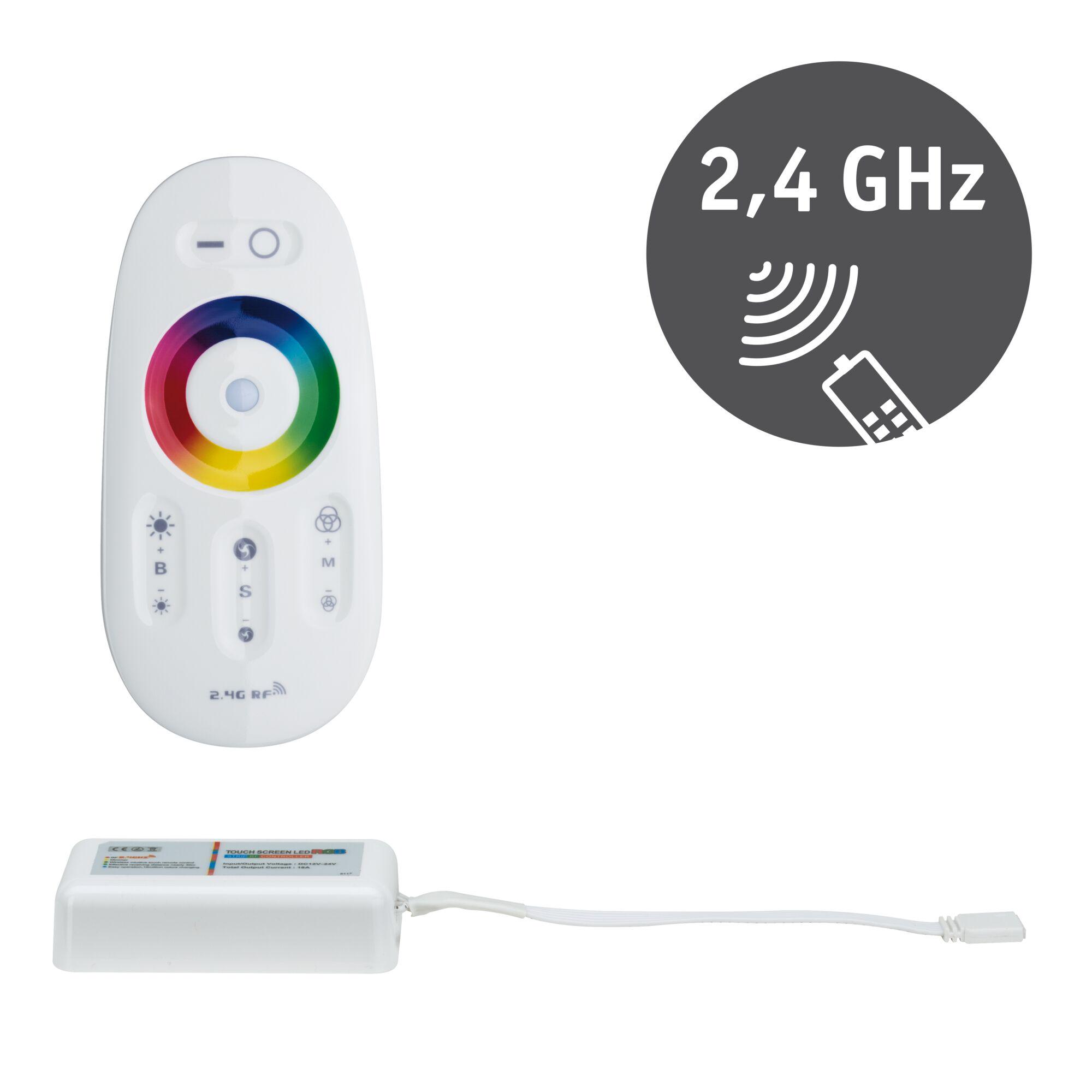

| Radio control included | Radio control |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
