Article-No.:
70200
YourLED
Power Supply
Power Supply
230/12V 48VA Grey/Black
230/12V 48VA Grey/Black
- Easy plug-in system for hassle-free assembly
- Convenient operation in combination with IR proximity switch 700.92 (not included)
- Energy-efficient electronic ballast with long lifetime

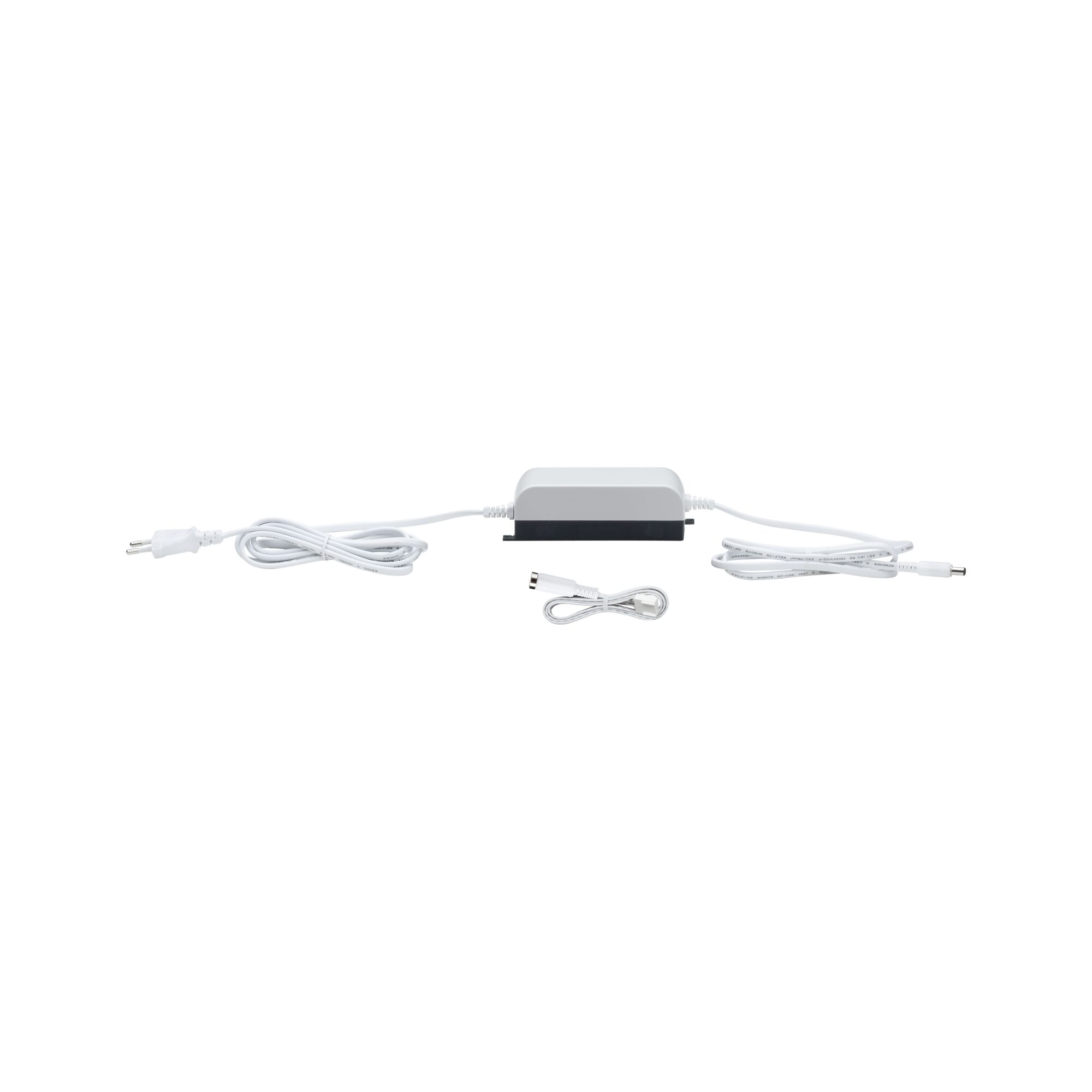

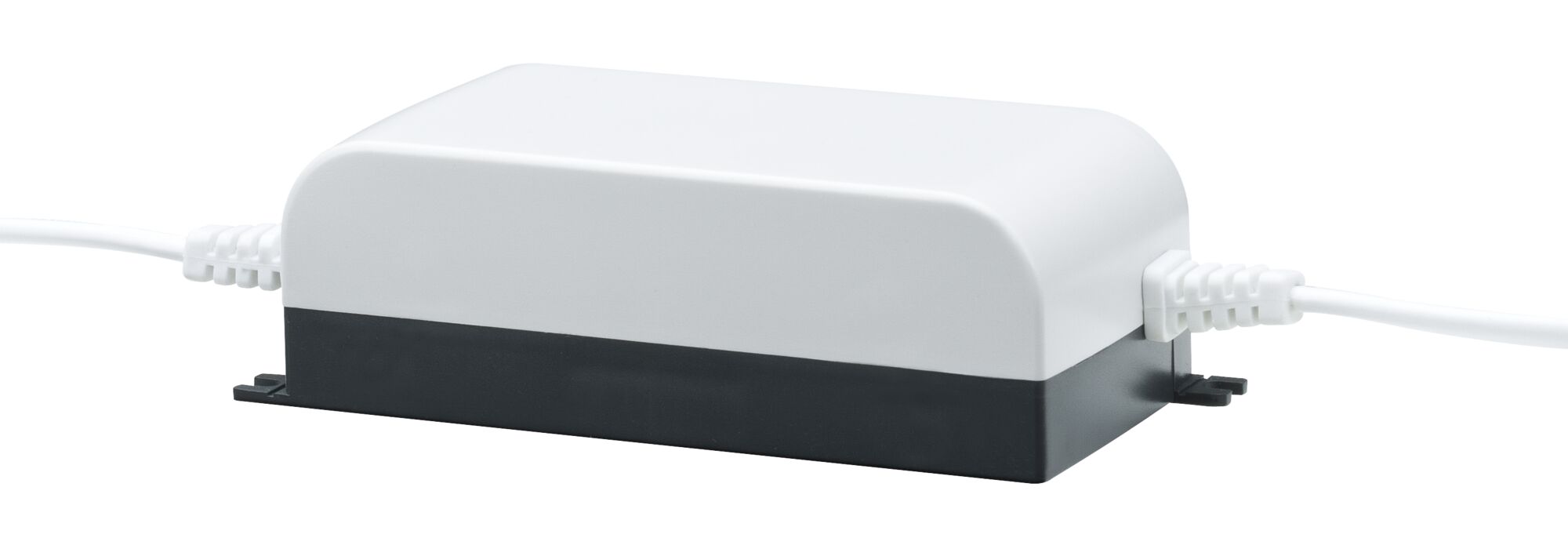

YourLED Power Supply 230/12V 48VA Grey/Black
Pluggable YourLED power supply in compact design for mid-sized systems up to 48 W. Plug-in connections are prepared for direct connection of YourLED LED strips or a wide range of accessories. To use device output to the full it is recommended to use a junction box item no. 70203.
- Easy plug-in system for hassle-free assembly
- Convenient operation in combination with IR proximity switch 700.92 (not included)
- Energy-efficient electronic ballast with long lifetime
- Including power cable with plug
- Incl. 4-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x B: 55 x T: 135 mm |
| Design and Material | |
|---|---|
| Colour | Black, Grey |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Lamp Features | |
|---|---|
| Technique | LED |
| Inclusive lamp | no |
| Total Width | 55 mm |
| Maximum wattage range | max. 48 W |
| protection class | protection class II |
| Replacable | 4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Transformer | |
|---|---|
| Transformer power | 48 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| power supply efficiency factor | 0,85 |
| Transformer height | 40 mm |
| Transformer width | 55 mm |
| Transformer depth | 135 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
