Article-No.:
70199
YourLED
Power Supply

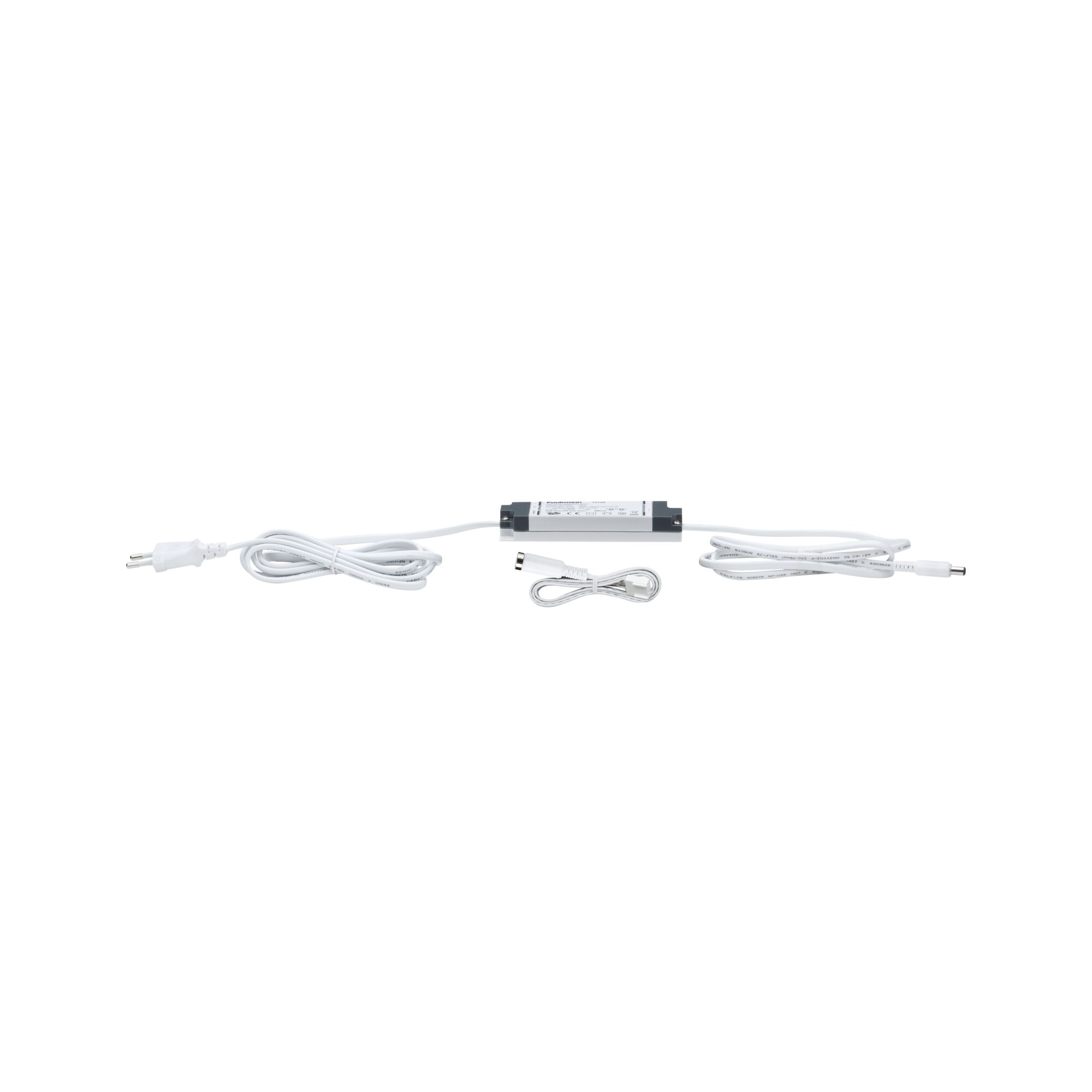

YourLED Power Supply 230/12V 15VA Grey/Black
230/12V 15VA Grey/Black
230/12V 15VA Grey/Black
- Convenient operation in combination with IR proximity switch 700.92 (not included)
- Energy-efficient electronic ballast with long lifetime
- Including power cable with plug
YourLED Power Supply 230/12V 15VA Grey/Black
Pluggable YourLED power supply in compact design for small systems or system add-ons up to 15 W. Plug-in connections are prepared for direct connection of YourLED LED strips or a wide range of accessories.
- Convenient operation in combination with IR proximity switch 700.92 (not included)
- Energy-efficient electronic ballast with long lifetime
- Including power cable with plug
- Incl. 4-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 40 x T: 125 mm |
| net weight | 209 g |
| Design and Material | |
|---|---|
| Colour | Black, Grey |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Technique | LED |
| Adjustability | fixed |
| Maximum wattage range | max. 15 W |
| Protection class | Protection class II |
| Replacable | 4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 15 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
