- Rear self-adhesive for simple installation
- Easy plug-in system for hassle-free assembly
- Can be shortened as needed (at marked points)

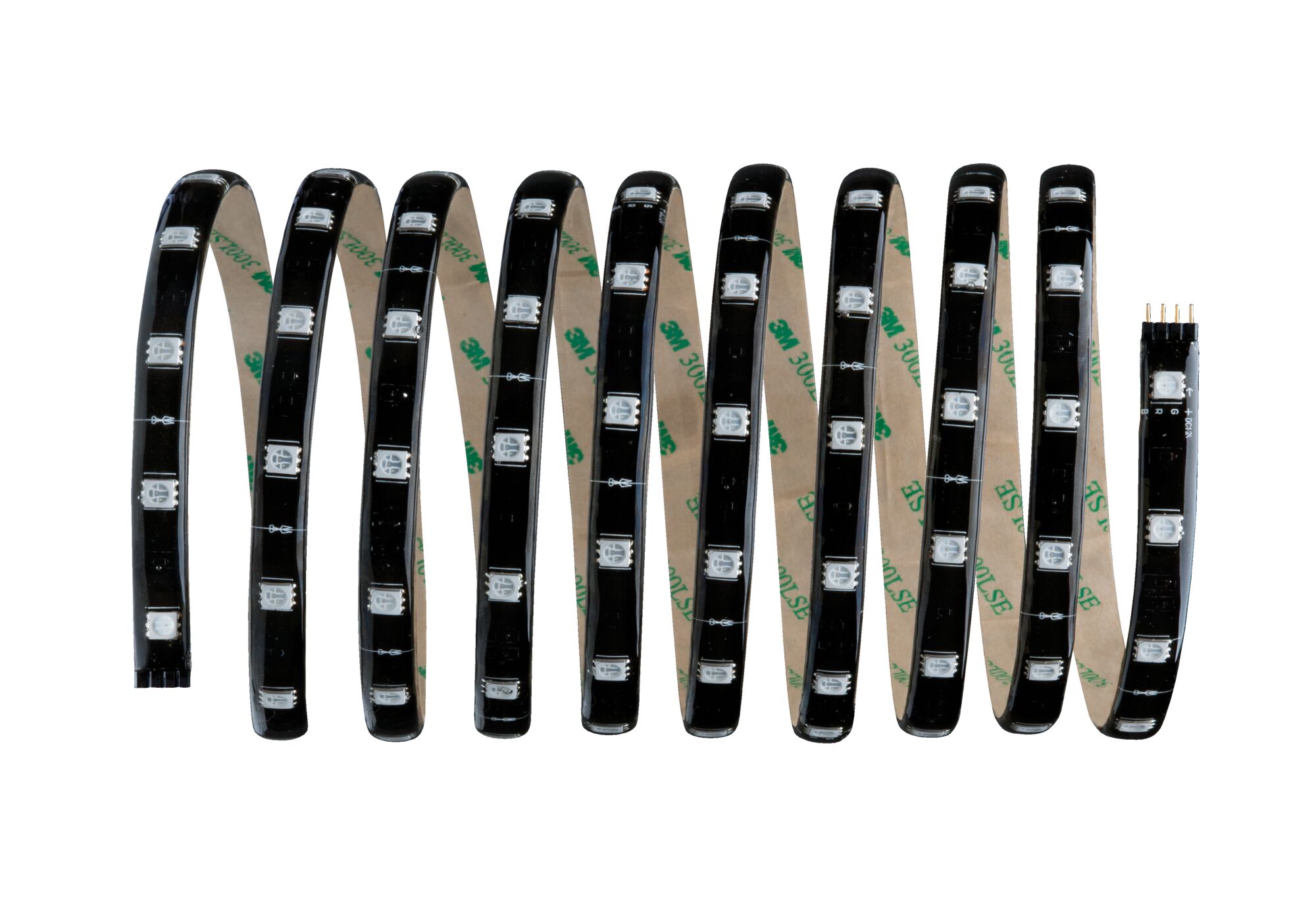

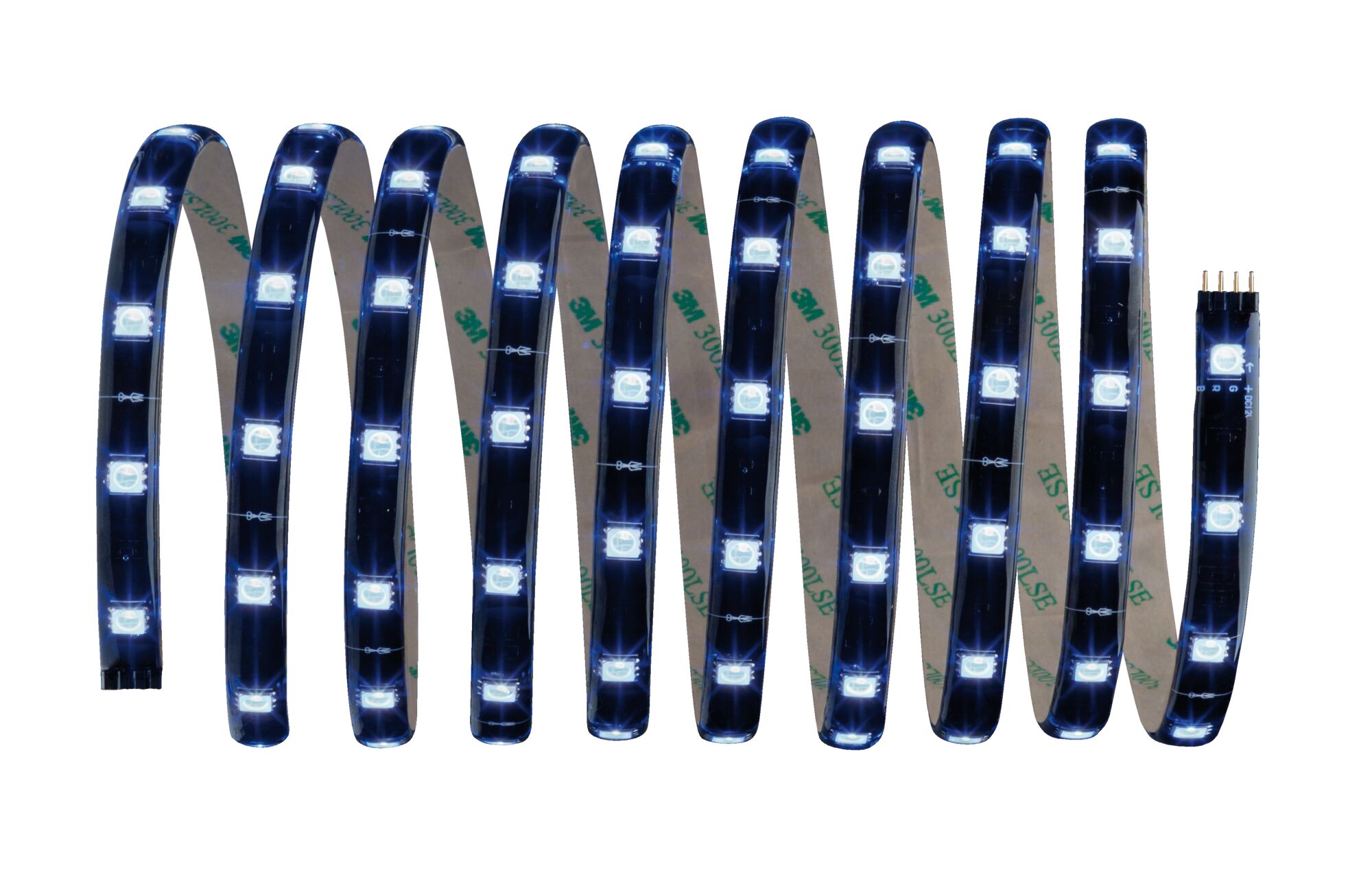

YourLED LED Strip RGB 3m coated 17,8W 183lm/m 39 LEDs/m RGB 24VA

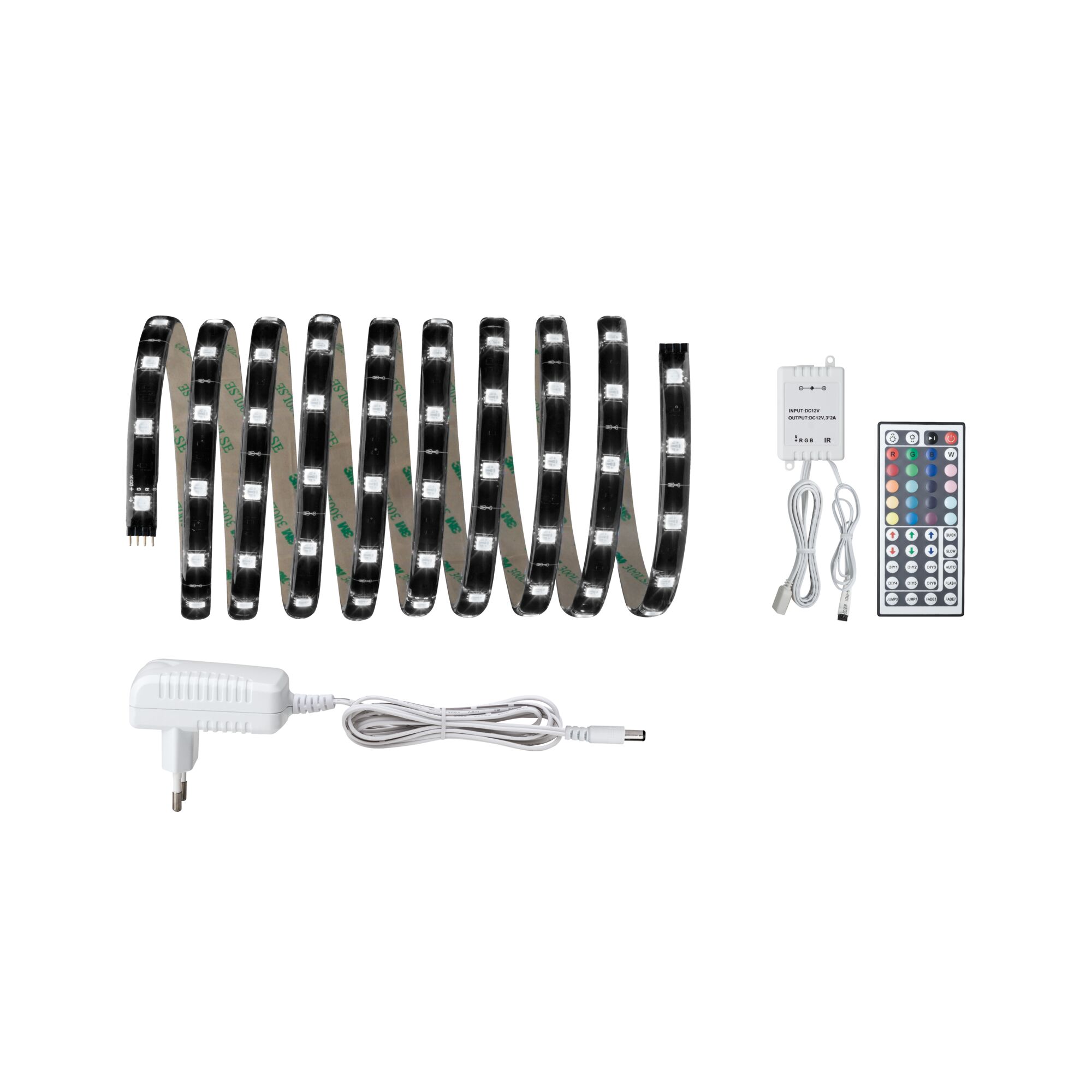

Plug-ready YourLED set with coated LED Strip, power supply and remote control for RGB colour change system for mood creating effects. Easy to mount with adhesive backing and plug-in system. Strip can be shortened. Can be extended with YourLED Strips by up to 5m. Accessories available for various mounting needs and splash protection.
- Rear self-adhesive for simple installation
- Easy plug-in system for hassle-free assembly
- Can be shortened as needed (at marked points)

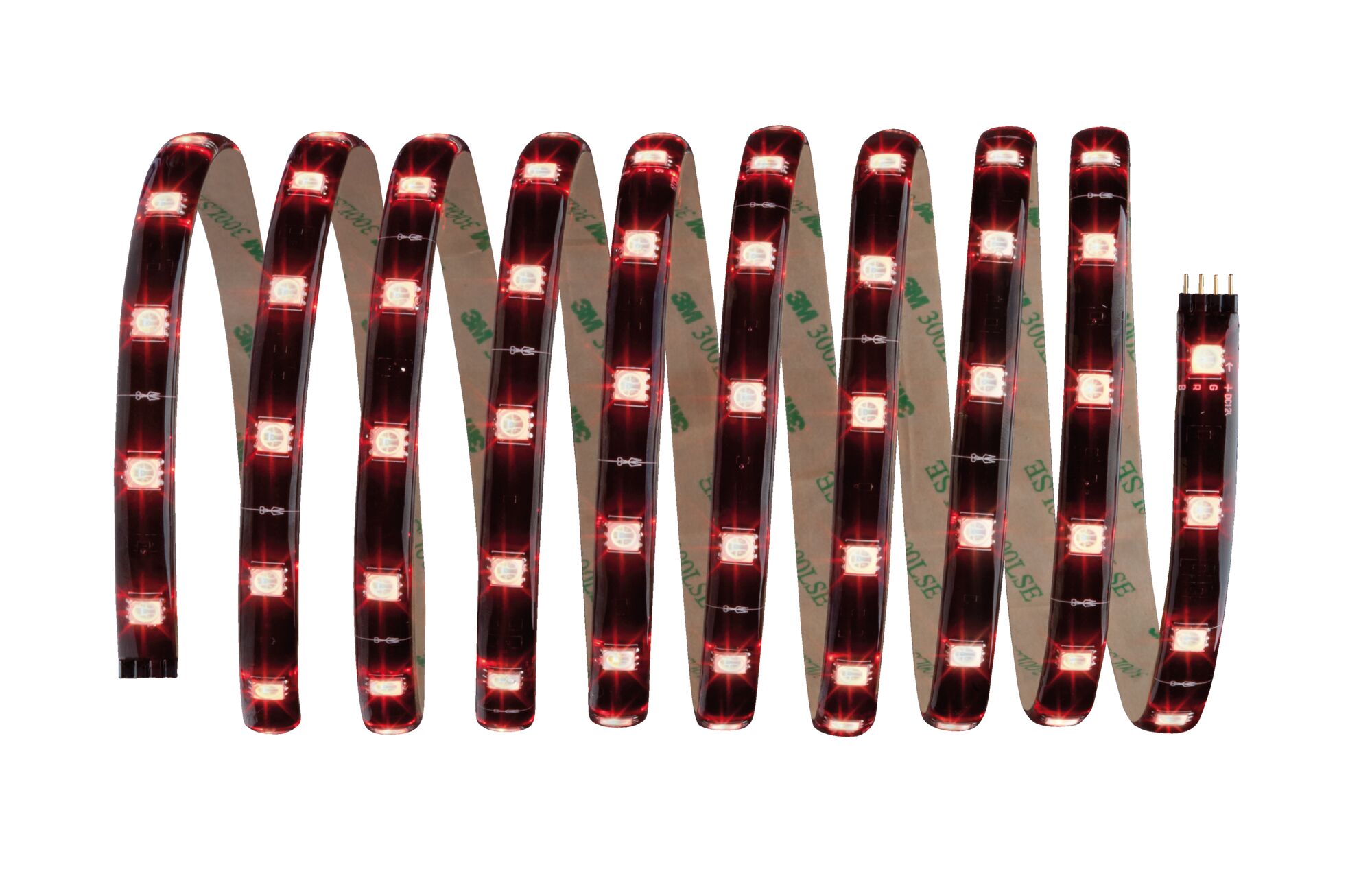

- Equipped with RGB LED bulbs for colour changes and effect lighting
- Incl. remote control for switching, dimming, controlling and programming
- Transparent coating for protecting the LED against touching or moisture
- Flexible material for mounting on flat or curved surfaces
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Optional splash protection by using item 70247
- Ready-to-use set including 230/12V power supply with power cable and plug
- Incl. 4-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 10,5 mm |
| Length | 3 m |
| Plug depth | 38 mm |
| Shortenability Strips | 75 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Features | |
|---|---|
| Blinking | Blinking |
| Flashlight function | Flashlight function |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 550 lm |
| Beam angle | 120 ° |
| Colour change | coloured light (RGB) |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 17,8 W |
| Number of component parts | 1x |
| Number of LED's per meter | 39 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 20,5 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 24 VA |
| Transformer height | 35 mm |
| Transformer width | 50 mm |
| Transformer depth | 81 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
