Article-No.:
70954
YourLED ECO
LED Strip
Warm white Comfort Set Touch Sensor
1m 2,4W 170lm/m 30 LEDs/m 3000K 6VA
1m 2,4W 170lm/m 30 LEDs/m 3000K 6VA
- Rear self-adhesive for simple installation
- Can be shortened as needed (at marked points)

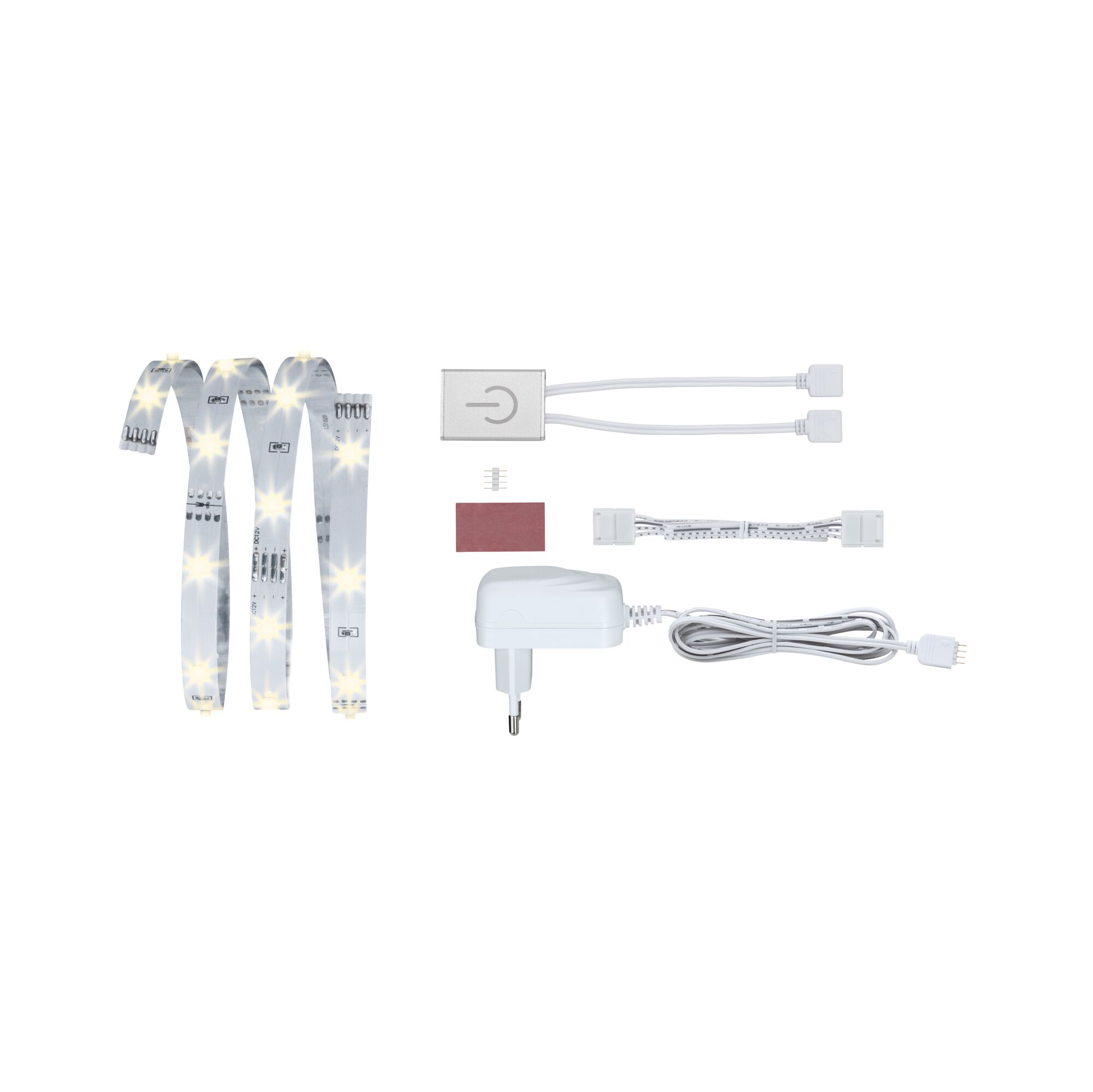

- Ready-to-use set including 230/12V power supply with power cable and plug
YourLED ECO LED Strip Warm white Comfort Set Touch Sensor 1m 2,4W 170lm/m 30 LEDs/m 3000K 6VA

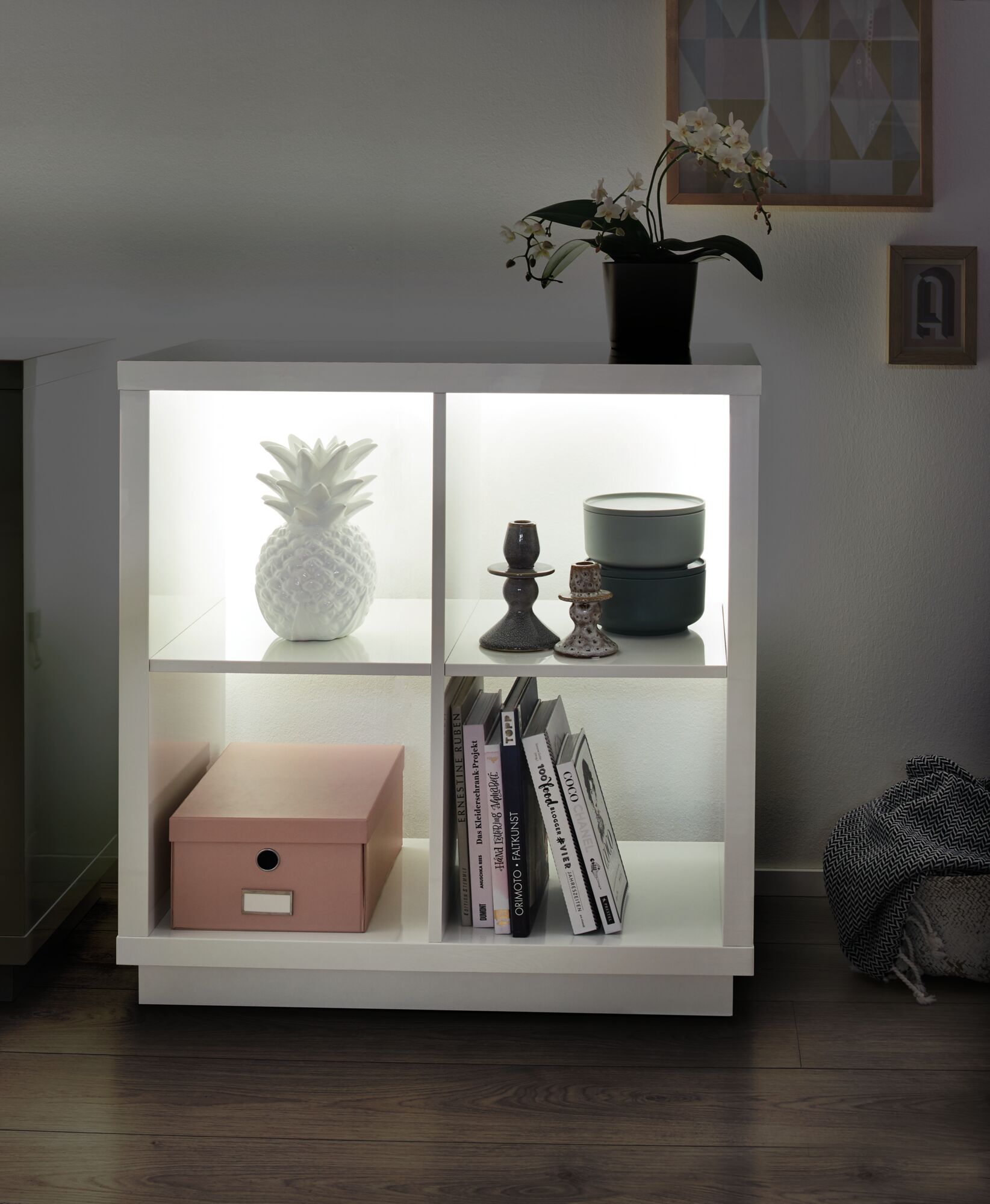

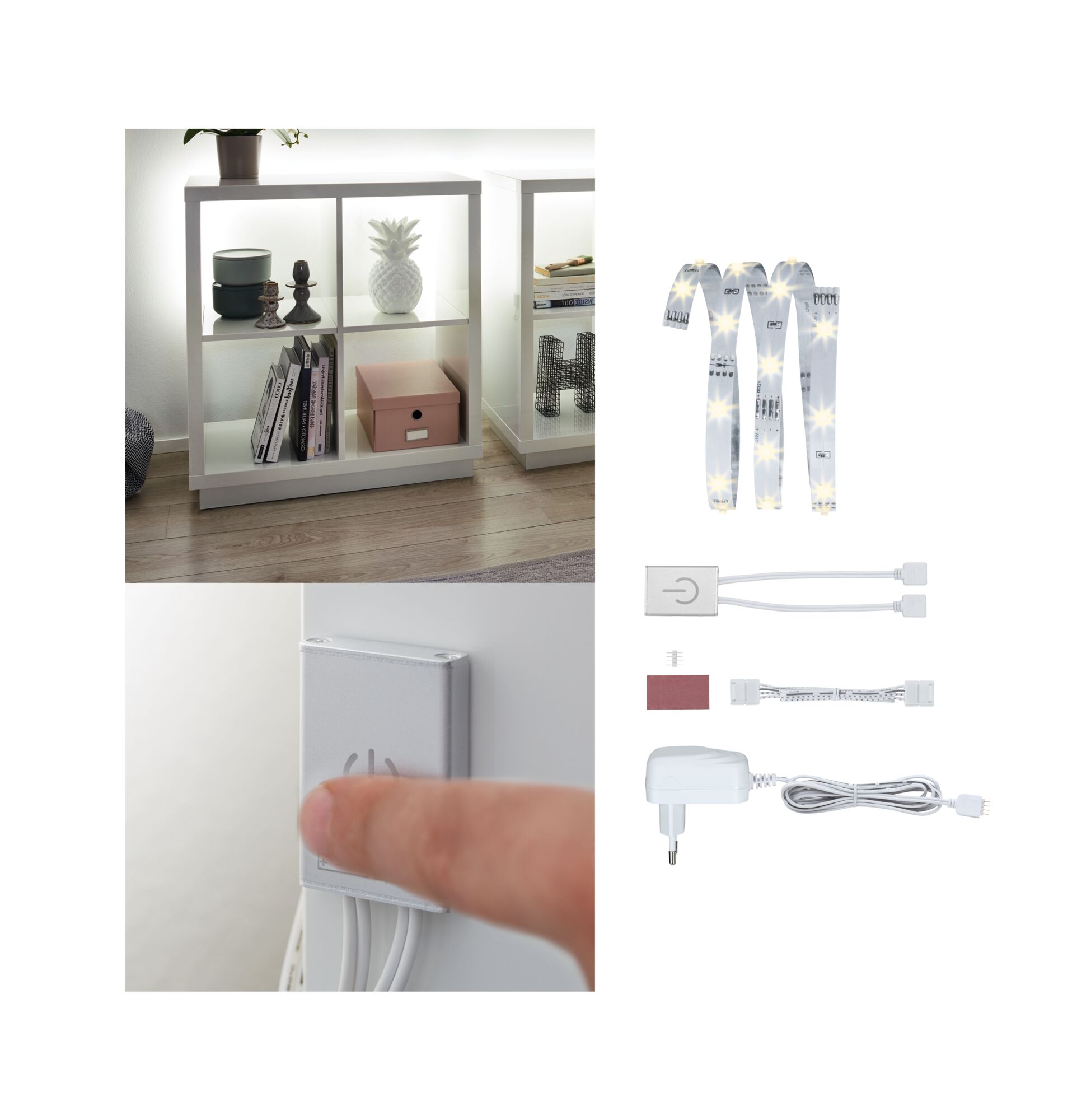

Plug-ready YourLED ECO set with power supply and uncoated LED strip in warm white light colour for attractive ambient and work lighting. You can switch your LED strips on and off with a light tap of the YourLED touch switch. The switch is suitable for use with permanent lighting solutions for furniture (sideboards or showcases). Installation is simple due to the adhesive backing and plug-in system.
- Rear self-adhesive for simple installation
- Can be shortened as needed (at marked points)
- Ready-to-use set including 230/12V power supply with power cable and plug
- Flexible material for mounting on flat or curved surfaces
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 10,5 mm |
| Length | 1 m |
| Plug depth | 38 mm |
| Shortenability Strips | 100 mm |
| net weight | 116 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 2 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 160 lm |
| Beam angle | 120 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 170 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with touch dimmer |
| Inclusive lamp | yes |
| Component parts | 2,4 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 6 VA |
| Transformer height | 53 mm |
| Transformer width | 37 mm |
| Transformer depth | 26 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
