Article-No.:
70954
YourLED ECO
LED Strip
Warm white
1m 2,4W 160lm/m 3000K 6VA
1m 2,4W 160lm/m 3000K 6VA
- Rear self-adhesive for simple installation
- Simple plug-in system for easy installation
- Can be shortened as needed (at marked points)
YourLED ECO LED Strip Warm white Comfort Set Touch Sensor 1m 2,4W 160lm/m 3000K 6VA

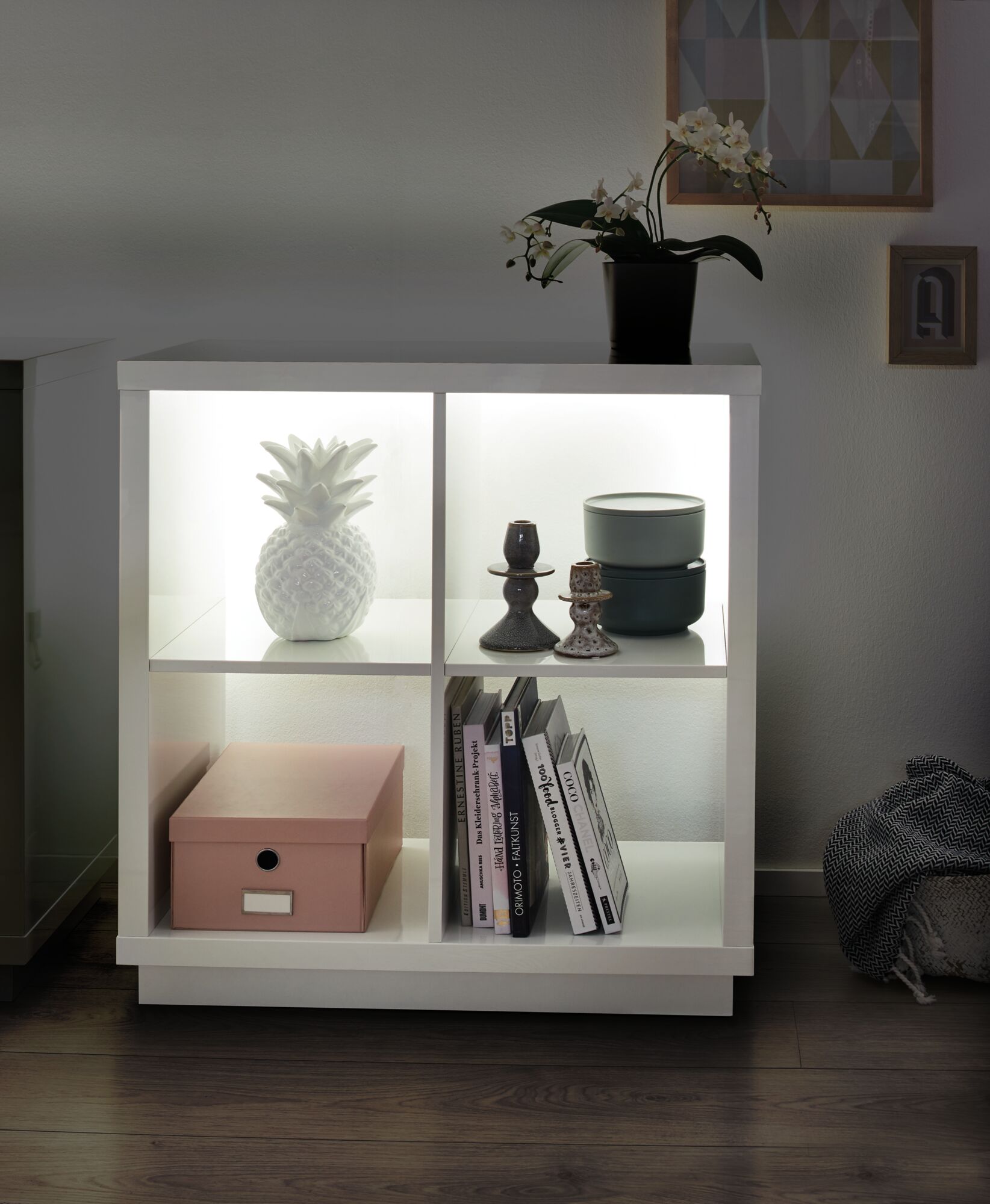

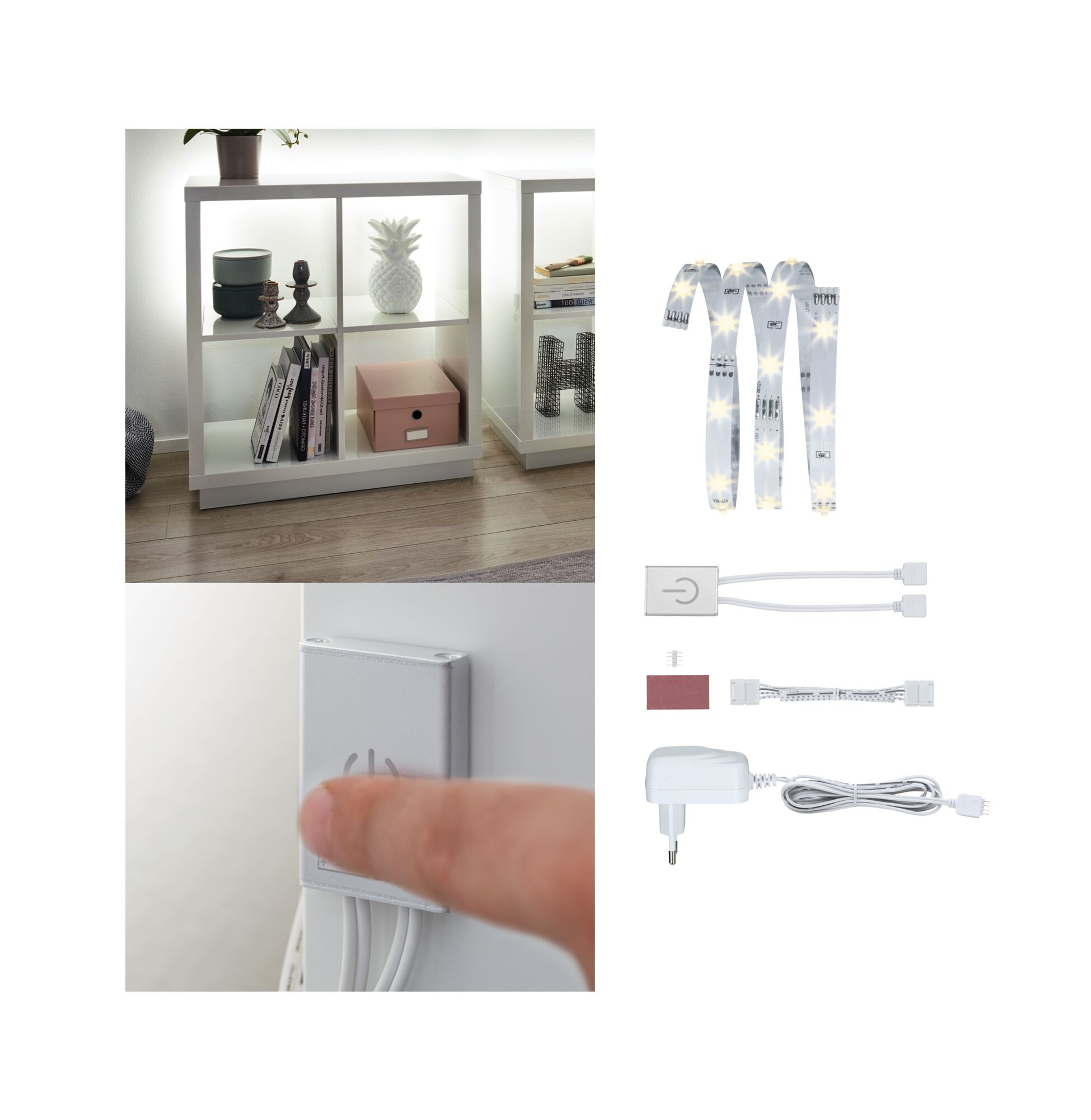

Plug-ready YourLED ECO set with power supply and uncoated LED strip in warm white light colour for attractive ambient and work lighting. You can switch your LED strips on and off with a light tap of the YourLED touch switch. The switch is suitable for use with permanent lighting solutions for furniture (sideboards or showcases). Installation is simple due to the adhesive backing and plug-in system.
- Rear self-adhesive for simple installation
- Simple plug-in system for easy installation
- Can be shortened as needed (at marked points)

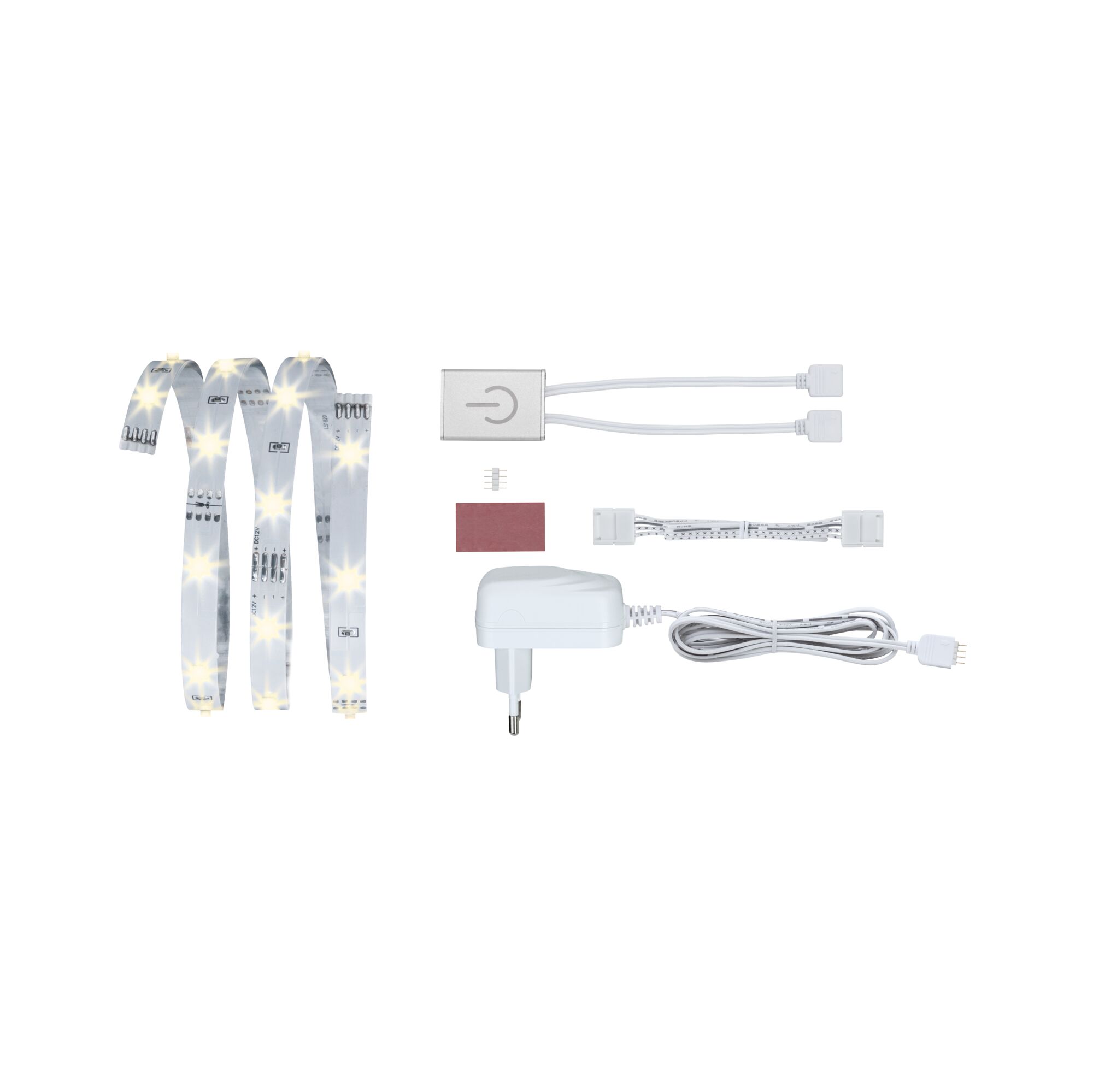

- Ready-to-use set including 230/12V power supply with power cable and plug
- Flexible material for mounting on flat or curved surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 T: 10,5 mm |
| Plug depth | 38 mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 2 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Features | |
|---|---|
| Sensors | Touch switch |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 120 ° |
| Usable luminous flux | 160 lm |
| Luminous flux LED module | 170 lm |
| color temp | 3.000 K |
| Lamp Features | |
|---|---|
| Component parts | 2,4 W |
| Technique | LED |
| Dim | with touchdimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 30 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Transformer | |
|---|---|
| Transformer power | 6 VA |
| Transformer height | 53 mm |
| Transformer width | 37 mm |
| Transformer depth | 26 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
