Article-No.:
50049
YourLED
Controller
Smart Home Zigbee 3.0
RGB
12V max. 60W White/Grey
12V max. 60W White/Grey
- Usable with smart home gateways that have a Zigbee interface

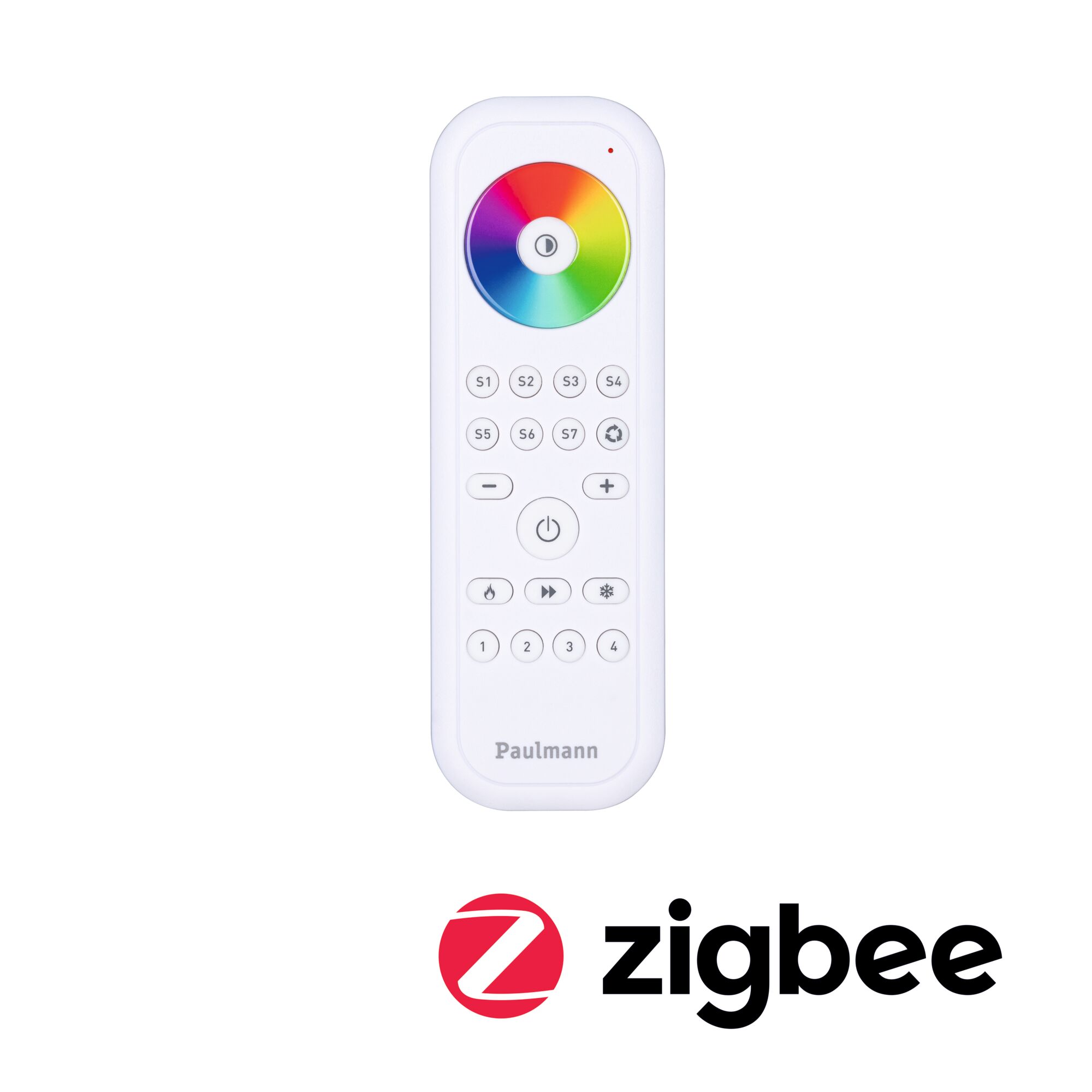

- Can be controlled with the Smart Home Zigbee remote control
- Bidirectional data transfer

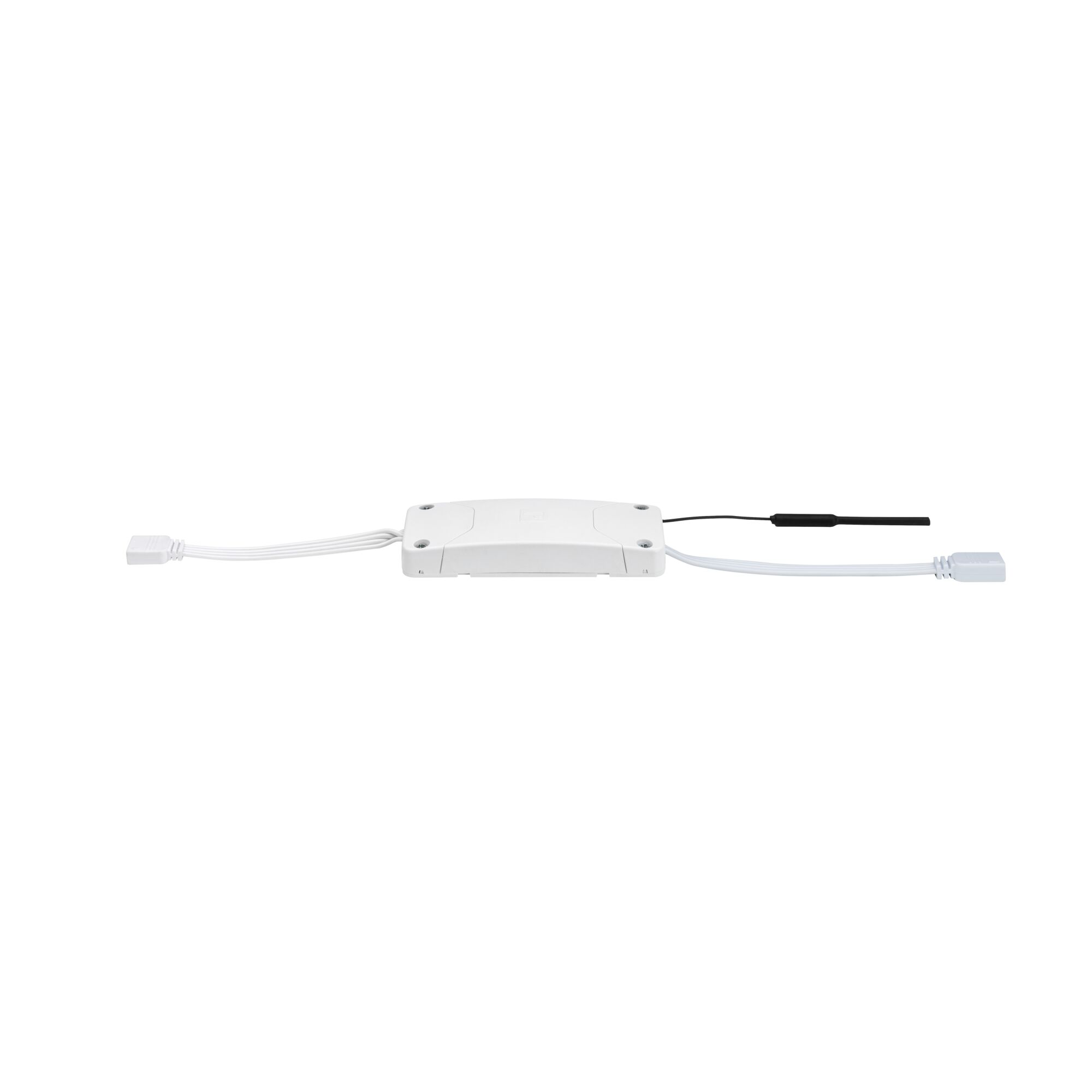

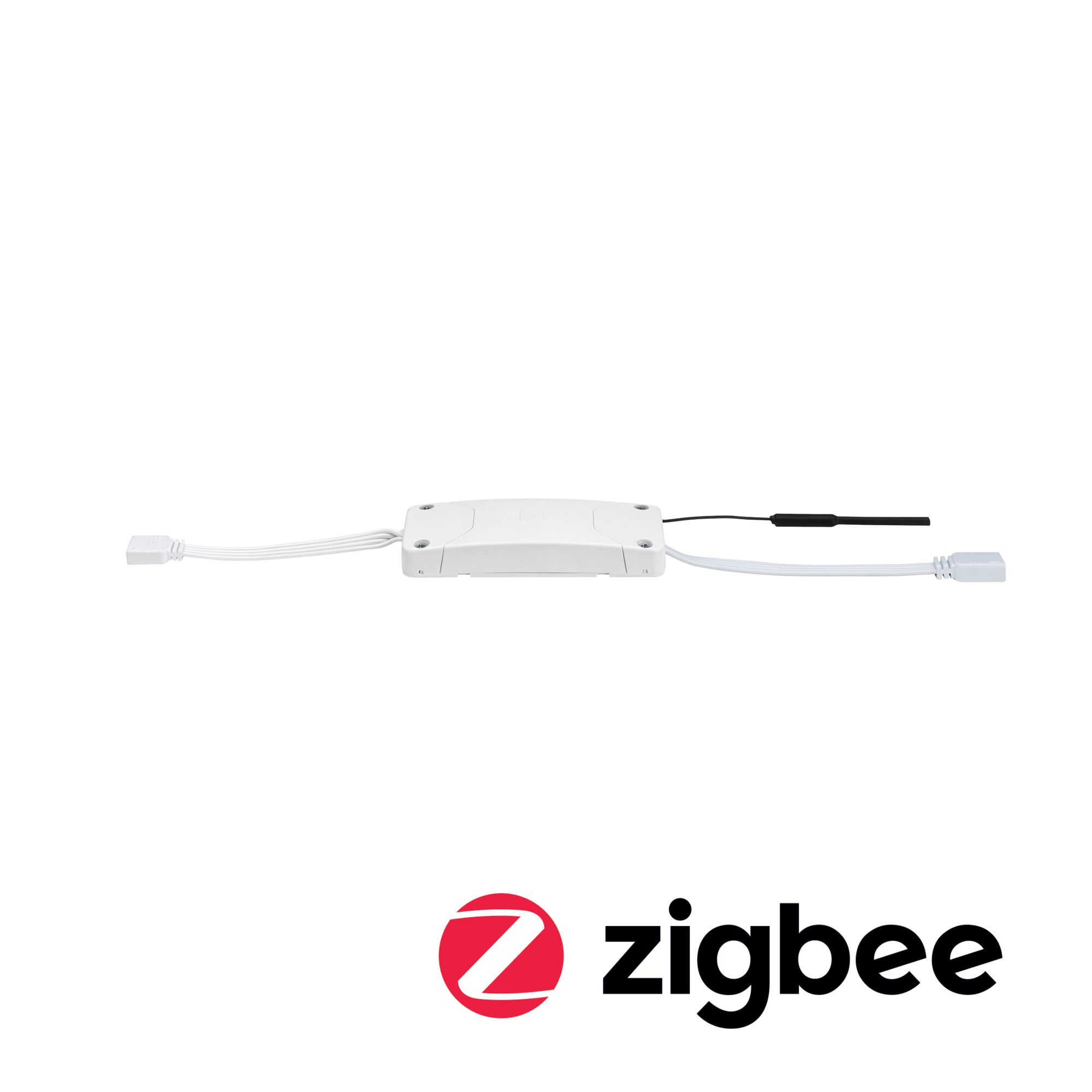

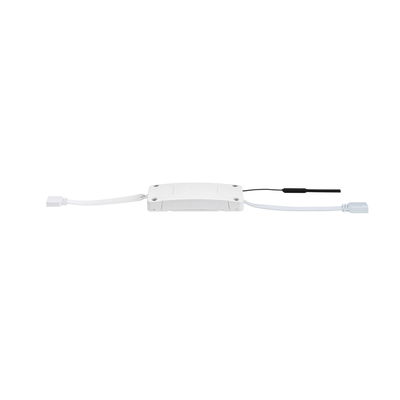

YourLED Controller Smart Home Zigbee 3.0 RGB 12V max. 60W White/Grey
With the YourLED RGB controller from the Smart Home Zigbee 3.0 series, YourLED strips with an RGB colour-change function can be switched and dimmed. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Controls YourLED strips with RGB colour change
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 38 x T: 95 mm |
| net weight | 65 g |
| Design and Material | |
|---|---|
| Colour | White, Grey |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour change | coloured light (RGB) |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| Dimmable | Yes |
| Maximum wattage range | max. 60 W |
| Protection class | Protection class III |
| Replacable | 7 not concerned. |
| Voltage | 12 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
