Article-No.:
97715
VDE
Electronic transformer
Profi
max. 50-150W 230/12V 150VA Grey/Black
max. 50-150W 230/12V 150VA Grey/Black
- VDE certificated
- protection class II
- Dimmable with universal dimmer for all transformers (R,L,C)

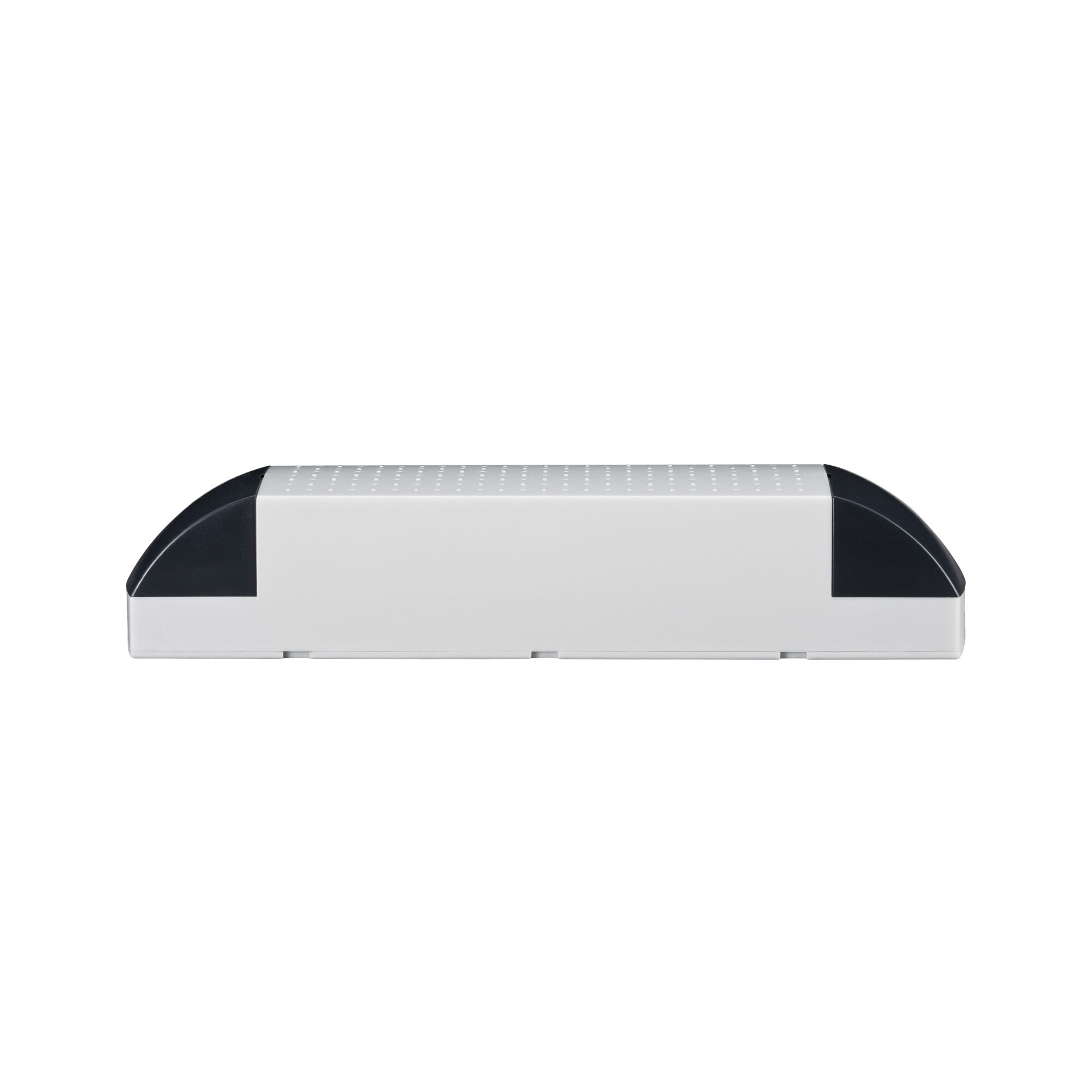

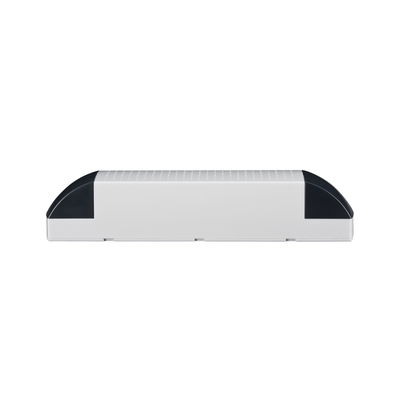

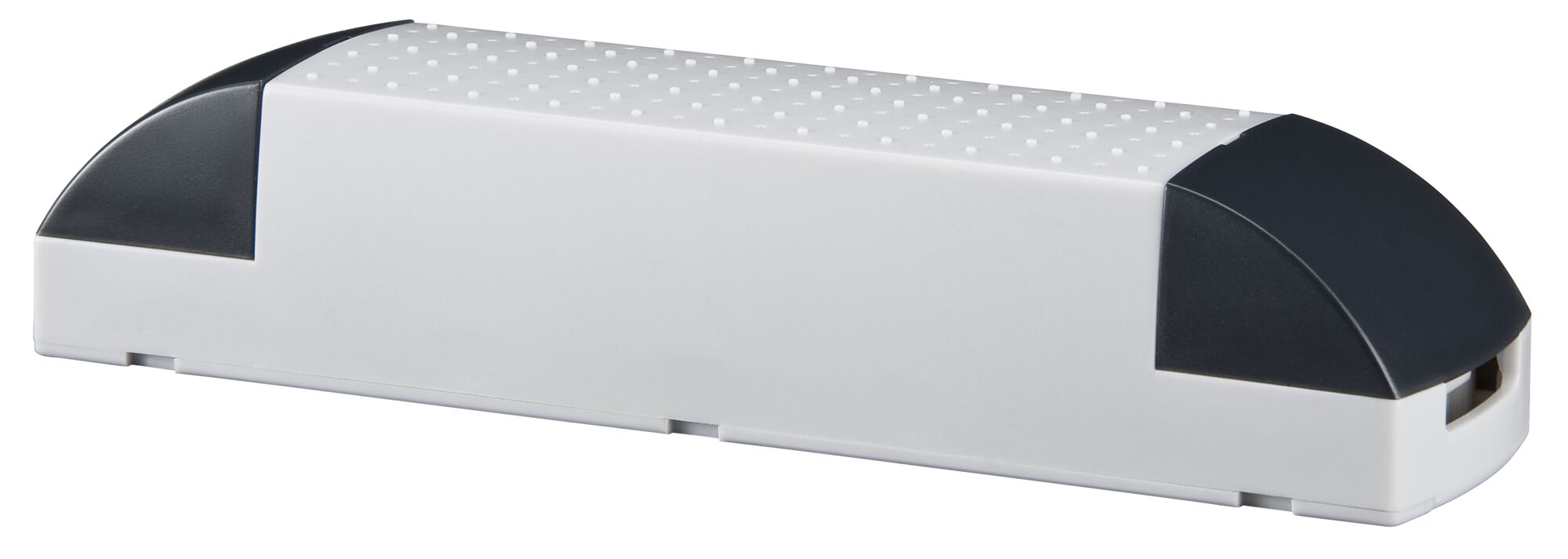

VDE Electronic transformer Profi max. 50-150W 230/12V 150VA Grey/Black
This high-quality product lives up to its name. The transformer for the most sophisticated needs. The practical accessories by Paulmann allow you to shape your lighting system to suit your individual preferences even more closely.
- VDE certificated
- protection class II
- Dimmable with universal dimmer for all transformers (R,L,C)
- Integrated fire protection
- Temperature monitor and electronic fuse
- Doubled primary connection for several transformers in a single switch
- Several secondary terminal pairs
- Max. 50° ambient temperature
- Middle outlet
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x B: 48 x T: 190 mm |
| Mounting hole | 54 mm |
| Design and Material | |
|---|---|
| Colour | Black, Grey |
| Material | Plastic |
| Features | |
|---|---|
| Softstart | Softstart |
| Integrated thermal protection | integrated thermal protection |
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Service life, electronic ballast | 50000 h |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | no |
| Total Width | 48 mm |
| Maximum wattage range | max. 50-150 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 150 VA |
| Integrated fire protection | Integrated fire protection |
| elevated spike protection | elevated spike protection |
| Integrated spark protection | Integrated spark protection |
| integrated overload protection | integrated overload protection |
| Labelling | |
|---|---|
| VDE | VDE certificated |
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
