Article-No.:
92389
VariFit
LED Recessed panel
Veluna
IP44 round 185mm 17W 1400lm 3000K Satin
IP44 round 185mm 17W 1400lm 3000K Satin
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 3000K - Warm white

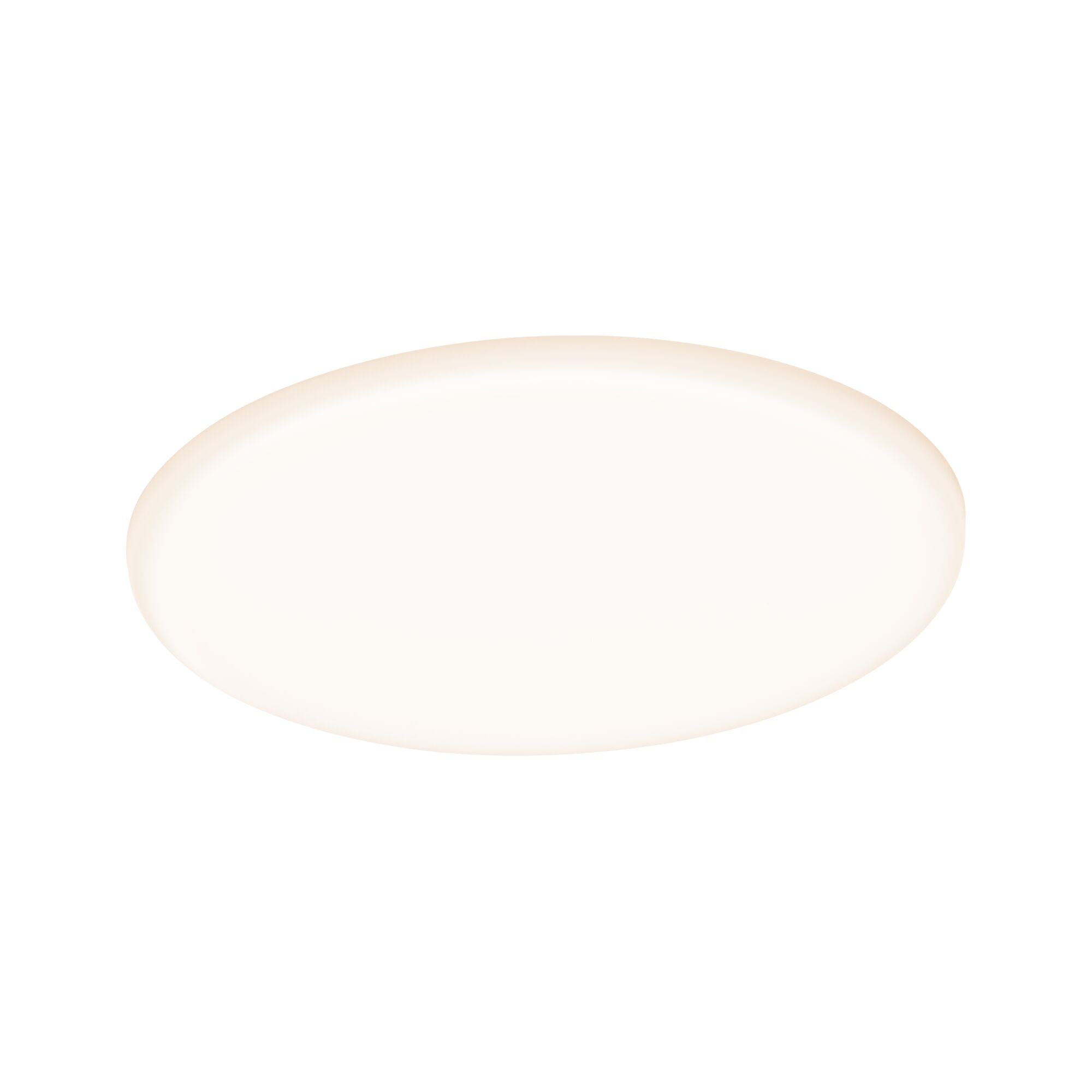

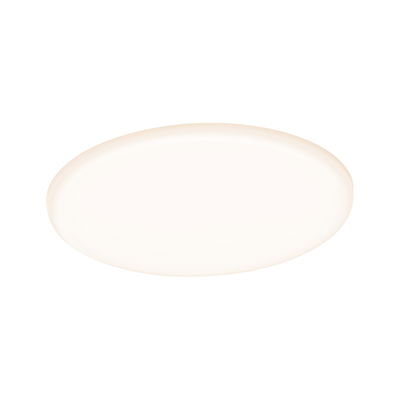

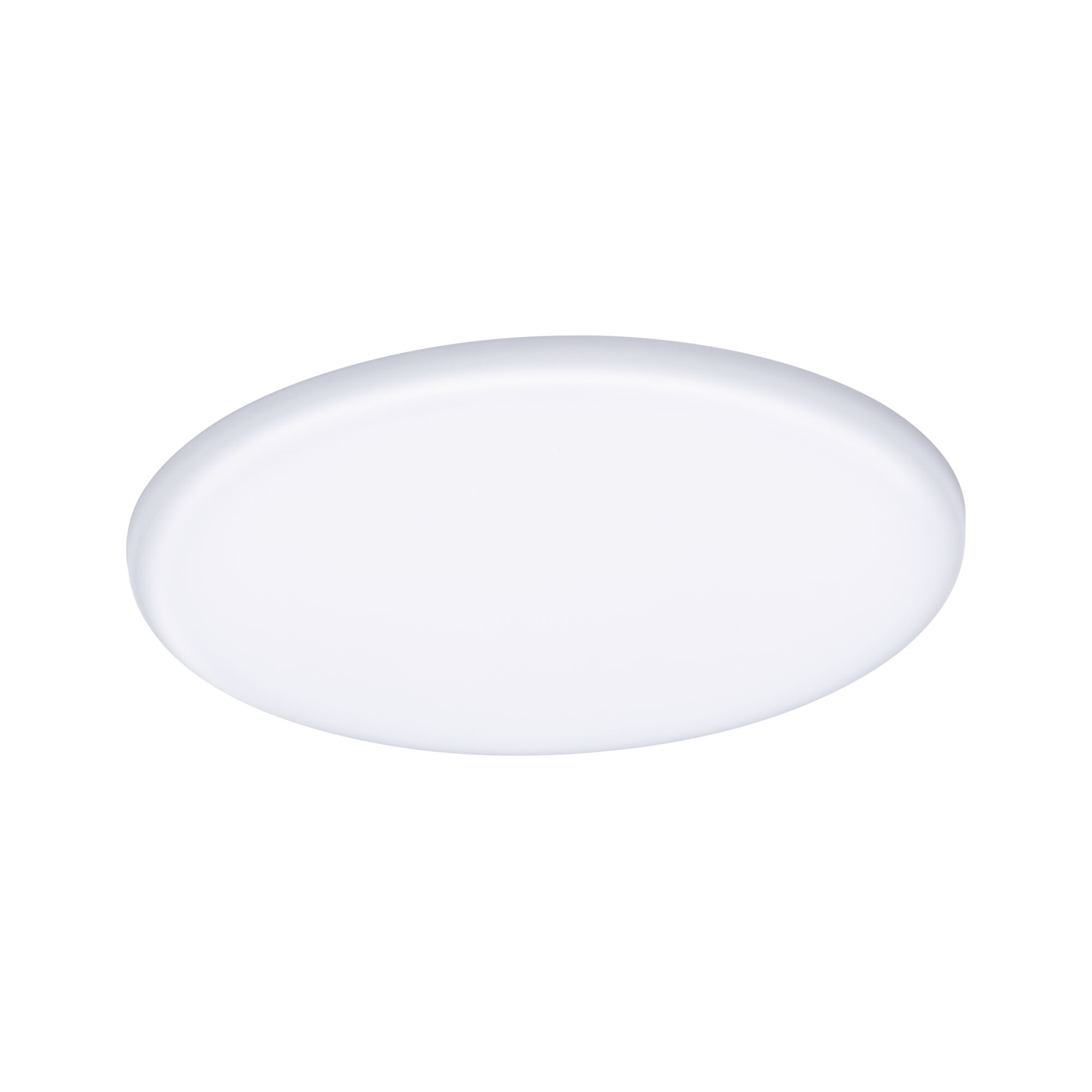

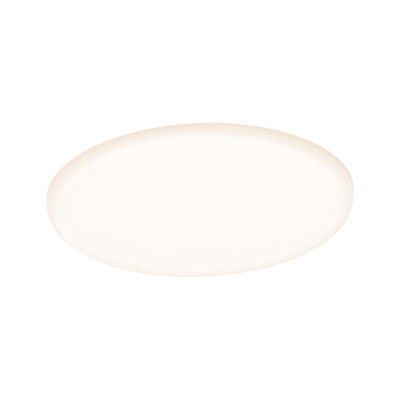

VariFit LED Recessed panel Veluna IP44 round 185mm 17W 1400lm 3000K Satin

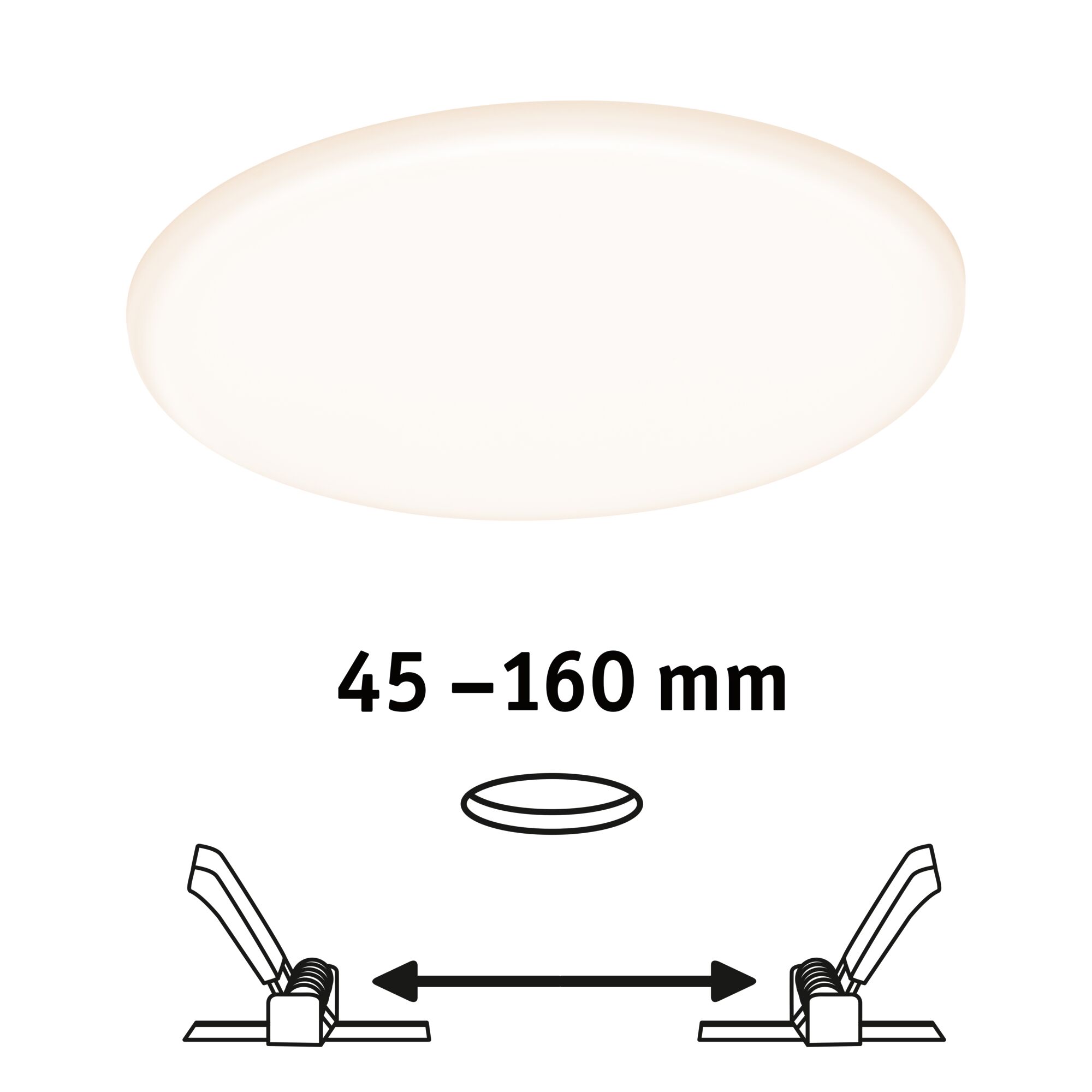

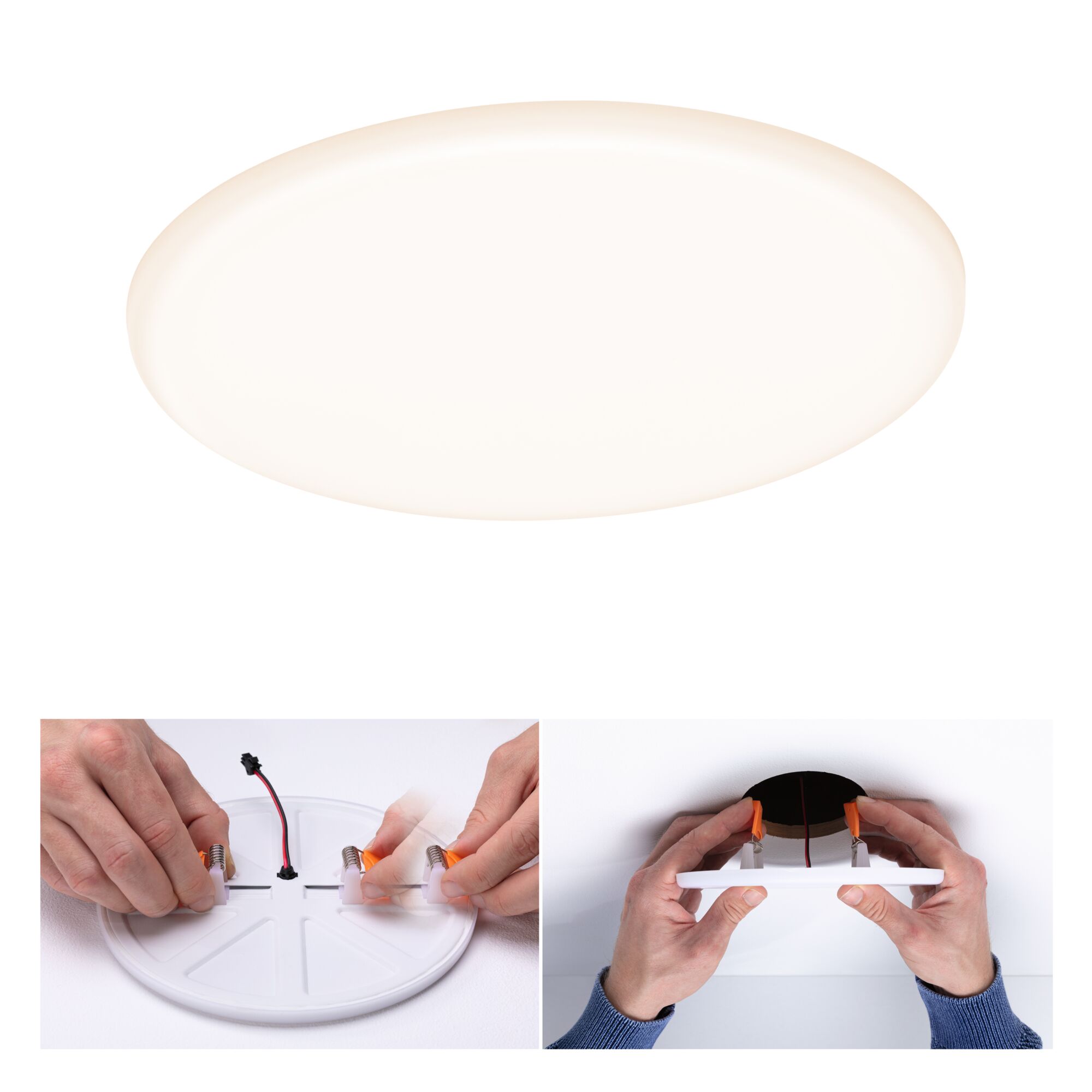

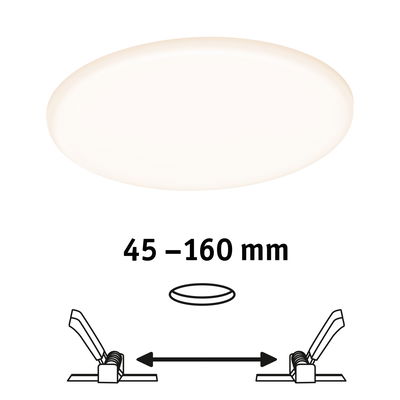

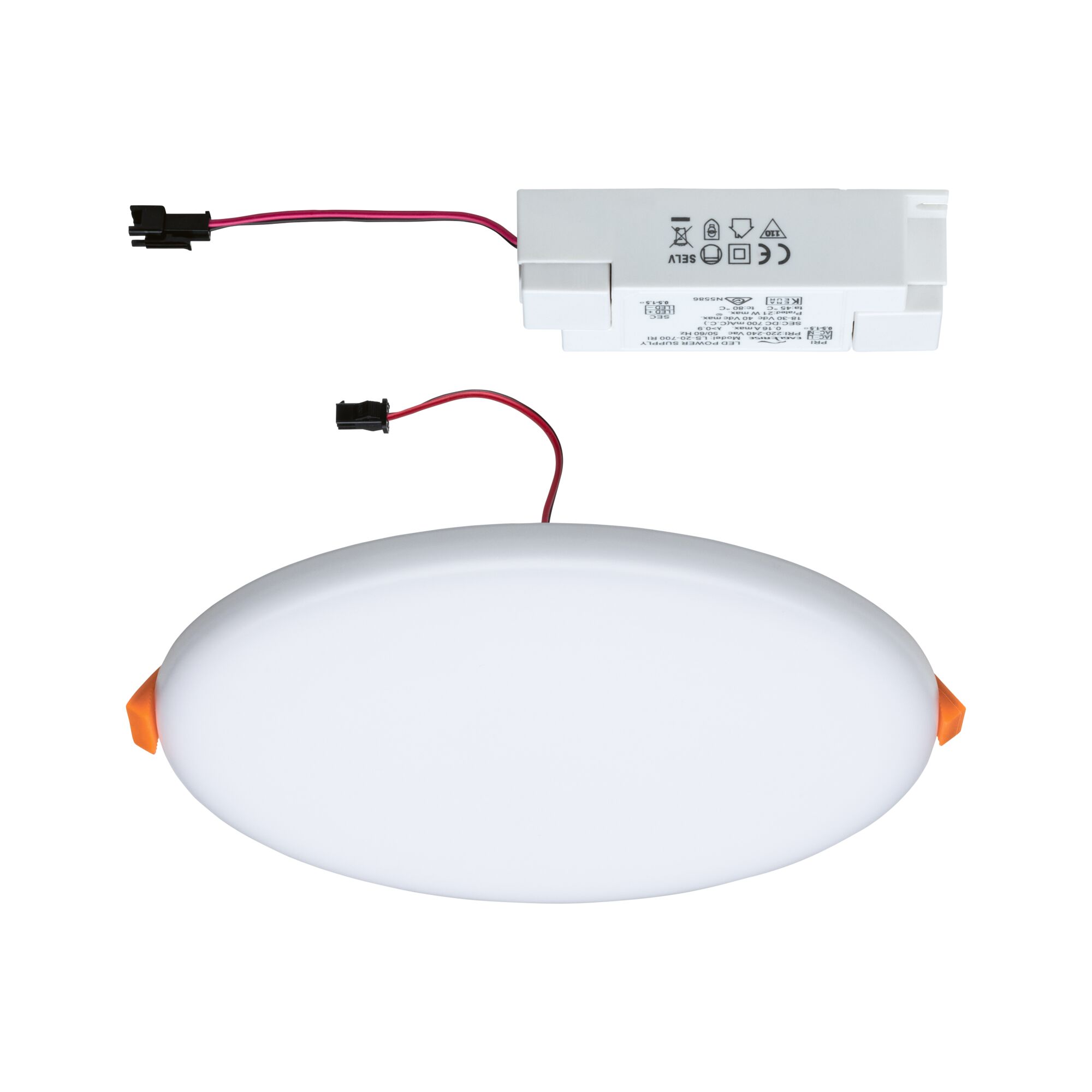

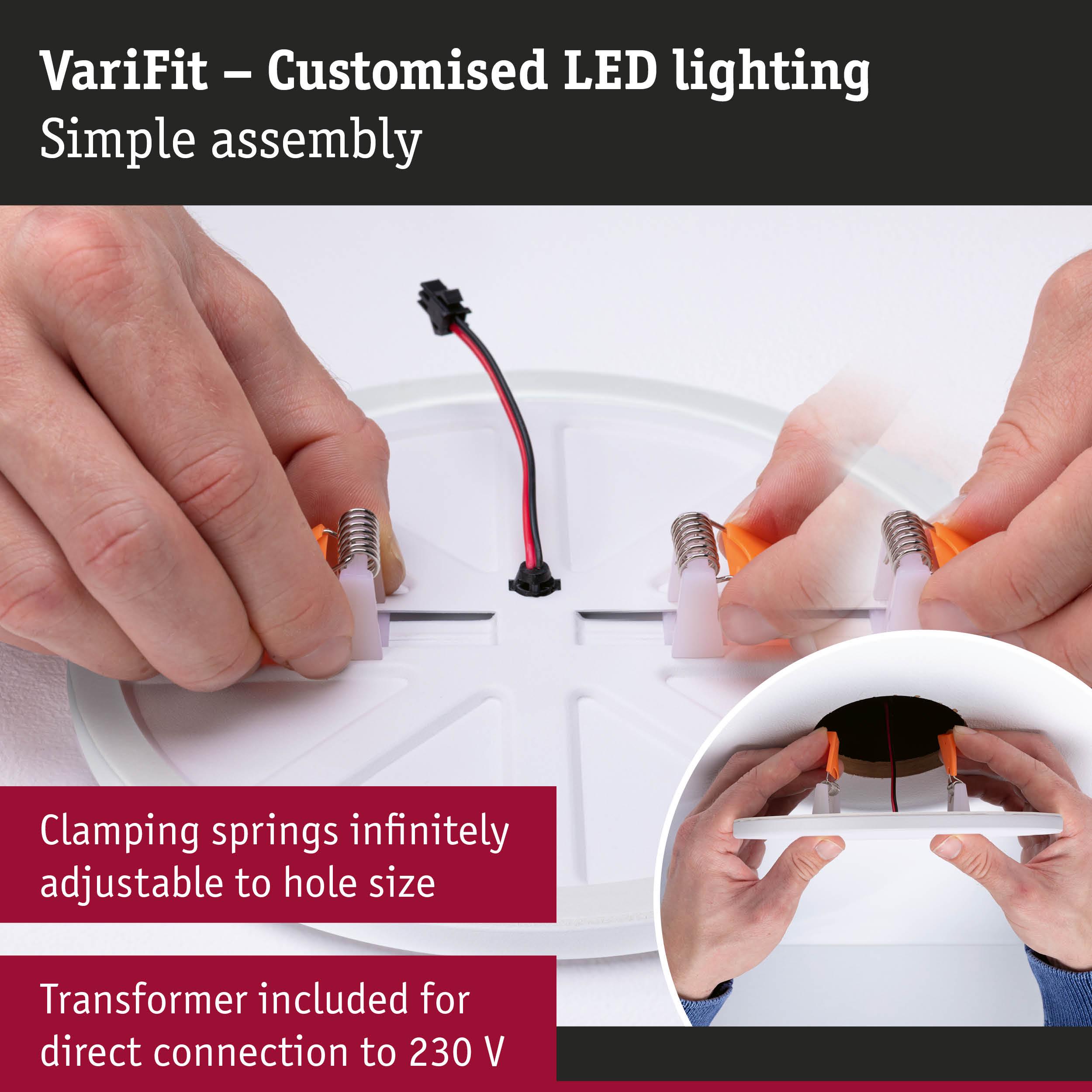

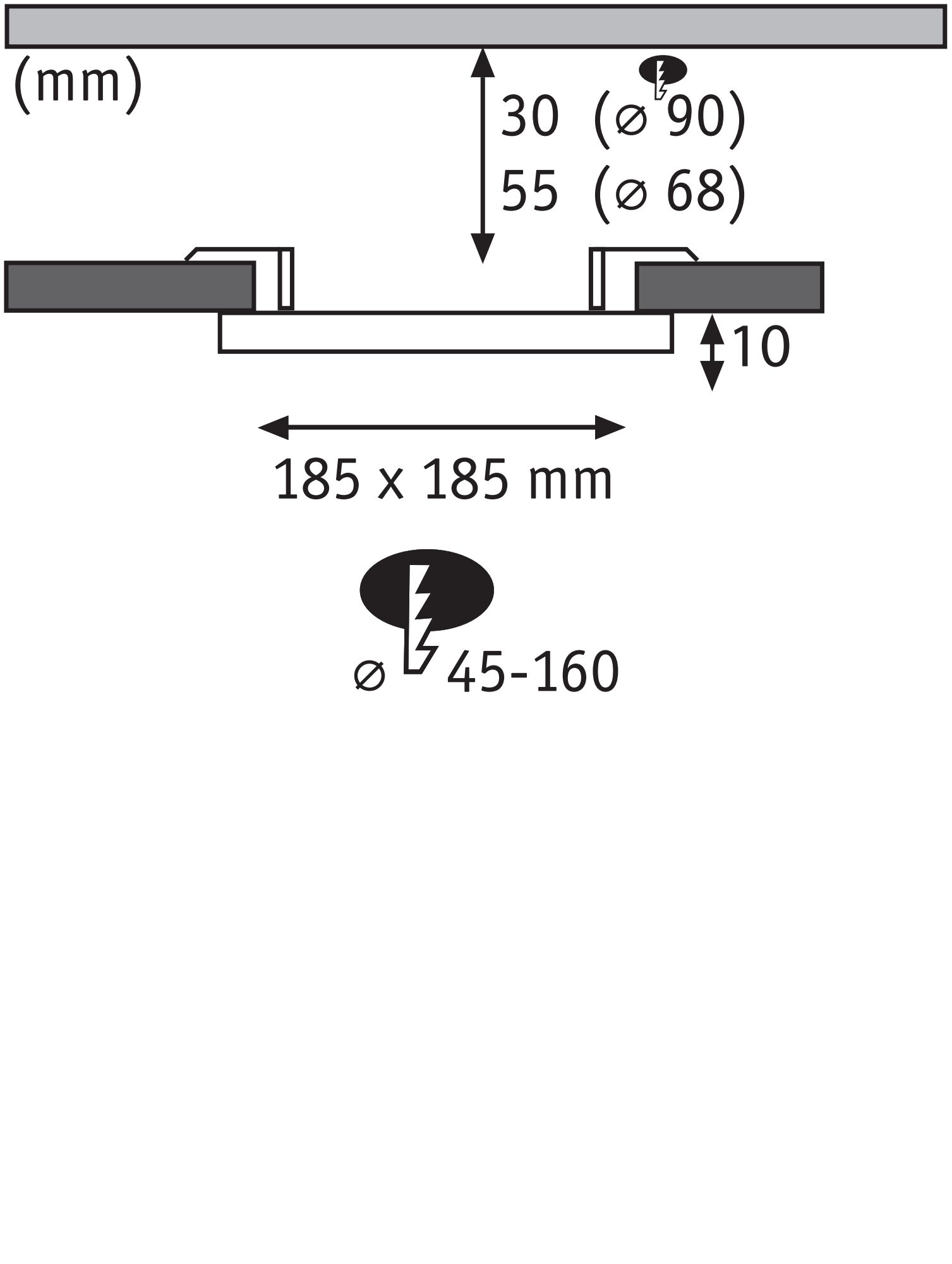

The frameless Veluna panel with an output of 17 watts provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 160 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 3000K - Warm white
- Even room light based on cutting-edge LED technology
- For 230 V direct connection
| Dimension | |
|---|---|
| Diameter | 185 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Built-in diameter | 45 - 160 mm |
| Mounting depth | 60 mm |
| Depth of hollow wall | 45 mm |
| net weight | 404 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1400 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1850 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 17 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 118 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 19 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |

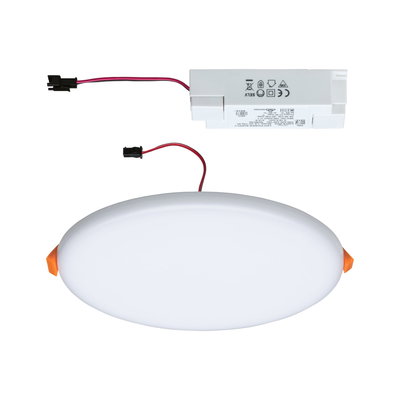

| Transformer | |
|---|---|
| apparent power | 20 VA |
| Transformer height | 25 mm |
| Transformer width | 37 mm |
| Transformer depth | 93 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
