Article-No.:
92388

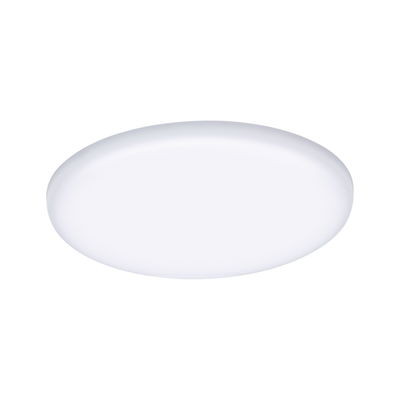

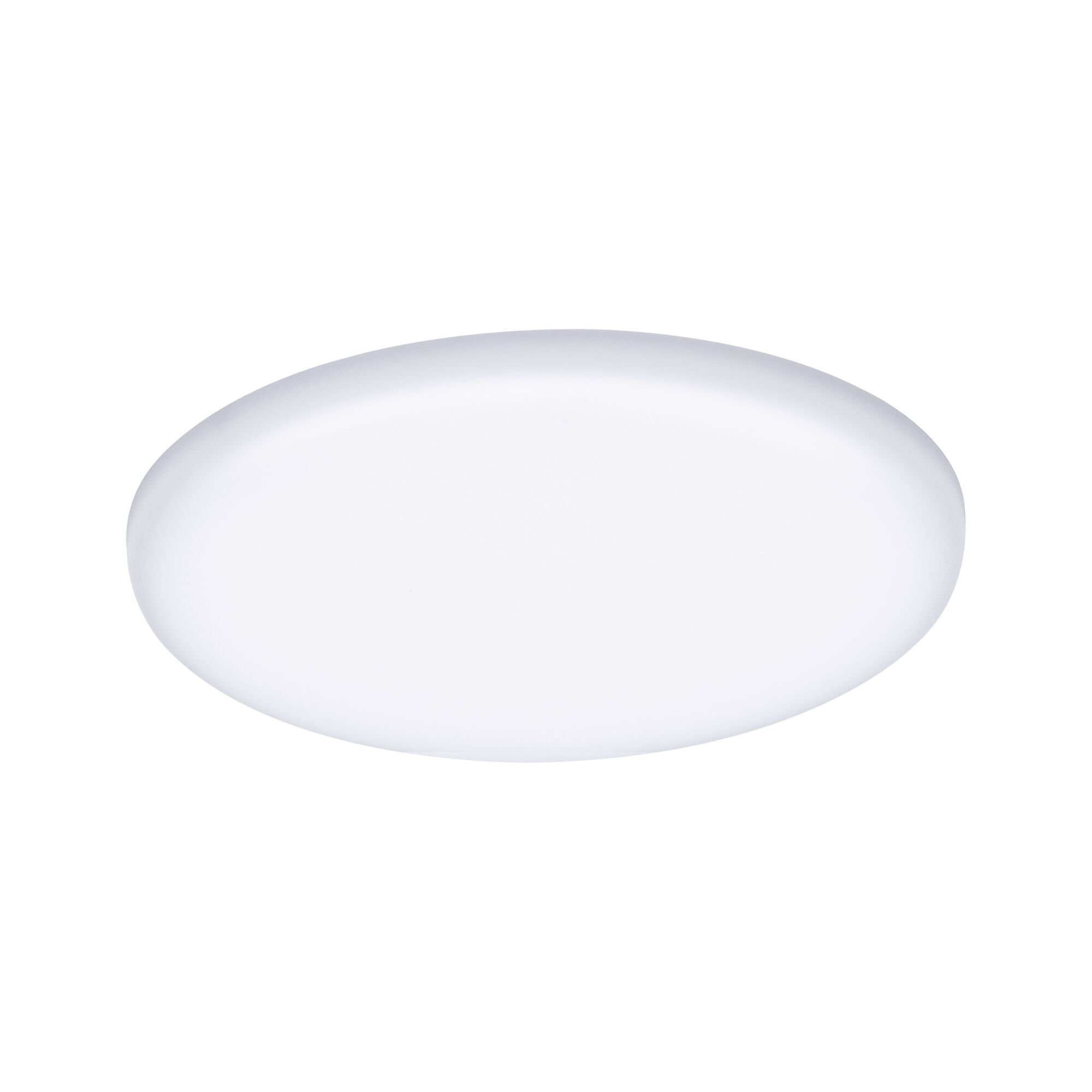

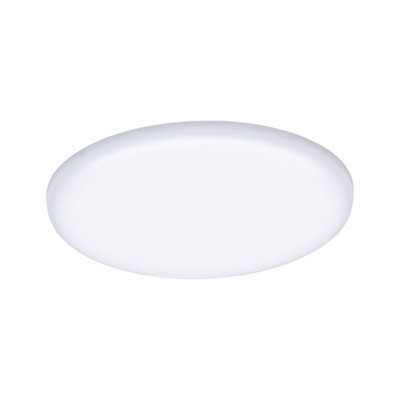

VariFitLED Recessed panel
Veluna
IP44 round 125mm 8,5W 700lm 3000K Satin
IP44 round 125mm 8,5W 700lm 3000K Satin

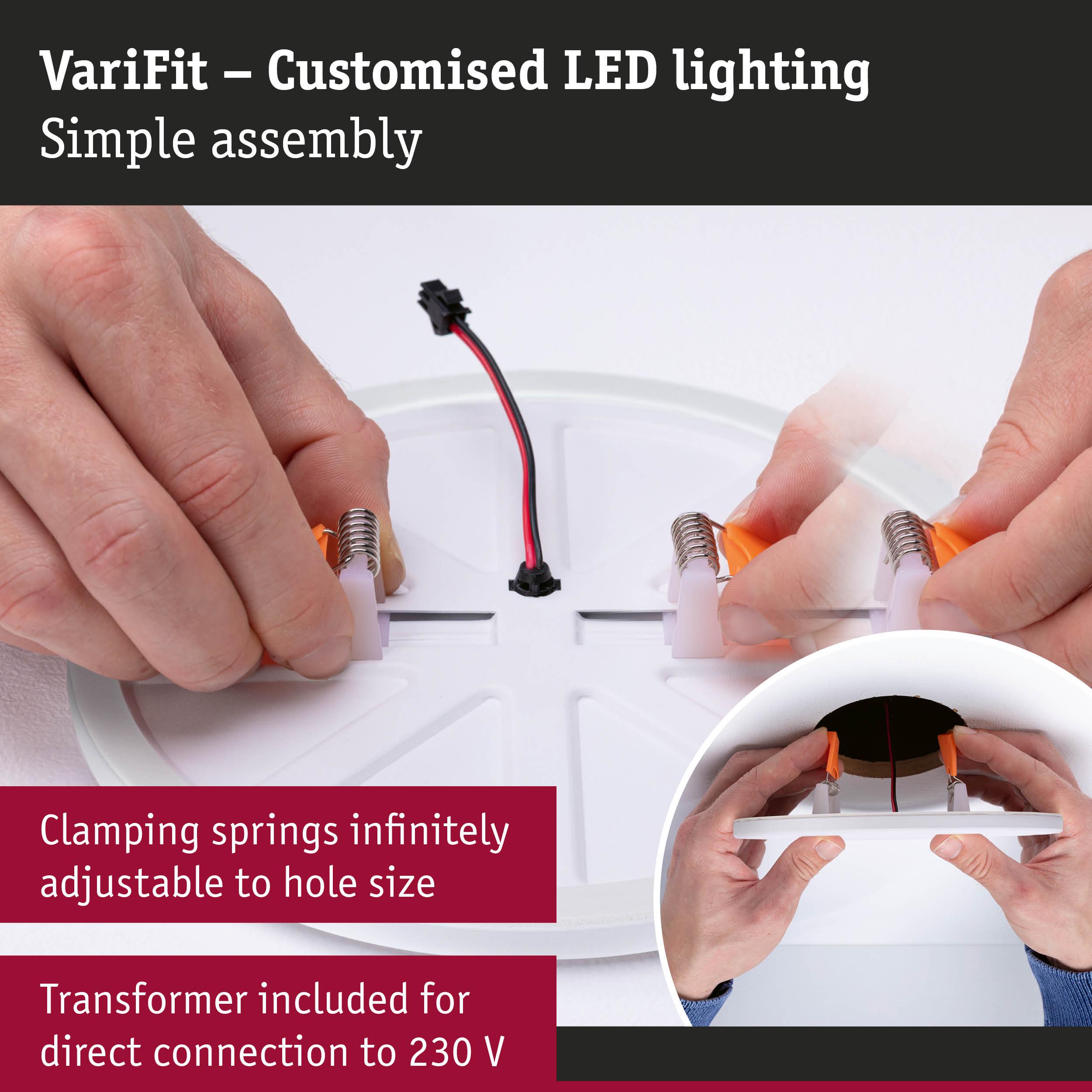

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 3000K - Warm white

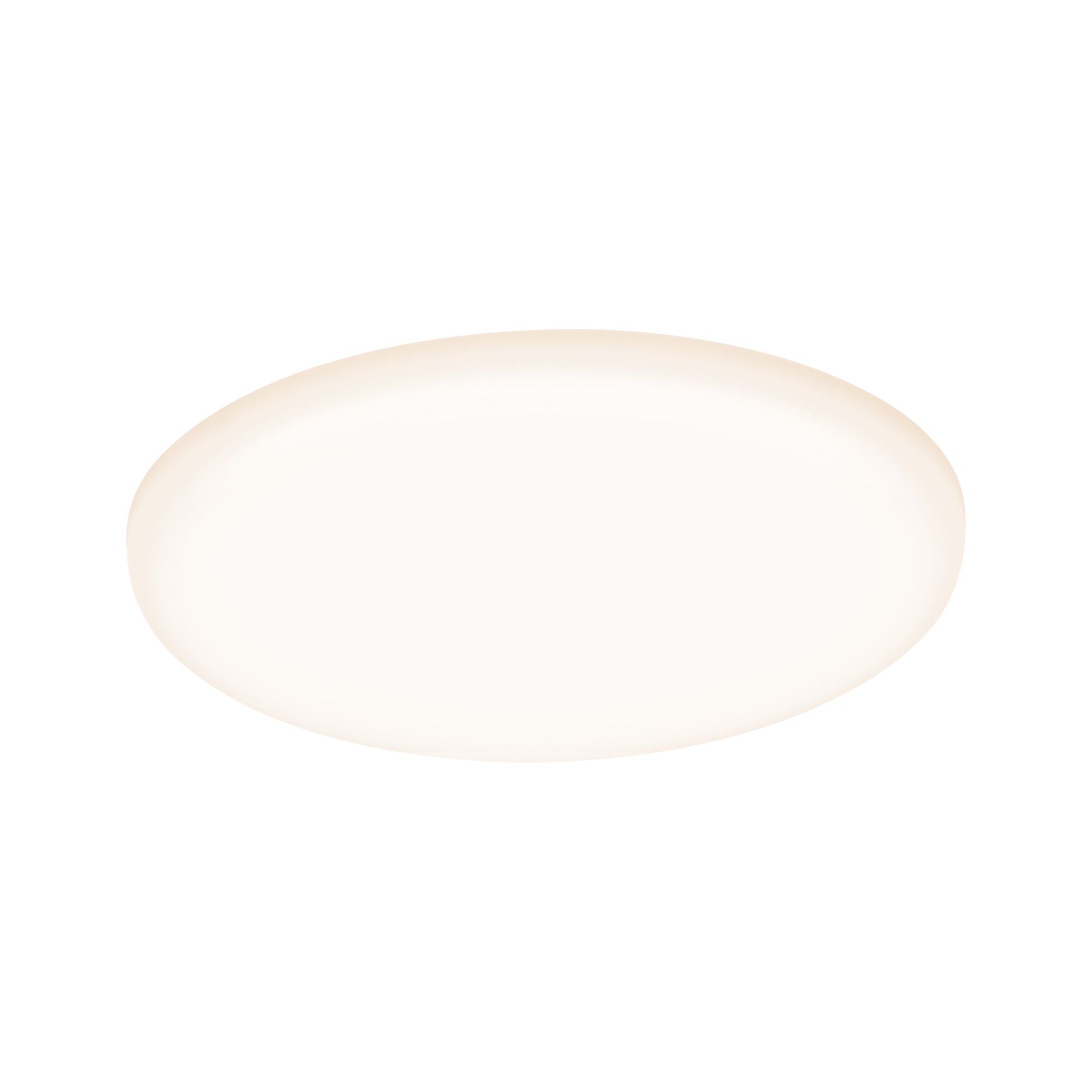

VariFit LED Recessed panel Veluna IP44 round 125mm 8,5W 700lm 3000K Satin

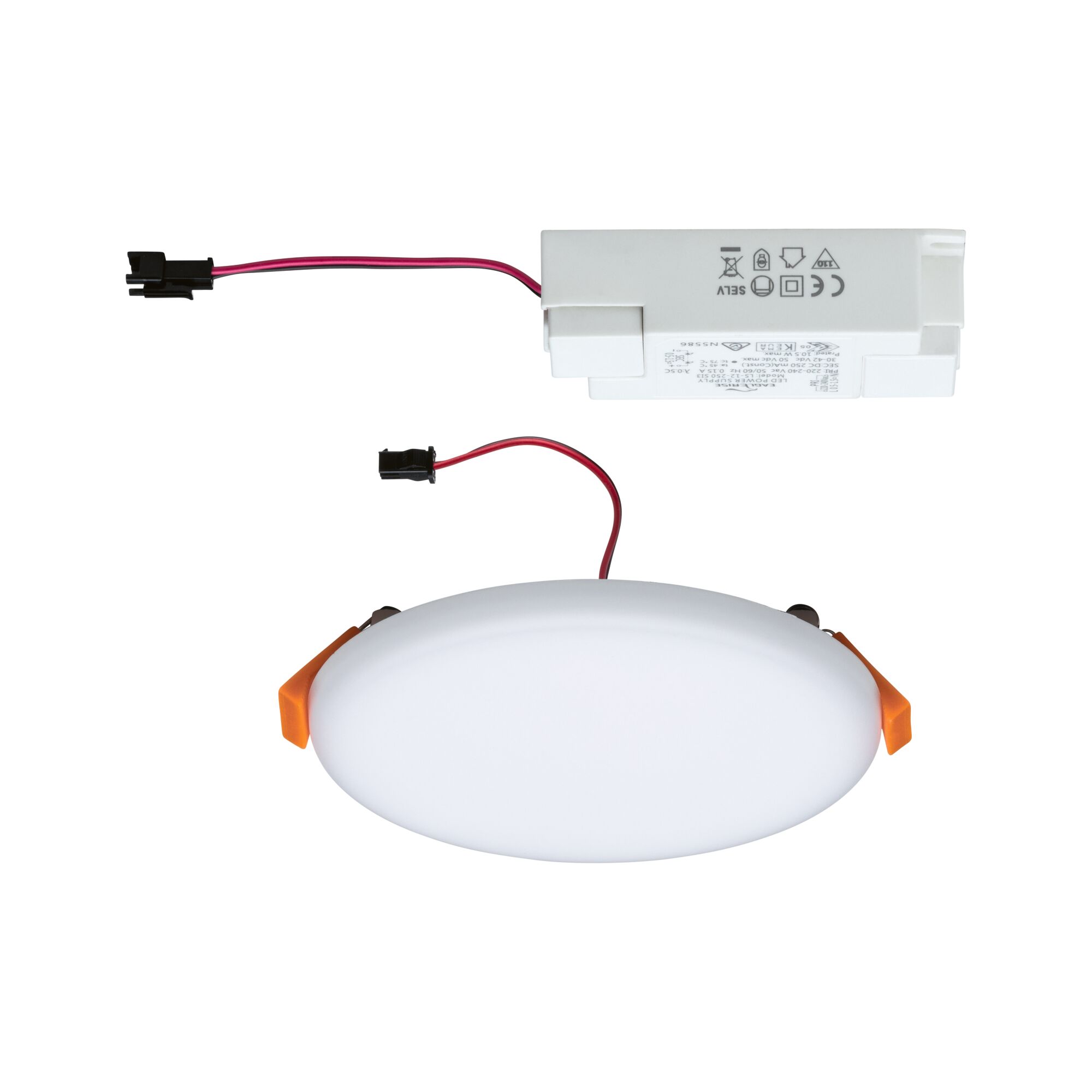

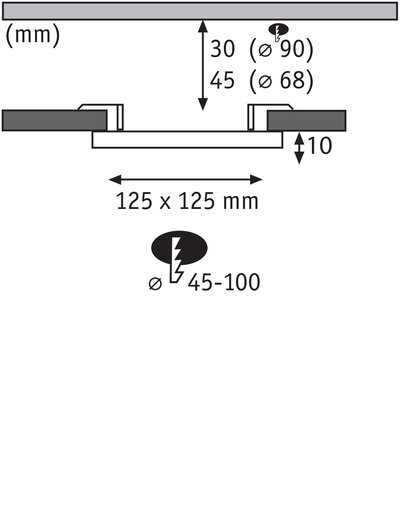

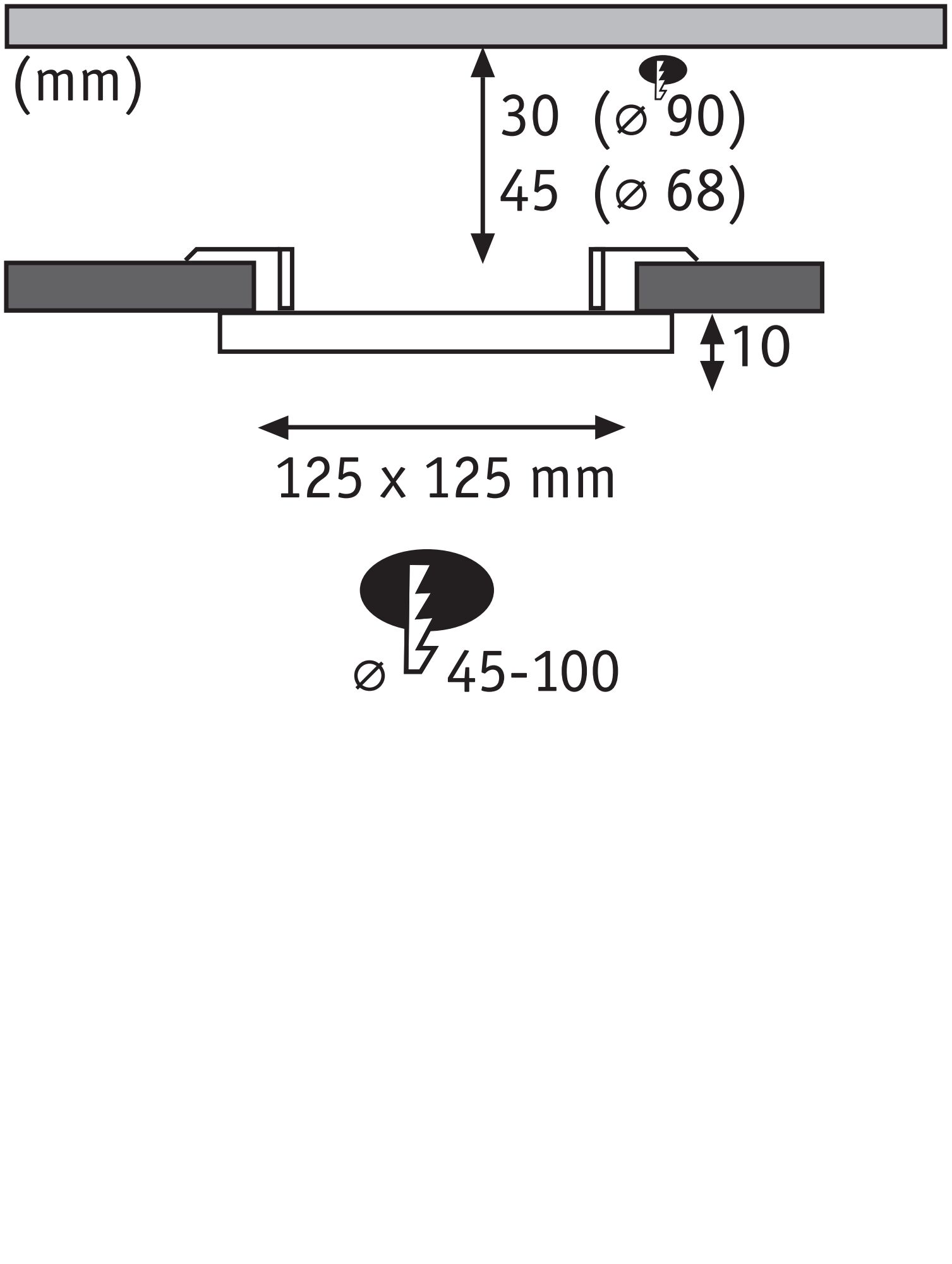

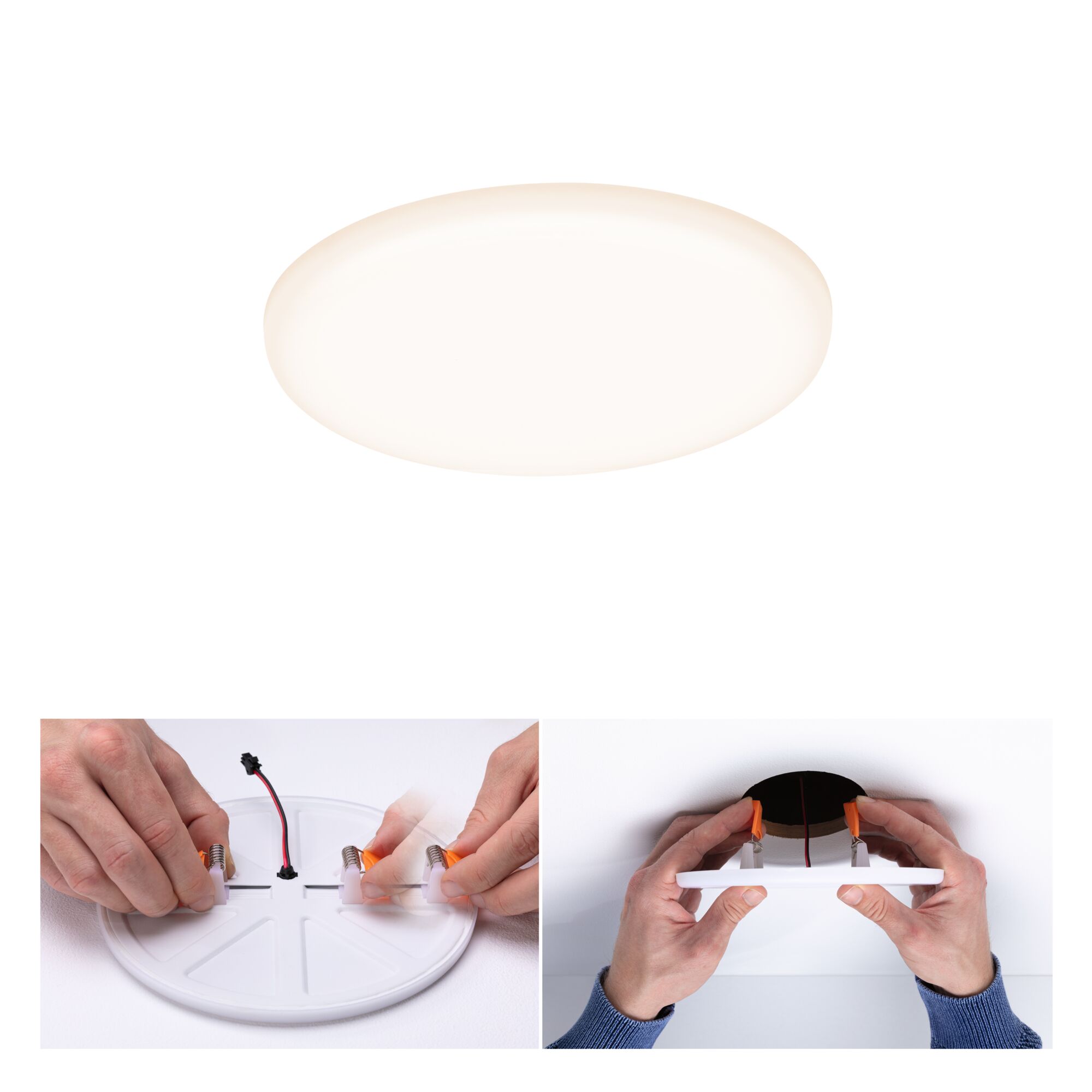

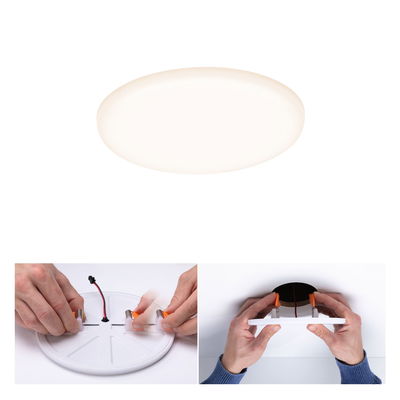

The frameless Veluna panel with an output of 8,5 watts provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 100 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 45 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 3000K - Warm white
- Even room light based on cutting-edge LED technology

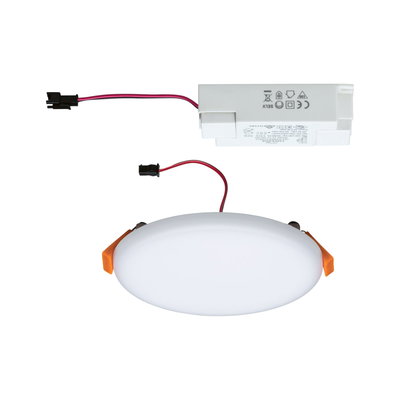

- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Diameter | 125 mm |

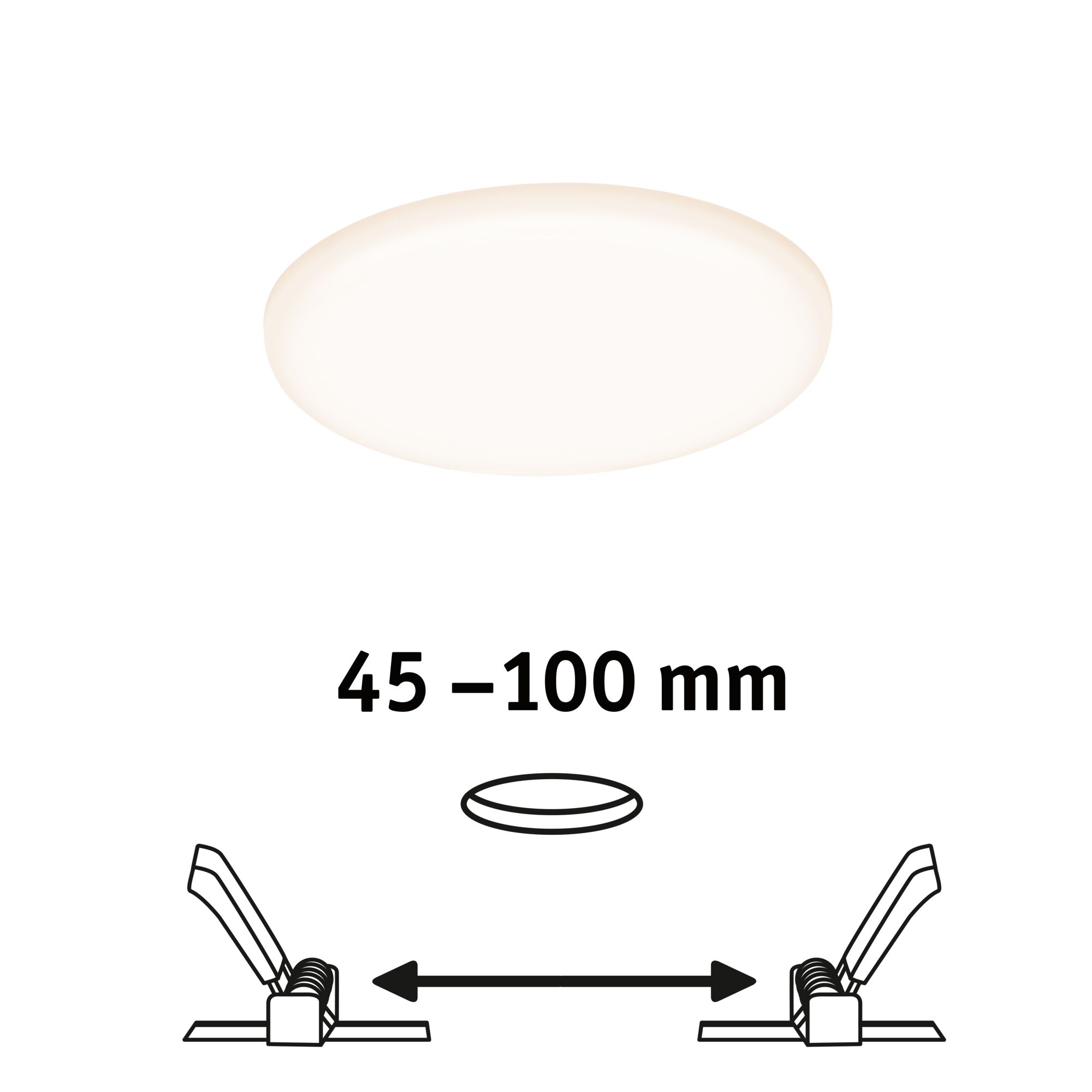

| Built-in diameter | 45 - 100 mm |
| Mounting depth | 30 mm |
| Depth of hollow wall | 15 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Satin |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 700 lm |
| Luminous flux LED module | 900 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 65.7 W |

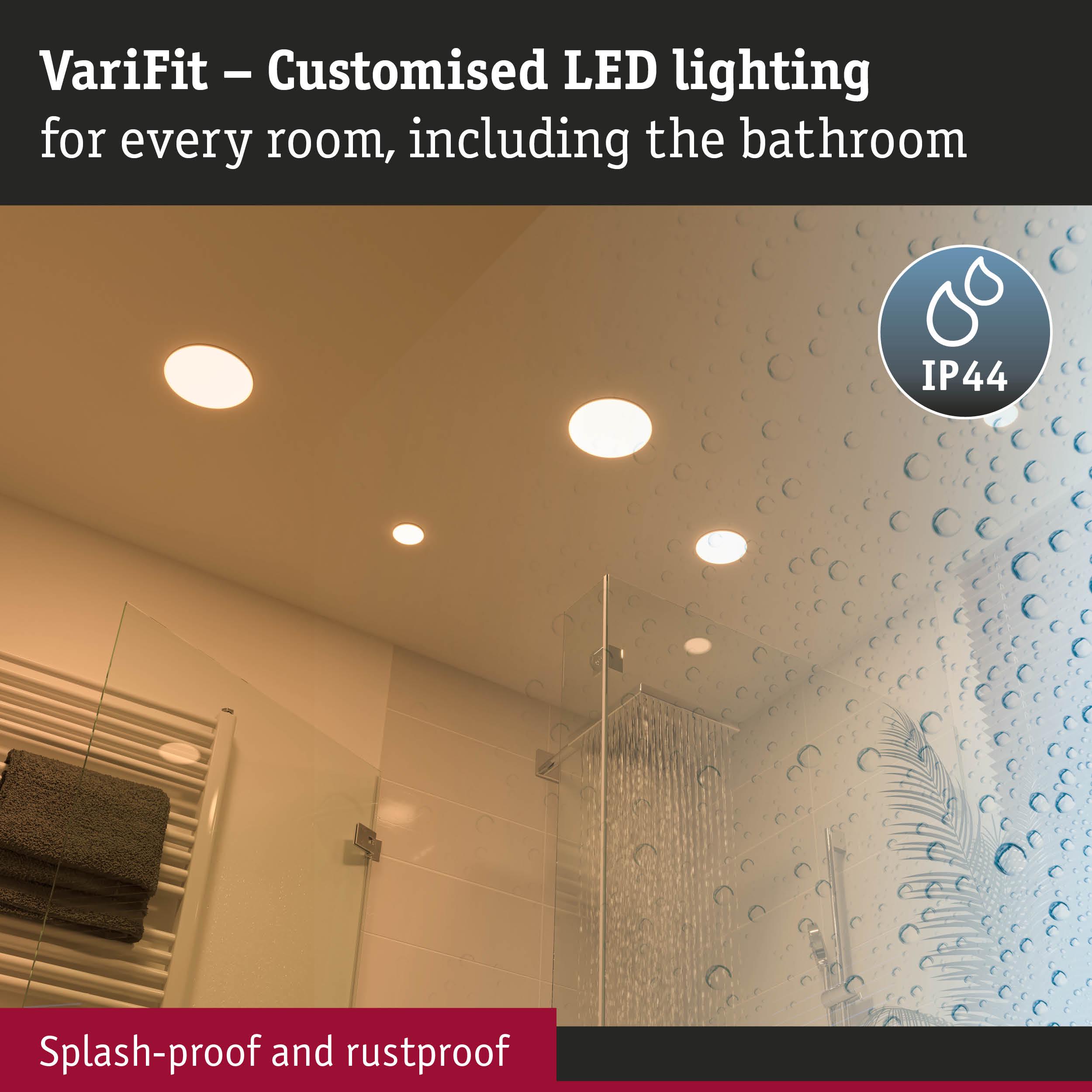

| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 8,5 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 10 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 19.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
