Article-No.:
79950
VariFit
LED Recessed panel
Veluna Edge
IP44 round 90mm 6W 500lm 4000K White dimmable
IP44 round 90mm 6W 500lm 4000K White dimmable
- Especially flat construction
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology
VariFit LED Recessed panel Veluna Edge IP44 round 90mm 6W 500lm 4000K White dimmable

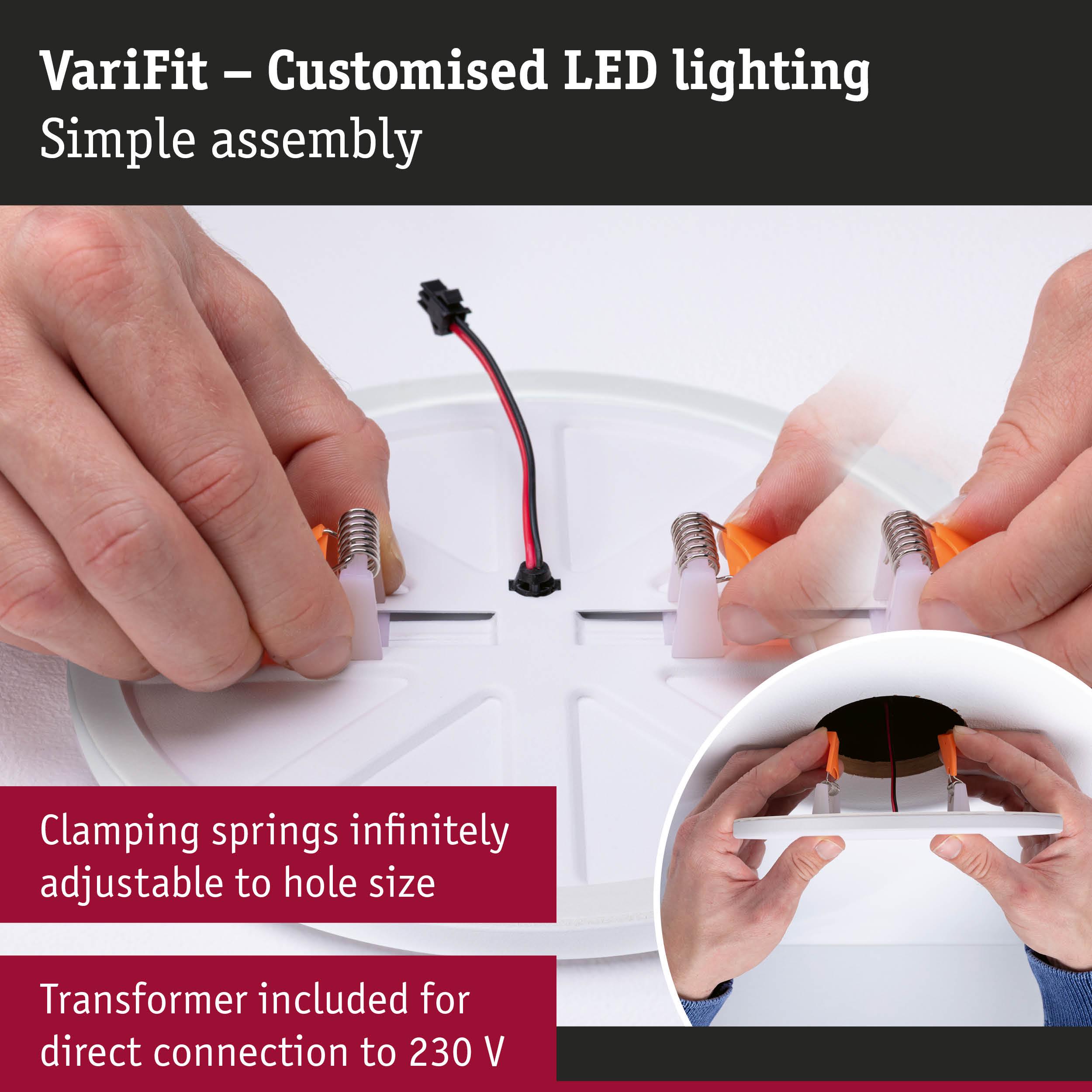

The dimmable rounde Veluna VariFit Edge recessed panel features a modern, frameless design in subtle White. With a diameter of 90 mm and a colour temperature of 4000 K, the panel has a high, uniform light yield. Thanks to flexible VariFit technology, the clamping installation springs can be continuously adjusted between 50 mm and 70 mm. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 50 mm, a cavity depth of at least 35 mm is needed. The satined plastic cover provides finely diffused light and bright, activating light in neutral white, which is individually adjustable via the dimming function.
- Especially flat construction
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology

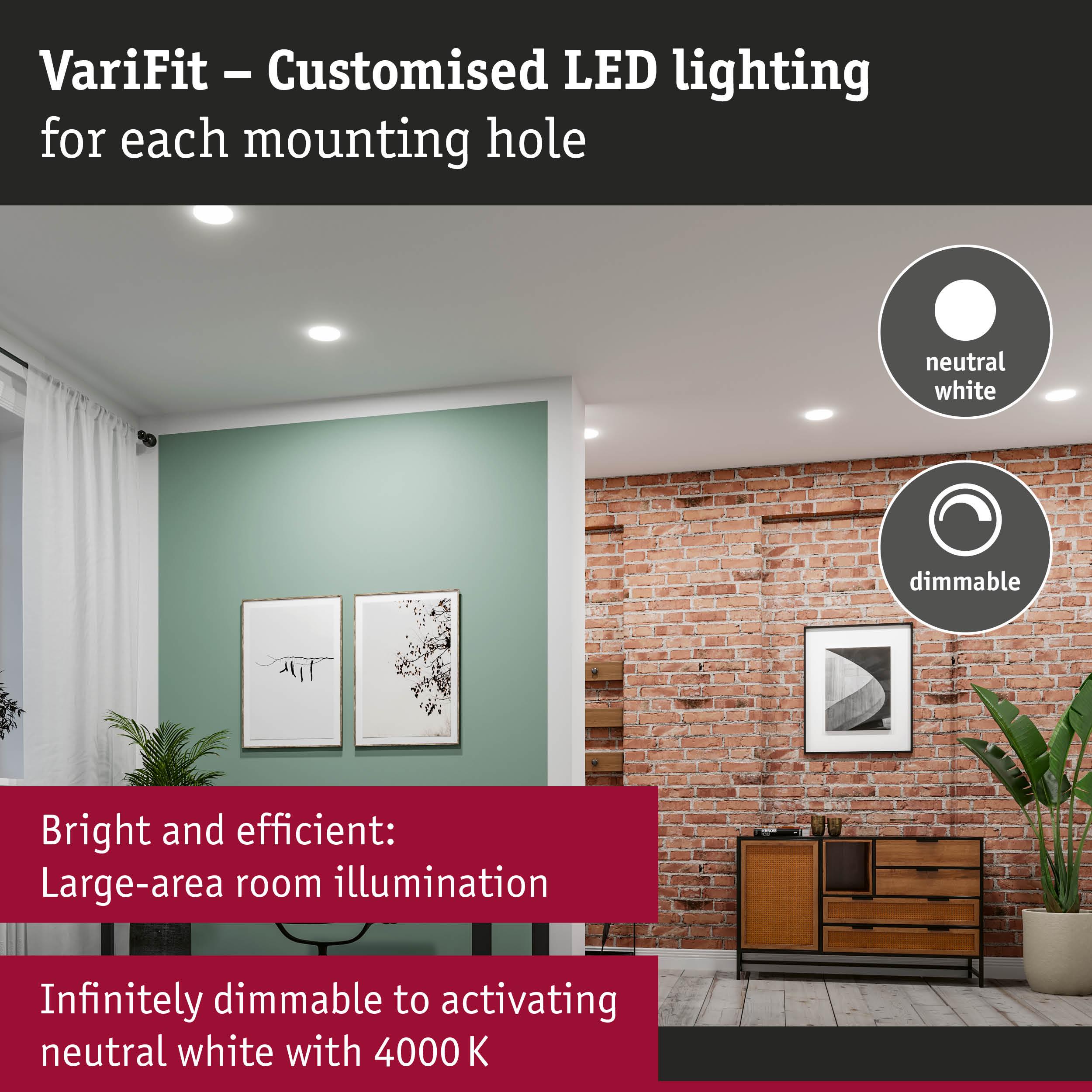

- High light yield for area lighting

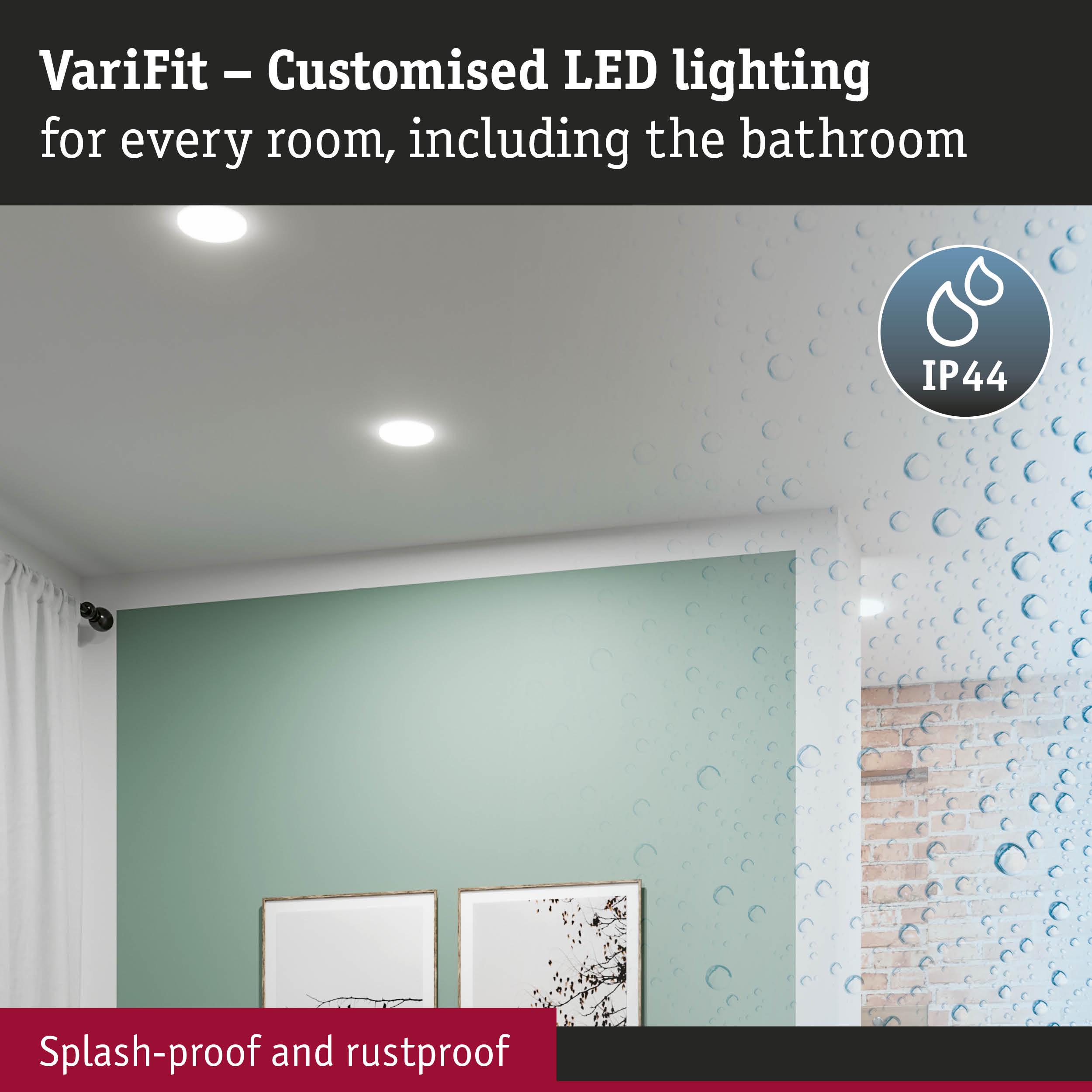

- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
- Dimmable
| Dimension | |
|---|---|
| Diameter | 90 mm |
| Dimensions (Height x Width x Depth) | H: 9 mm |
| Built-in diameter | 50 - 70 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| net weight | 118 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 500 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Neutral white, 4000 K |
| Luminous flux LED module | 750 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with dimmer |
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 57 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | with dimmer C for electron. transformers |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 7,5 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 8.3 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
