Article-No.:
79949
VariFitLED Recessed panel
Veluna Edge
IP44 angular 200x200mm 17W 1500lm 3000K White dimmable
IP44 angular 200x200mm 17W 1500lm 3000K White dimmable
VariFit LED Recessed panel Veluna Edge IP44 angular 200x200mm 17W 1500lm 3000K White dimmable

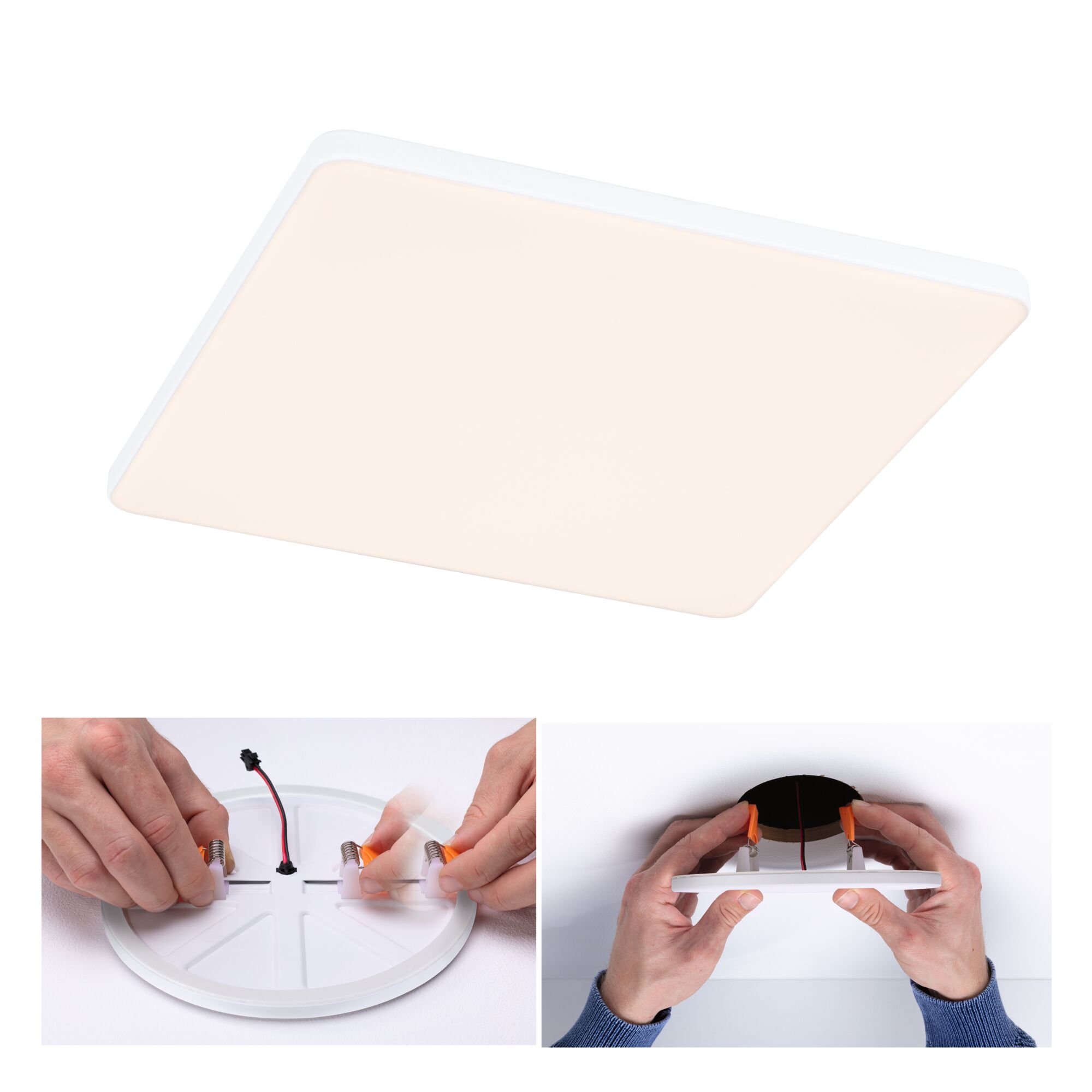

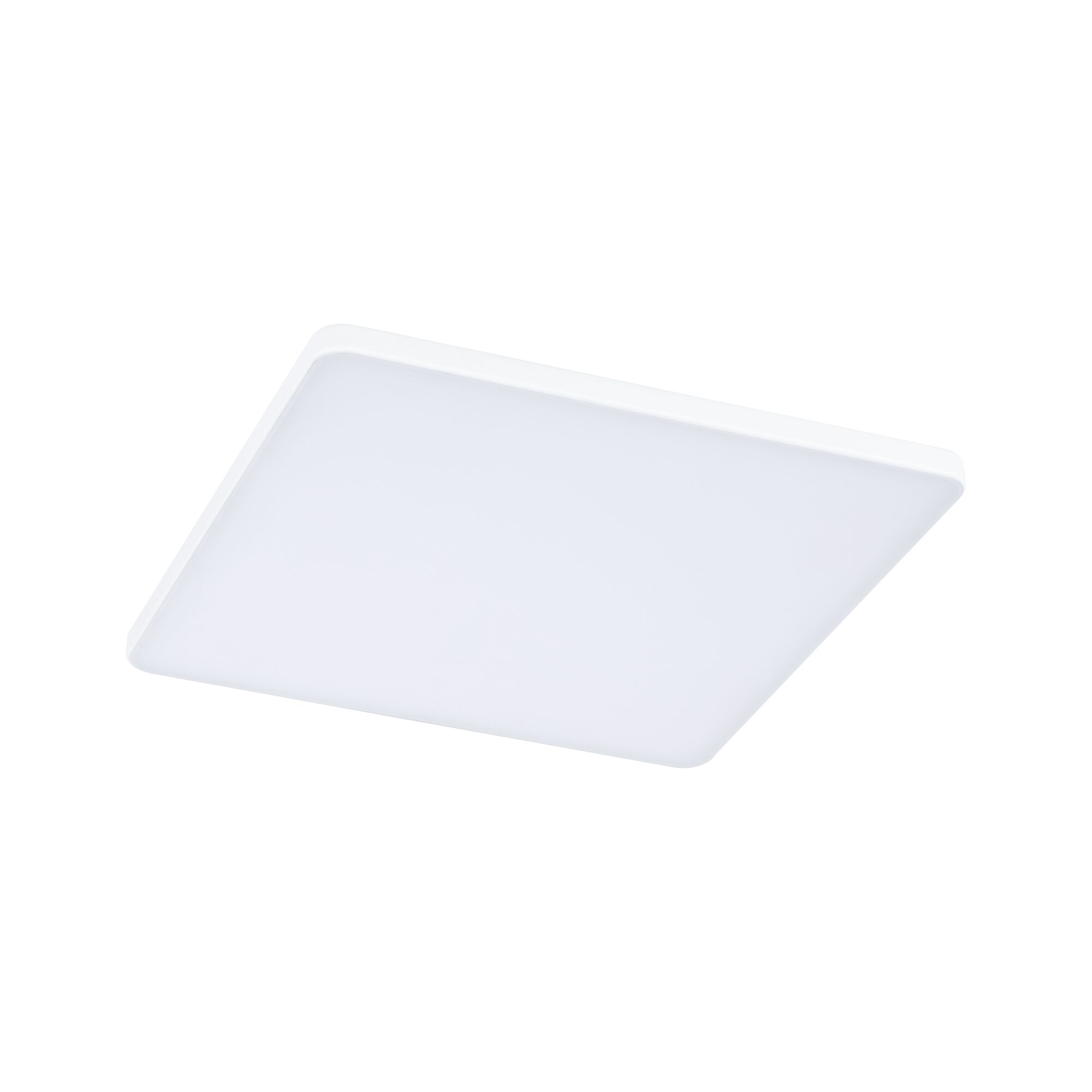

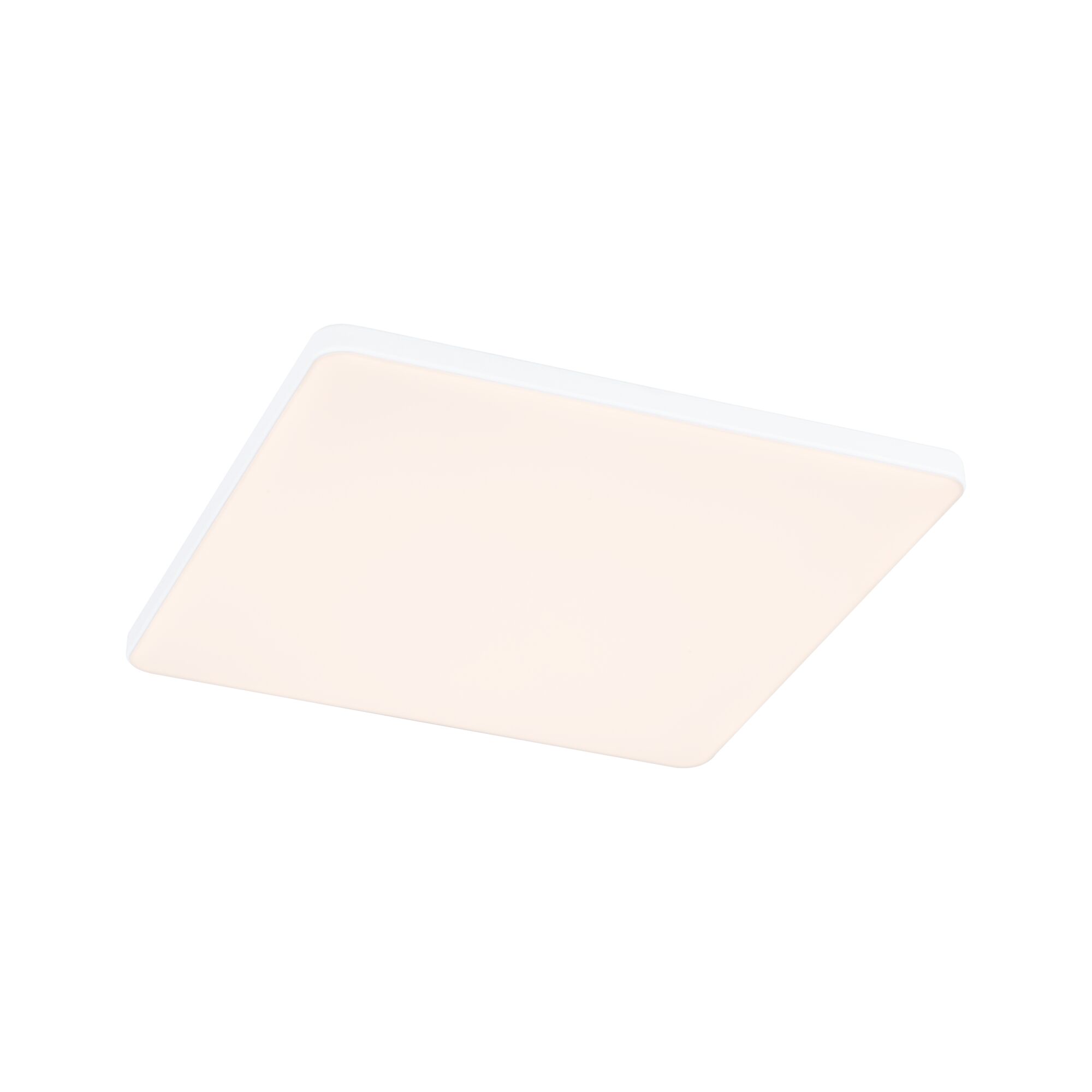

The dimmable squaree Veluna VariFit Edge recessed panel features a modern, frameless design in subtle White. With a size of 200x200 mm and a colour temperature of 3000 K, the panel has a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 180 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 45 mm is needed. The satined plastic cover provides finely diffused light and bright, cosy light in warm white, which is individually adjustable via the dimming function.
- Dimmable
- Especially flat construction
- Color temperatur: 3000K - Warm white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light

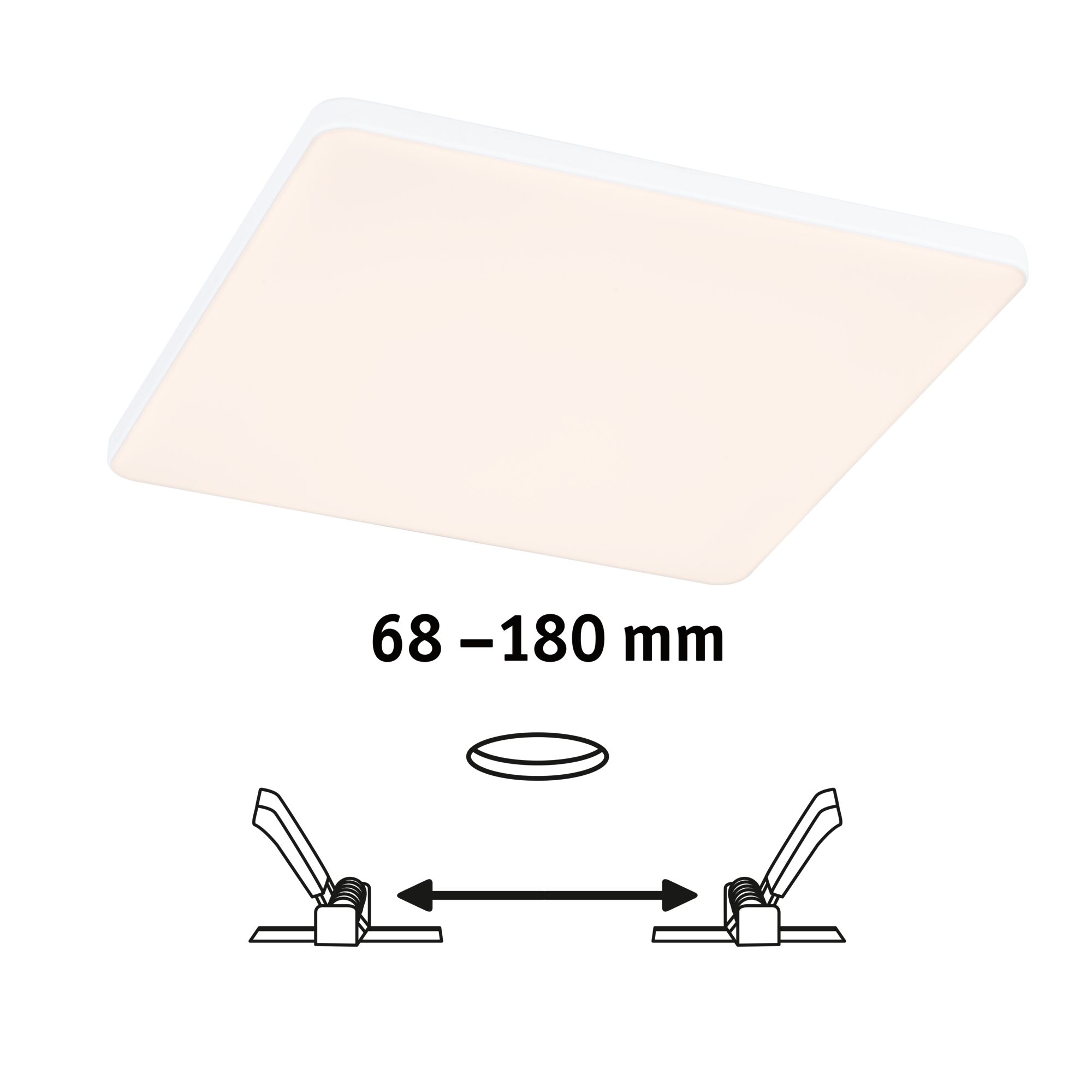

- VariFit – flexible installation with infinitely adjustable clamping springs

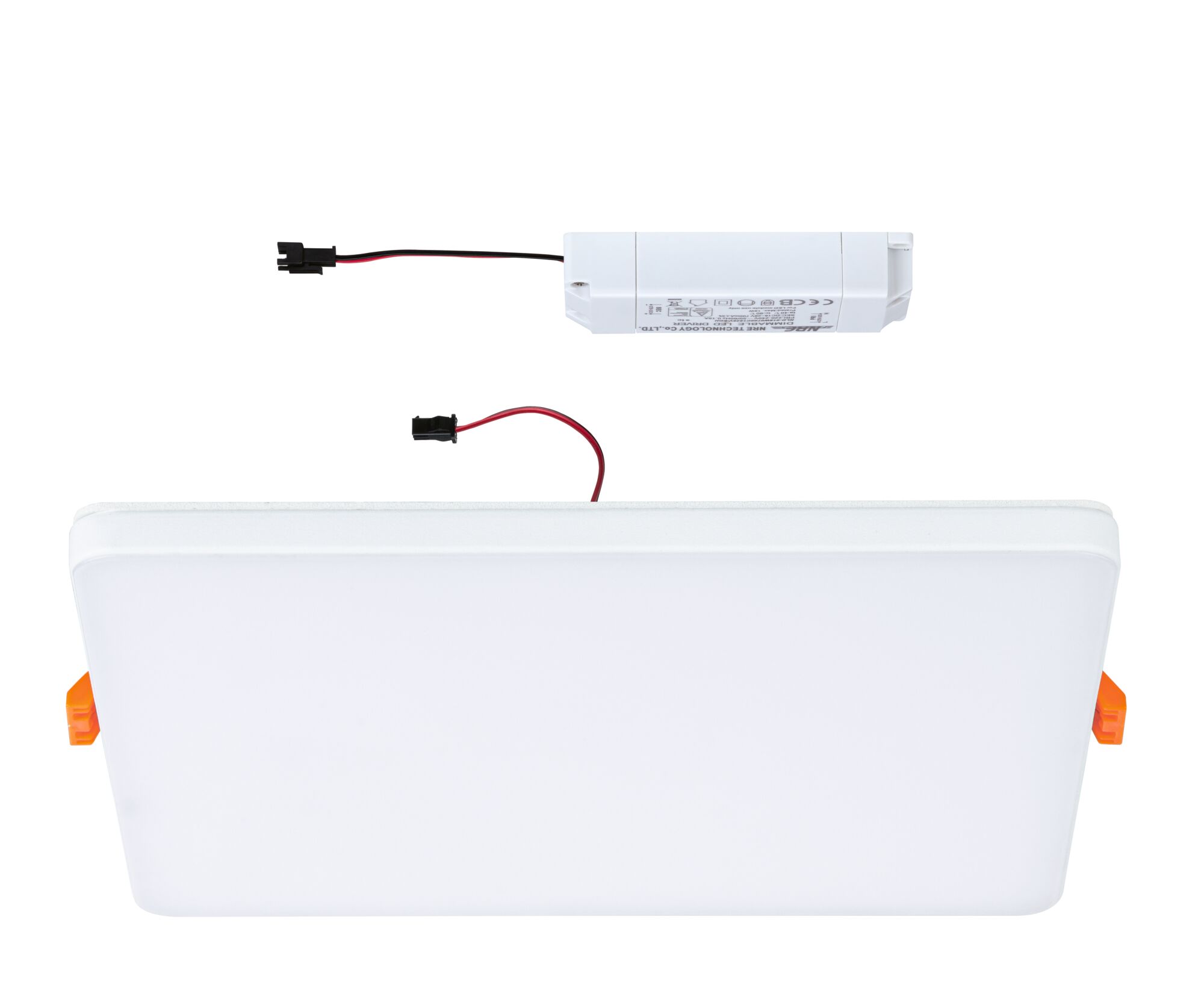

- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|

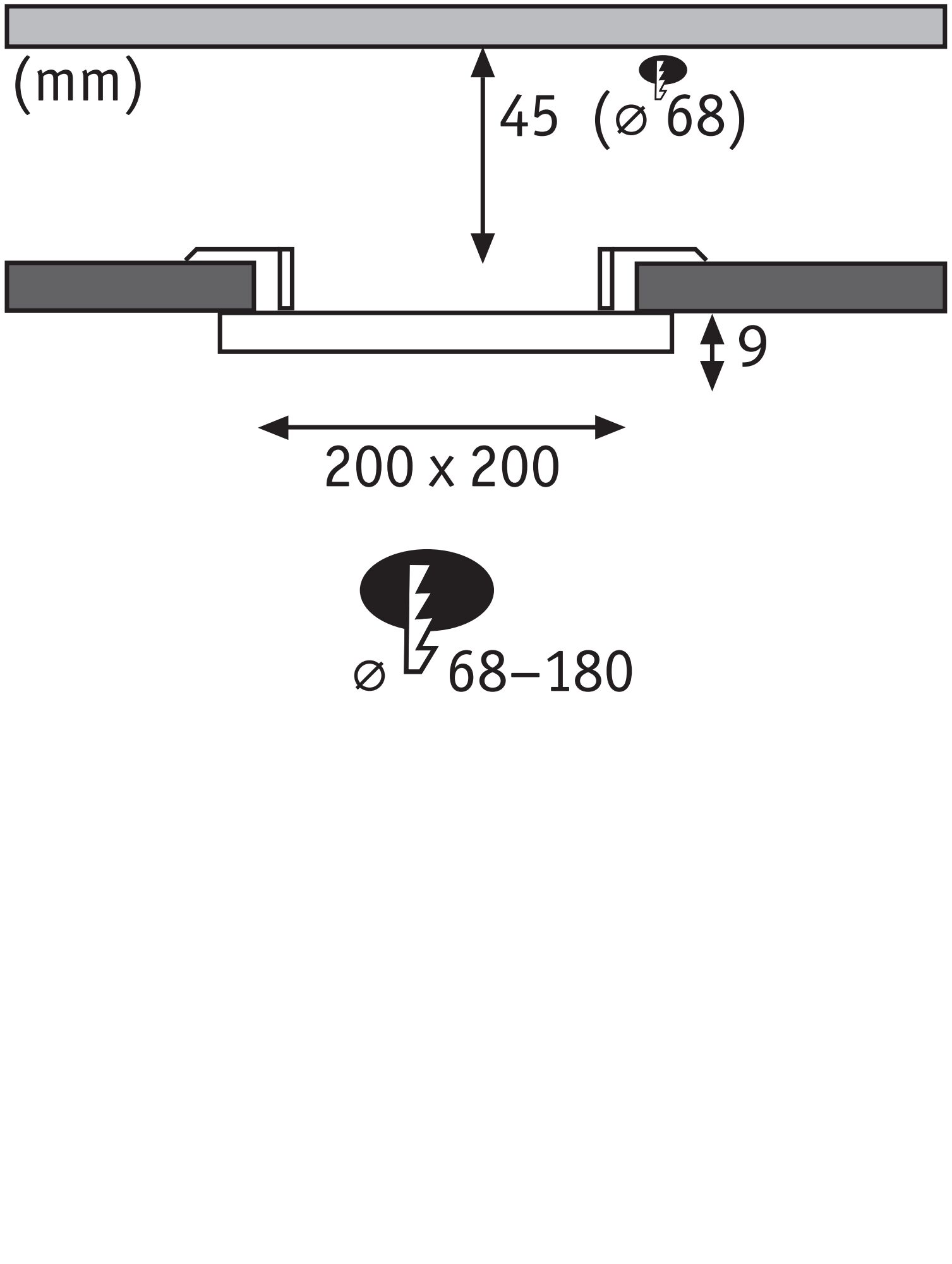

| Dimensions (Height x Width x Depth) | H: 9 x B: 200 x T: 200 mm |
| Built-in diameter | 68 - 180 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 1500 lm |
| Luminous flux LED module | 2000 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer C for electron. transformers |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 126 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 17 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 19 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
