Article-No.:
95387
VariFit
LED Recessed panel
Smart Home Zigbee 3.0
Veluna
IP44 round 215mm 17W 1300lm Tunable White Satin dimmable
IP44 round 215mm 17W 1300lm Tunable White Satin dimmable

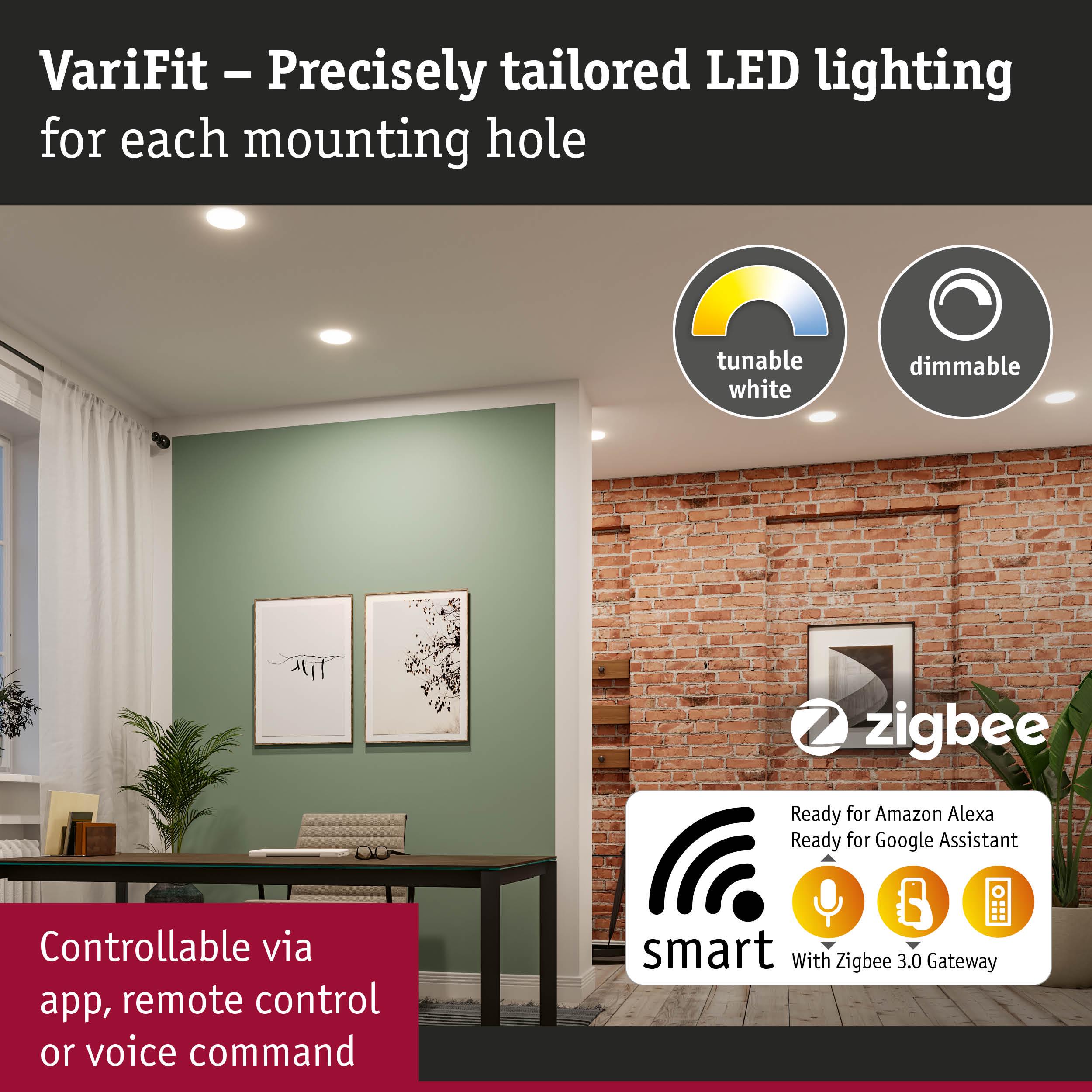

- Usable with smart home gateways that have a Zigbee interface
- Even room light based on cutting-edge LED technology
- Especially flat construction
VariFit LED Recessed panel Smart Home Zigbee 3.0 Veluna IP44 round 215mm 17W 1300lm Tunable White Satin dimmable

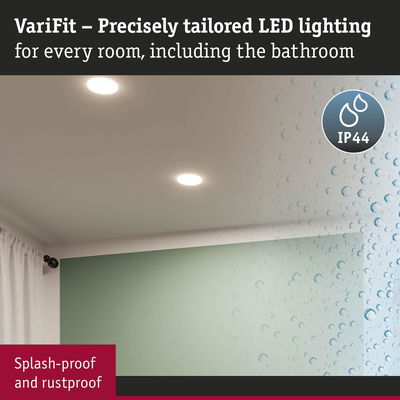

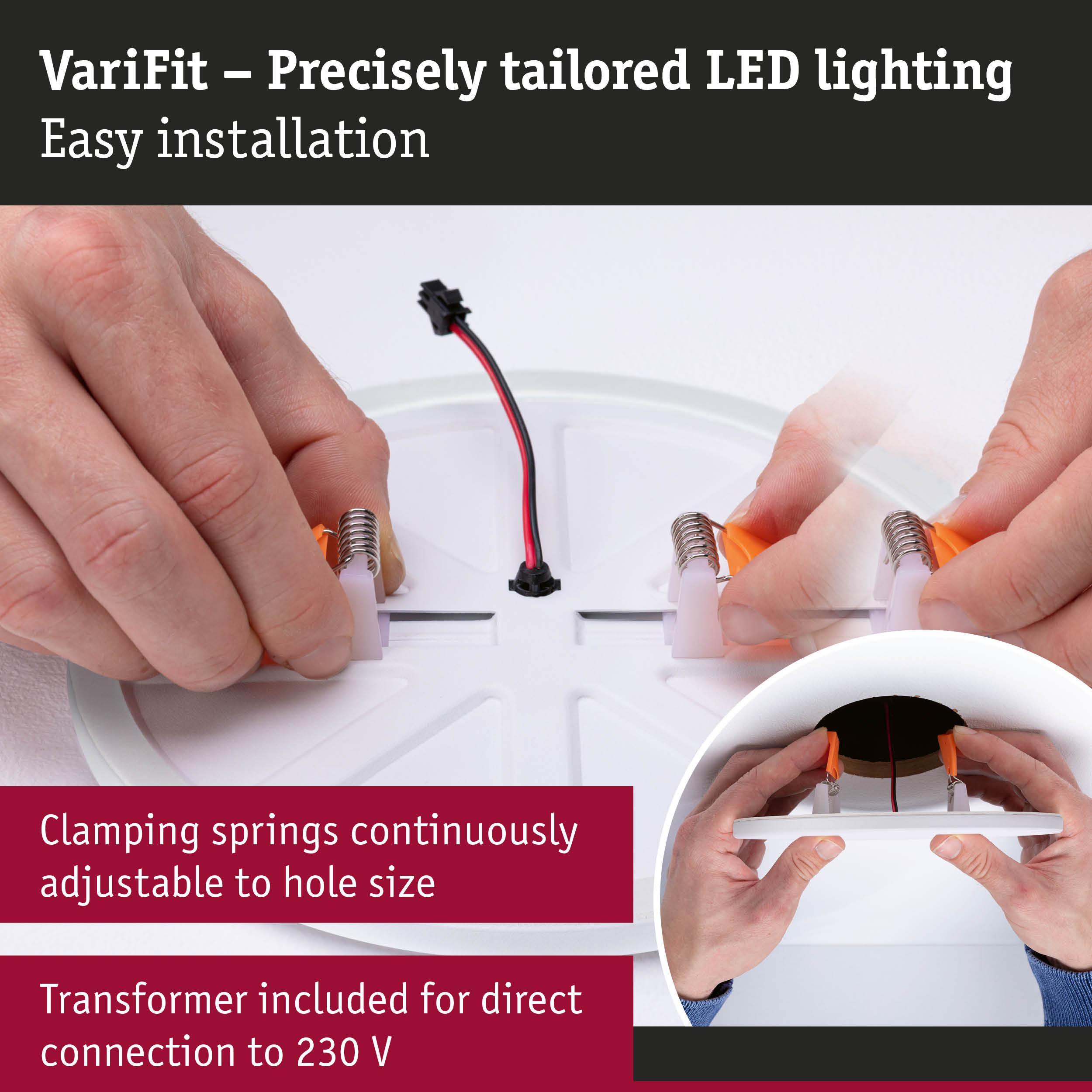

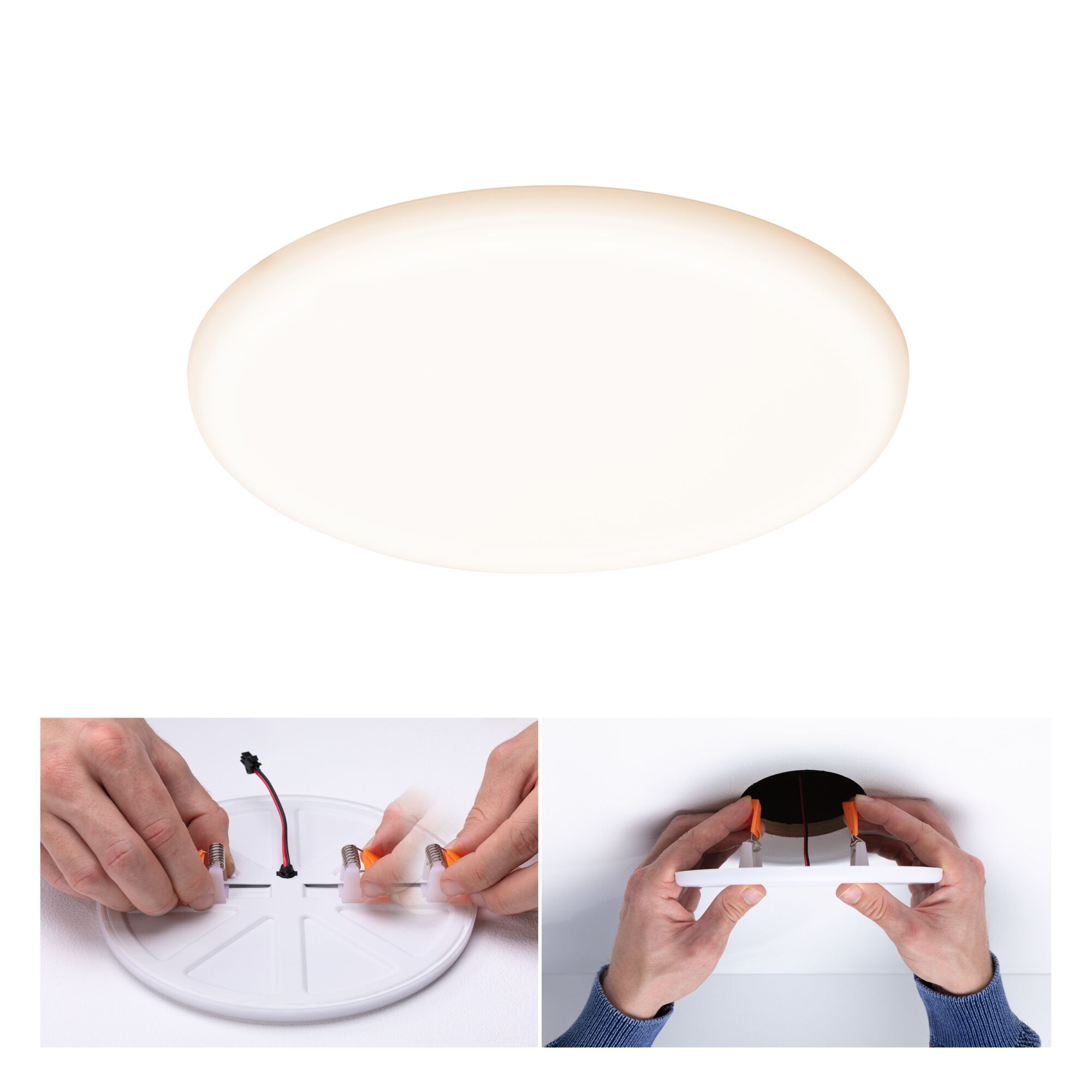

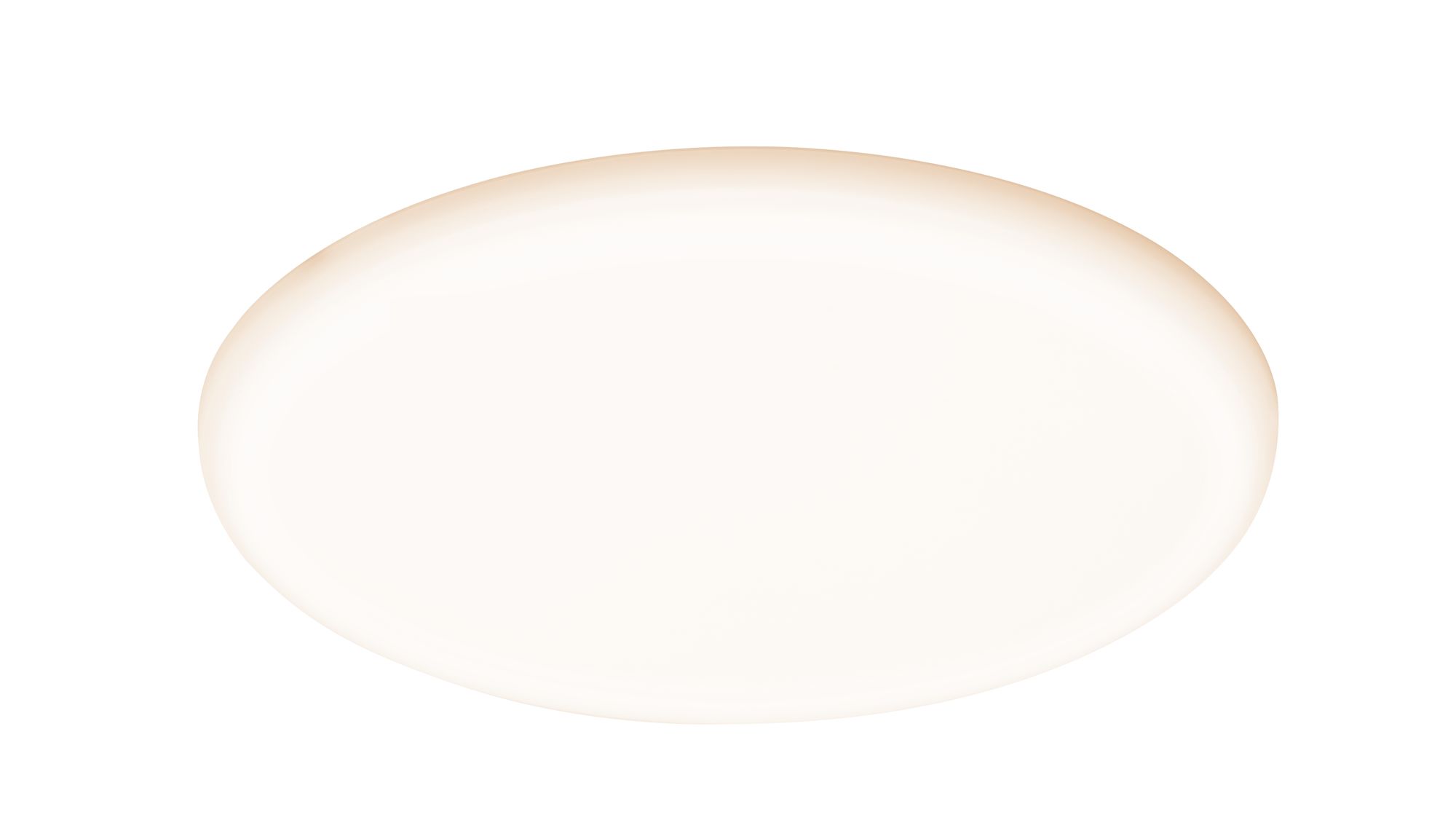

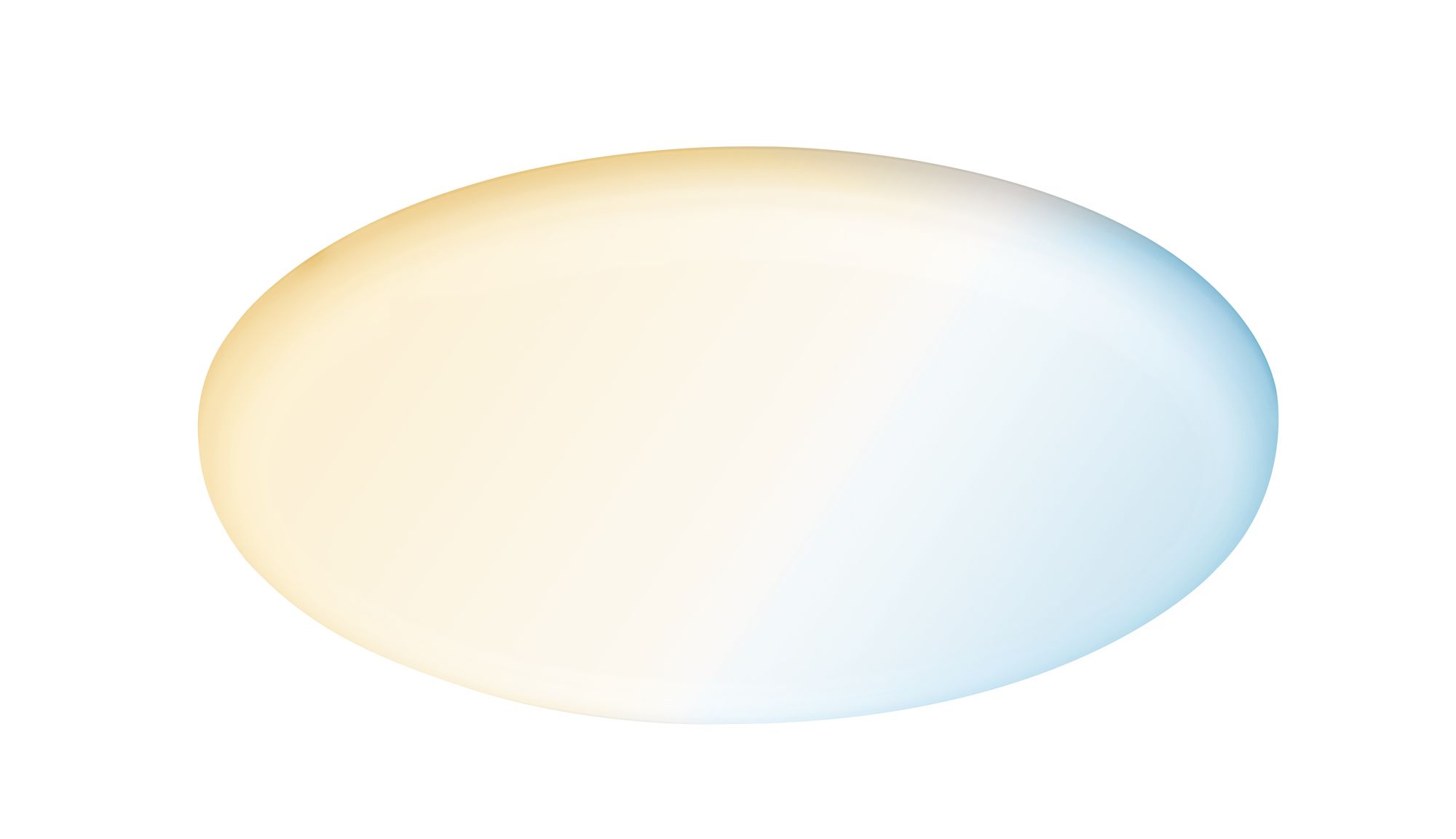

More versatile than ever before The Veluna VariFit recessed panel, with a diameter of 215 mm, impresses with a completely frameless and uniform light surface. With an ultra-slim profile of just 10 mm, the panel virtually blends into the ceiling or wall. Thanks to its splash-proof protection, it is suitable for use in bathrooms or damp areas. The satin-finished surface of the diffuser plate ensures pleasant, even ambient lighting. The clamping springs for installation are infinitely adjustable to any standard mounting hole size between 60 and 190 mm, which makes replacing old systems much easier. With the Tunable White white light control, the light colour of the luminaire can be individually and continuously adjusted – everything is possible, from daylight white task lighting to warm white relaxation lighting. The luminaire is Zigbee 3.0 compatible. Zigbee is a wireless communication protocol that connects devices from different manufacturers.
- Usable with smart home gateways that have a Zigbee interface
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb

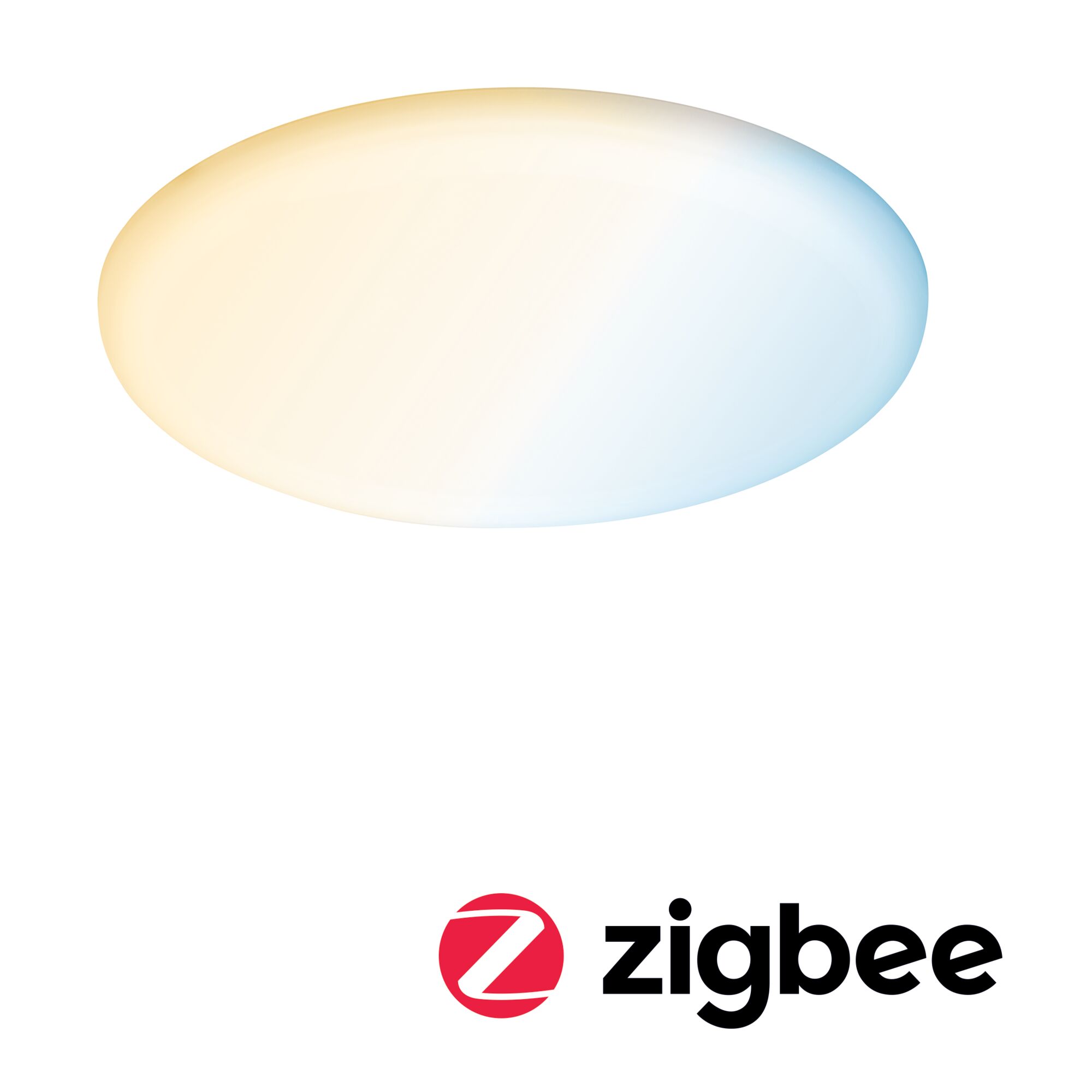

- With white-light control (Tunable White)
- Controllable with smart home Zigbee remote control

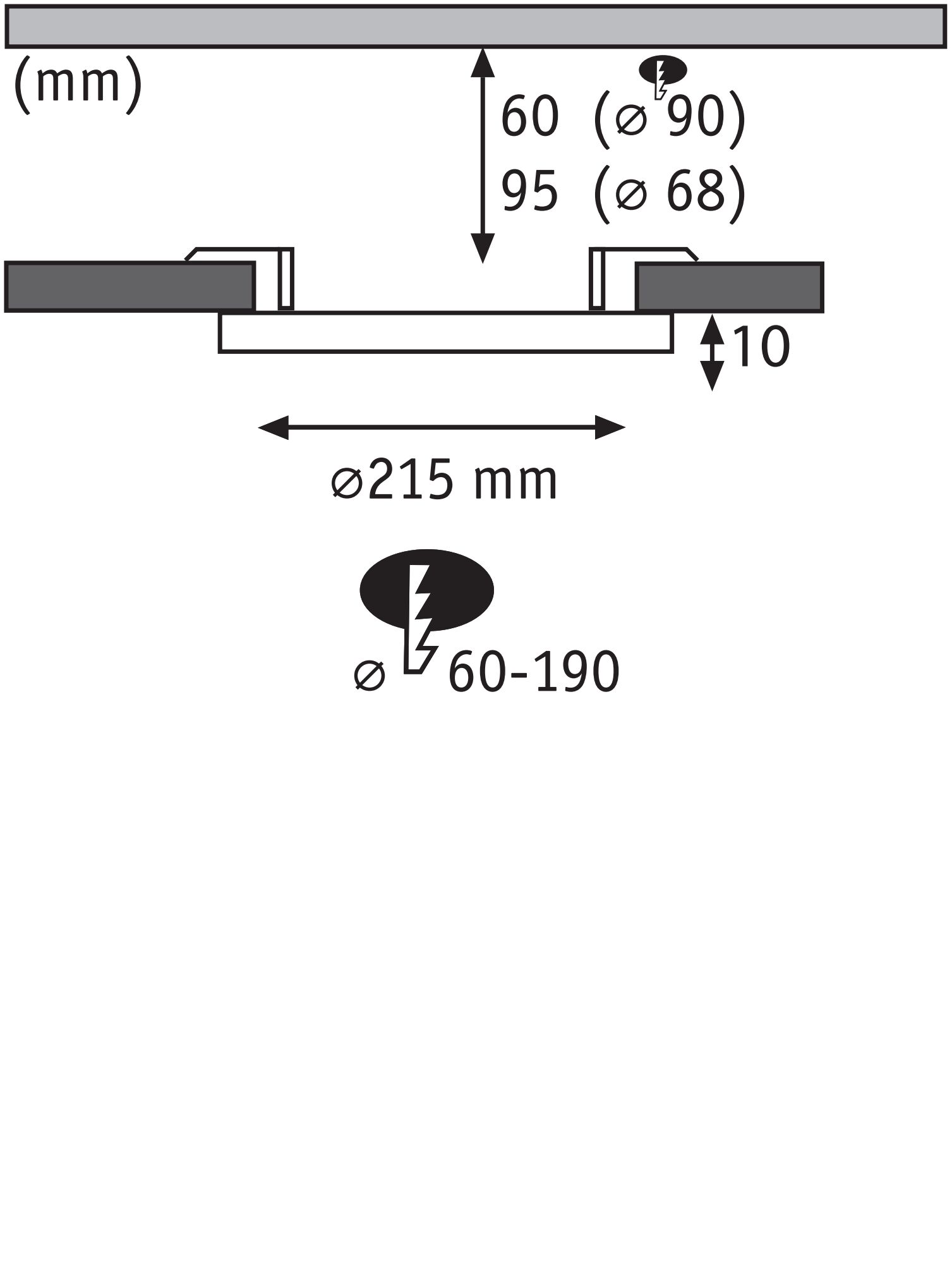

| Dimension | |
|---|---|
| Diameter | 215 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |

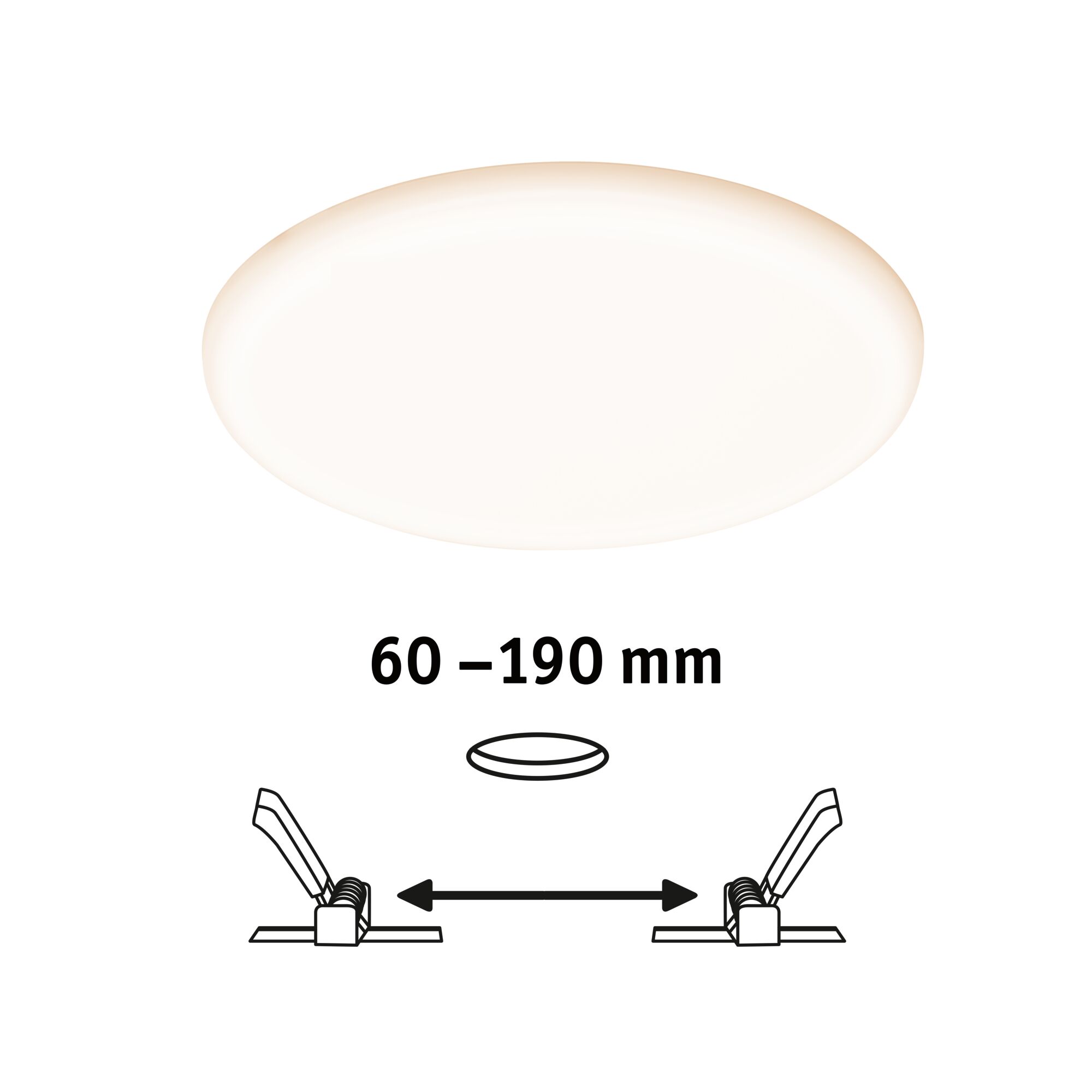

| Built-in diameter | 60 - 190 mm |
| Mounting depth | 75 mm |
| installation depth to | 110 mm |
| Depth of hollow wall | 60-95 mm |
| Net weight | 445 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling, Wall |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 17 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 120 W |
| Compatible Smart Home technology | Zigbee |
| IP Protection | IP44 |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 21 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 22 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Paulmann smik Gateway|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1300 lm |
| Colour change | Tunable White |
| Color rendering index | > 80 Ra |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 1900 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 10/31 mm |
