Article-No.:
79957

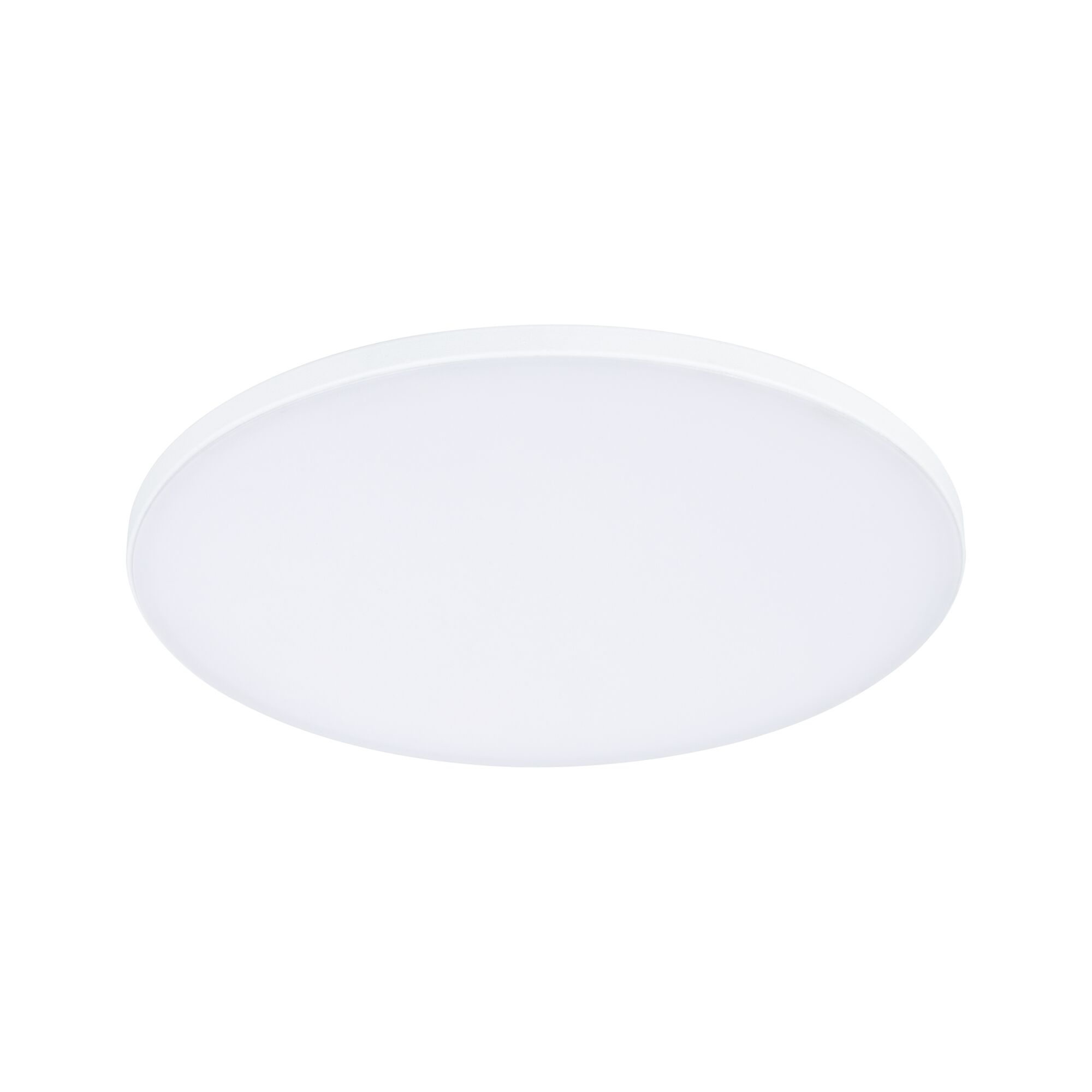

VariFit
LED Recessed panel
Smart Home Zigbee 3.0
Veluna Edge
IP44 round 200mm 18W 1400lm Tunable White White dimmable
IP44 round 200mm 18W 1400lm Tunable White White dimmable
- Especially flat construction

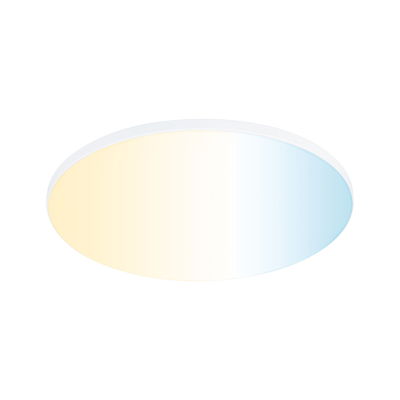

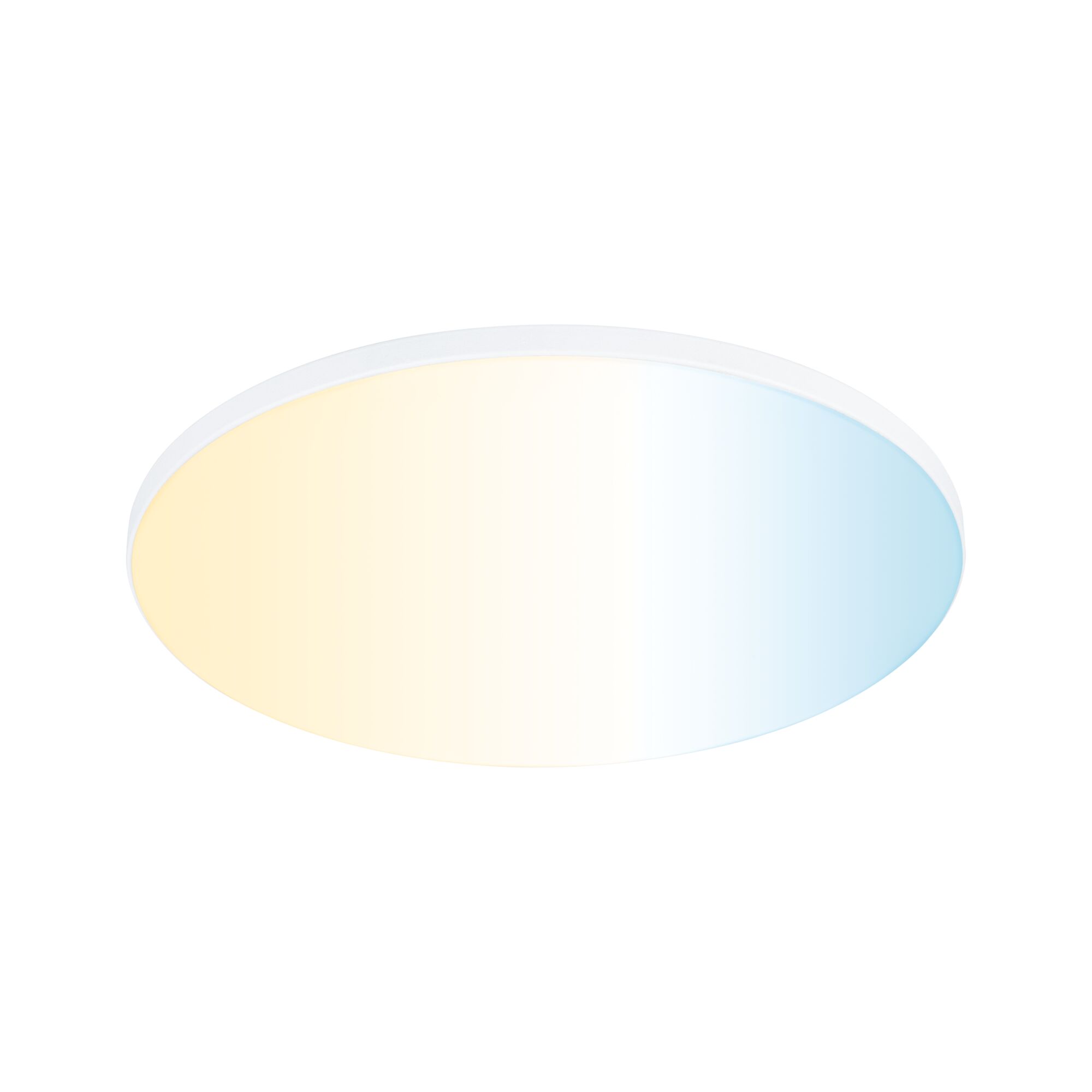

- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology

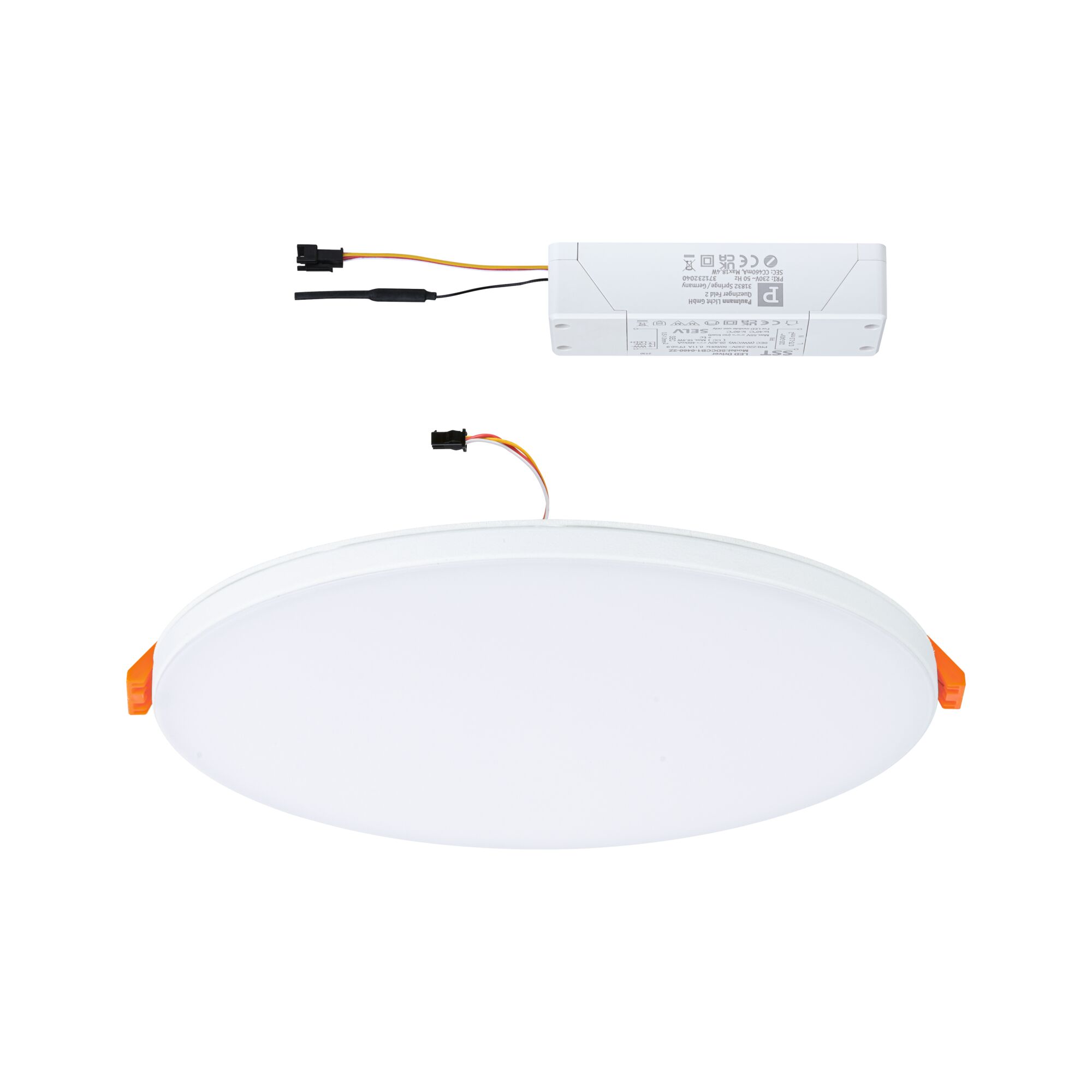

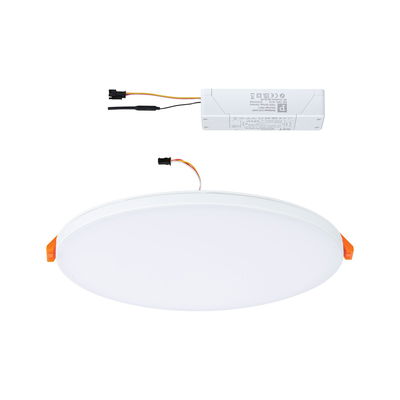

VariFit LED Recessed panel Smart Home Zigbee 3.0 Veluna Edge IP44 round 200mm 18W 1400lm Tunable White White dimmable

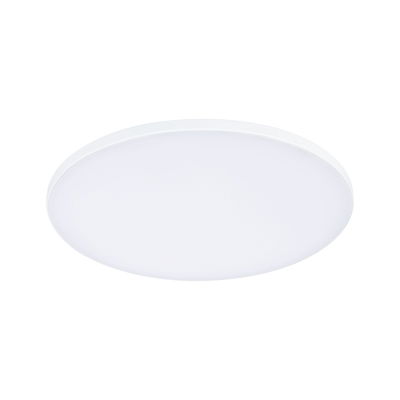

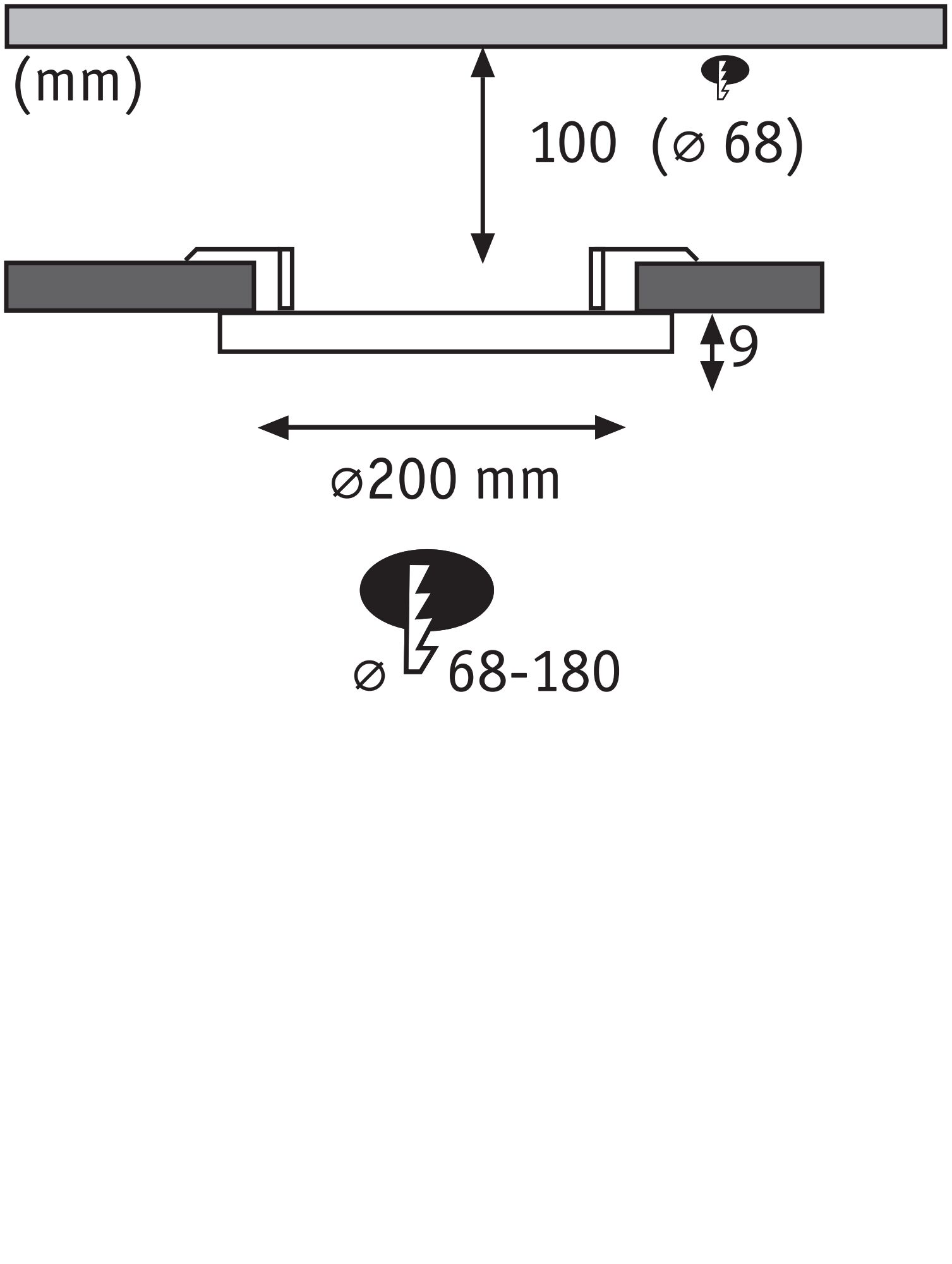

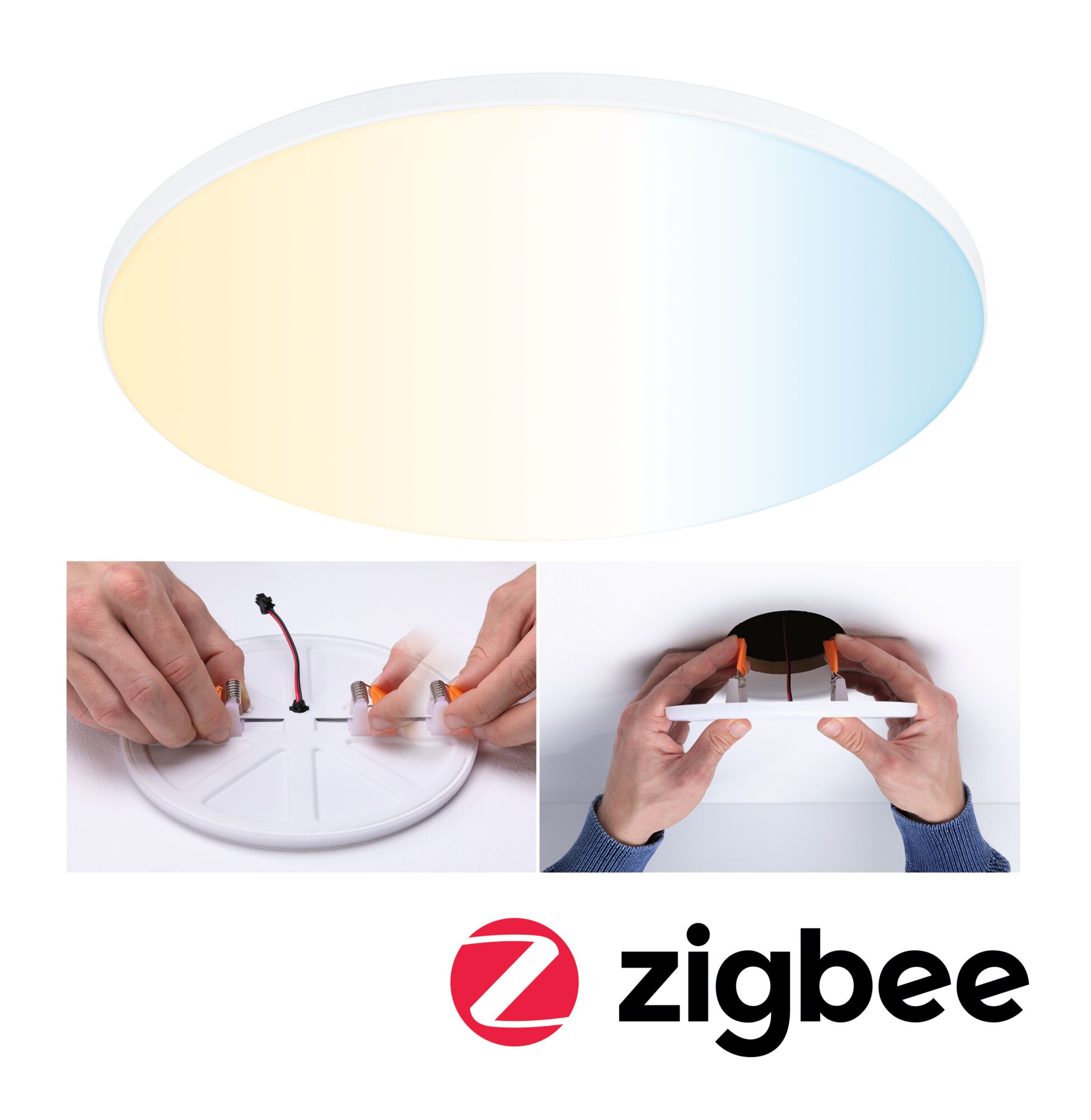

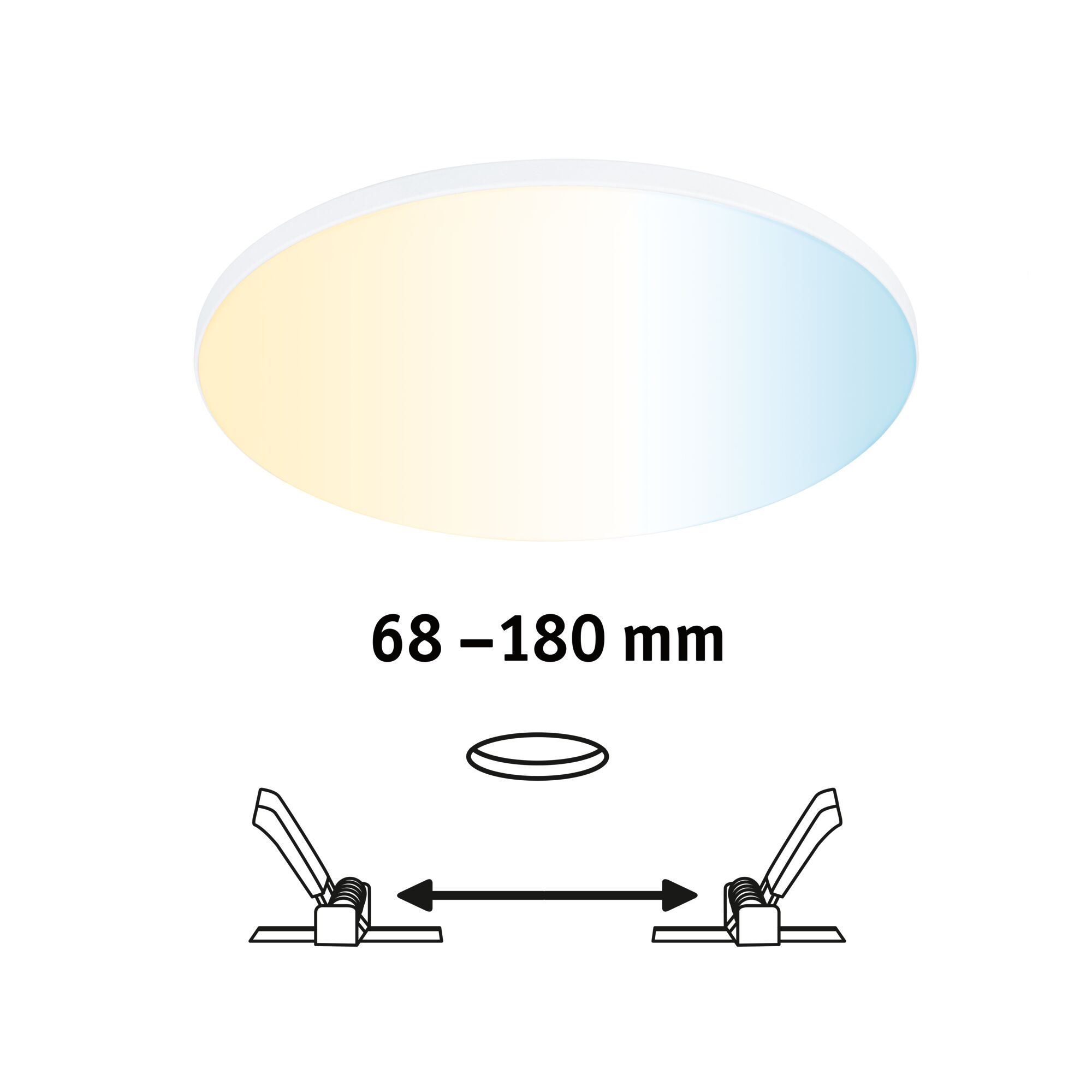

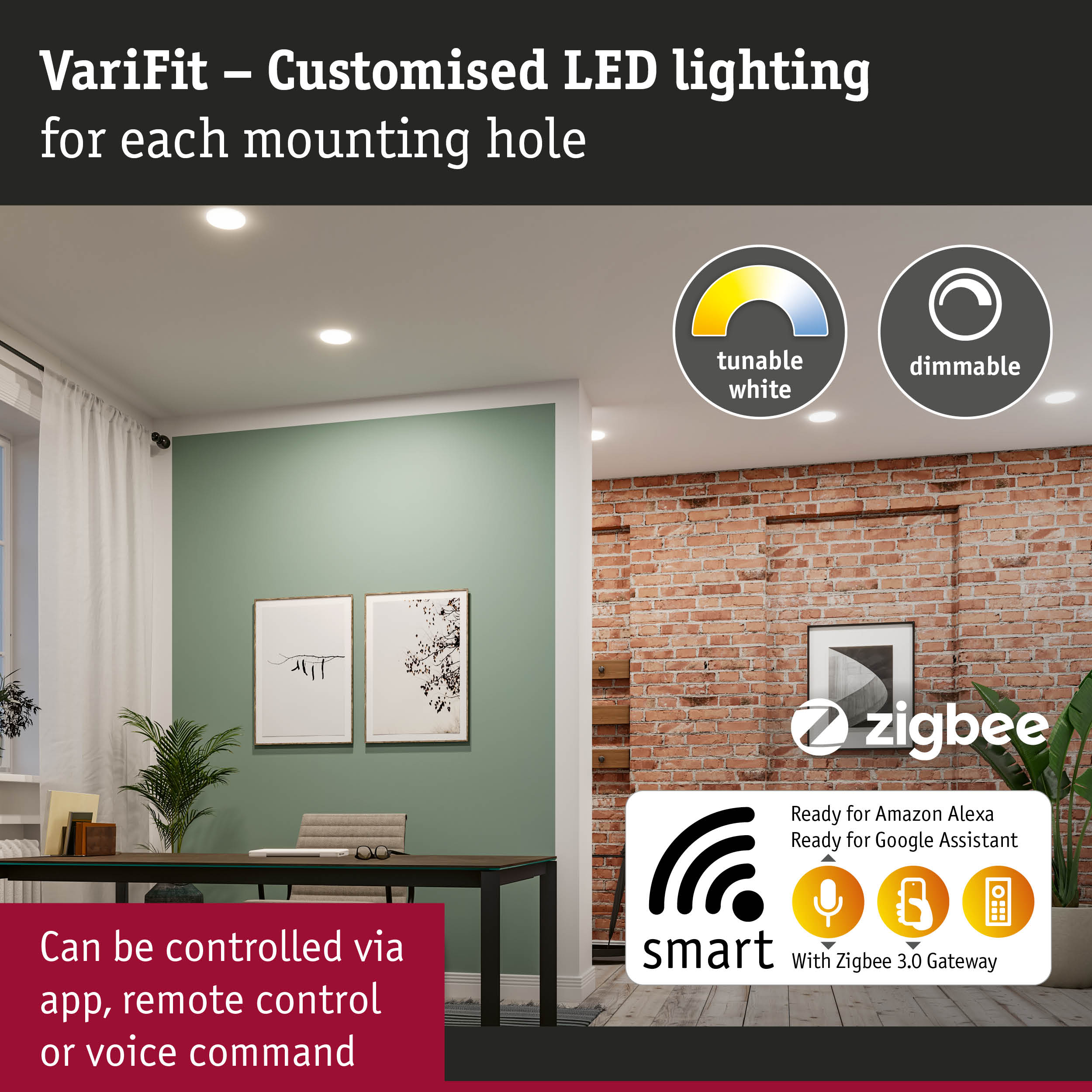

The Veluna VariFit Edge round recessed panel impresses with a modern, frameless design. The panel with a diameter of 200mm ensures a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 180 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 30 mm is needed. The satined plastic cover creates a delicately diffuse light. The Tunable White light control allows a custom, continuous selection of the light colour – anything from daylight white work light to warm white relaxation light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Especially flat construction
- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting

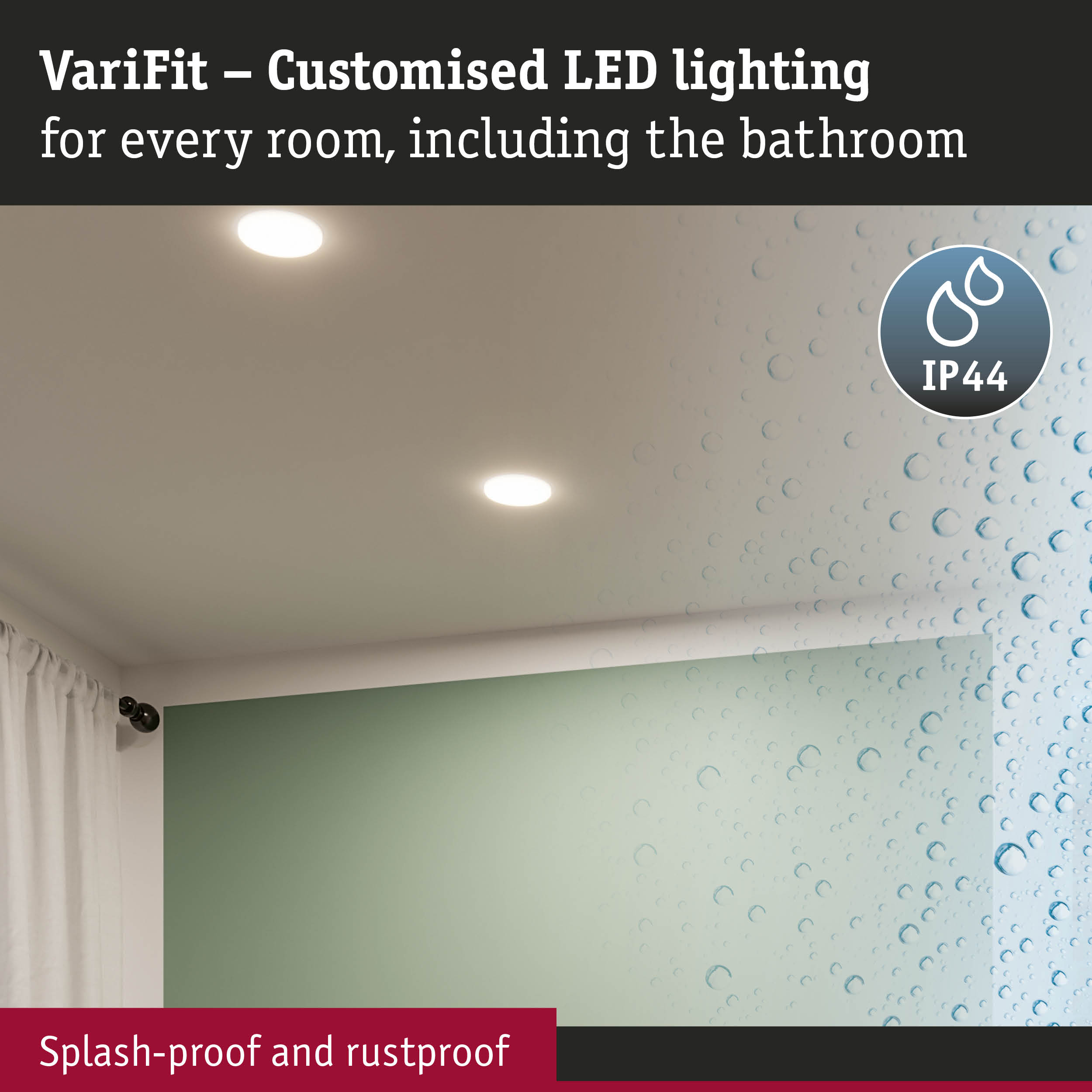

- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light

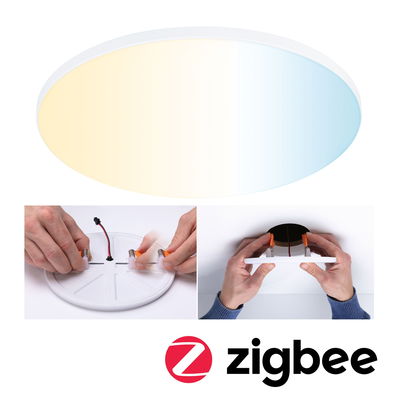

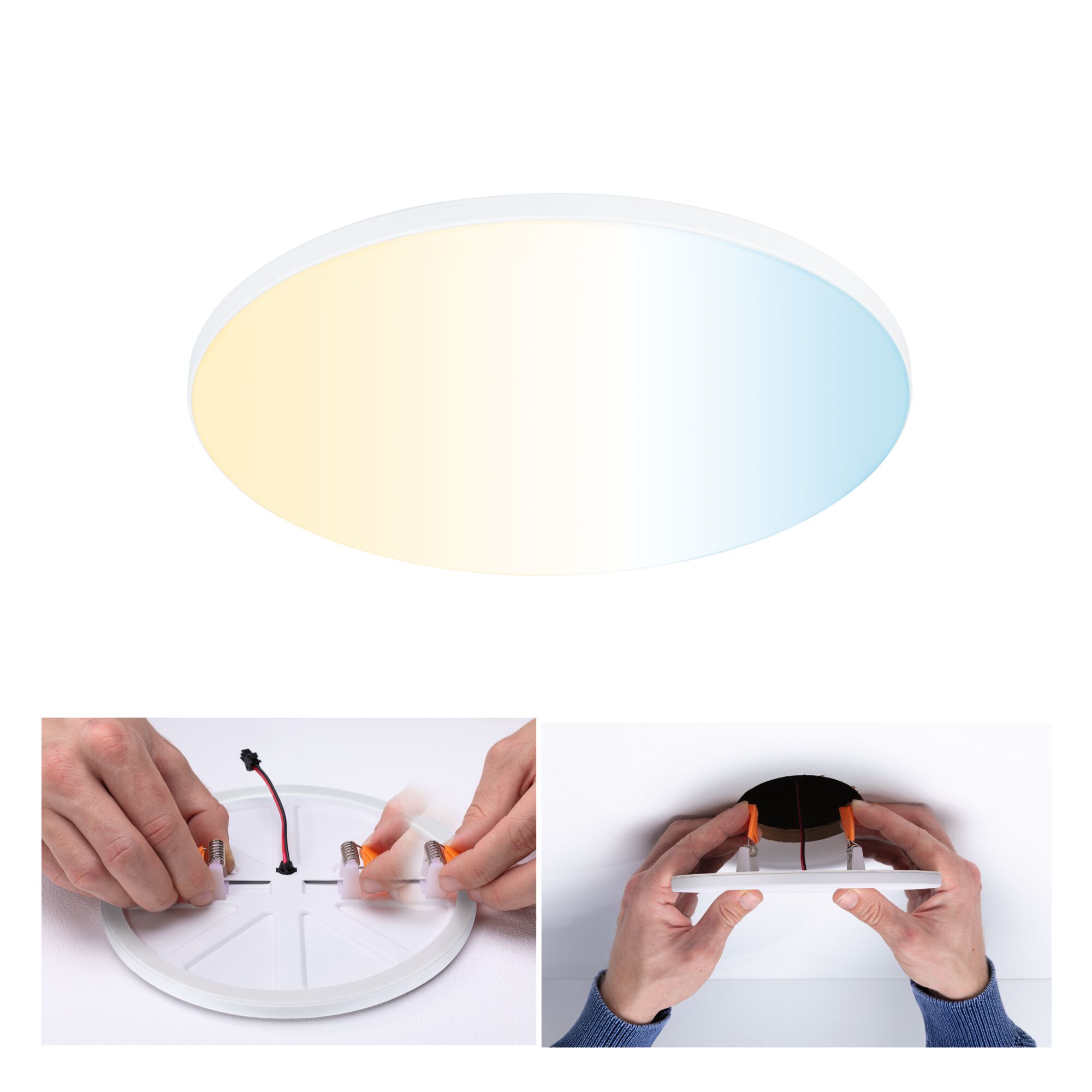

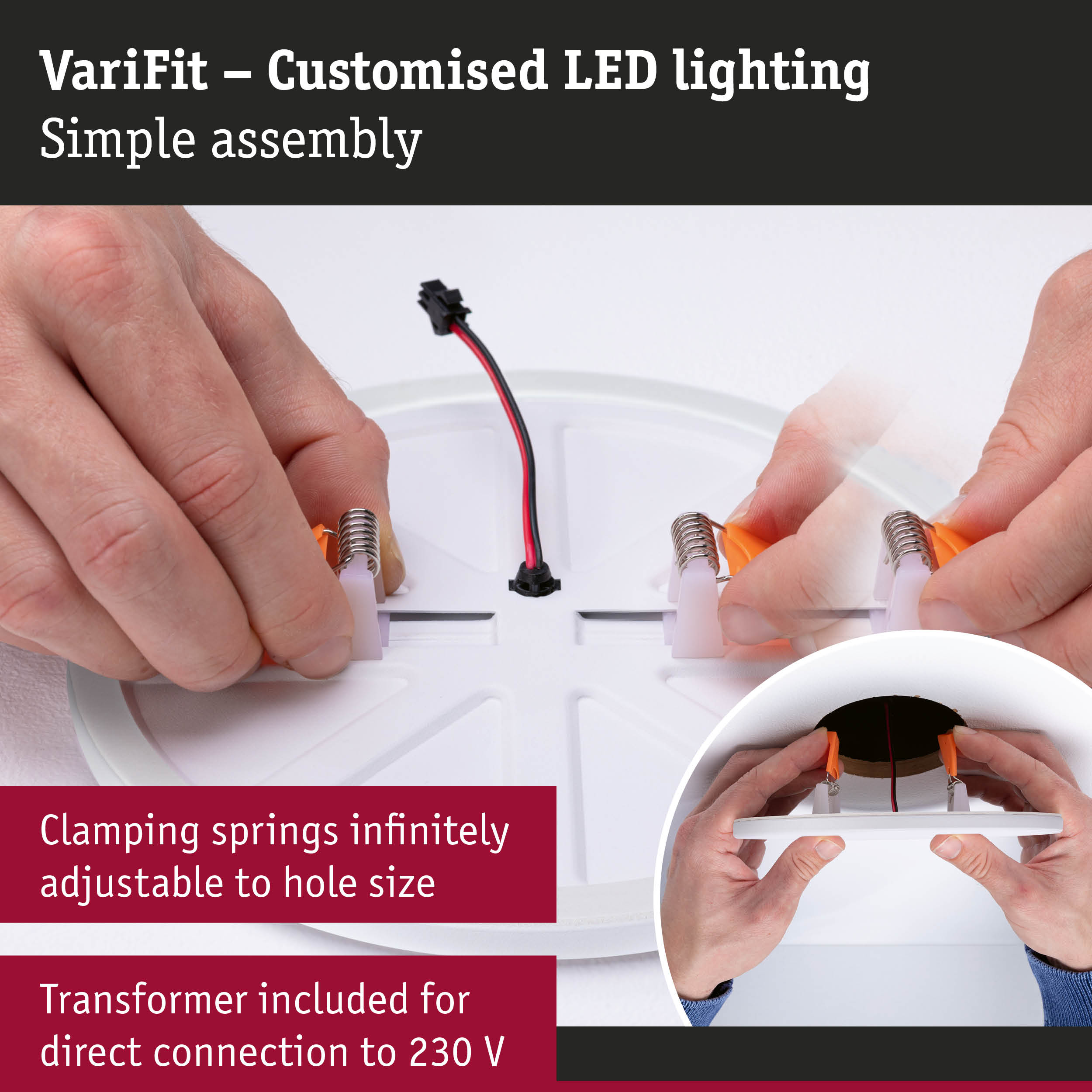

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 9 mm |
| Ø | 200 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Tunable White |
| Usable luminous flux | 1400 lm |
| Luminous flux LED module | 2000 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 18 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 125.7 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 20 W |
| Transformer | |
|---|---|
| apparent power | 22 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
