Article-No.:
92989
VariFit
LED Recessed panel
Dim to Warm
Areo

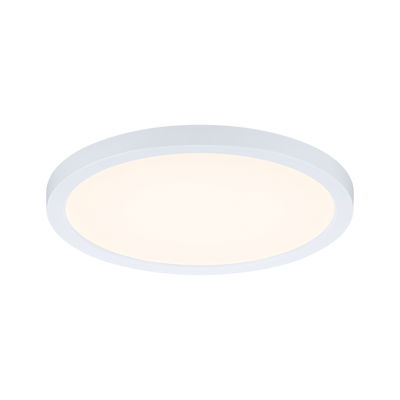

IP44 round 175mm 13W 1200lm 3 Step Dim to warm Matt white dimmable
IP44 round 175mm 13W 1200lm 3 Step Dim to warm Matt white dimmable

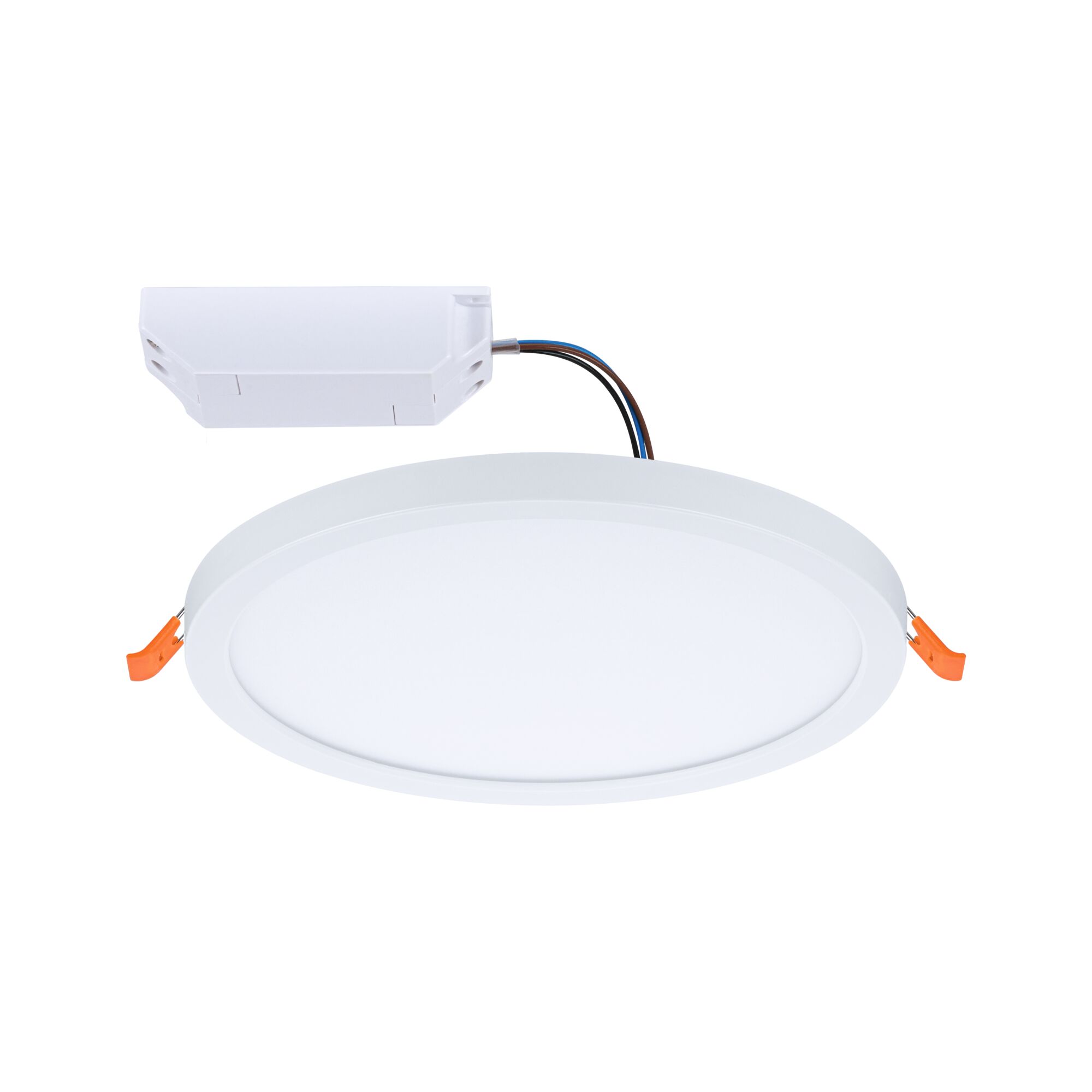

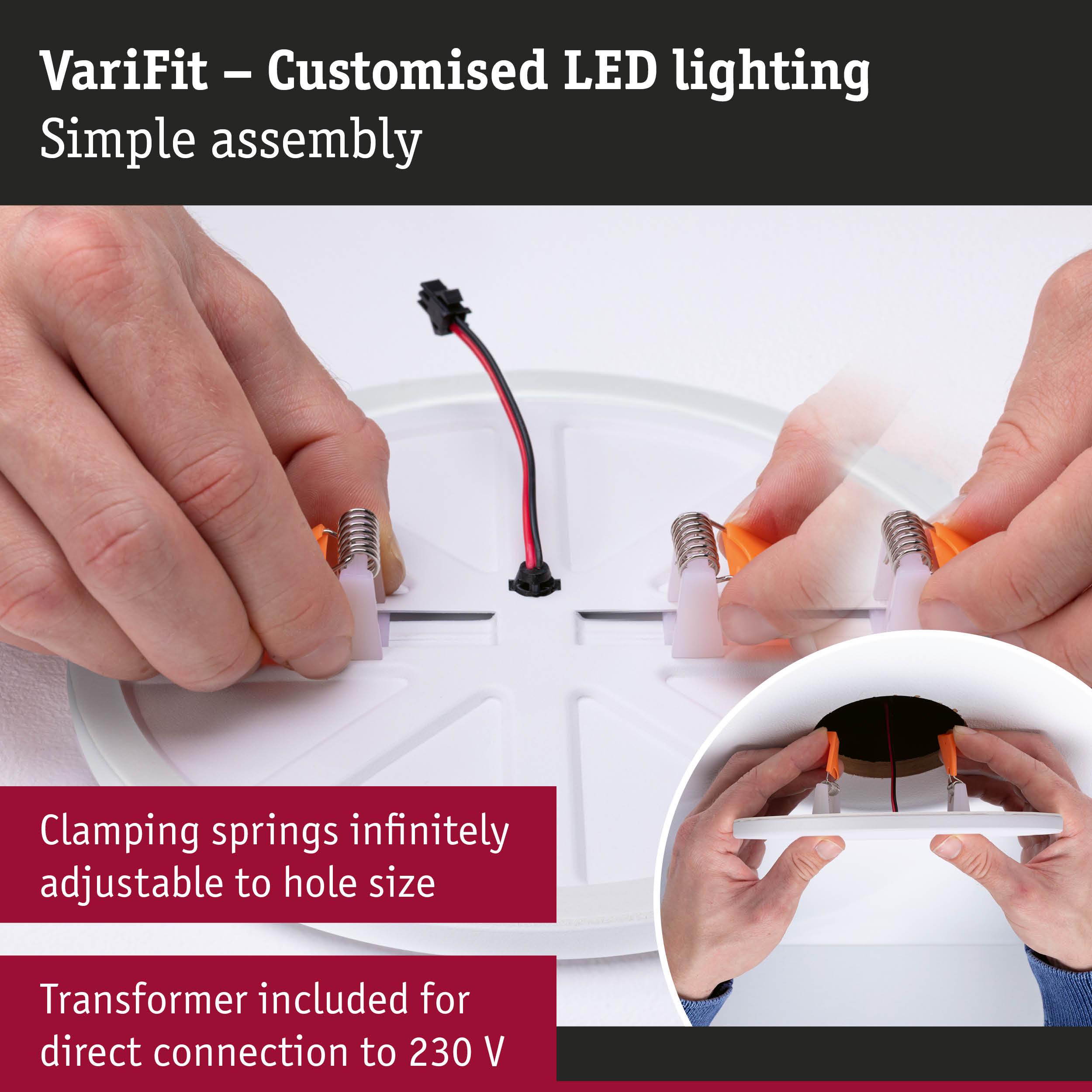

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Made of easy-care plastic
VariFit LED Recessed panel Dim to Warm Areo IP44 round 175mm 13W 1200lm 3 Step Dim to warm Matt white dimmable

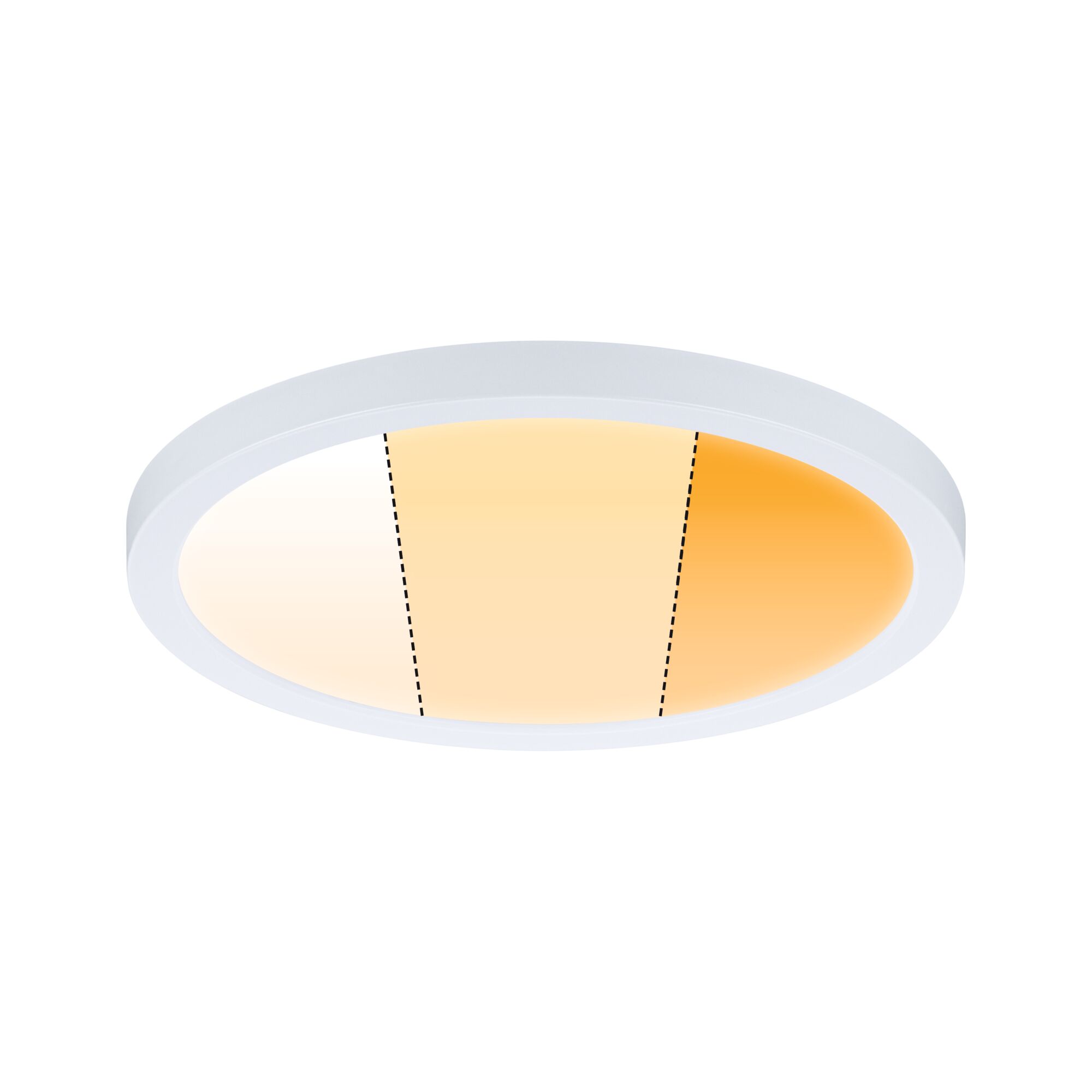

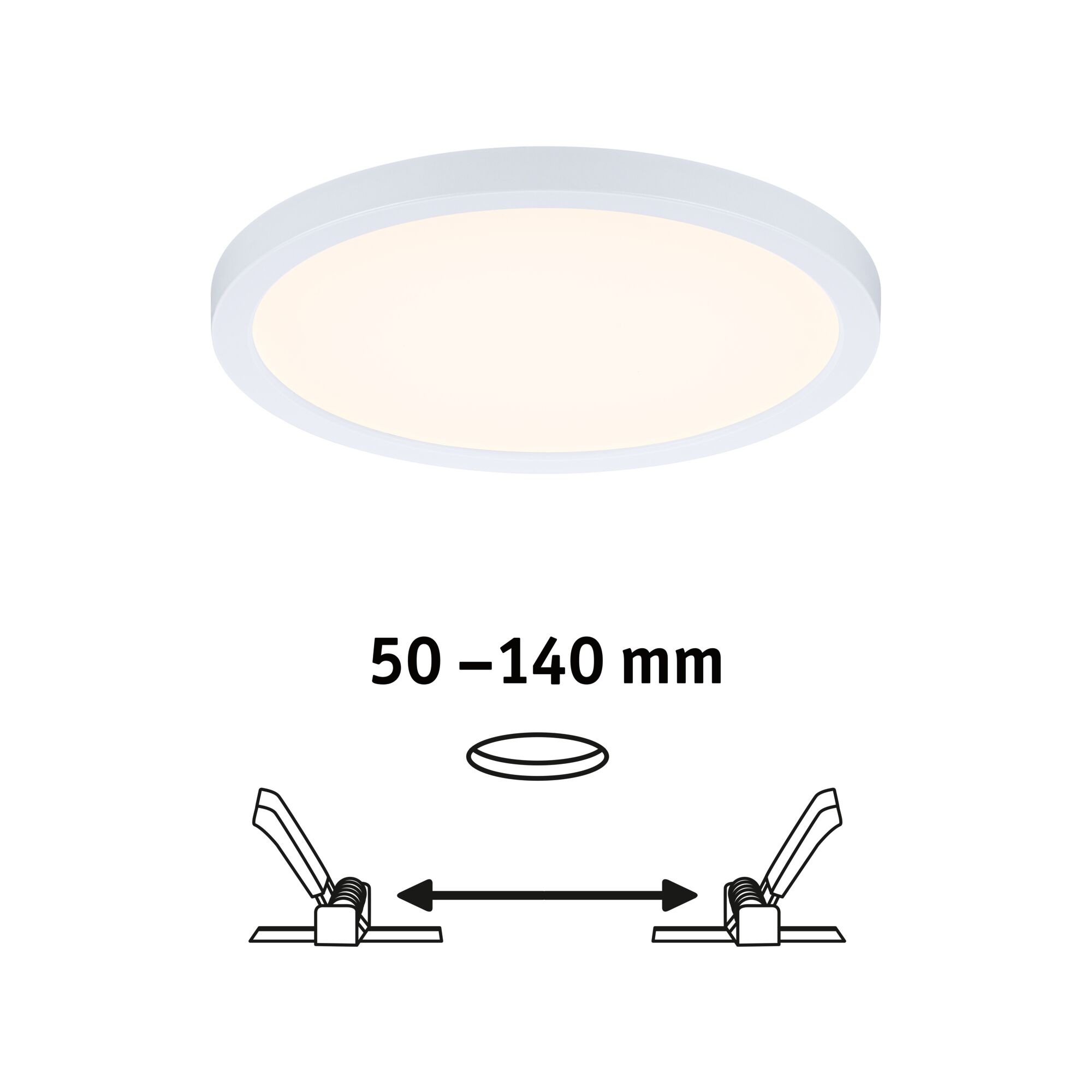

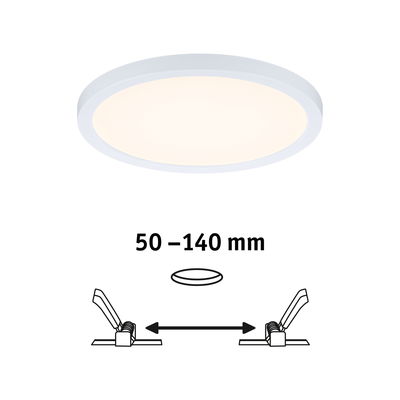

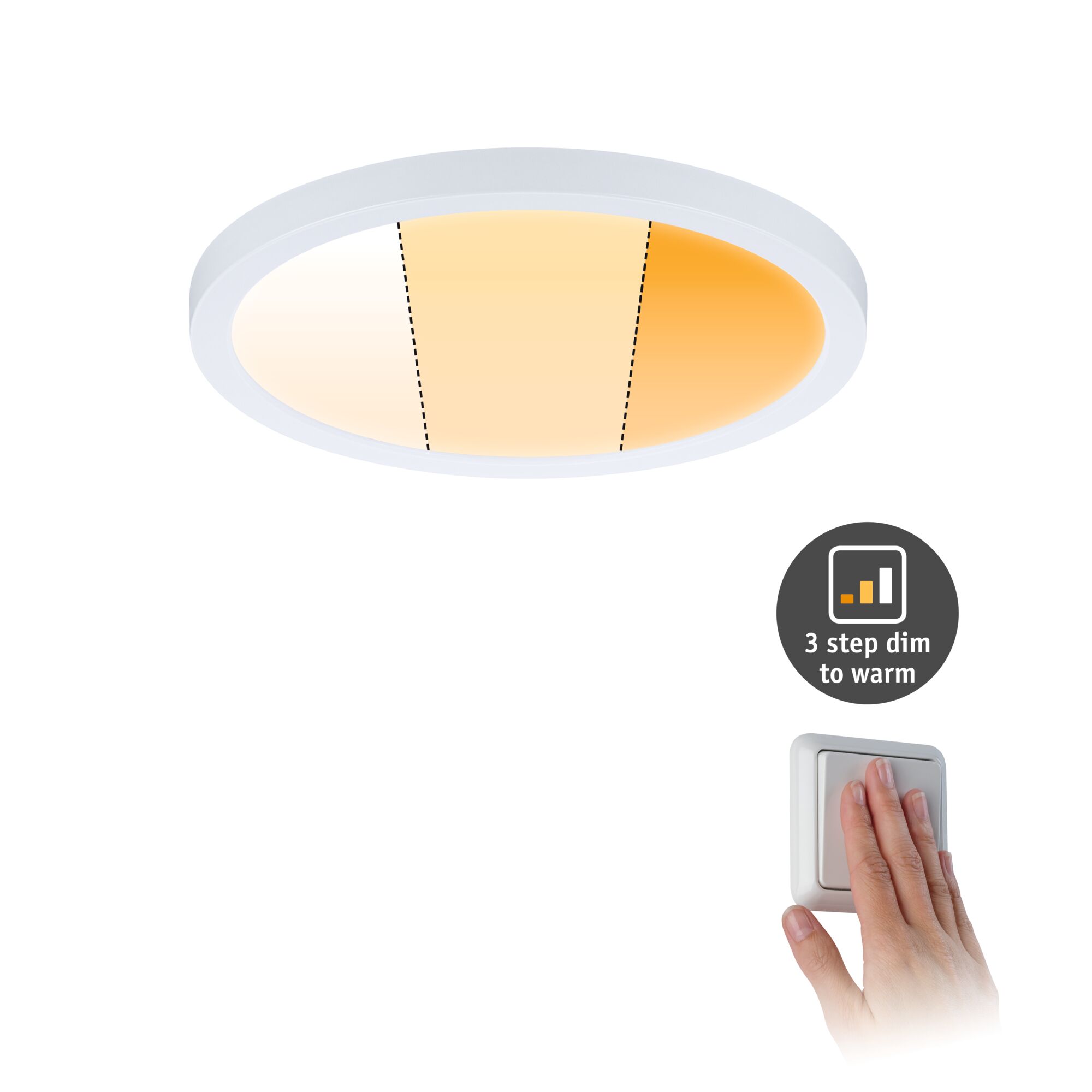

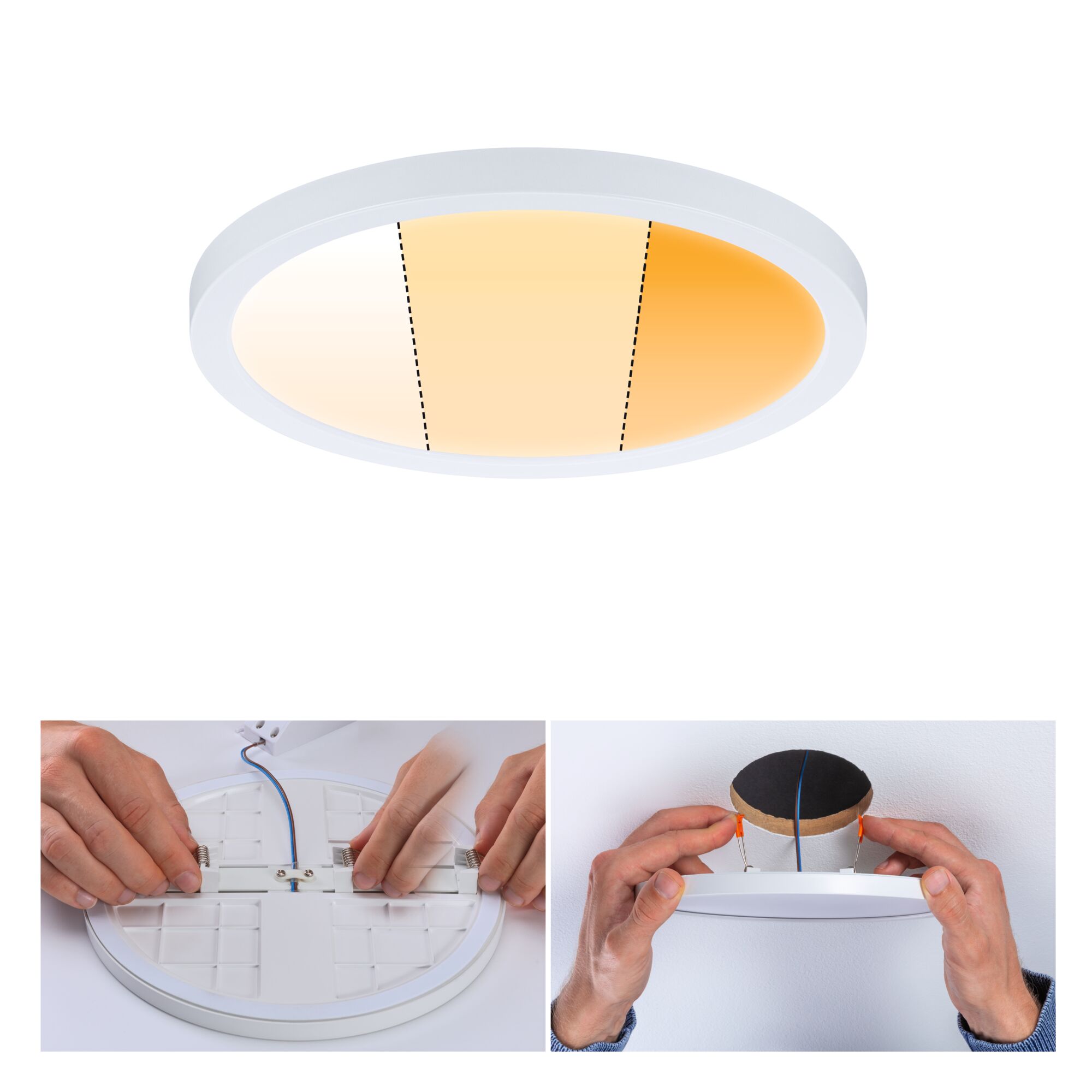

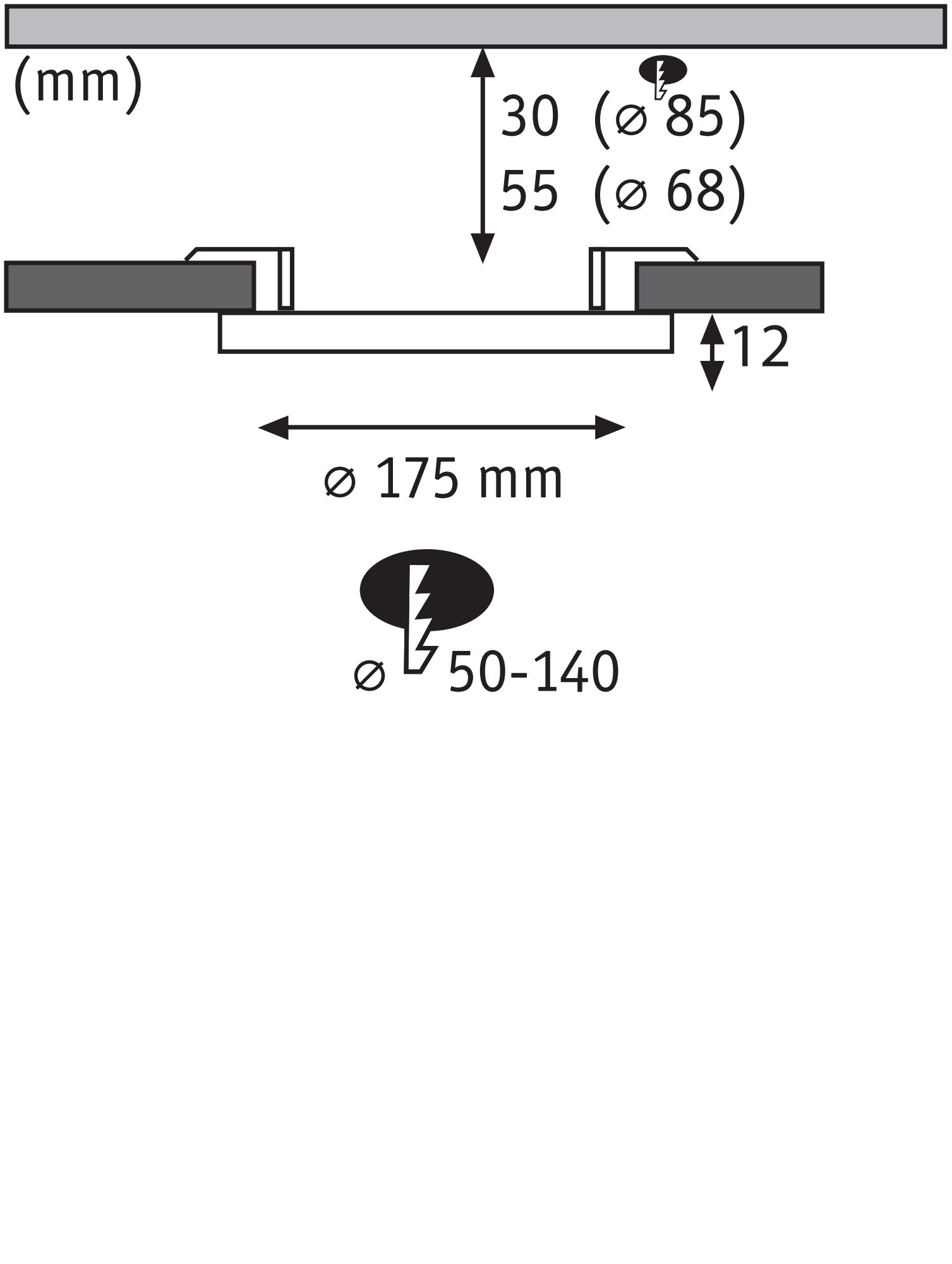

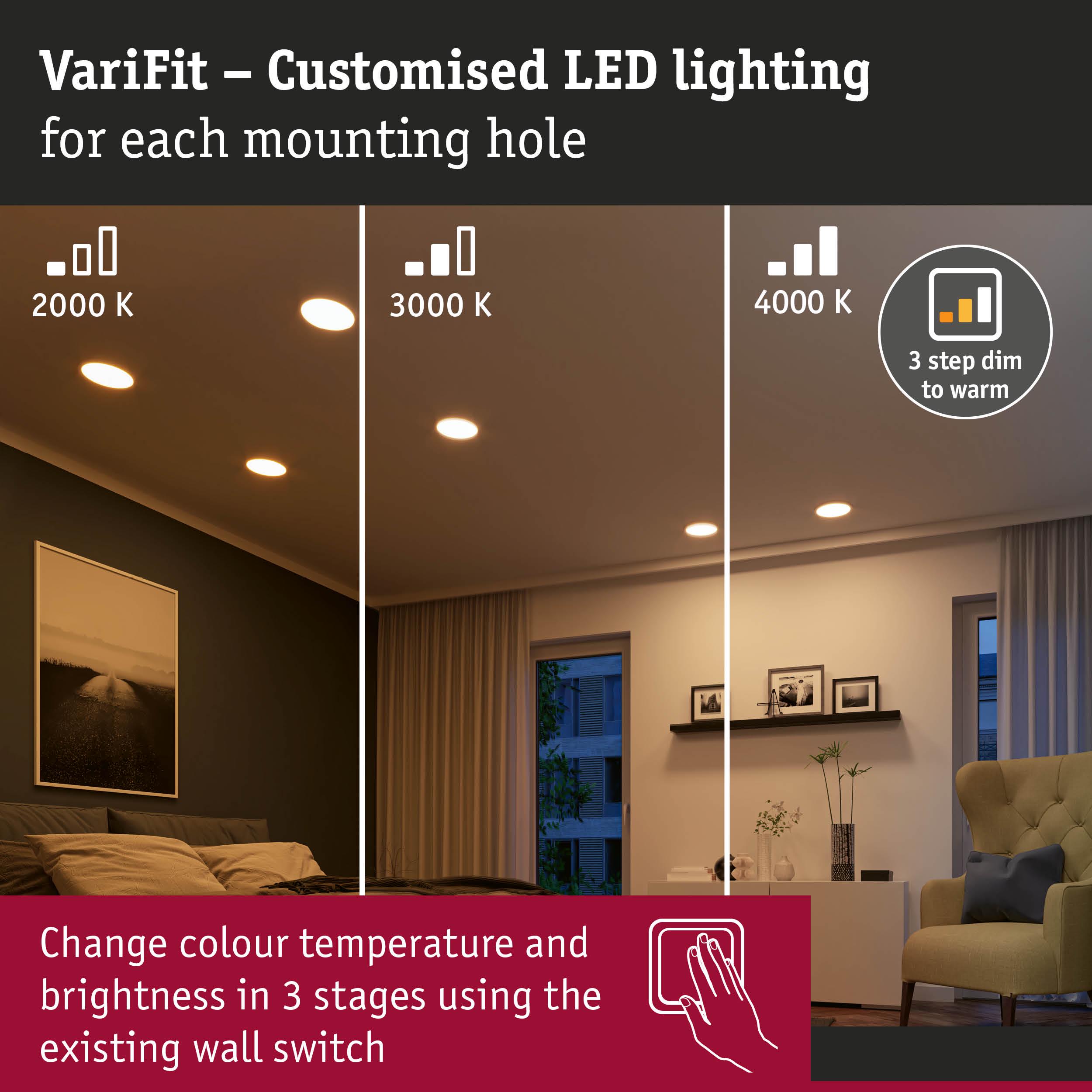

The light colour of the round WarmDim Areo recessed panel in Matt white with a diameter of 175 mm can be individually adjusted. Pressing the light switch cycles through three colour temperatures between 2,000 Kelvin (gold light) and 4,000 Kelvin (neutral white light). The lighting mood can therefore be changed according to individual requirements. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Made of easy-care plastic
- For 230 V direct connection

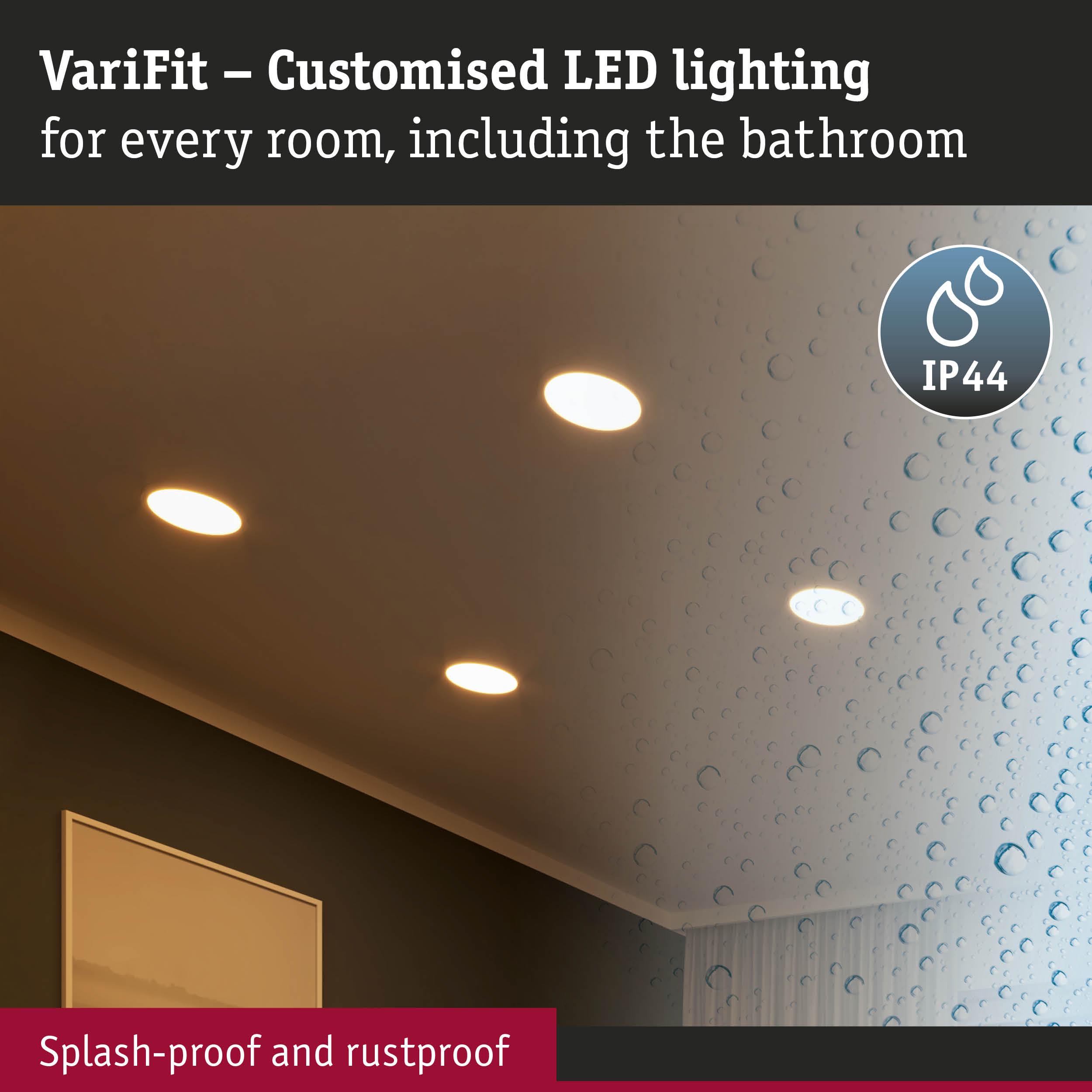

- IP protection: IP44 splash-protected
- Warmdimm function
| Dimension | |
|---|---|
| Diameter | 175 mm |
| Dimensions (Height x Width x Depth) | H: 12/26 mm |
| Built-in diameter | 50 - 140 mm |
| Mounting depth | 45 mm |
| installation depth to | 70 mm |
| Depth of hollow wall | 30-55 mm |
| net weight | 333 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Matt white |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1200 lm |
| Colour change | 3 Step Dim to warm |
| Color rendering index | > 80 Ra |
| Colour temperature to | 4000 K |
| Colour temperature | Gold light to Neutral white, 2000 K |
| Luminous flux LED module | 1700 lm |
| Lamp Features | |
|---|---|
| Dimming Control | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Component parts | 13 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 106 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 15 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 30 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
