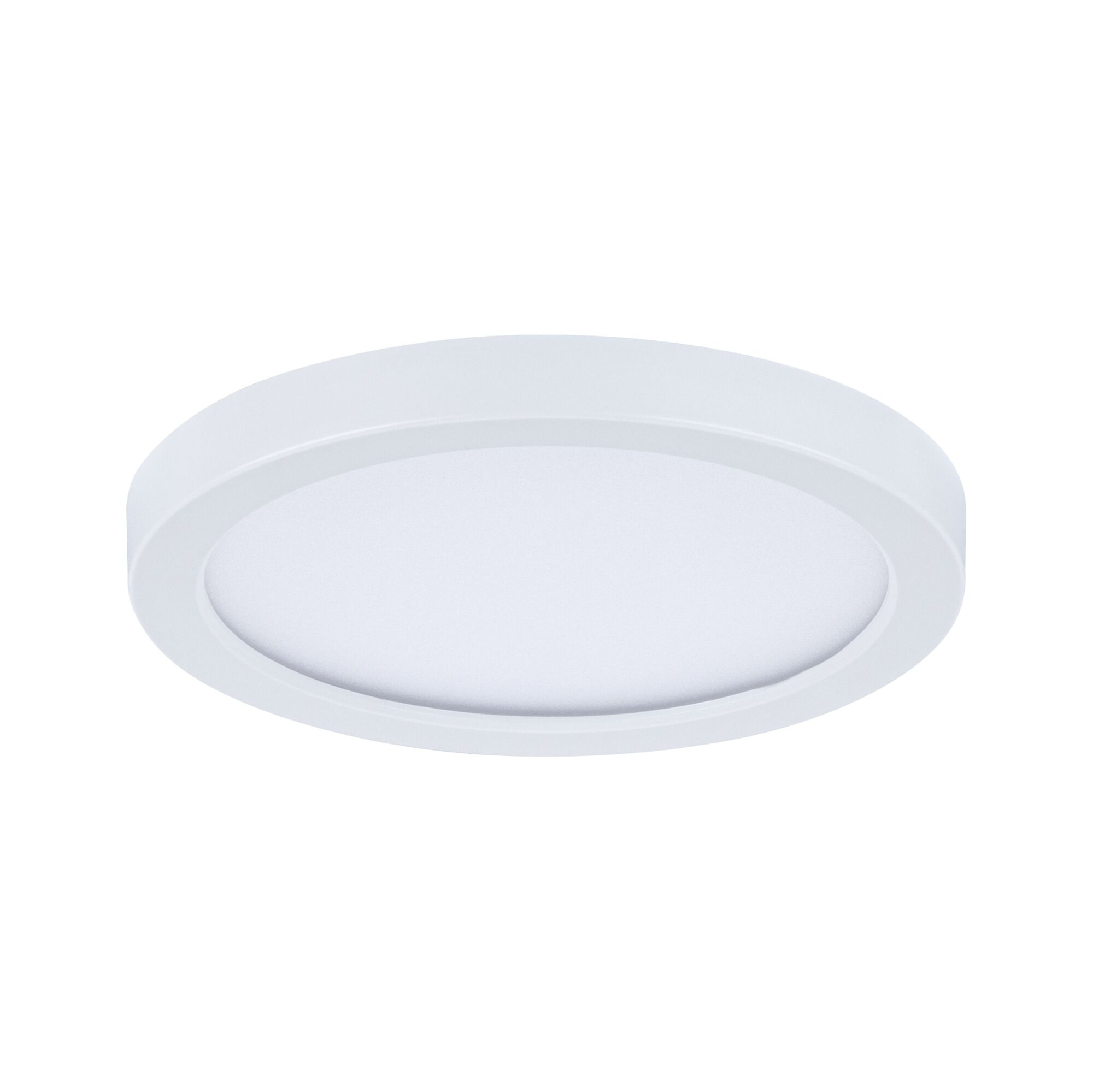

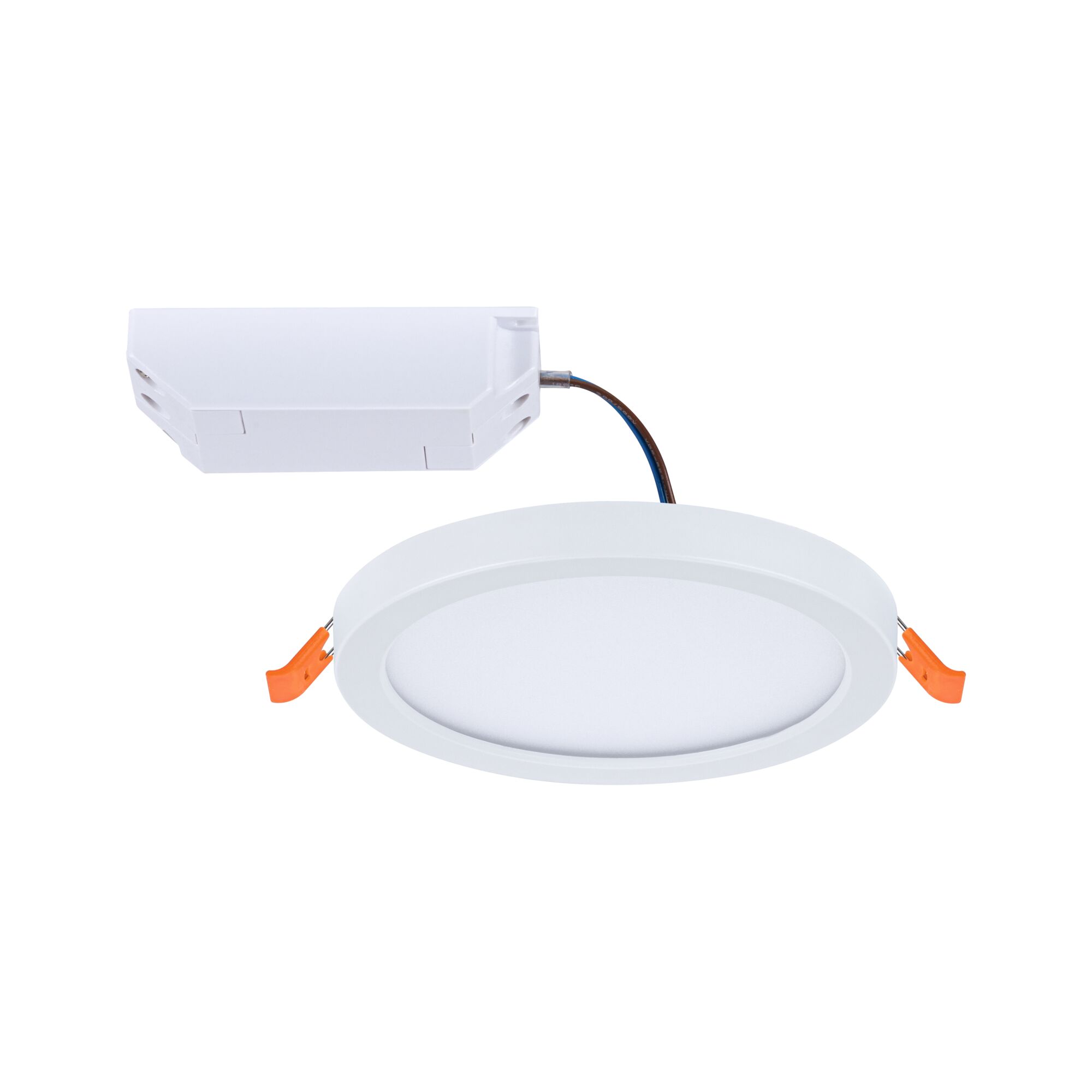

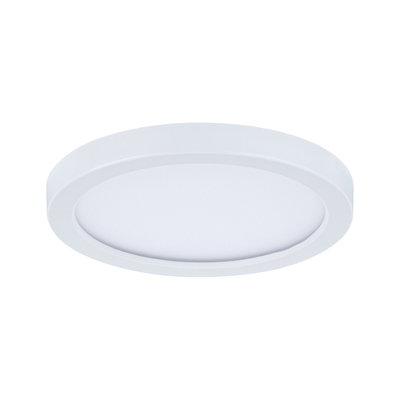

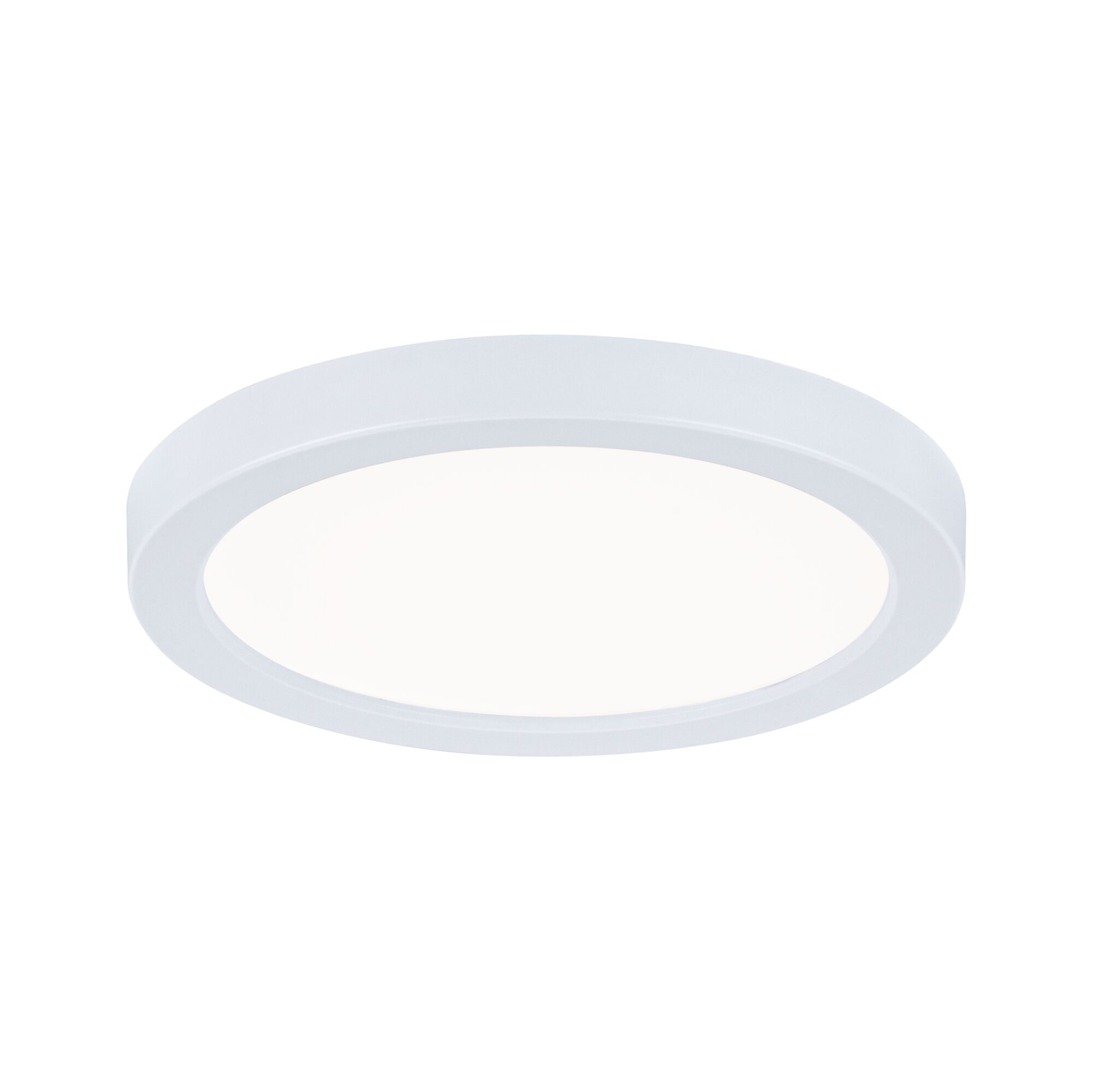

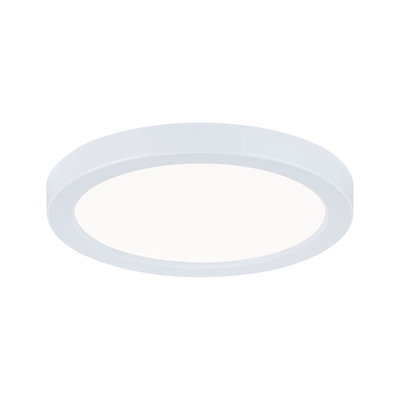

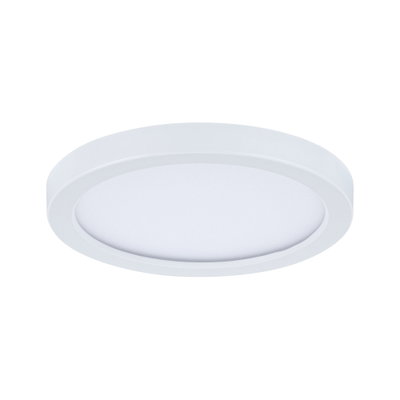

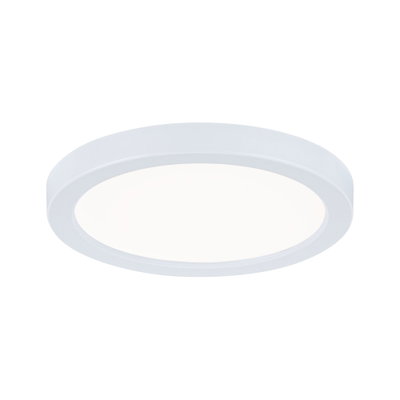

VariFit LED Recessed panel Areo IP44 round 118mm 6,5W 500lm 4000K White

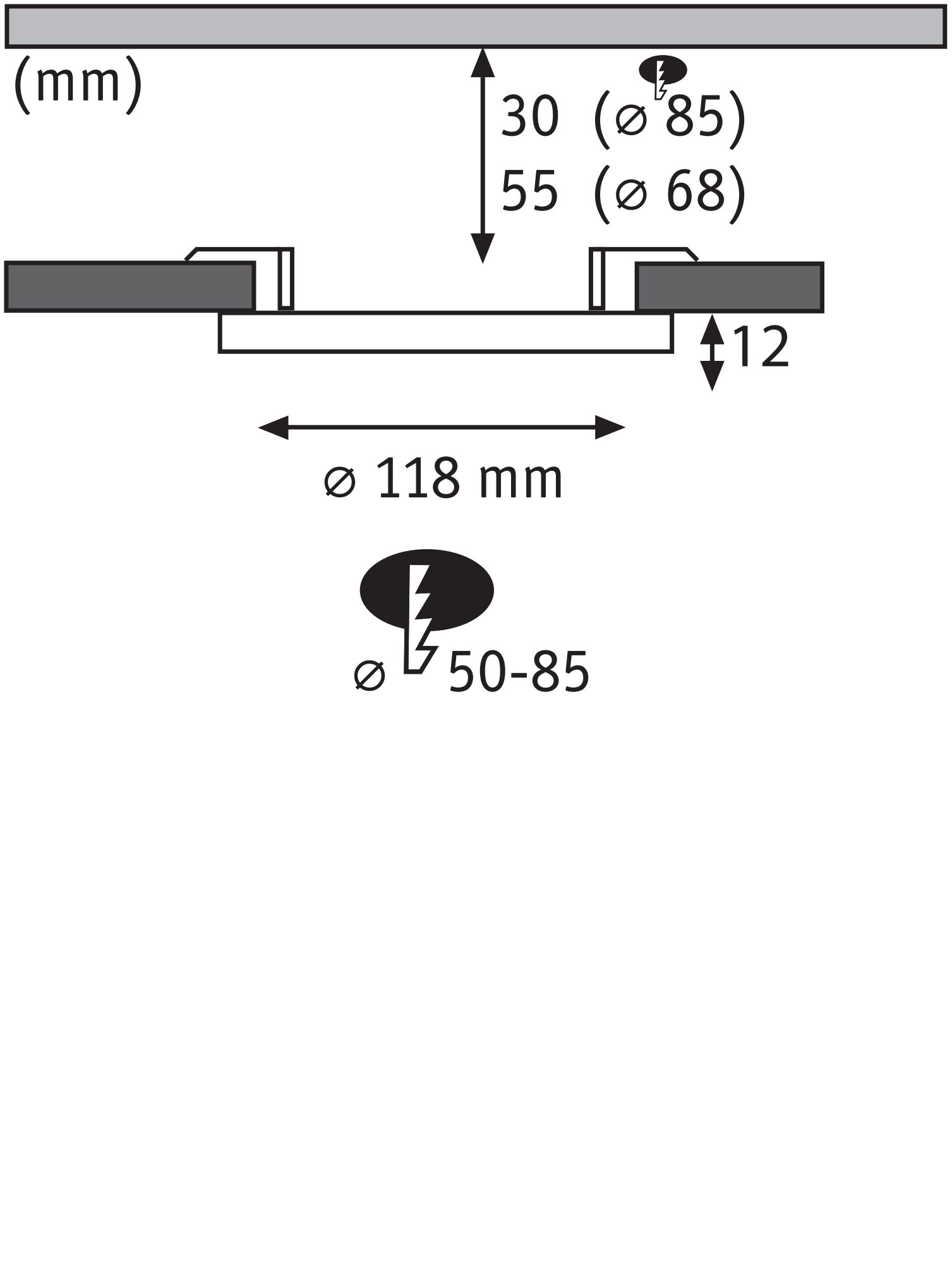

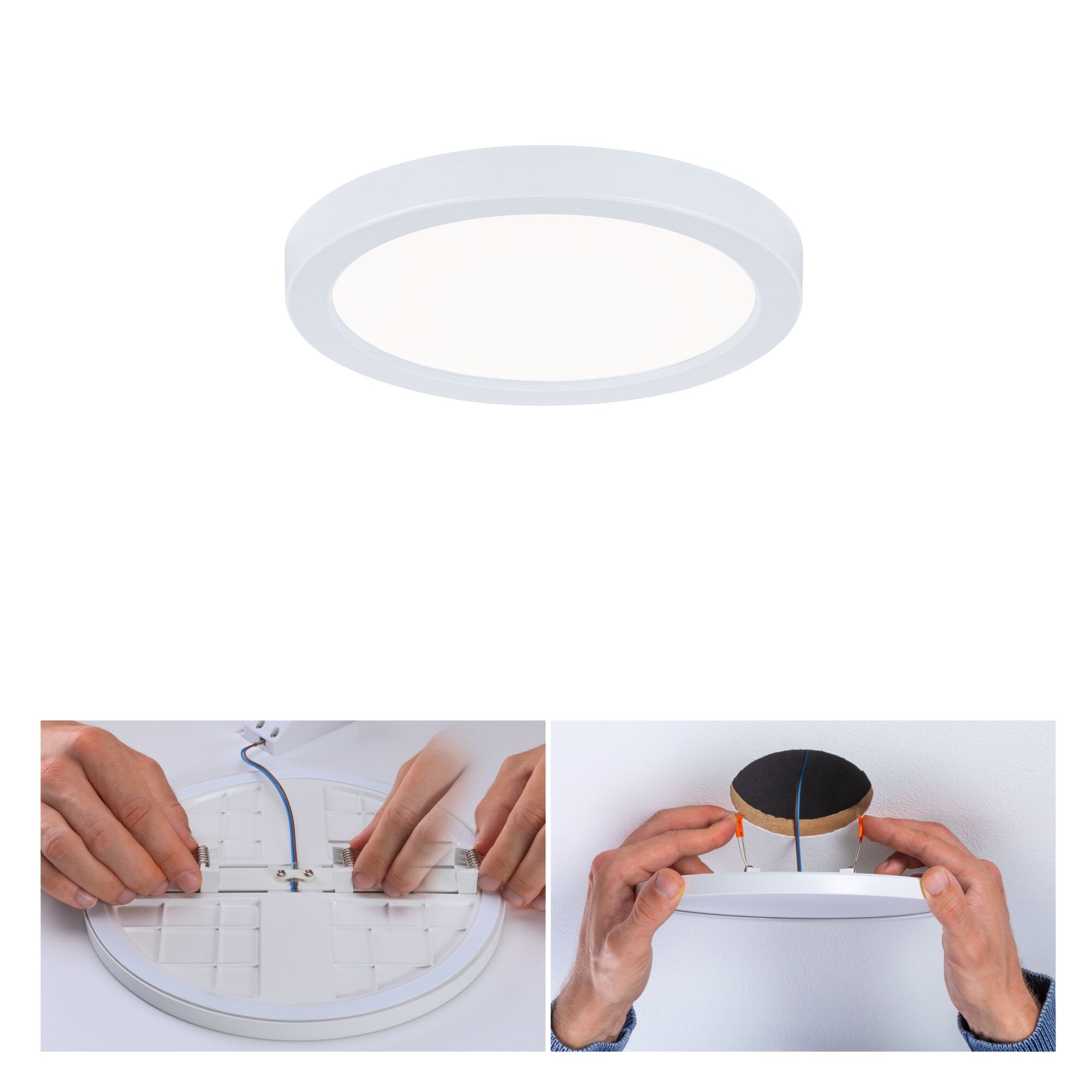

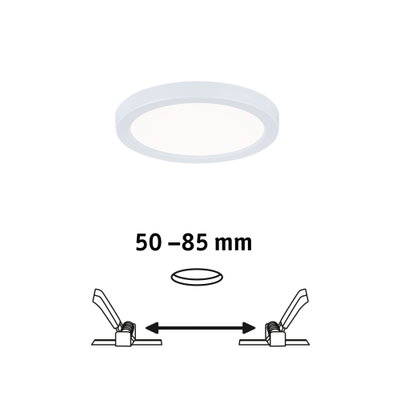

The round Areo recessed panel with a diameter of 118 mm and an output of 6,5 watts in White provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 85 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.

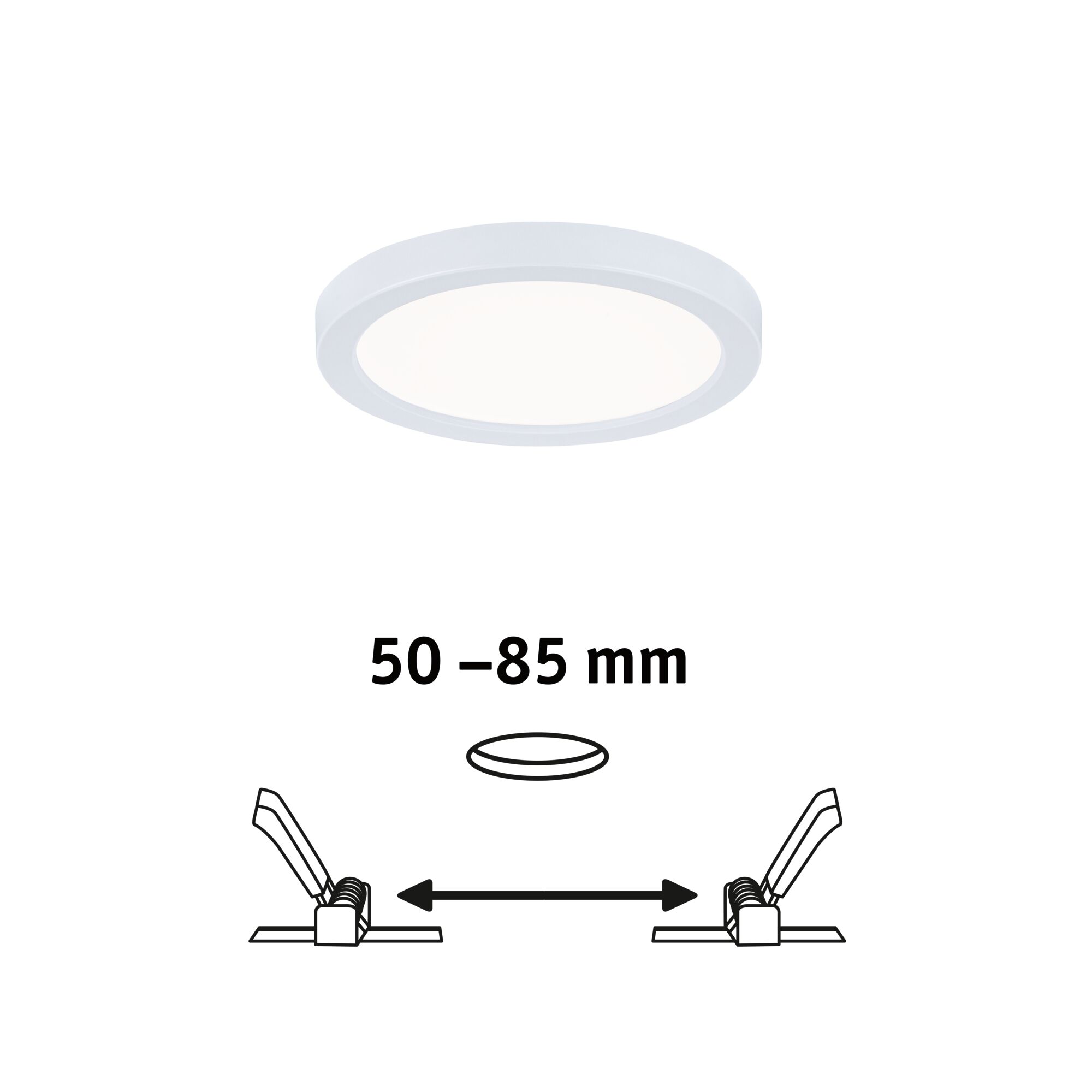

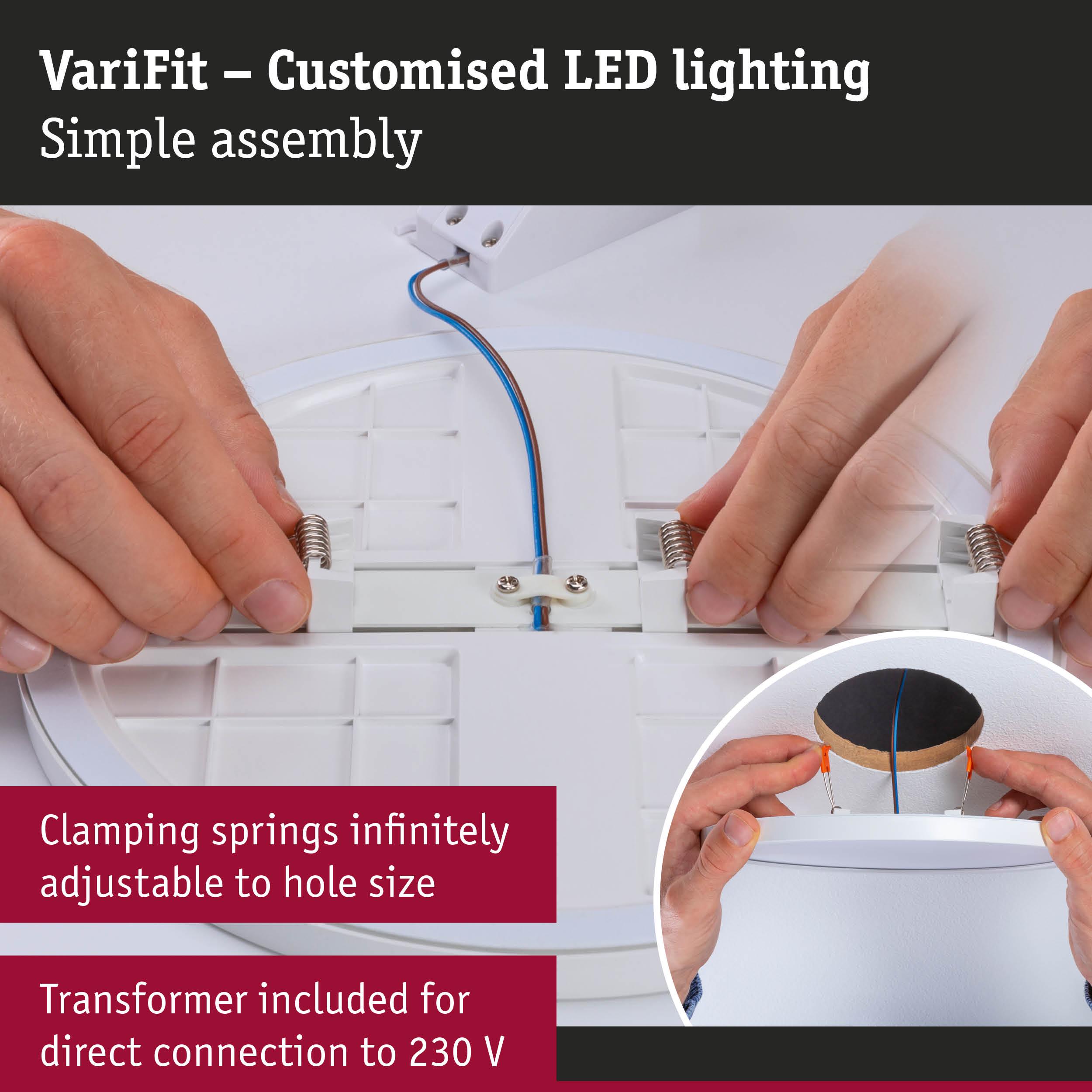

VariFit – flexible installation with infinitely adjustable clamping springs
With integrated LED bulb
Made of easy-care plastic
Color temperatur: 4000K - Neutral white
For 230 V direct connection
IP protection: IP44 splash-protected

Dimension
mounting hole 2	85 mm
Depth of hollow wall	30-55 mm, 30 mm
Total Mounting depth	45-70 mm
Dimensions (Height x Width x Depth)	H: 12/26 mm
Ø	118 mm
Mounting hole	50 mm
Form	round

Design and Material
Colour	White
Material	Plastic

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	4000 K
Usable luminous flux	500 lm
Luminous flux LED module	850 lm
color temp	4000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	6,5 W
Technique	LED
IP protection	IP44
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	63 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption	8 W

Transformer
apparent power	14 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

VariFit LED Recessed panel Areo

IP44 round 118mm 6,5W 500lm 4000K White
