Article-No.: 93054

VariFit LED Recessed panel Areo

IP44 square 230x230mm 3000K White

Colour:
Form: square
Light colour: 3000K
Rated luminous flux:
Dimension: 230mm

  • VariFit – flexible installation with infinitely adjustable clamping springs
  • with integrated LED bulb

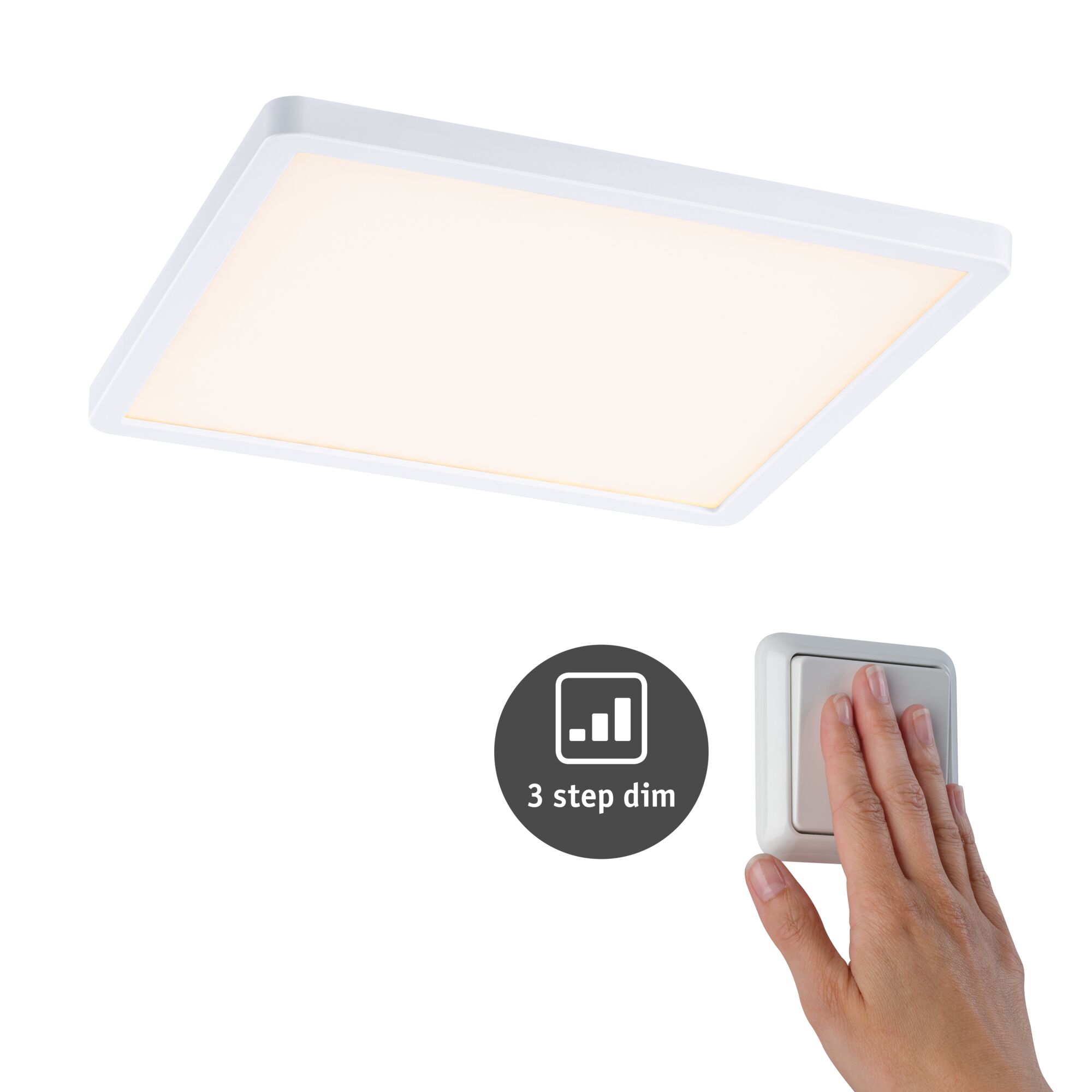

  • Can be dimmed with a standard light switch, with 3 dimming levels

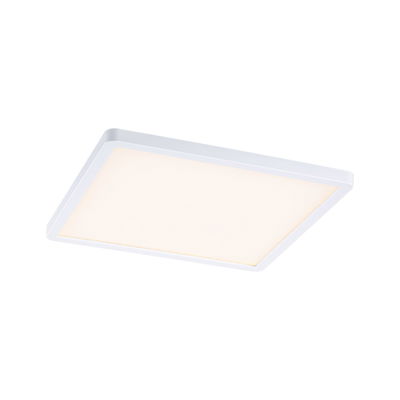

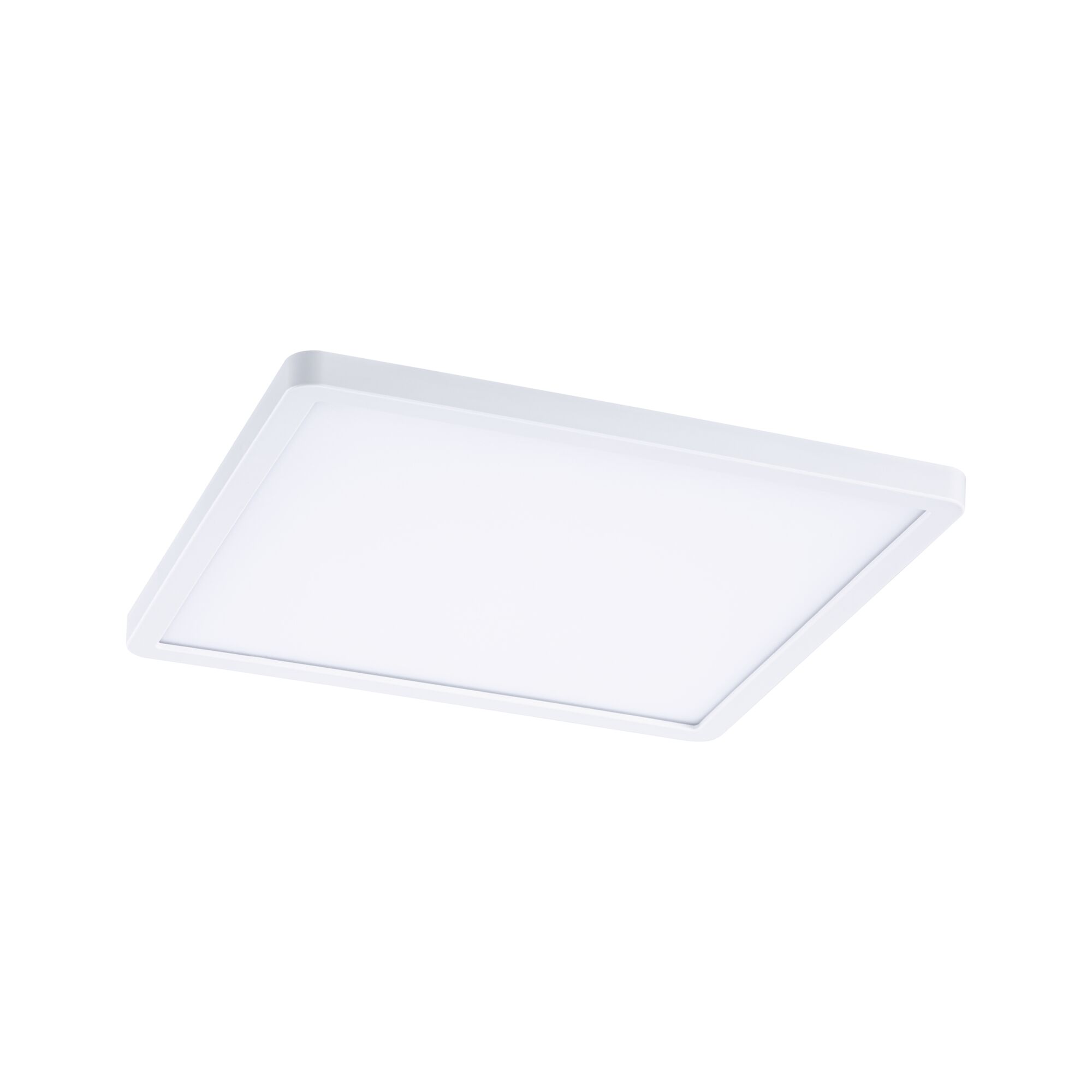

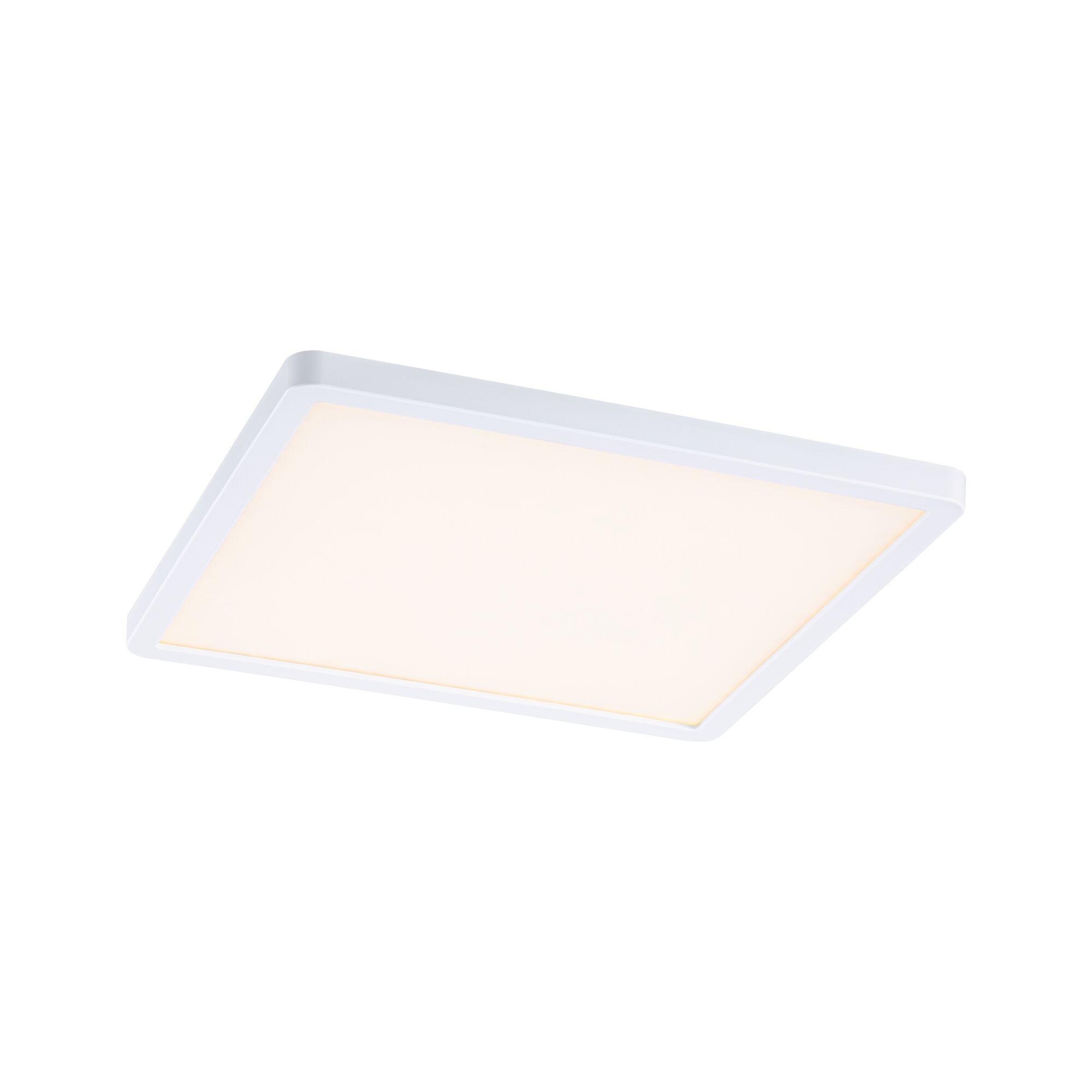

VariFit LED Recessed panel 3-Step-Dim Areo IP44 square 230x230mm 3000K White

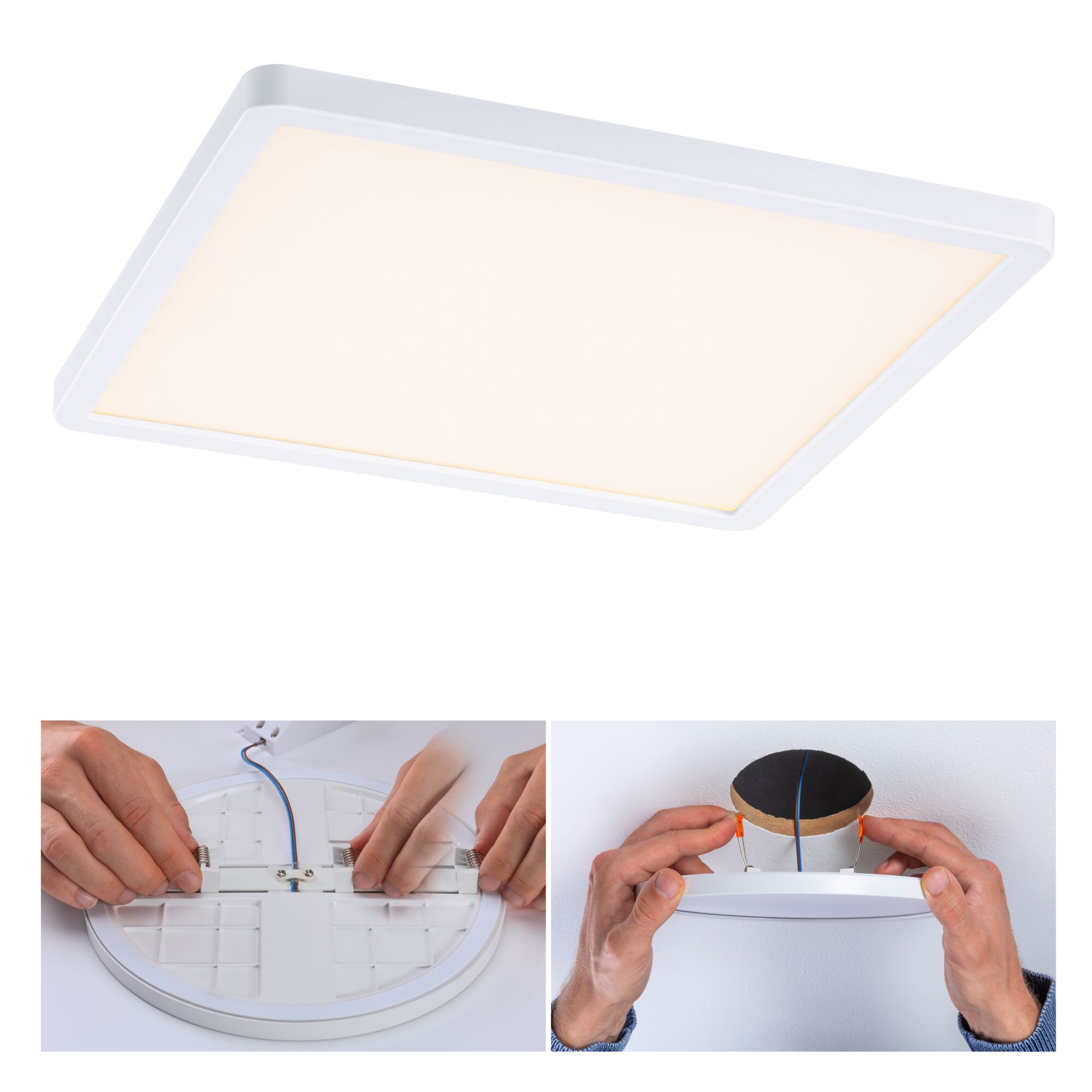

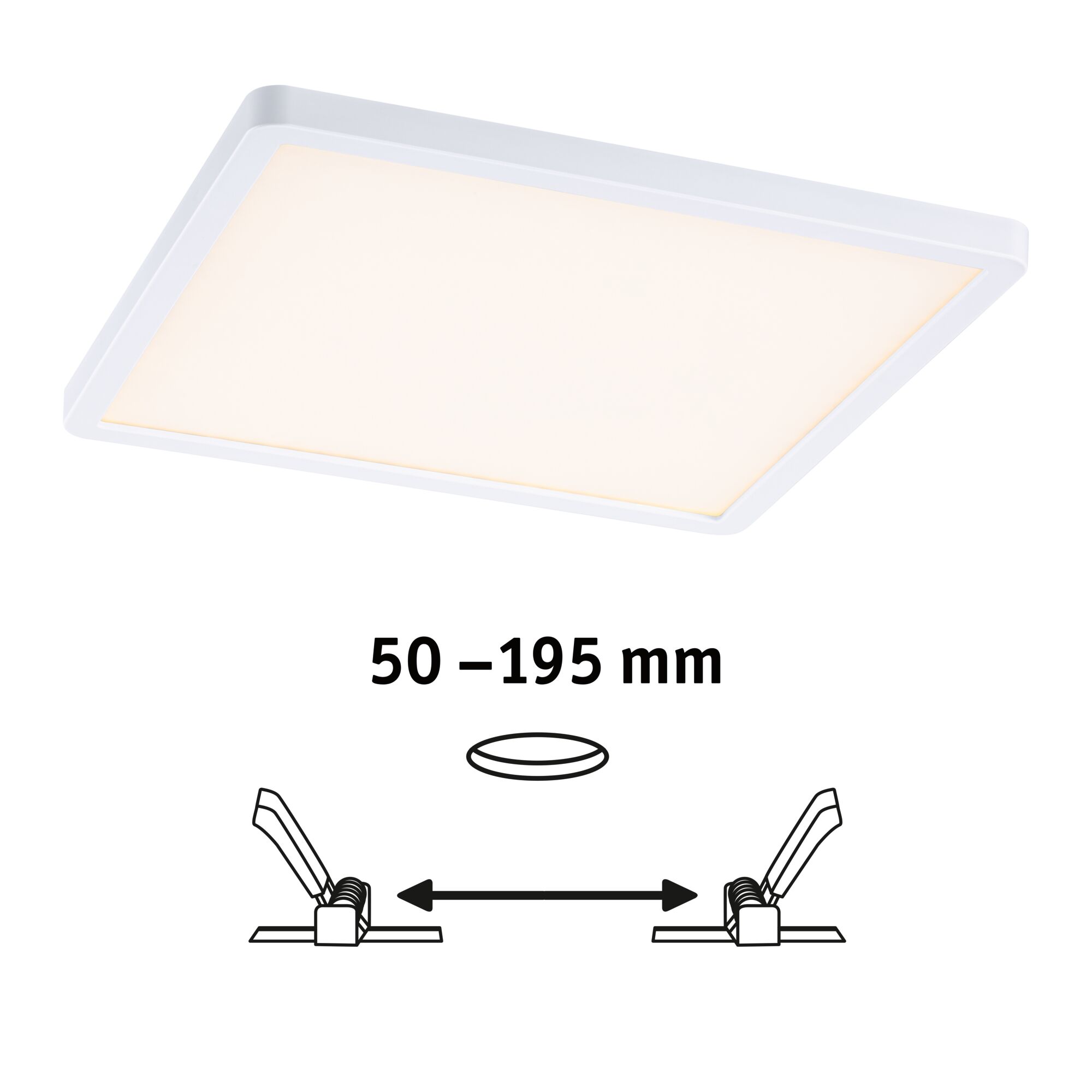

The rectangular Areo recessed panel with a size of 230x230 mm and an output of 16 watts in White provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 195 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The integrated 3-step dimming function offers three dimming levels in combination with a regular commercial light switch. The memory function stores the most recently used level until next activation.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
  • VariFit – flexible installation with infinitely adjustable clamping springs
  • with integrated LED bulb
  • Can be dimmed with a standard light switch, with 3 dimming levels
  • Made of easy-care plastic
  • Color temperatur: 3000K - Warm white
  • For 230 V direct connection
  • IP protection: IP44 splash-protected

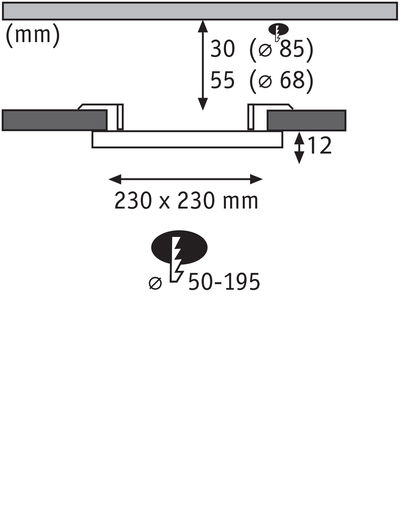

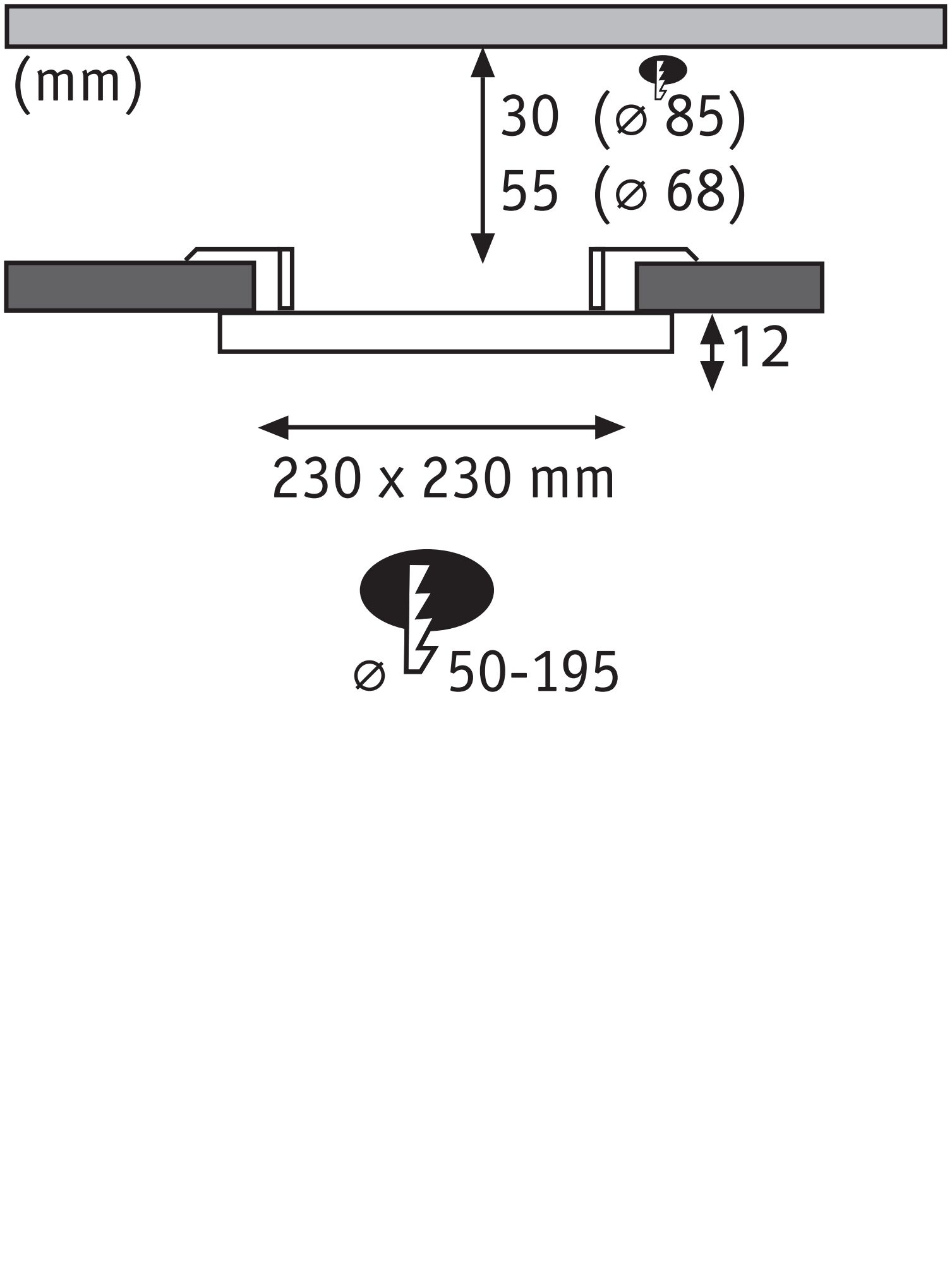

Dimension
mounting hole 2 195mm
depth of hollow wall 30-55mm
Mounting depth 45-70mm
Dimensions (Height x Width x Depth) H: 12''26 x B: 230 x T: 230mm
Mounting hole 50mm
Form square
Depth of hollow wall 30mm
Design and Material
Colour White
Material Plastic
Energy consumption
energy efficiency (A to G) E
Service life
lifetime 30.000h
Light Characteristics
Color temp. 3000K
Useful luminous flux 1.400lm
Luminous flux LED module 2200lm
color temp 3.000K
Color rendering index > 80Ra
Lamp Features
Component parts 16W
Dimmable Yes
Technique LED
IP protection IP44
Incandescent Equivalent 137 W
Dim dimmable in 3 steps with normal light switch
Inclusive lamp
Number of component parts 1x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician.
Transformer
apparent power 36VA
Labelling
WEEE-Reg.-No DE 39236390
