Article-No.:
93056
VariFit
LED Recessed panel
3-Step-Dim
Areo
IP44 round 230mm 16W 1400lm 4000K White dimmable
IP44 round 230mm 16W 1400lm 4000K White dimmable
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb

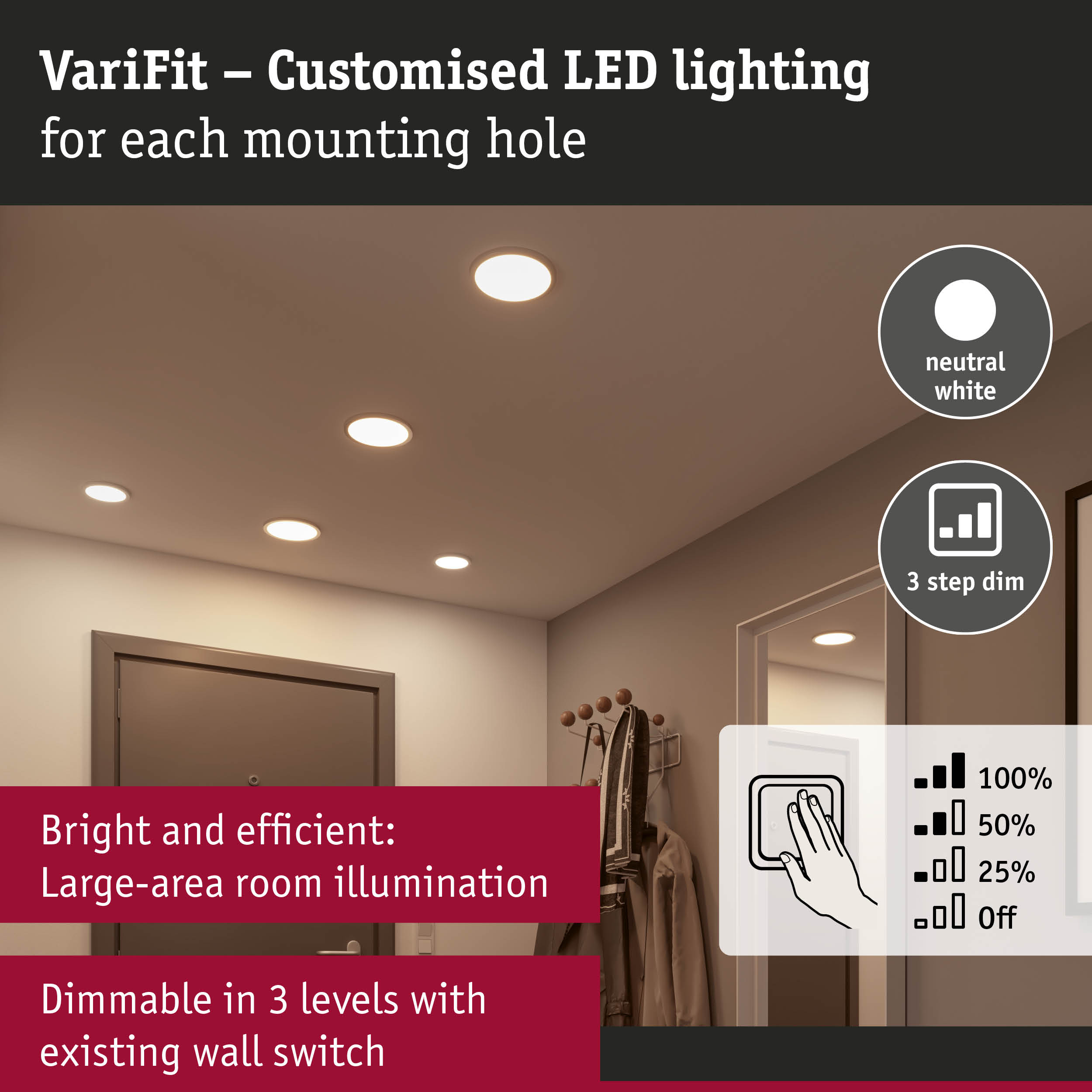

- Can be dimmed with a standard light switch, with 3 dimming levels
VariFit LED Recessed panel 3-Step-Dim Areo IP44 round 230mm 16W 1400lm 4000K White dimmable

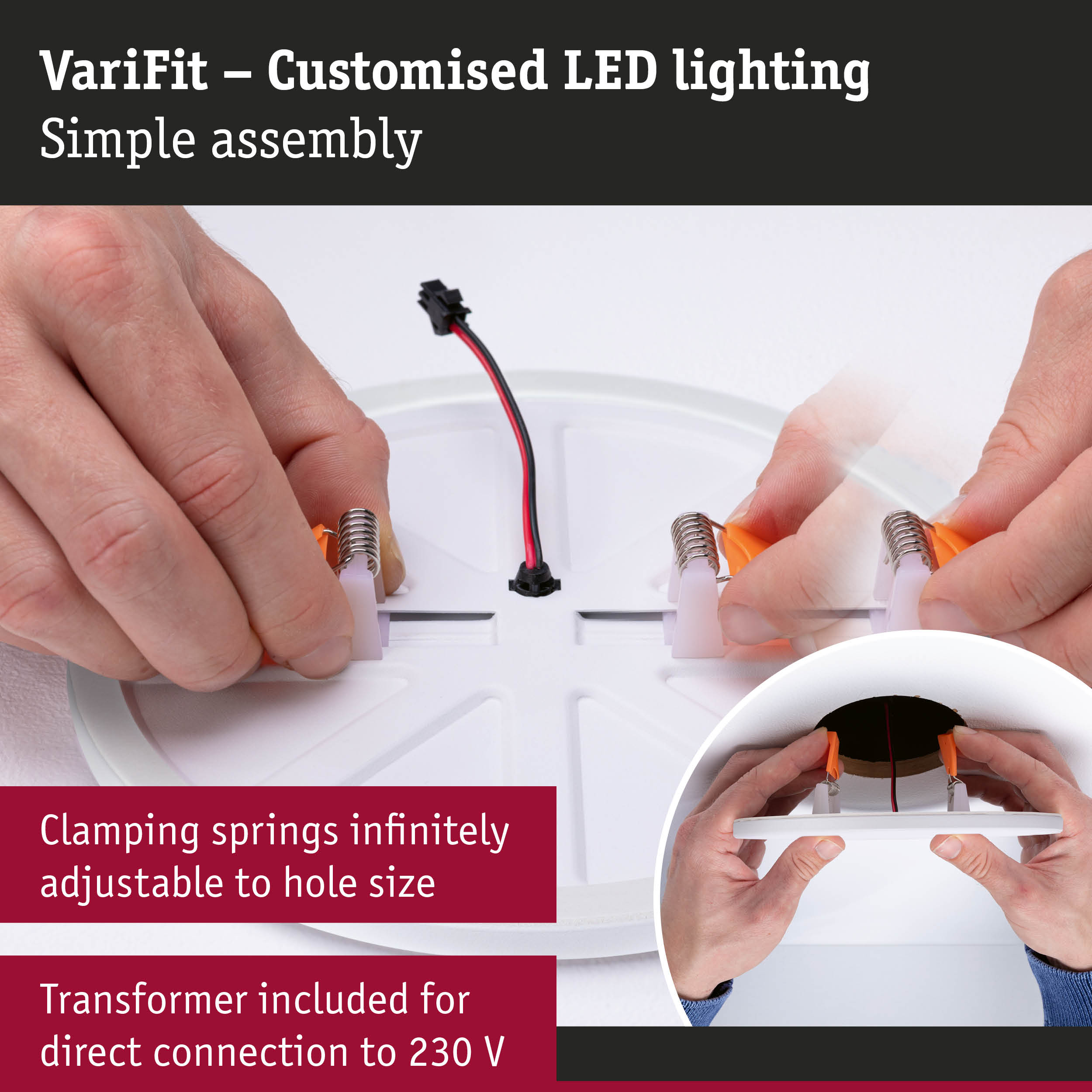

The round Areo recessed panel with a diameter of 230 mm and an output of 16 watts in White provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 195 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The integrated 3-step dimming function offers three dimming levels in combination with a regular commercial light switch. The memory function stores the most recently used level until next activation.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Can be dimmed with a standard light switch, with 3 dimming levels
- Made of easy-care plastic
- Color temperatur: 4000K - Neutral white
- For 230 V direct connection

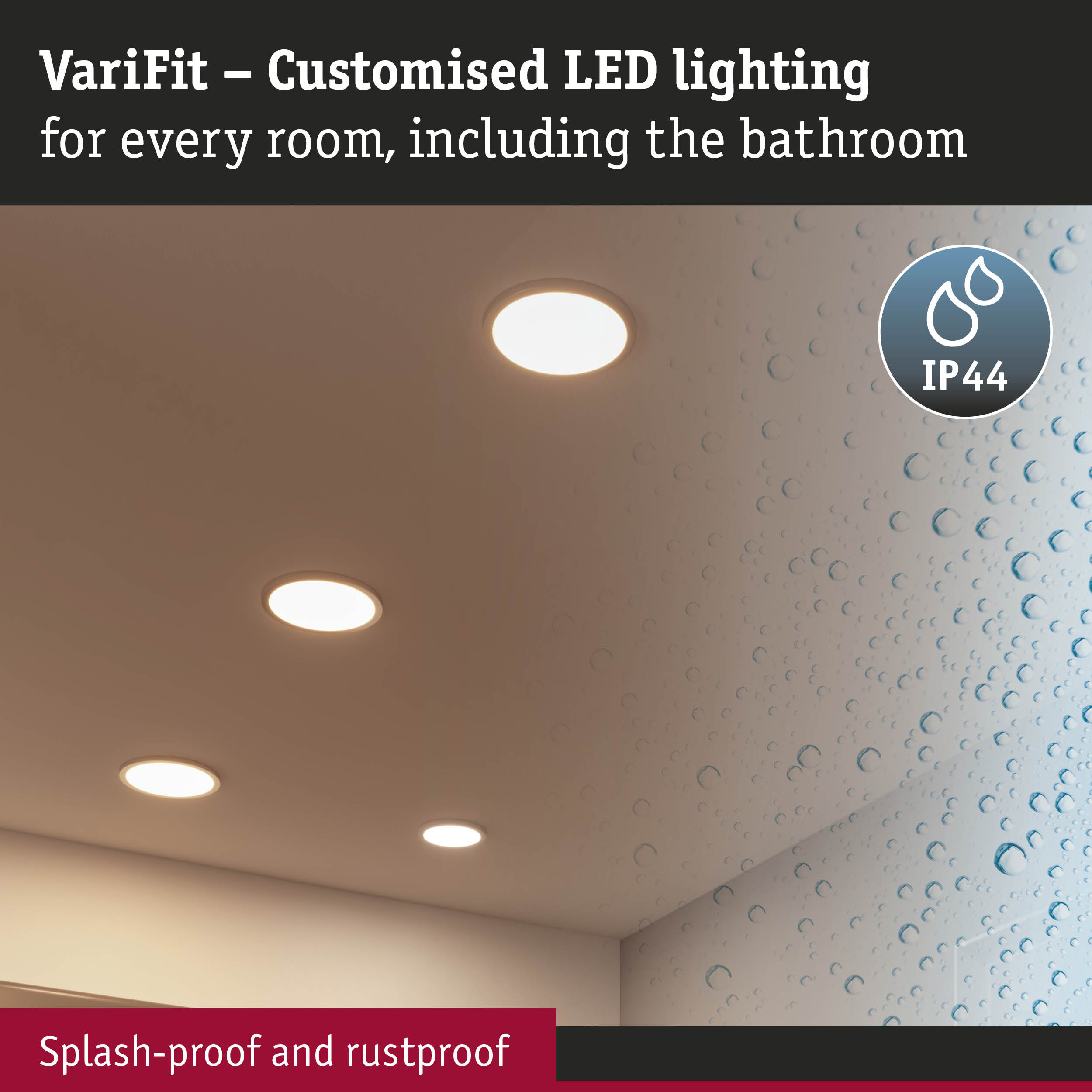

- IP protection: IP44 splash-protected
| Dimension | |
|---|---|
| mounting hole 2 | 195 mm |
| Depth of hollow wall | 30-55 mm, 30 mm |
| Total Mounting depth | 45-70 mm |
| Dimensions (Height x Width x Depth) | H: 12/26 mm |
| Ø | 230 mm |
| Mounting hole | 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 1400 lm |
| Luminous flux LED module | 2000 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 16 W |
| Technique | LED |
| IP protection | IP44 |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 137 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| apparent power | 36 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
