Article-No.:
5452
URail
Rail spot
Smart Home Zigbee 3.0
Tarie
Starter set Middle feed 4x4,5W 230V Signal white
Starter set Middle feed 4x4,5W 230V Signal white
- The perfect introduction to the URail system

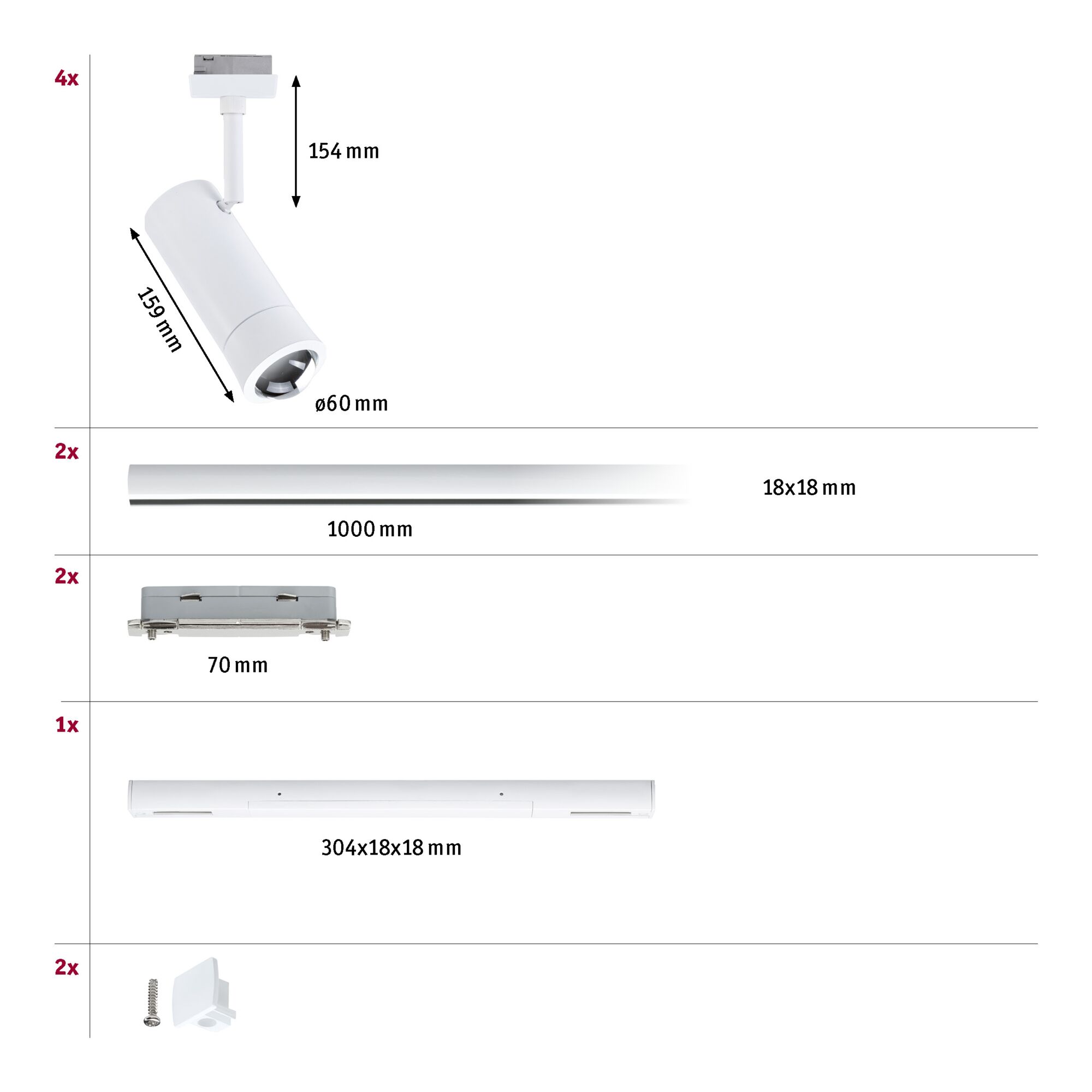

- Package contents: 4x URail Spot Tarie, 2x 1m rails, middle feed and 2x line connectors
- Ball lens for glare-free, decorative light emission
URail Rail spot Smart Home Zigbee 3.0 Tarie Starter set Middle feed 4x4,5W 230V Signal white

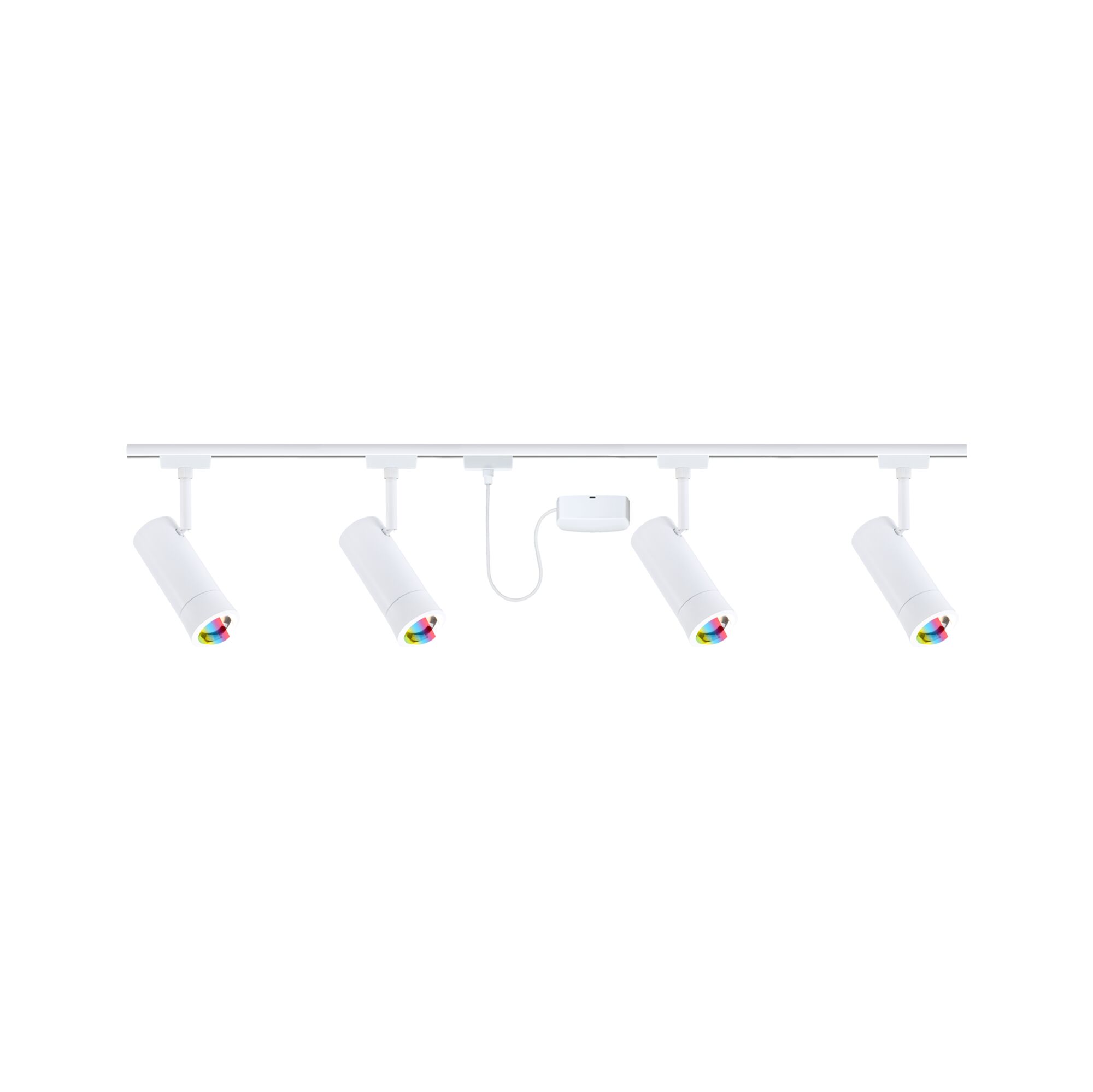

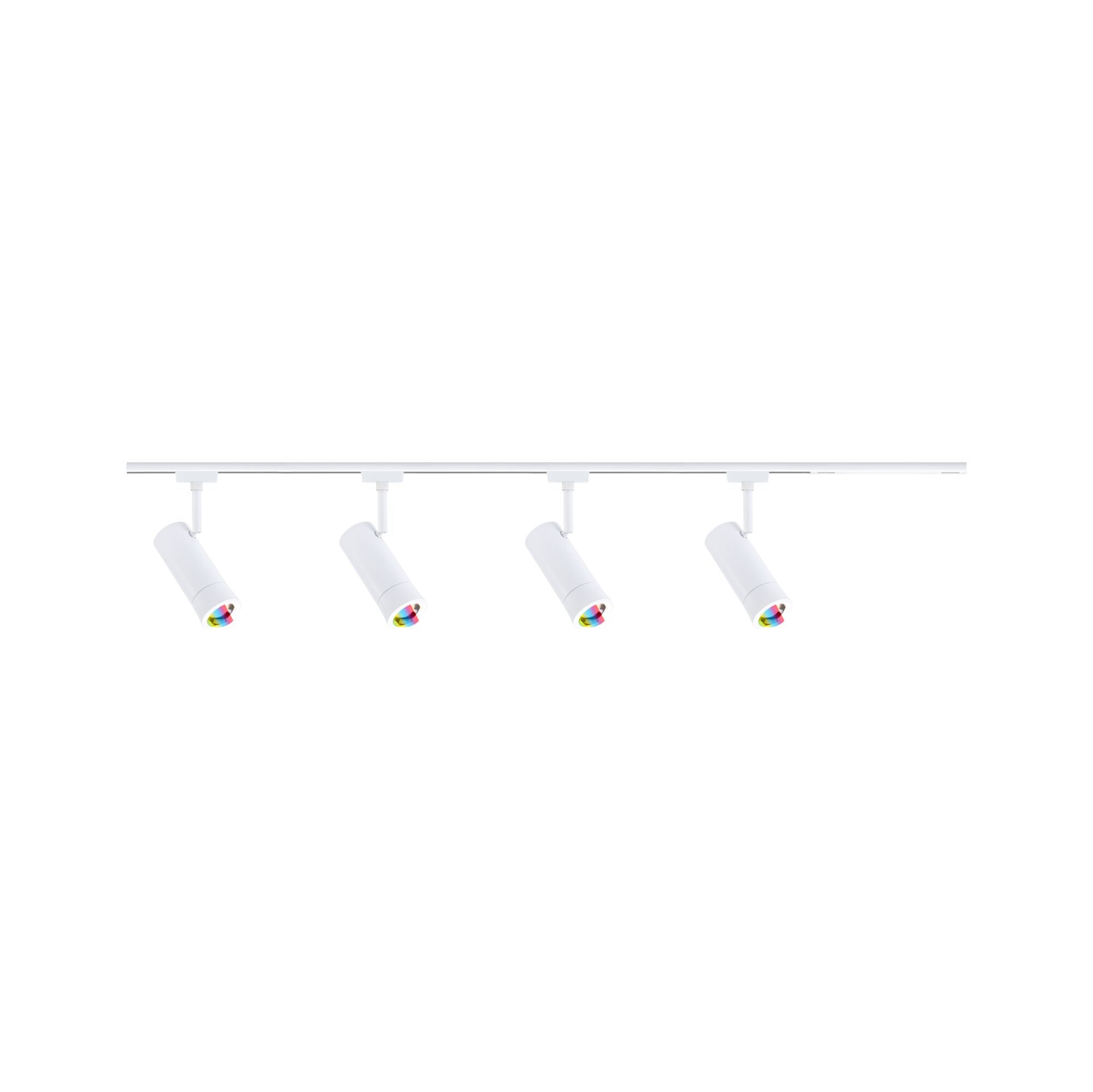

This URail set consists of various components that enable a perfect lighting installation. Two 1-meter-length URail tracks in signal white form the base, onto which four URail Tarie rail spots in signal white can be mounted. These spots can be individually adjusted to direct the light precisely where it is needed. Each rail spot integrates seamlessly into existing Zigbee smart home systems and can be conveniently controlled via voice command, through the gateway, or with a remote control (e.g., the Gent 1 or 2). Whether you want to adjust the brightness individually, select different color tones, or create atmospheric lighting scenes—the possibilities are virtually endless! The package also includes a URail middle feed unit in signal white, which blends in perfectly with the lighting installation and is mounted directly above the power connection. Particularly practical are the two internal line connectors, which disappear invisibly into the rails after installation, enabling a seamless Gesaappearance.
- The perfect introduction to the URail system
- Package contents: 4x URail Spot Tarie, 2x 1m rails, middle feed and 2x line connectors
- Ball lens for glare-free, decorative light emission
- Coloured light and infinitely variable white tones thanks to RGBW and Tunable White function
- colour: signal white
| Dimension | |
|---|---|
| Diameter | 60 mm |
| Dimensions (Height x Width x Depth) | H: 160,5 x B: 159 mm |
| Net weight | 3086 g |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Signal white |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| URail Inline Adapter | No |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | mit Smart Home |
| Inclusive lamp | yes |
| Component parts | 4,5 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 33 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | rotating and tilting |
| Dimmable | Yes |
| Protection class | Protection class I |
| Number of component parts | 4x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 22 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Transformer height | 18 mm |
| Transformer width | 80 mm |
| Transformer depth | 38 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 30 m |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 230 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Luminous flux LED module | 360 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 160,5 x 159 mm |
