Article-No.:
95795
URail
Rail adapter
Zigbee 3.0
Dimm/Switch
240x21mm max. 50W Titanium
240x21mm max. 50W Titanium
- Usable with smart home gateways that have a Zigbee interface
- Controllable with smart home Zigbee remote control
- Switchable and dimmable URail connectors

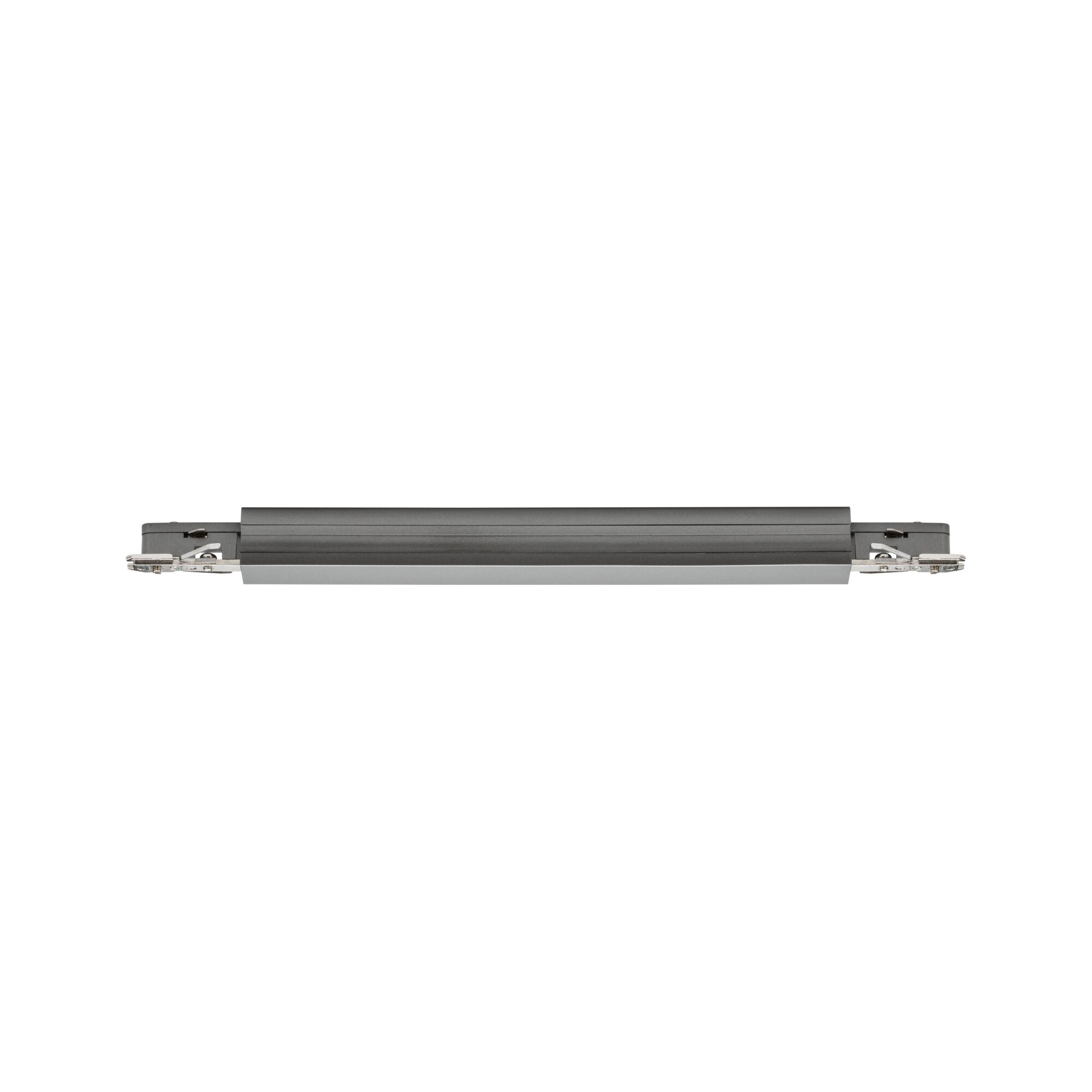

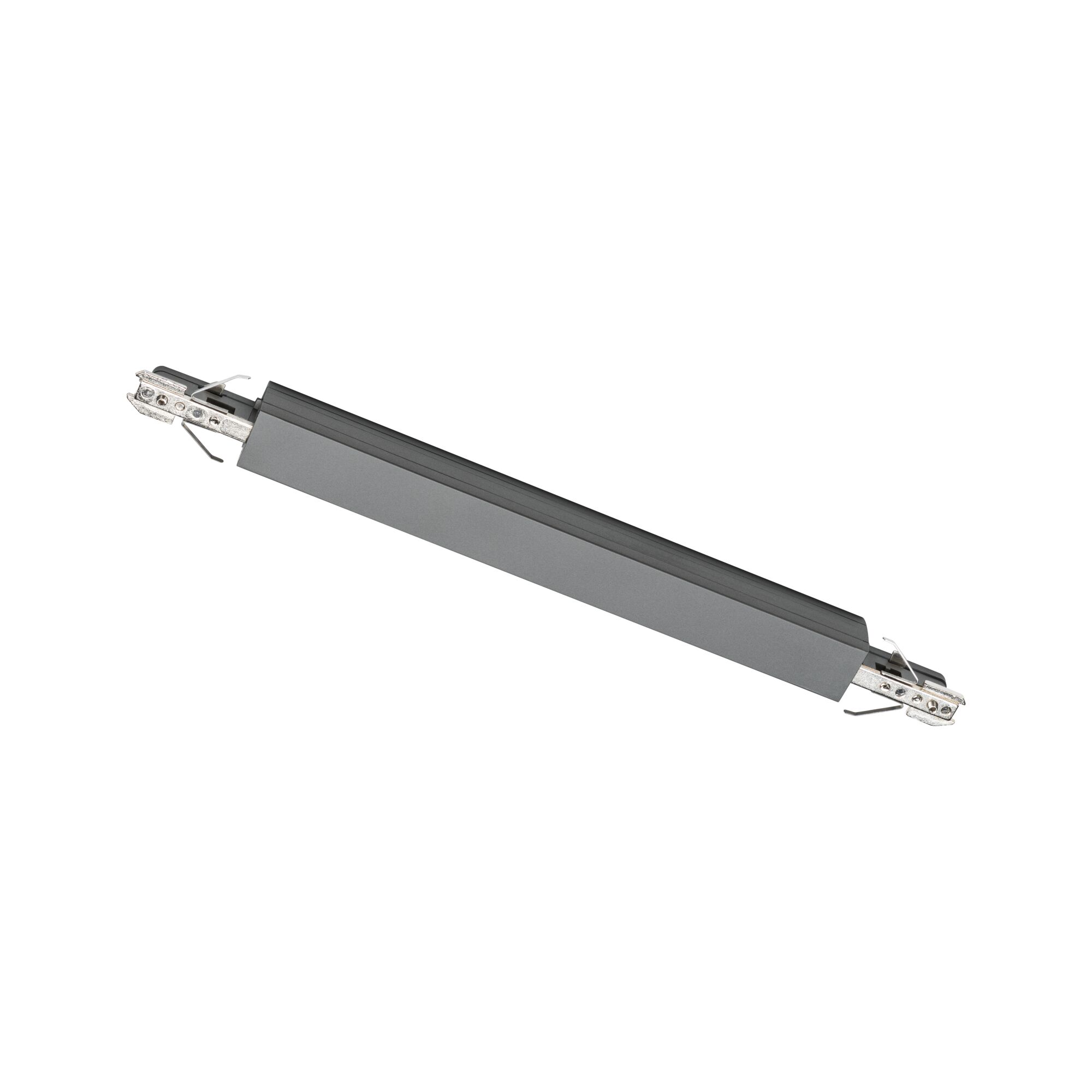

URail Rail adapter Zigbee 3.0 Dimm/Switch 240x21mm max. 50W Titanium
With the URail Dimm/Switch Adapter in Titanium from the smart home Zigbee 3.0 series, subsequent rail sections of the URail system can be switched and dimmed. Adapter and rails are simply plugged together. This makes it easy to integrate a smart control system into the URail system without having to make any changes to the house electrics. Every URail System has the potential to be smartly controlled. The titanium color impresses with a soft, warm metallic look that harmoniously connects modern elegance and homely comfort. NOTE: This article is not compatible with all permanently installed LEDs and LED light sources and only works in connection with continuously dimmable luminaires. Dimming compatibility can be found in the technical data of the luminaires/light sources.
- Usable with smart home gateways that have a Zigbee interface
- Controllable with smart home Zigbee remote control
- Switchable and dimmable URail connectors
- Can still be switched on and off with the light switch
- Mesh-capable: range increases from product to product
- Simple plug-in installation
- Finish/colour: Titanium
- Note: This article only works in connection with continuously dimmable lights
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 240 x T: 21 mm |
| Net weight | 89 g |
| Design and Material | |
|---|---|
| Colour | Titanium |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dimmable | Yes |
| Maximum wattage range | max. 50 W |
| Protection class | Protection class I |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 18 x 240 x 21 mm |
