Article-No.: 50050

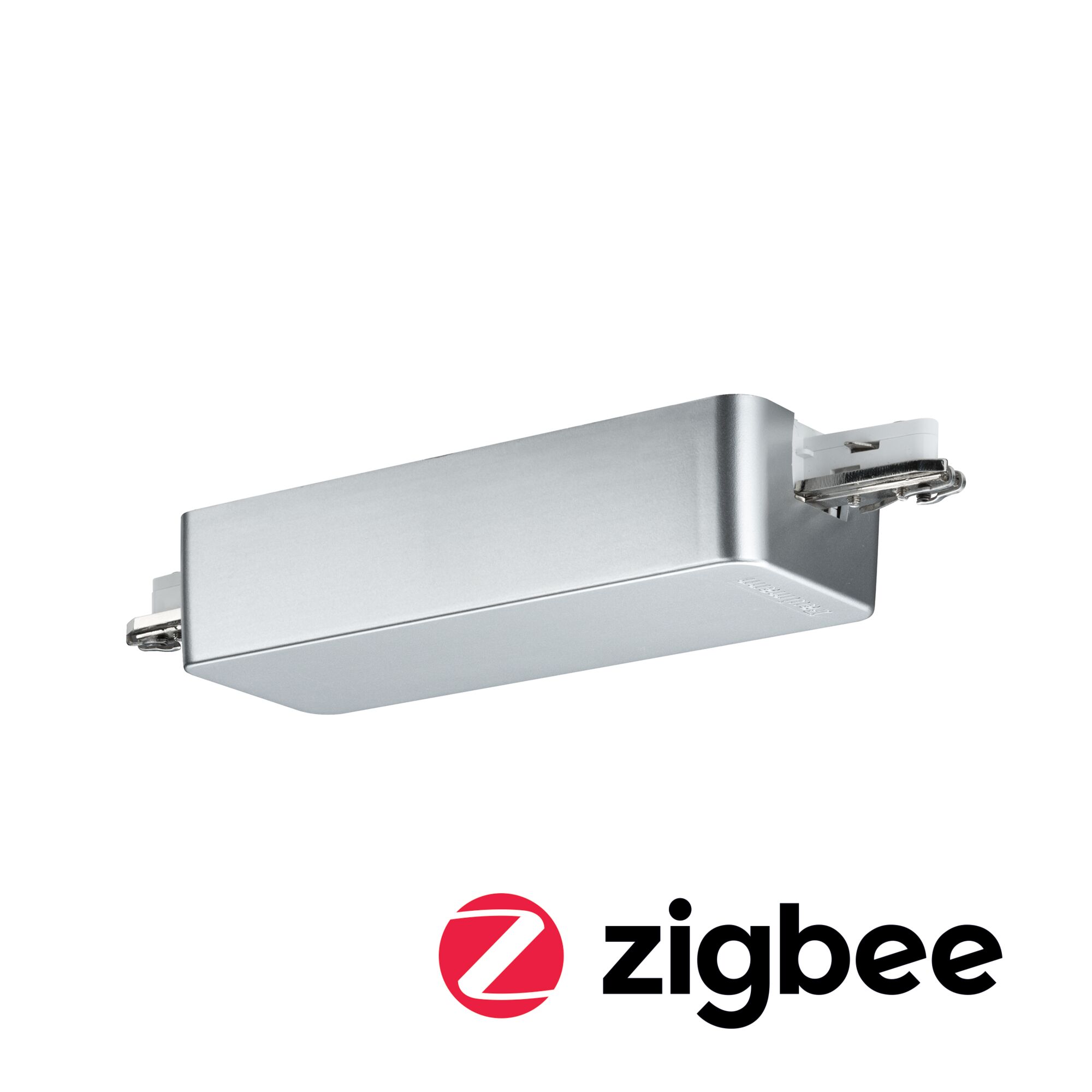

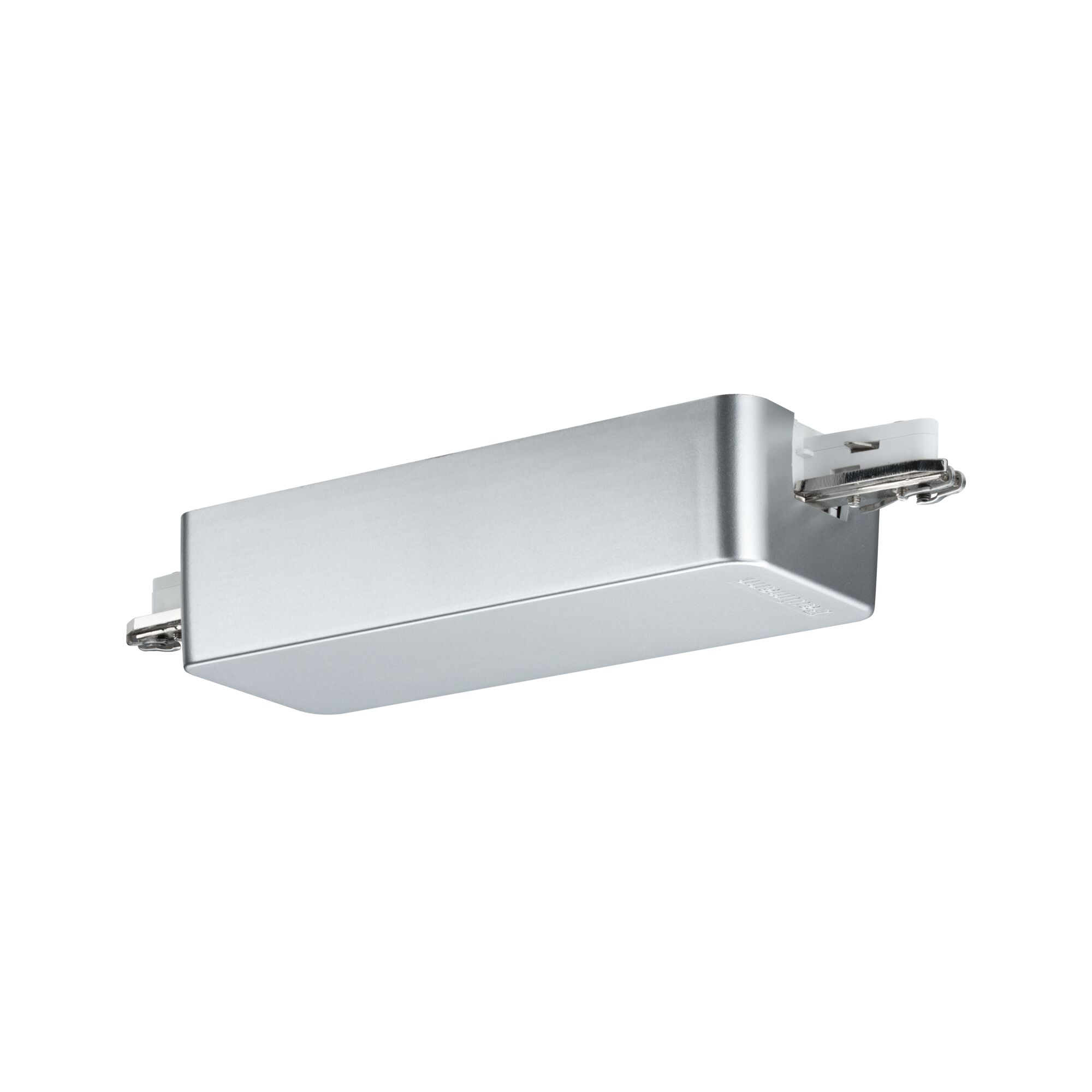

URail Rail adapter Dimm/Switch

155x56mm Chrome matt

Colour:

  • Usable with smart home gateways that have a Zigbee interface
  • can be controlled with the Smart Home Zigbee remote control
  • Can still be switched on and off with the light switch

URail Rail adapter Smart Home Zigbee Dimm/Switch 155x56mm Chrome matt

With the URail dim/switch adapter from the Smart Home Zigbee series, you can switch and dim the following rail sections of your URail system. The dim/switch is Zigbee 3.0 compatible. Zigbee is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios. This item is not compatible with all fixed LEDs and LED light sources. Please refer to the dimmer compatibility in the technical data of the luminaires/lamps.
  • Usable with smart home gateways that have a Zigbee interface
  • can be controlled with the Smart Home Zigbee remote control
  • Can still be switched on and off with the light switch
  • bidirectional data transfer
  • mesh-capable: range increases from product to product
  • Switchable and dimmable URail connectors
  • Simple plug-in installation
Dimension

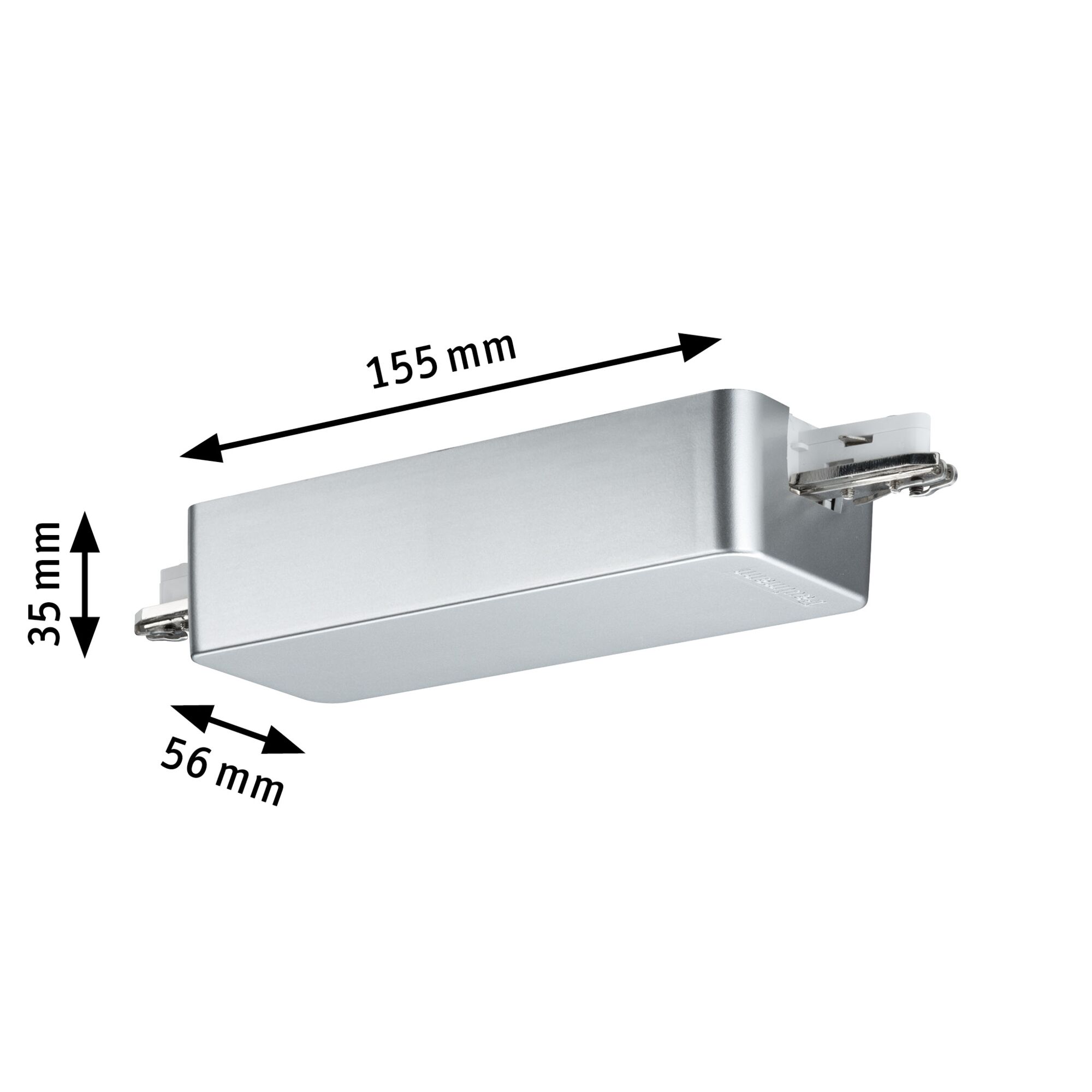

Dimensions (Height x Width x Depth) H: 35 x B: 155 x T: 56mm
Design and Material
Colour Chrome matt
Material Plastic
Installation
can be used with the following dimmers Paulmann SmartHome Zigbee Gent 500.67
Installation site (recommendation) Ceiling mounting
Service life
lifetime 30.000h
Lamp Features
Dimmable Yes
Compatible Smart Home technology Zigbee
Technique Accessories without bulbs
Maximum wattage max. 400W
Dim with Smart Home
protection class protection class II
Radio frequency 2,4 GHz
Radio range 20m
Replacable 7 not concerned.
Transformer
Capacitive load 150W
Resistive load 400W
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
