Article-No.:
96893
URailRail adapterSmart Home Zigbee 3.0
On/Off/Dimm
166x20mm Chrome matt
166x20mm Chrome matt
- Option of individual or group switching
- Max. 50Â W per adapter
- Usable with smart home gateways that have a Zigbee interface

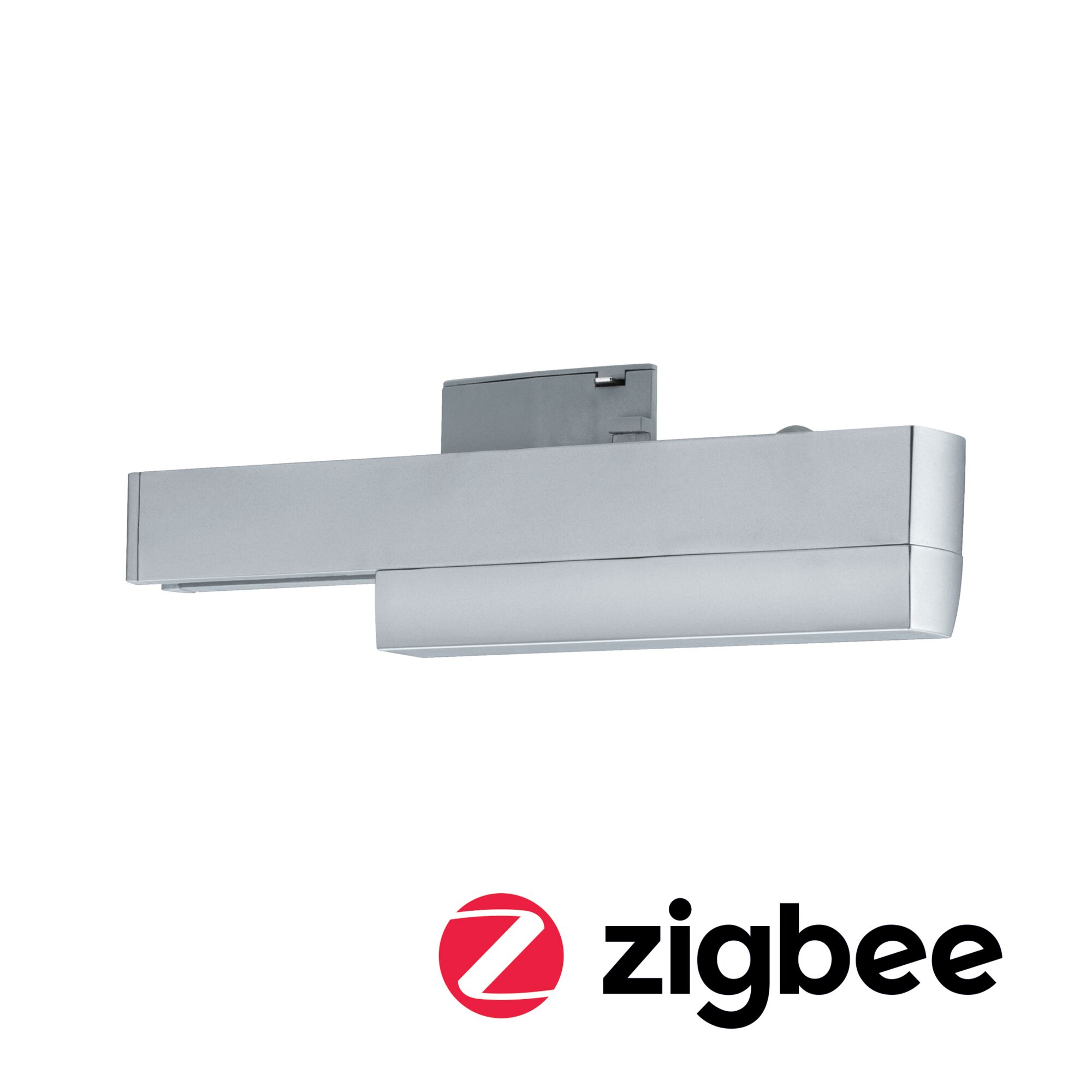

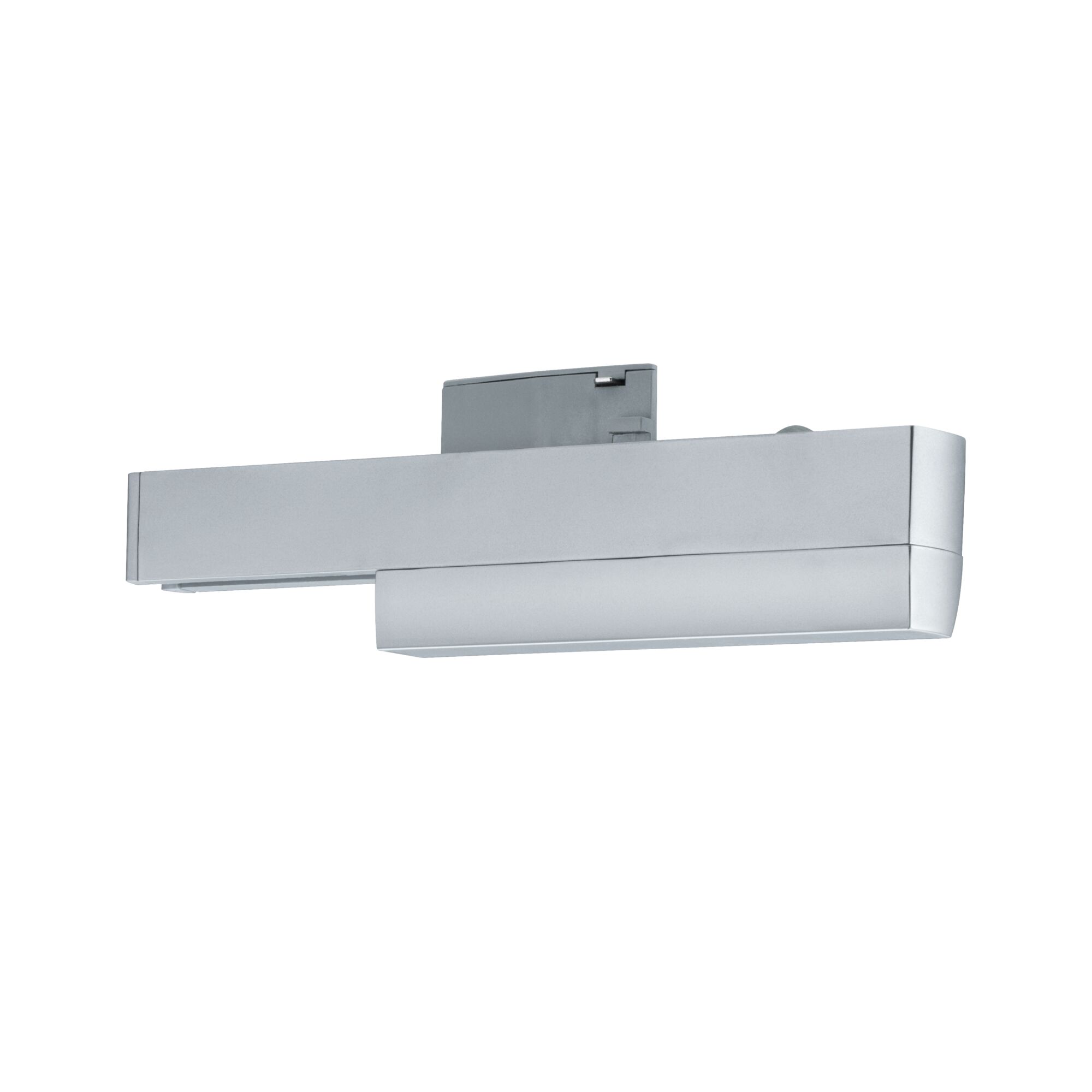

URail Rail adapter Smart Home Zigbee 3.0 On/Off/Dimm 166x20mm Chrome matt

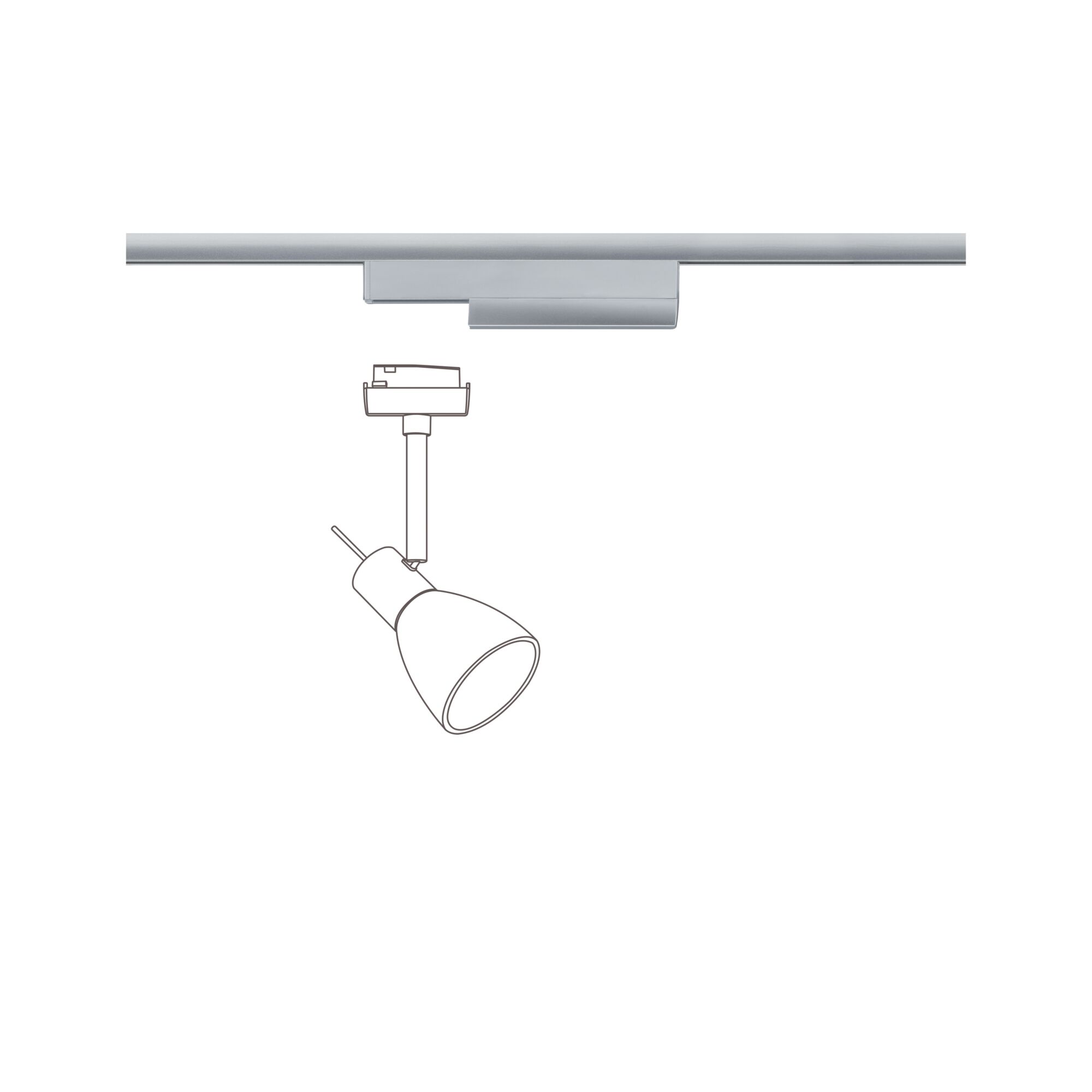

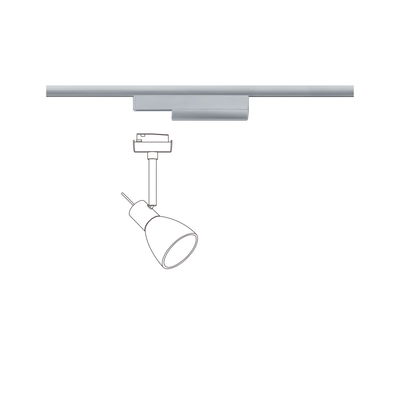

The ZigBee adapter allows the targeted control of individual spots, as well as group control within your URail system. Simply mount the adapter between the rail and the spot you want to control. Its delicate design makes the adapter virtually invisible. Create the ambiance you want for a romantic dinner for two or a TV night with the family. NOTE: This article is not compatible with all built-in LEDs and LED light sources and only works in conjunction with continuously dimmable luminaires.
- Option of individual or group switching
- Max. 50Â W per adapter
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|

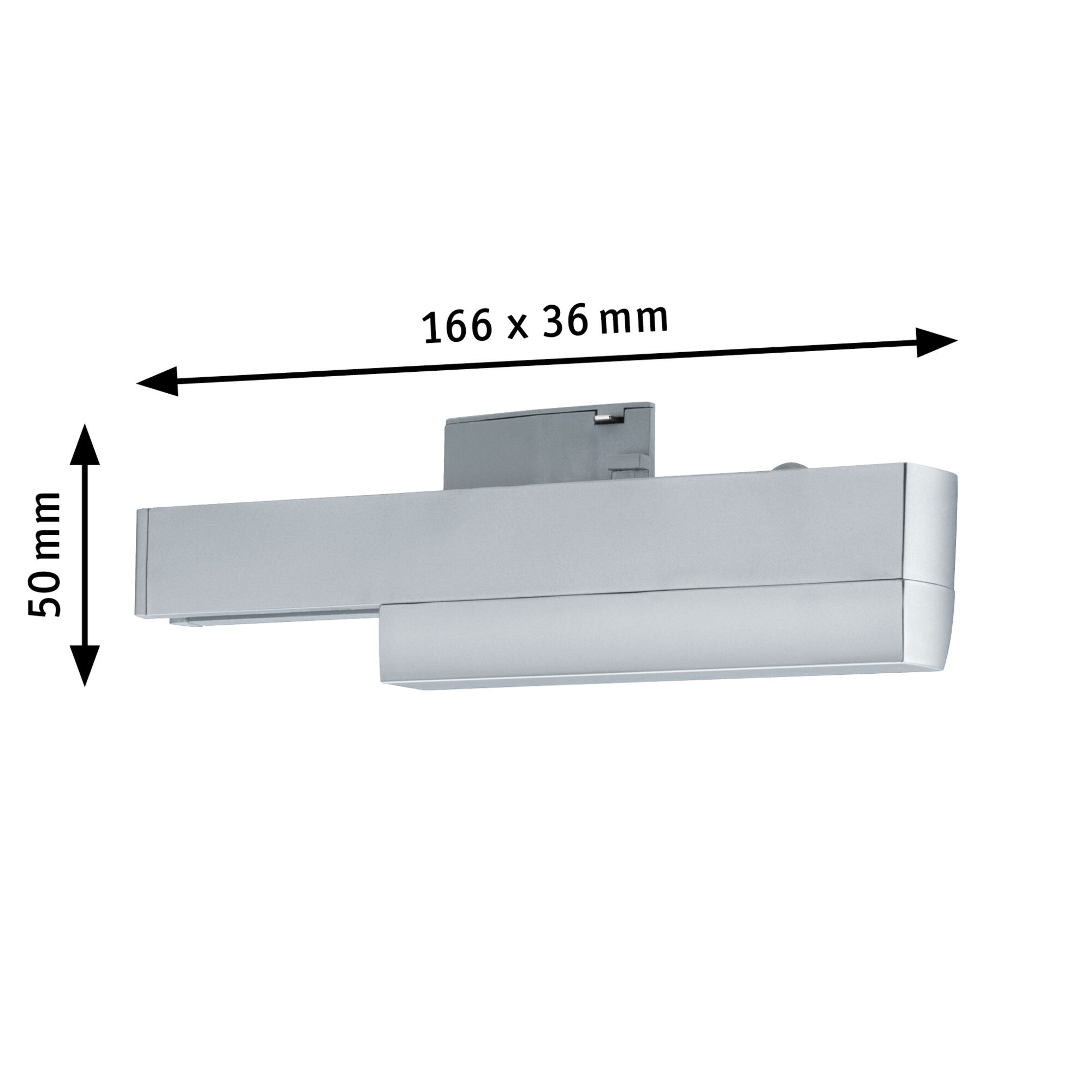

| Dimensions (Height x Width x Depth) | H: 50 x B: 166 x T: 20 mm |
| Form | angular |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent 500.67, Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Adjustability | fixed |
| Maximum wattage range | max. 50 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
