Article-No.:
50051
URail
Rail adapter
Smart Home Zigbee 3.0
Dimm/Switch
155x56mm White
155x56mm White
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

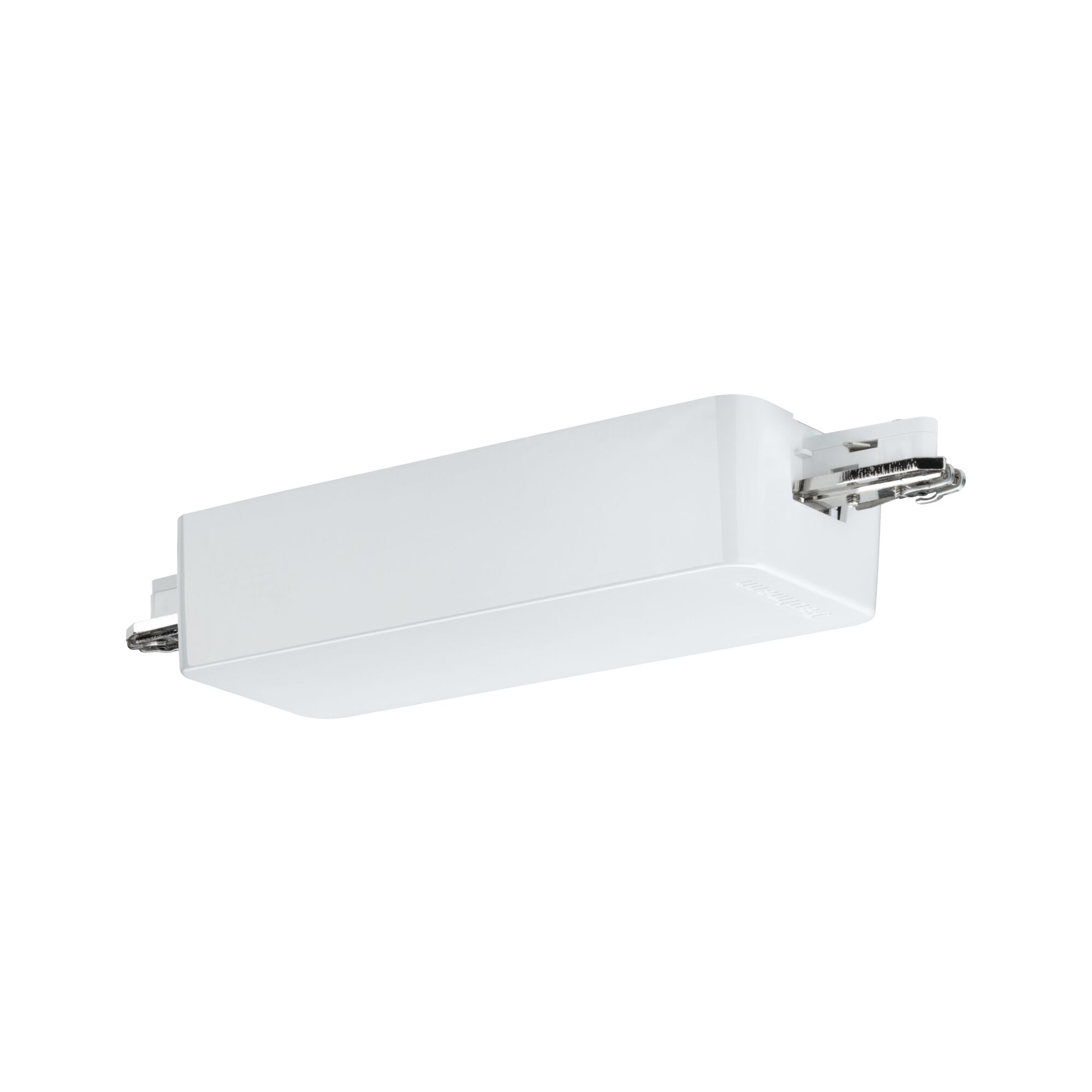

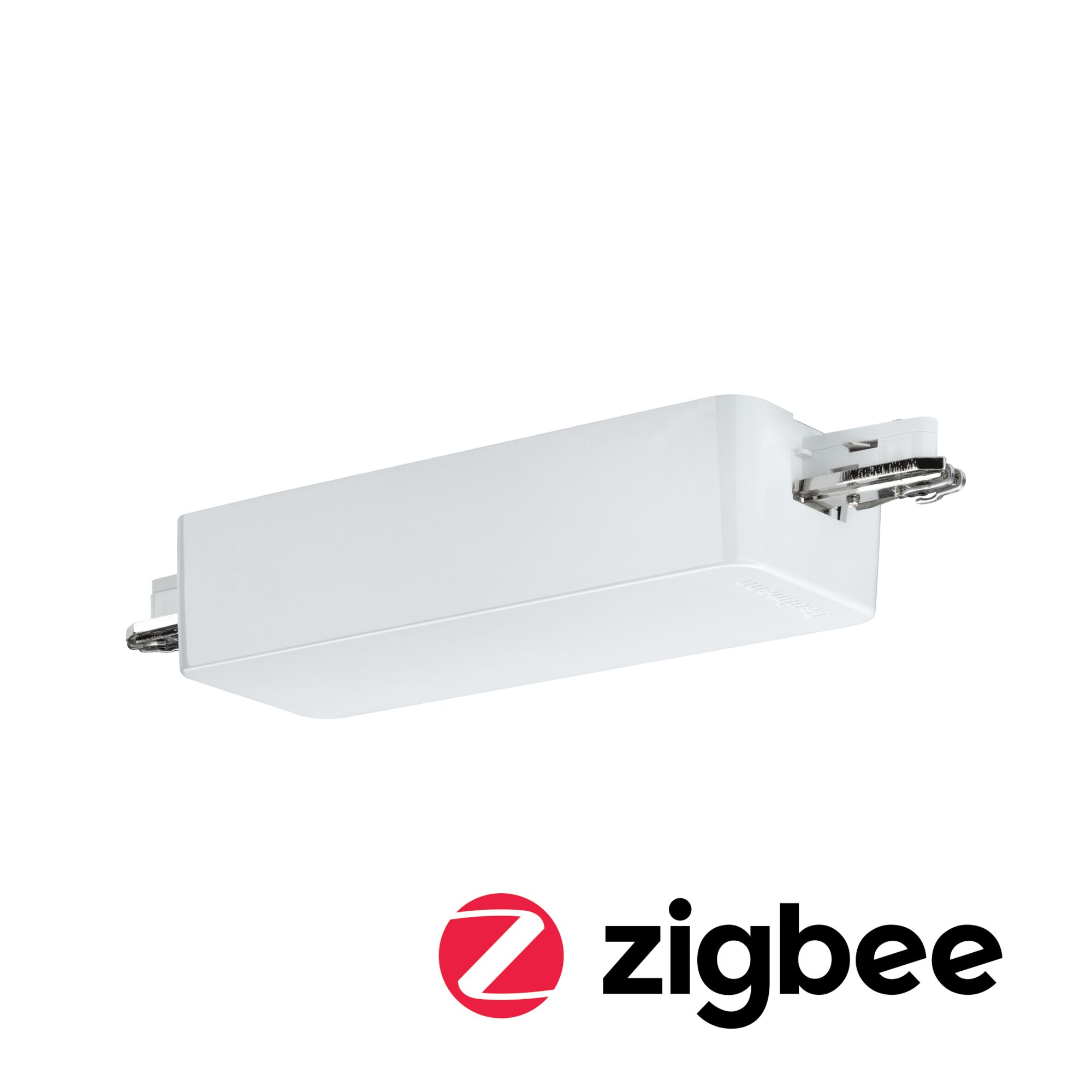

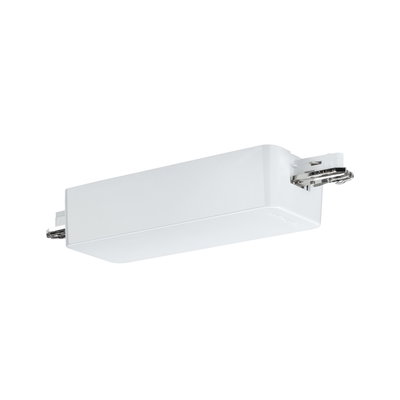

URail Rail adapter Smart Home Zigbee 3.0 Dimm/Switch 155x56mm White
With the URail dim/switch from the Smart Home Zigbee 3.0 series, you can switch and dim the following rail sections of your URail system. The dim/switch is Zigbee 3.0 compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Switchable and dimmable URail connectors
- Simple plug-in installation
Dimension | |
---|---|

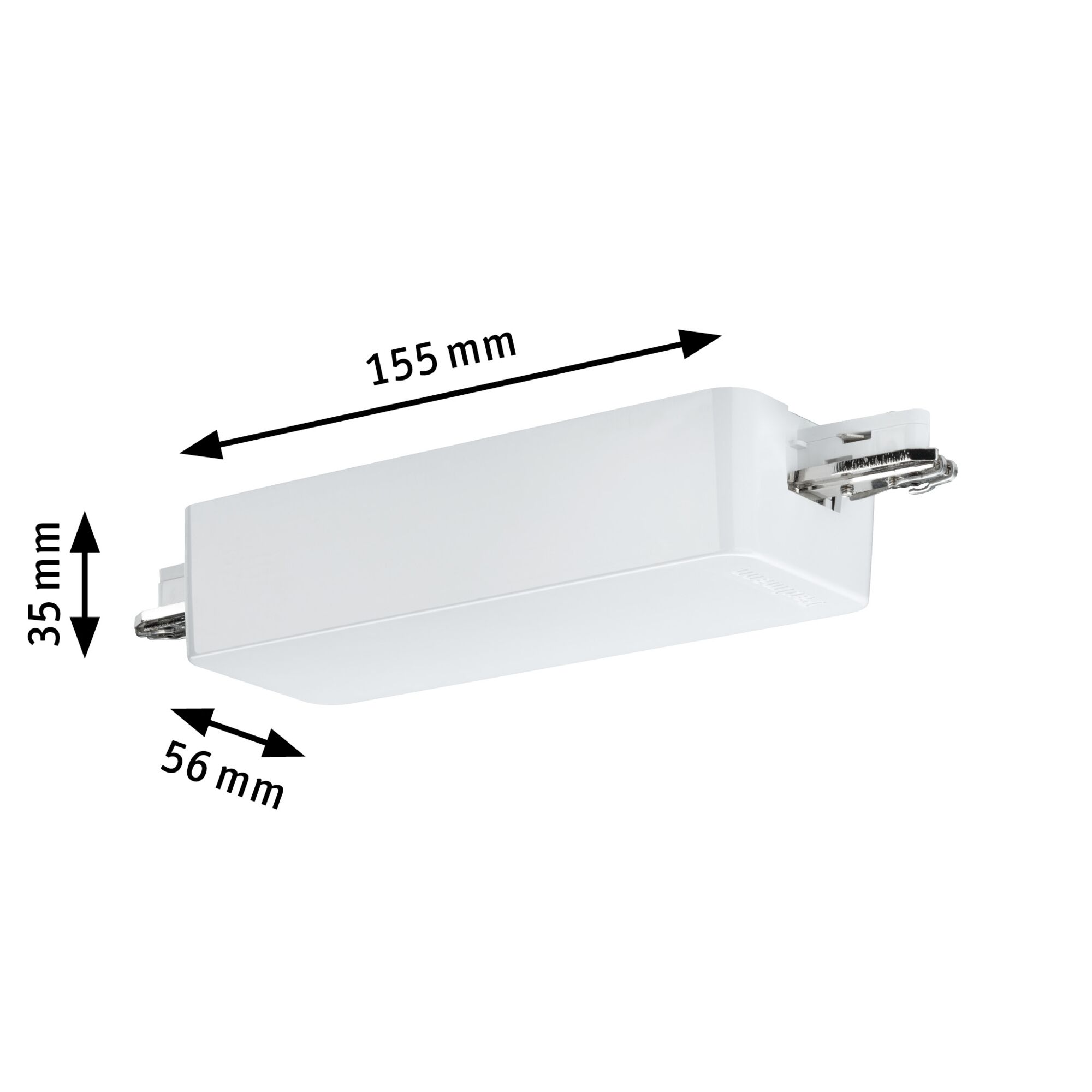

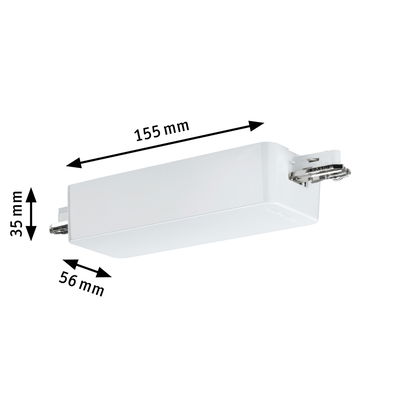

Dimensions (Height x Width x Depth) | H: 35 x B: 155 x T: 56 mm |
Design and Material | |
---|---|
Colour | White |
Material | Plastic |
Installation | |
---|---|
can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
Installation site (recommendation) | Ceiling mounting |
Service life | |
---|---|
Lifetime | 30000 h |
Lamp Features | |
---|---|
Compatible Smart Home technology | Zigbee |
Technique | Accessories without bulbs |
Dim | with Smart Home |
Dimmable | Yes |
Inclusive lamp | no |
Total Width | 155 mm |
Maximum wattage range | max. 400 W |
protection class | protection class II |
Replacable | 7 not concerned. |
Transformer | |
---|---|
Capacitive load | 150 W |
Resistive load | 400 W |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
Smart_Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee_inside (not certified) |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
