Article-No.:
96815
URail
Rail adapter
Smart Home Zigbee 3.0
Dimm/Switch

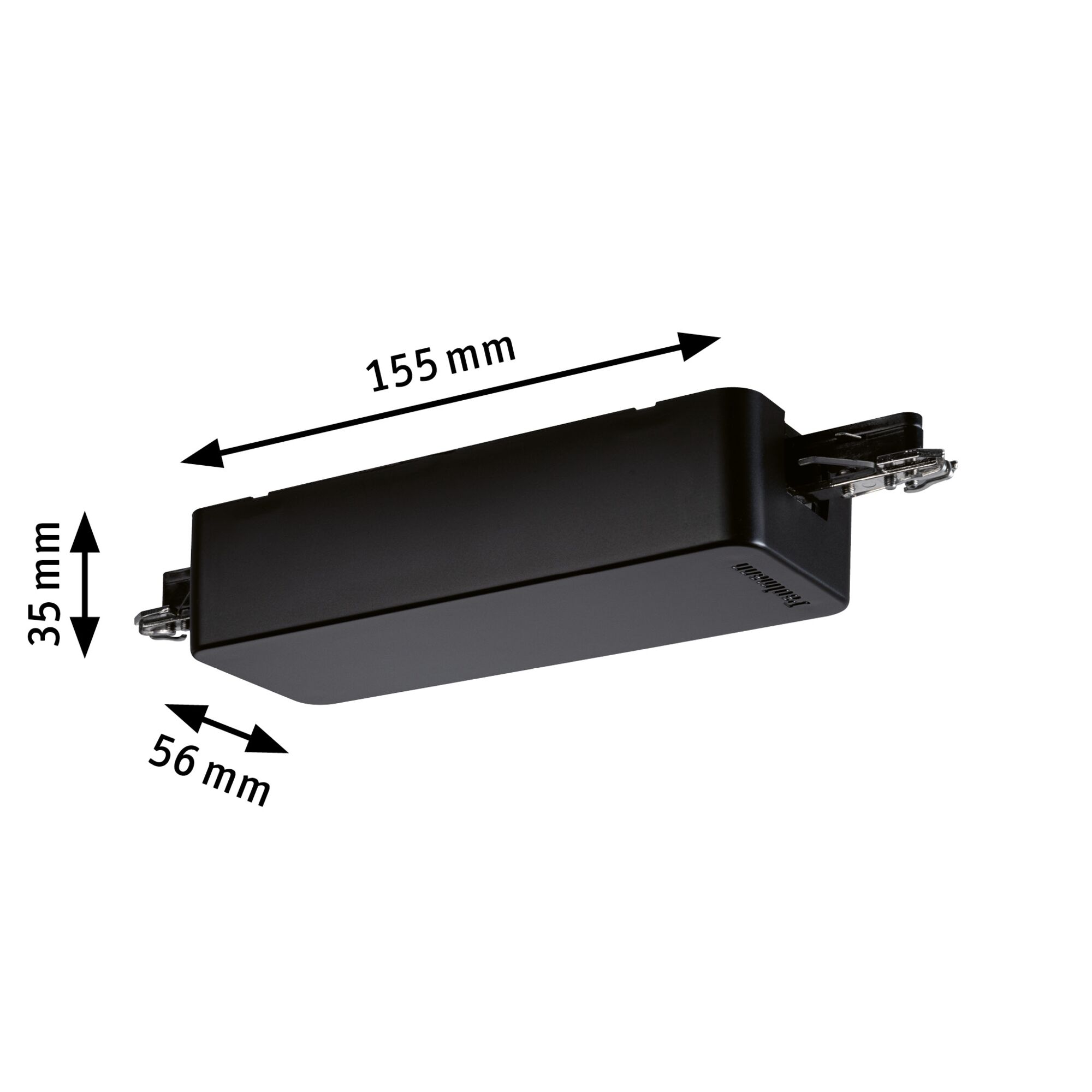

155x56mm Black matt
155x56mm Black matt
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

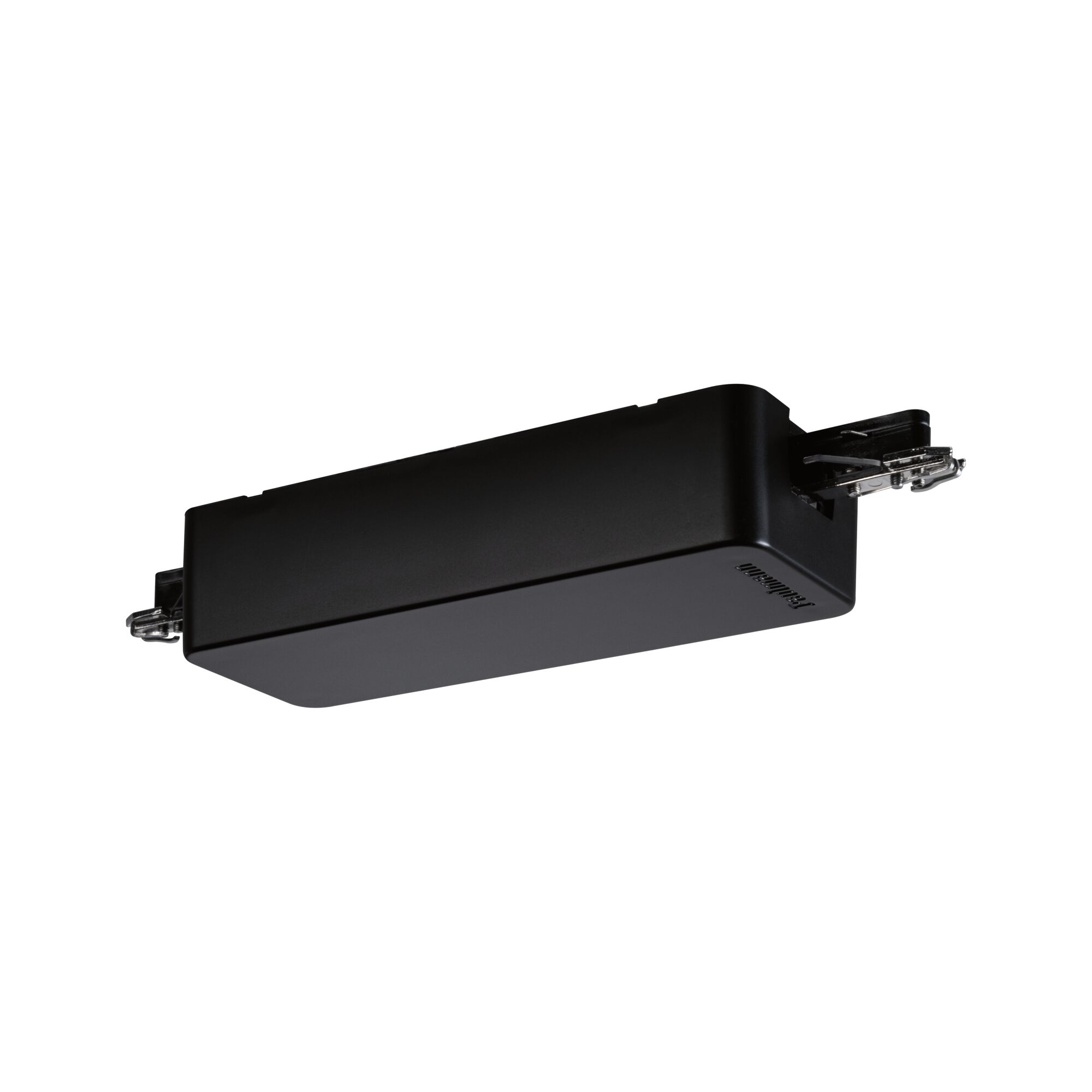

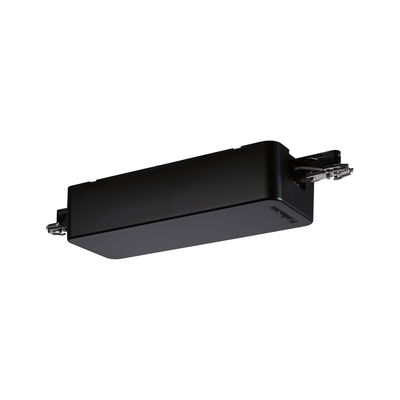

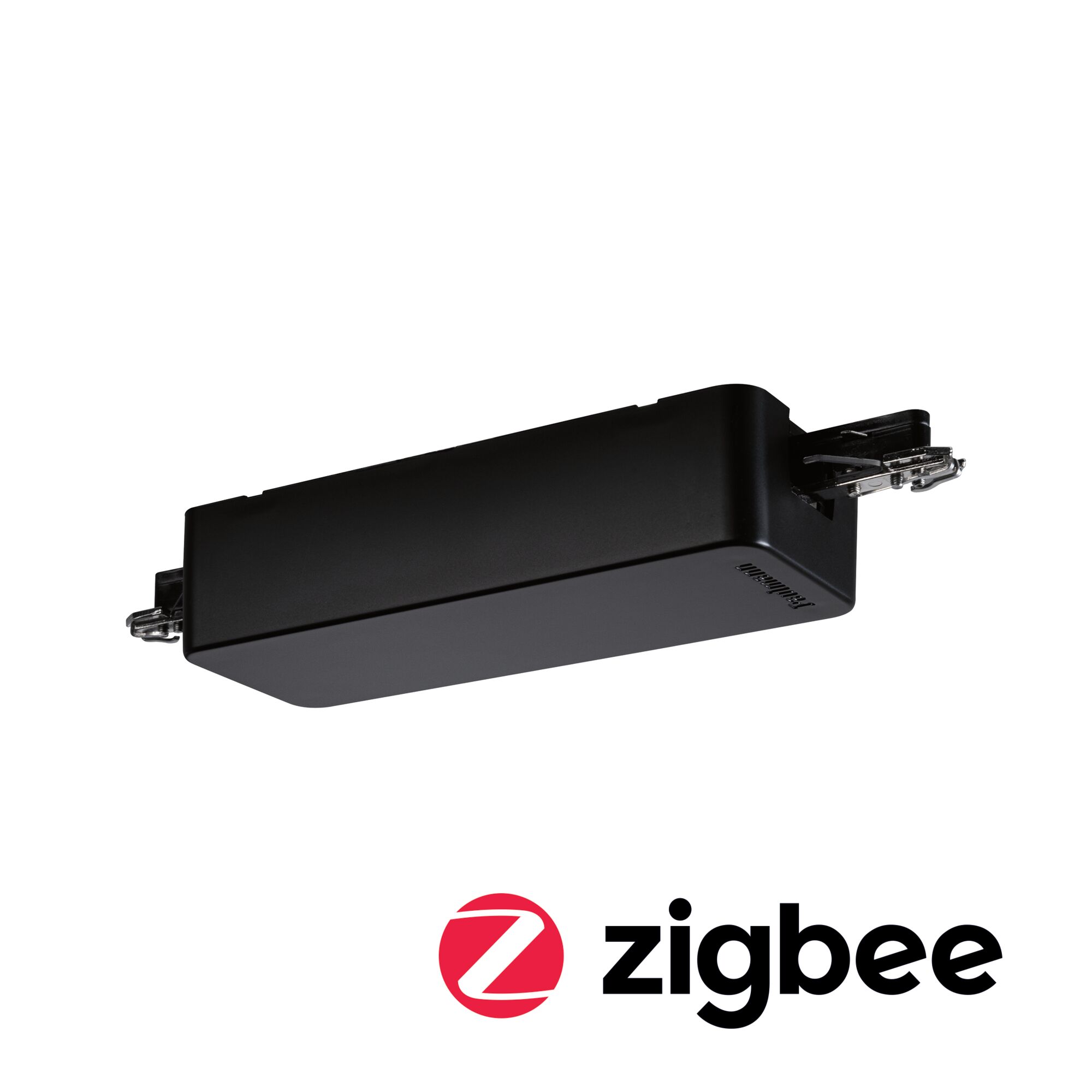

URail Rail adapter Smart Home Zigbee 3.0 Dimm/Switch 155x56mm Black matt
The black URail dim/switch adapter from the Smart Home Zigbee 3.0 series can be used to switch and dim the following rail sections of your URail system. The adapter enables easy integration of smart control into the URail system without any changes to the electrical wiring in your home. The adapter and the rail are simply connected together. This allows the URail dim/switch adapter to function as a rail connector.The dim/switch is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. PLEASE NOTE: This product is not compatible with all fixed LEDs and LED light bulbs and only works in connection with infinitely dimmable lights. Please refer to the dimmer compatibility in the technical data for the lights/light bulbs
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Switchable and dimmable URail connectors
- Simple plug-in installation
- Note: This article only works in connection with continuously dimmable lights
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 35 x B: 155 x T: 56 mm |
| net weight | 214 g |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| Dimmable | Yes |
| Maximum wattage range | max. 400 W |
| Protection class | Protection class II |
| Replacable | 7 not concerned. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Capacitive load | 150 W |
| Resistive load | 400 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
