Article-No.:
95796
URail
Power Supply
Zigbee 3.0
Cable
1m max. 100W Titanium
1m max. 100W Titanium

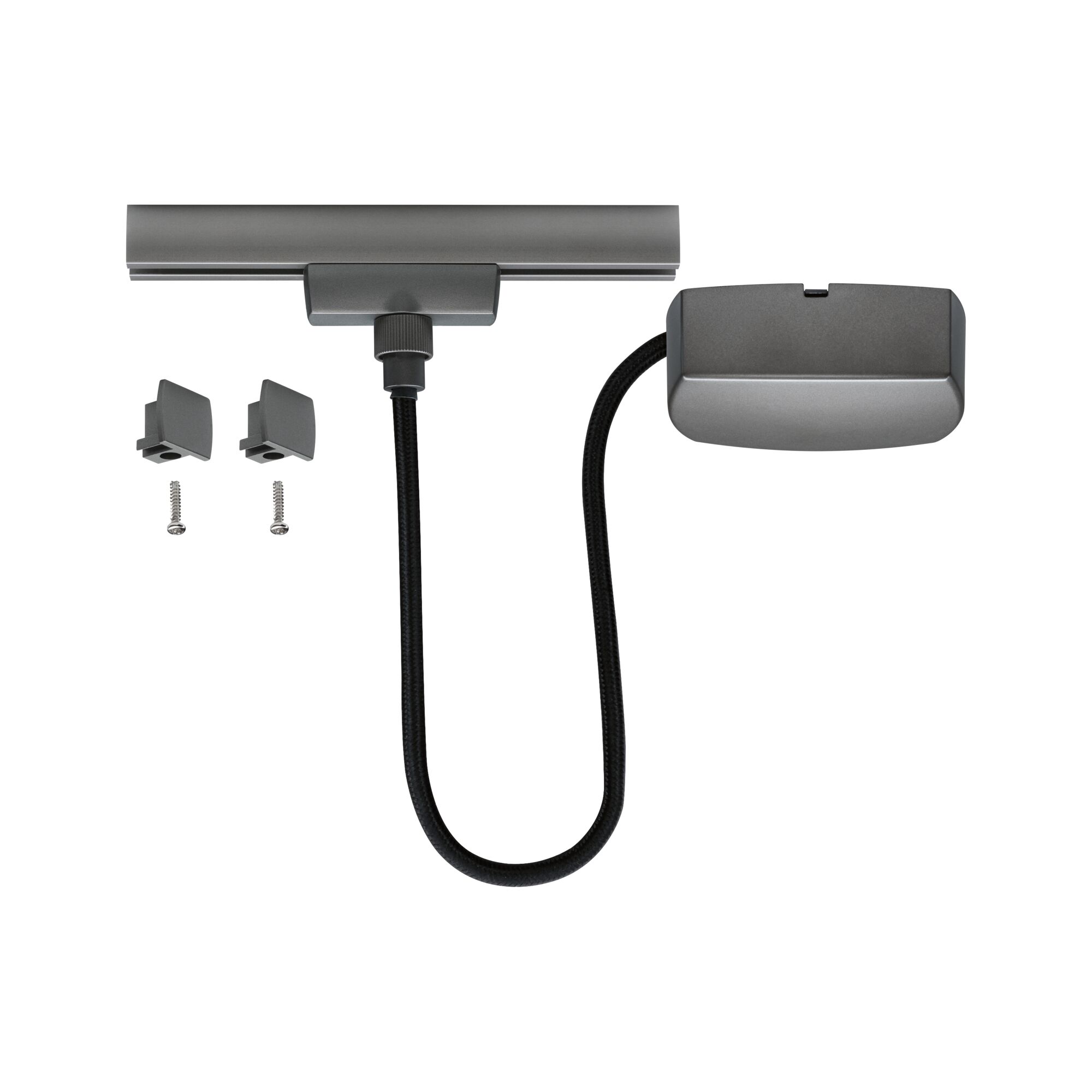

- URail power infeed incl. assembly instructions
- Convenient combination of power supply and Zigbee controller
- Usable with smart home gateways that have a Zigbee interface

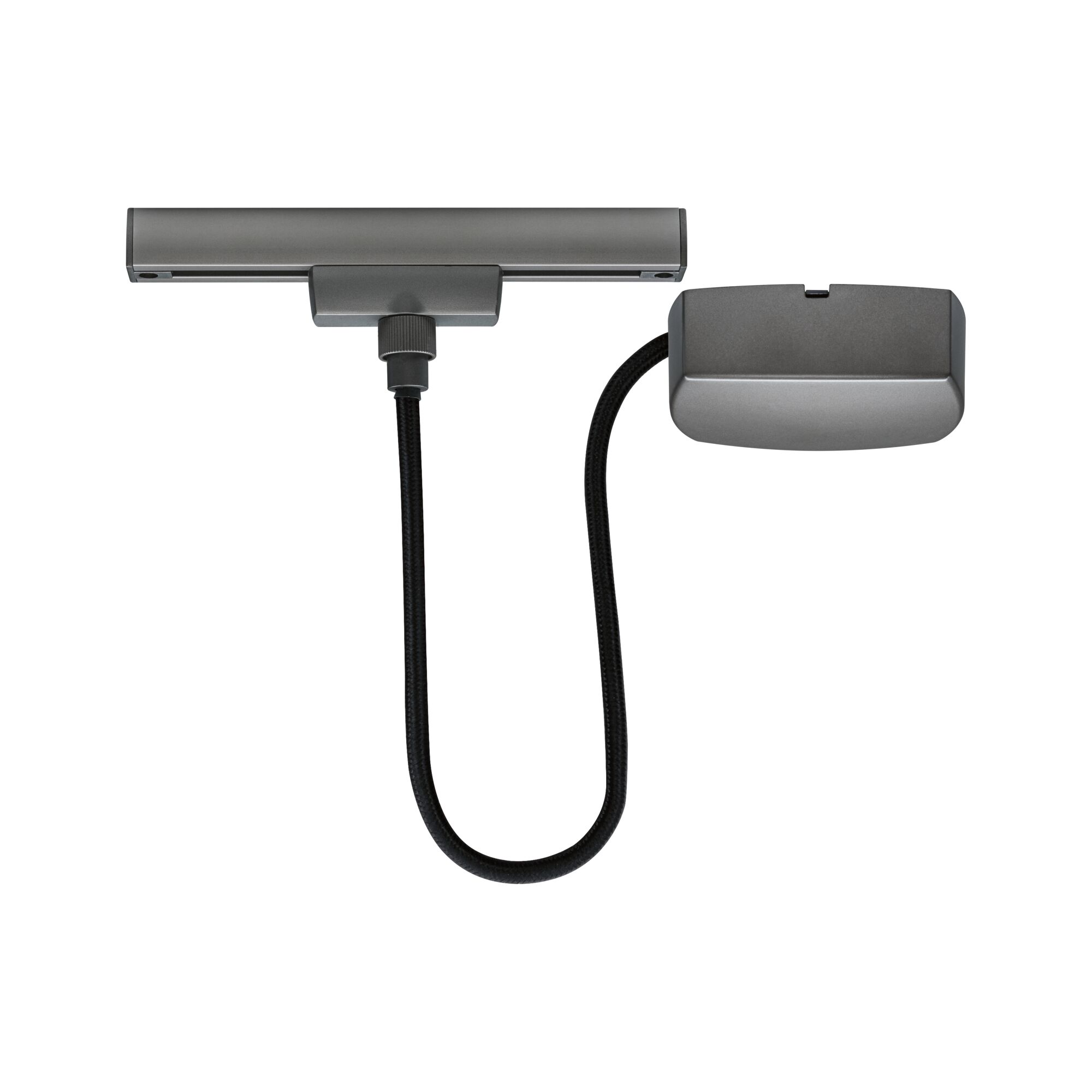

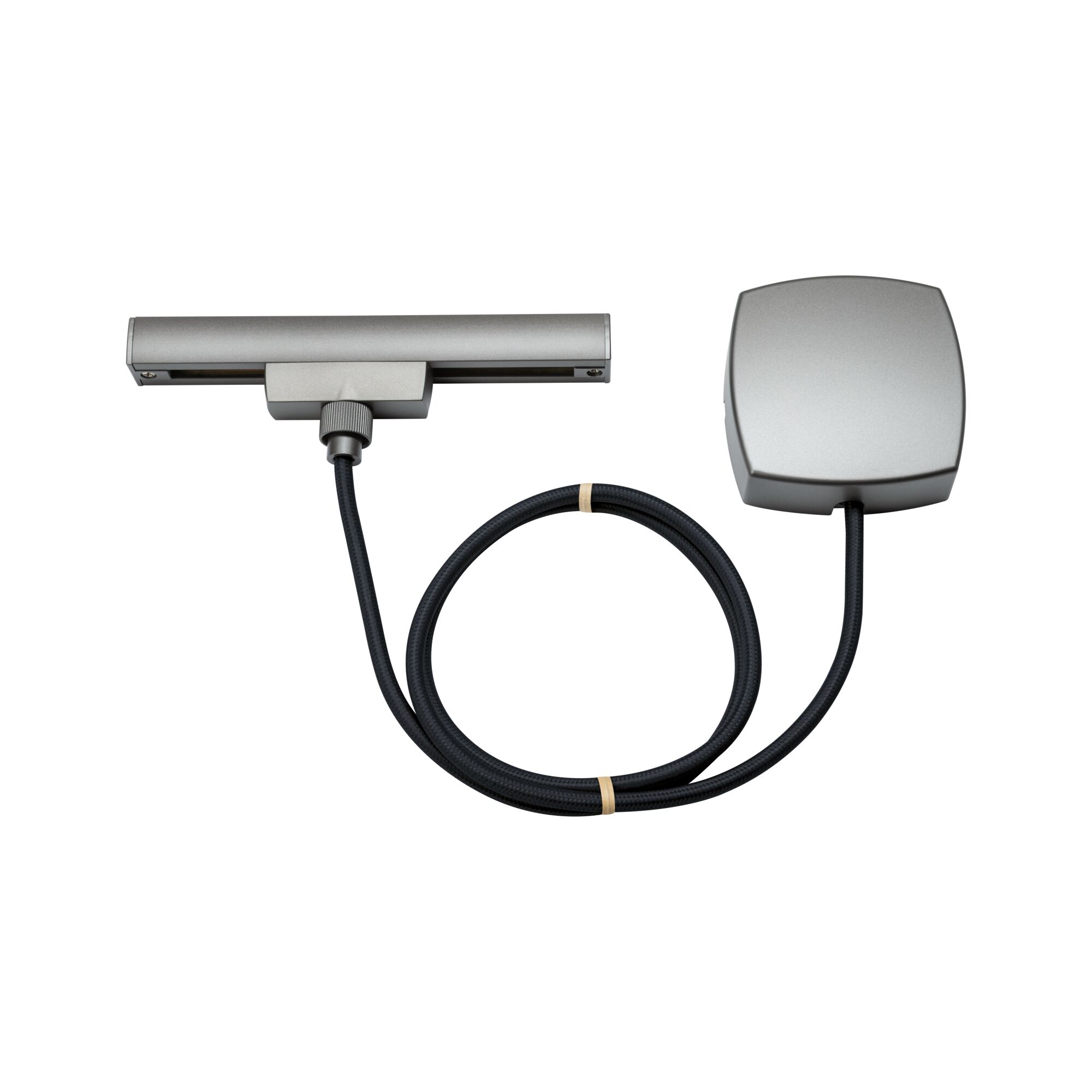

URail Power Supply Zigbee 3.0 Cable 1m max. 100W Titanium
With this URail cable power supply with integrated Zigbee 3.0 control unit, the lighting design is based on the room - and not on the position of the power outlet. The 1 m length of cable bridges the distance between the Deckoutlet and the rails, allowing flexible, harmonious positioning of the URail system. The power supply switches or dims the entire URail System. The titanium color impresses with a soft, warm metallic look that harmoniously combines modern elegance and homely comfort. As a result, the power supply blends discreetly into modern living spaces and complements the URail System as a high-quality, harmonious detail. NOTE: This article is not compatible with all fixed LEDs and LED light sources and only works in connectors with continuously dimmable luminaires. The dimming compatibility can be found in the technical data of the luminaires/light sources.
- URail power infeed incl. assembly instructions
- Convenient combination of power supply and Zigbee controller
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
- Finish/colour: Titanium
- Controllable with smart home Zigbee remote control
- Remember: Order the connectors at the same time!
- Note: This article only works in connection with continuously dimmable lights
| Dimension | |
|---|---|
| Diameter | 80 mm |
| Dimensions (Height x Width x Depth) | H: 30 x B: 165 mm |
| Length | 1 m |
| Net weight | 318 g |
| Design and Material | |
|---|---|
| Colour | Titanium |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dimmable | Yes |
| Maximum wattage range | max. 100 W |
| Protection class | Protection class I |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 30 x 165 mm |
